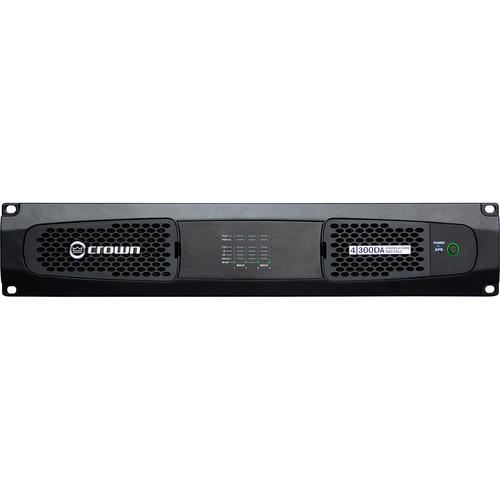

User Manual for Crown Audio DCi 4 300DA DriveCore Install DA Series 4-Channel Amplifier 300W x 4 with Dante AES67 Click to enlarge the picture
Contents of the user manual for the Crown Audio DCi 4 300DA DriveCore
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
|
User manual for the Crown Audio DCi 4 300DA DriveCore contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description The Crown DCi 4/300DA DriveCore Install DA Series is a 4-channel power amplifier with Dante / AES67 networked audio and integrated DSP. The amplifier is capable of producing 300W of output per channel and works with 2-, 4-, 8-, and 16-Ohm speakers or with 70/100Vrms systems. Channels can be bridged for powering higher power applications such as a subwoofer.
The amp's advanced capabilities and support for Dante Domain Manager makes it well suited for installations that are standardized on Dante for networked audio transport. The Dante / AES67 ports provide primary and secondary connections for redundancy and will accept 48 and 96 kHz digital audio. Analog audio can be sent via Dante / AES67 pre/post processing (at 48 kHz). Network configuration, monitoring, and control are provided with HiQnet protocols over standard TCP/IP network connections. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers. Additionally, a programmable General Purpose Input/Output (GPIO) port can be configured to control volume, recall presets, report errors to a third-party control system, and more.
The integrated DSP provides a comprehensive set of tools and features including LevelMAX limiting for inputs and outputs with thermal limiting, input compression, input & output delay (up to 2 seconds), input & output EQ, crossover settings, and a signal generator. The Crown DCi 4/300DA DriveCore Install DA Series 4-Channel Amplifier ships with four input connectors and a power cord. - General Features
-
- Crown's proprietary and patented DriveCore technology
- Amplifiers are the next generation of PWM technology using high-quality, Class-D amplifier topologies
- Minimum Guaranteed Power Ratings: DCi amplifiers deliver the rated power in the specifications for long periods of time
- Direct Drive "Constant Voltage" capabilities on a channel by channel basis for 70 or 100Vrms amplification without the use of a step-up frequency limiting transformer for higher audio quality
- HiQnet Audio Architect supported amplifier
- Advanced PFC universal power supply provides efficiency, and is designed to deliver maximum power no matter where the amplifier is located; Universal AC input accepts 100 to 240 VAC, 50/60 Hz (±10%)
- DriveCore includes five patents that are also included in Crown’s flagship touring amplifier I-Tech HD4, providing versatility and durability
- TCP/IP based protocol in HiQnet for network monitoring and control
- Highly effective cooling system focuses airflow on parts that need it most, maximizing efficiency while minimizing heat and noise
- Integrated Dante / AES67 networked audio simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier
- Network monitoring and Control
-
- Continuous load monitoring
- Comprehensive error reporting
- Pilot tone monitoring
- Programmable general purpose input/output (GPIO) ports
- Digital Signal Processing (DSP)
-
- LevelMAX: Limiters for inputs and outputs with thermal limiting
- Input compressor
- Input and output delay
- Input and output EQ
- Signal generator
- Crossover
In the Box Crown Audio DCi 4/300DA DriveCore Install DA Series 4-Channel Amplifier 300W x 4 with Dante / AES67 4 x Male Input Connectors IEC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio DCi 4 300DA DriveCore Install DA Series 4-Channel Amplifier 300W x 4 with Dante AES67 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio DCi 4300 Specs | Inputs | 3-pin block connectors | | Outputs | Terminal strips | | Output Power | Dual Mode:
@ 2 Ohms: 150 W (Per Channel)
@ 4 Ohms: 300 W (Per Channel)
@ 8 Ohms: 300 W (Per Channel)
@ 16 Ohms: 150 W (Per Channel)
@ 70 Vrms: 300 W (Per Channel)
@ 100 Vrms: 300 W (Per Channel)
Bridge Mono Mode:
@ 4 Ohms: 300 W
@ 8 Ohms: 600 W
@ 16 Ohms: 600 W
@ 140 Vrms: 600 W
@ 200 Vrms: 600 W | | Voltage Gain | 34 dB | | Frequency Response | 20 Hz to 20 kHz (8 Ohms): ±0.25dB | | Signal to Noise Ratio | Signal to Noise Ratio (ref. rated power, (8 Ohms, 20 Hz to 20 kHz): > 108 dB | | Total Harmonic Distortion | < 0.35% (@ full-rated power, from 20 Hz to 20 kHz) | | Intermodulation Distortion | ≤ 0.35% (60 Hz and 7 kHz @ 4:1, from -30 dB to full-rated power) | | Damping Factor | > 1000 (20 to 100 Hz) | | Crosstalk | > 80 dB (below rated power, 20 Hz to 1 kHz) | | CMRR | > 70 dB (20 Hz to 1 kHz, typical) | | DC Output Offset | ±10 mV (with inputs shorted) | | Input Impedance | 10 kOhms (nominally balanced)
5 kOhms (nominally unbalanced) | | Maximum Input Level | +20 dBu (before compression)
+26 dBu (before clipping) | | Required AC Mains | 100 to 240 VAC, 50/60 Hz (±10) | | Power Connector | 15 A IEC | | Cooling | Continuously variable-speed forced air, front-to-back airflow | | Load Impedance | Stereo/Dual Mode: 2 to 16 Ohms, 70 Vrms, 100 Vrms
Bridged Mono: 4 to 16 Ohms, 140 Vrms, 200 Vrms | | Fan Noise Level | 45 | | Dimensions (W x H x D) | 14.3" / 36.2 cm | | Weight | 20.1 lb / 9.1 kg |
