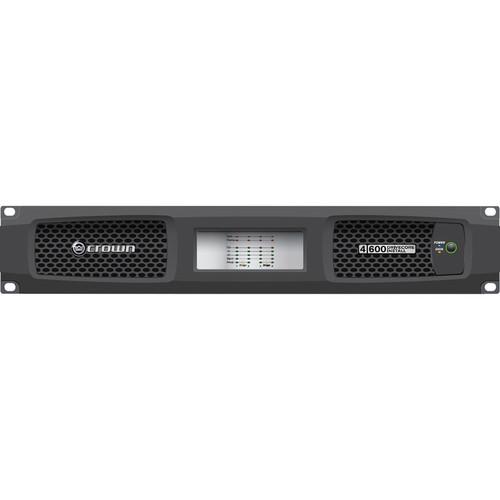

Product description The DCI 4/600 DriveCore Install Analog Series from Crown Audio is a 4-channel amplifier capable of producing 600 watts of output per channel and works with 2, 4, 8, and 16 Ohms or 70 or 100 Vrms. Channels can be bridged for powering higher power applications such as a subwoofer. The 4/600 also has channel-independent high- or low-impedance output that is selectable from the rear-panel DIP switches. This allows you to integrate the amplifier into a variety of different setups. Each of its 4 channels additionally features independent attenuators with an attenuation range from 0 to -80 dB.
The front panel of the 4/600 provides a series of system indicators, including level and signal, ready, clip, thermal, and fault alerts for quick visual monitoring of the system. The unit can be integrated into a control system for powering on and off as well as engaging its sleep mode for saving energy when not in use. The 4/600 is 2U rackmountable and ships with 4 male connectors for wiring and an IEC power cord. -
- Based on Crown's proprietary and patented DriveCore technology, these amplifiers are the next generation of PWM technology using cutting edge Class-D amplifier topologies
- Minimum Guaranteed Power Ratings: Delivers at least the rated power in the specifications over a long period of time
- Direct Drive "constant voltage" capabilities on a channel by channel basis for 70 Vrms or 100 Vrms amplification without the use of a step-up frequency limiting transformer for higher audio quality
- Powersave: Includes an auto-standby mode where after 30 minutes of no audio input, the amplifier powers down and consumes less than 1W; this feature can be enabled and disabled via the back-panel DIP switches
- Advanced PFC universal power supply provides efficiency and is designed to deliver maximum power no matter where the amplifier is located; universal AC input accepts 100 to 240 VAC, 50/60 Hz (±10%)
- Aux Port: Provides additional flexibility for amplifiers to be integrated in control systems for remote on/off and amplifier fault monitoring
- DriveCore includes five patents that are also included in Crown’s flagship I-Tech touring amplifier
- Cooling System: Focuses airflow on parts that need it most, maximizing efficiency while minimizing heat and noise
In the Box Crown Audio DCI 4/600 DriveCore Install Analog Series 4-Channel Amplifier 600 Watts x 4 4 x Male Input Connectors IEC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio DCI 4 600 DriveCore Install Analog Series 4-Channel Amplifier 600 Watts x 4 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio DCI4X600 Specs | Inputs | 3-pin block connectors | | Outputs | Terminal strips | | Output Power | Dual Mode:
@ 2 Ohms: 300 W (Per Channel)
@ 4 Ohms: 600 W (Per Channel)
@ 8 Ohms: 600 W (Per Channel)
@ 16 Ohms: 300 W (Per Channel)
@ 70 Vrms: 600 W (Per Channel)
@ 100 Vrms: 600 W (Per Channel)
Bridge Mono Mode:
@ 4 Ohms: 600 W
@ 8 Ohms: 1200 W
@ 16 Ohms: 1200 W
@ 140 Vrms: 1200 W
@ 200 Vrms: 1200 W | | Voltage Gain | 34 dB | | Frequency Response | Frequency Response (8 Ohms): ±0.25dB | | Signal to Noise Ratio | Signal to Noise Ratio (ref. rated power, (8 Ohms, 20 Hz to 20 kHz): >108 dB | | Total Harmonic Distortion | <0.35% (@ full-rated power, from 20 Hz to 20 kHz) | | Intermodulation Distortion | ≤0.35% (60 Hz and 7 kHz @ 4:1, from -30 dB to full-rated power) | | Damping Factor | >1000 (20 to 100 Hz) | | Crosstalk | >80 dB (below rated power, 20 Hz to 1 kHz) | | CMRR | >70 dB (20 Hz to 1 kHz, typical) | | DC Output Offset | ±10 mV (with inputs shorted) | | Input Impedance | 10 kOhms (nominally balanced)
5 kOhms (nominally unbalanced) | | Maximum Input Level | +20 dBu (before compression)
+26 dBu (before clipping) | | Required AC Mains | 100 to 240 VAC, 50/60 Hz (±10) | | Power Connector | 15 A IEC | | Cooling | Continuously variable-speed forced air, front-to-back airflow | | Load Impedance | Stereo/Dual Mode: 2 to 16 Ohms, 70 Vrms, 100 Vrms
Bridged Mono: 4 to 16 Ohms, 140 Vrms, 200 Vrms | | Fan Noise Level | 45 | | Dimensions (W x H x D) | 19.0 x 3.5 x 14.3" / 48.3 x 8.9 x 36.2 cm | | Weight | 20.1 lb / 9.1 kg | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 22.0 x 20.5 x 8.0" |
