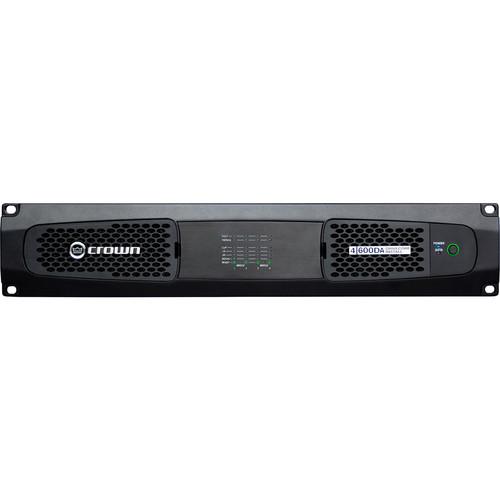

Product description The Crown DCi 4/600DA DriveCore Install DA Series is a 4-channel power amplifier with Dante / AES67 networked audio and integrated DSP. The amplifier is capable of producing 600W of output per channel and works with 2-, 4-, 8-, and 16-Ohm speakers or with 70/100Vrms systems. Channels can be bridged for powering higher power applications such as a subwoofer.
The amp's advanced capabilities and support for Dante Domain Manager makes it well suited for installations that are standardized on Dante for networked audio transport. The Dante / AES67 ports provide primary and secondary connections for redundancy and will accept 48 and 96 kHz digital audio. Analog audio can be sent via Dante / AES67 pre/post processing (at 48 kHz). Network configuration, monitoring, and control are provided with HiQnet protocols over standard TCP/IP network connections. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers. Additionally, a programmable General Purpose Input/Output (GPIO) port can be configured to control volume, recall presets, report errors to a third-party control system, and more.
The integrated DSP provides a comprehensive set of tools and features including LevelMAX limiting for inputs and outputs with thermal limiting, input compression, input & output delay (up to 2 seconds), input & output EQ, crossover settings, and a signal generator. The Crown DCi 4/600DA DriveCore Install DA Series 4-Channel Amplifier ships with four input connectors and a power cord. - General Features
-
- Crown's proprietary and patented DriveCore technology
- Amplifiers are the next generation of PWM technology using high-quality, Class-D amplifier topologies
- Minimum Guaranteed Power Ratings: DCi amplifiers deliver the rated power in the specifications for long periods of time
- Direct Drive "Constant Voltage" capabilities on a channel by channel basis for 70 or 100Vrms amplification without the use of a step-up frequency limiting transformer for higher audio quality
- HiQnet Audio Architect supported amplifier
- Advanced PFC universal power supply provides efficiency, and is designed to deliver maximum power no matter where the amplifier is located; Universal AC input accepts 100 to 240 VAC, 50/60 Hz (±10%)
- DriveCore includes five patents that are also included in Crown’s flagship touring amplifier I-Tech HD4, providing versatility and durability
- TCP/IP based protocol in HiQnet for network monitoring and control
- Highly effective cooling system focuses airflow on parts that need it most, maximizing efficiency while minimizing heat and noise
- Integrated Dante / AES67 networked audio simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier
- Network monitoring and Control
-
- Continuous load monitoring
- Comprehensive error reporting
- Pilot tone monitoring
- Programmable general purpose input/output (GPIO) ports
- Digital Signal Processing (DSP)
-
- LevelMAX: Limiters for inputs and outputs with thermal limiting
- Input compressor
- Input and output delay
- Input and output EQ
- Signal generator
- Crossover
In the Box Crown Audio DCi 4/600DA DriveCore Install DA Series 4-Channel Amplifier 600W x 4 with Dante / AES67 4 x Male Input Connectors IEC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio DCi 4 600DA DriveCore Install DA Series 4-Channel Amplifier 600W x 4 with Dante AES67 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio DCi 4600 Specs | Inputs | 3-pin block connectors | | Outputs | Terminal strips | | Output Power | Dual Mode:
@ 2 Ohms: 300 W (Per Channel)
@ 4 Ohms: 600 W (Per Channel)
@ 8 Ohms: 600 W (Per Channel)
@ 16 Ohms: 300 W (Per Channel)
@ 70 Vrms: 600 W (Per Channel)
@ 100 Vrms: 600 W (Per Channel)
Bridge Mono Mode:
@ 4 Ohms: 600 W
@ 8 Ohms: 1200 W
@ 16 Ohms: 1200 W
@ 140 Vrms: 1200 W
@ 200 Vrms: 1200 W | | Voltage Gain | 34 dB | | Frequency Response | 20 Hz to 20 kHz (8 Ohms): ±0.25dB | | Signal to Noise Ratio | Signal to Noise Ratio (ref. rated power, (8 Ohms, 20 Hz to 20 kHz): > 108 dB | | Total Harmonic Distortion | < 0.35% (@ full-rated power, from 20 Hz to 20 kHz) | | Intermodulation Distortion | ≤ 0.35% (60 Hz and 7 kHz @ 4:1, from -30 dB to full-rated power) | | Damping Factor | > 1000 (20 to 100 Hz) | | Crosstalk | > 80 dB (below rated power, 20 Hz to 1 kHz) | | CMRR | > 70 dB (20 Hz to 1 kHz, typical) | | DC Output Offset | ±10 mV (with inputs shorted) | | Input Impedance | 10 kOhms (nominally balanced)
5 kOhms (nominally unbalanced) | | Maximum Input Level | +20 dBu (before compression)
+26 dBu (before clipping) | | Required AC Mains | 100 to 240 VAC, 50/60 Hz (±10) | | Power Connector | 15 A IEC | | Cooling | Continuously variable-speed forced air, front-to-back airflow | | Load Impedance | Stereo/Dual Mode: 2 to 16 Ohms, 70 Vrms, 100 Vrms
Bridged Mono: 4 to 16 Ohms, 140 Vrms, 200 Vrms | | Fan Noise Level | 45 | | Dimensions (W x H x D) | 14.3" / 36.2 cm | | Weight | 20.1 lb / 9.1 kg |
