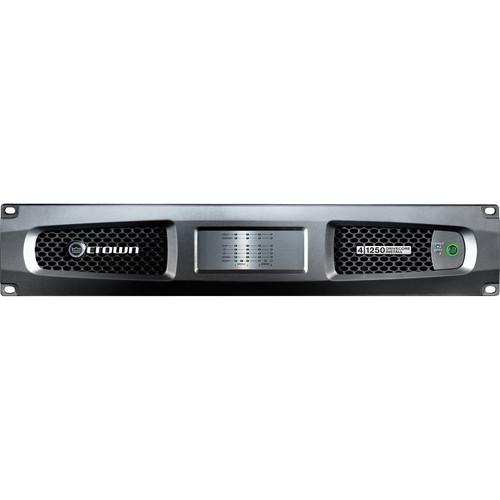

User Manual for Crown Audio DCi 41250 Four-Channel Analog Power Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio DCi 41250 Four-Channel Analog
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
|
User manual for the Crown Audio DCi 41250 Four-Channel Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description The DCi 41250 Four-Channel Analog Power Amplifier from Crown Audio is a four-channel high-performance power amplifier from the DriveCore Install Analog Series which delivers 1250W of power at 4 ohms. It is recommended for installed sound, cinema, and recording broadcast. - True Rack Density
- Four channels in one 2RU box allow smaller infrastructure rooms that can reduce operational costs while giving you installation flexibility.
- Direct Drive Constant Voltage
- The DCi 41250 helps economize by using smaller gauge wiring to drive the speakers using either 70 or 100 Vrms. DCi produces audio quality efficiently without a step-up transformer at the output.
- Channel Independent Hi-Z/Low-Z Selection
- Drive either one or two speakers in low-Z mode, or multiple speakers in high-Z mode (70 or 100 Vrms). DCi powers all loads on a channel-by-channel basis.
- Bridgeable Channel Pairs
- DCi Series' channels are bridgeable, even in 100Vrms mode, which allows adaptability for higher power applications such as subwoofers.
- Remote On/Off Interface
- Save power by integrating the amplifier into a control system so you can turn it on and off.
- Efficient Cooling Design
- Efficient internal cooling fans provide airflow to the heat-generating parts. Incorporating the fans into the amplifier brick design maximizes cooling while minimizing wasted energy and noise.
- Advanced Power Factor Correction (PFC) Universal Power Supply
- The power supply is designed to keep down the amount of power being dissipated and the amount of heat building up in your racks.
In the Box Crown Audio DCi 41250 Four-Channel Analog Power Amplifier (1250W @ 4 ohms) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio DCi 41250 Four-Channel Analog Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio DCI41250 Specs | Output Power | 1250 W | | Frequency Response | ±0.25 dB @ 8 ohms 20 Hz - 20 kHz | | Signal to Noise Ratio | >108 dB, A - weighted | | Total Harmonic Distortion | 0.35% @ full rated power, 20 Hz - 20 kHz | | Voltage Gain | 34 dB | | Damping Factor | >1500 @ 20 Hz to 100 Hz | | Input Impedance | Nominal Balanced: 10 kOhms
Unbalanced: 5 kOhms | | Maximum Input Level | Before Compression: +20 dBu
Before Clipping: +26 dBu | | Load Impedance | Stereo/Dual Mode: 2 - 16 ohms; 70 and 100 Vrms
Bridge Mono: 4 - 16 ohms; 140 and 200 Vrms | | Cooling | Continuously variable speed forced air, front to back airflow | | Fan Noise | 47 maximum, re dBA SPL @ 1 m | | Required AC Mains | 100-240 VAC ~50/60 Hz (±10%) | | Power Connector | 20 A IEC | | Dimensions | 19.0 x 3.5 x 17.0" (48.3 x 8.9 x 42.5 cm) | | Weight | 30 lb (13.6 kg) |
