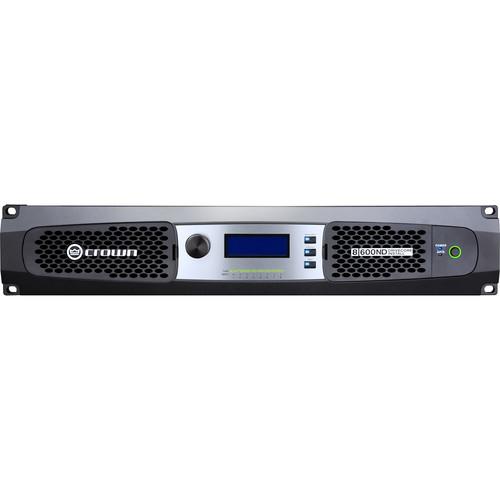

The DCi 8600ND Eight-Channel Power Amplifier with AVB from Crown Audio is an eight-channel power amplifier from the DriveCore Install Network Display Series which delivers 600W of power at 4 ohms. The amplifier offers consistent audio and information delivery using AVB technology. It is certified by the AVnu Alliance and is recommended for Crown Audio Installed Sound products.
Technology
PWM technology using cutting edge Class D amplifier topologies
Audio Video Bridging (AVB) Ethernet transport port
Cooling system focuses airflow on parts that need it most
Software
Compatible with HiQNet Audio Architect software
TCP/IP based protocol in HiQnet for network monitoring and control
Power
Direct drive 'constant voltage' capabilities on channel by channel basis at 70 and 100 Vrms
Low Power Ratings
PFC universal power supply; universal AC input accepts 100 - 240 VAC, 50/60 Hz (±10%)
Network & Control
Continuous load monitoring
Comprehensive error reporting
Pilot tone monitoring
Programmable general purpose input/output (GPIO) ports
Digital Signal Processing (DSP)
LevelMAX limiters for inputs and outputs with thermal limiting
Input and output delay
Input and output EQ
Signal generator and crossover
In the Box Crown Audio DCi 8600ND Eight-Channel Power Amplifier with AVB (600W @ 4 ohms)
Limited 3-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Crown Audio DCi 8600ND Eight-Channel Power Amplifier with AVB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Crown Audio DCi 8600ND Specs
Controls
TCP/IP, network control port AVB, Ethernet port GPIO, general purpose ports
Output Power
600 W
Frequency Response
±0.25 dB @ 8 ohms, 20 Hz - 20 kHz
Signal to Noise Ratio
AVB: >108 dB (ref. rated power, 8 ohms, 20 Hz - 20 kHz) Analog Input: >104 dB (ref. rated power, 8 ohms, 20 Hz - 20 kHz)
Total Harmonic Distortion
0.35% @ full rated power, 20 Hz - 20 kHz
Voltage Gain
34 dB @ maximum level setting
Damping Factor
>1000 @ 20 Hz to 100 Hz
Input Impedance
Nominal Balanced: 10 kOhms Unbalanced: 5 kOhms
Maximum Input Level
Before Compression: +20 dBu, low gain mode
Load Impedance
Stereo/Dual Mode: 2 - 16 ohms; 70 and 100 Vrms Bridge Mono: 4 - 16 ohms; 140 and 200 Vrms
Cooling
Continuously variable speed forced air, front to back airflow
Fan Noise
47 maximum, re dBA SPL @ 1 m
Required AC Mains
100 - 240 V ~50/60 Hz, ±10%
Power Connector
20 A IEC
Dimensions
19.0 x 3.5 x 17.0" (48.3 x 8.9 x 42.5 cm)
Weight
30 lb (13.6 kg)
