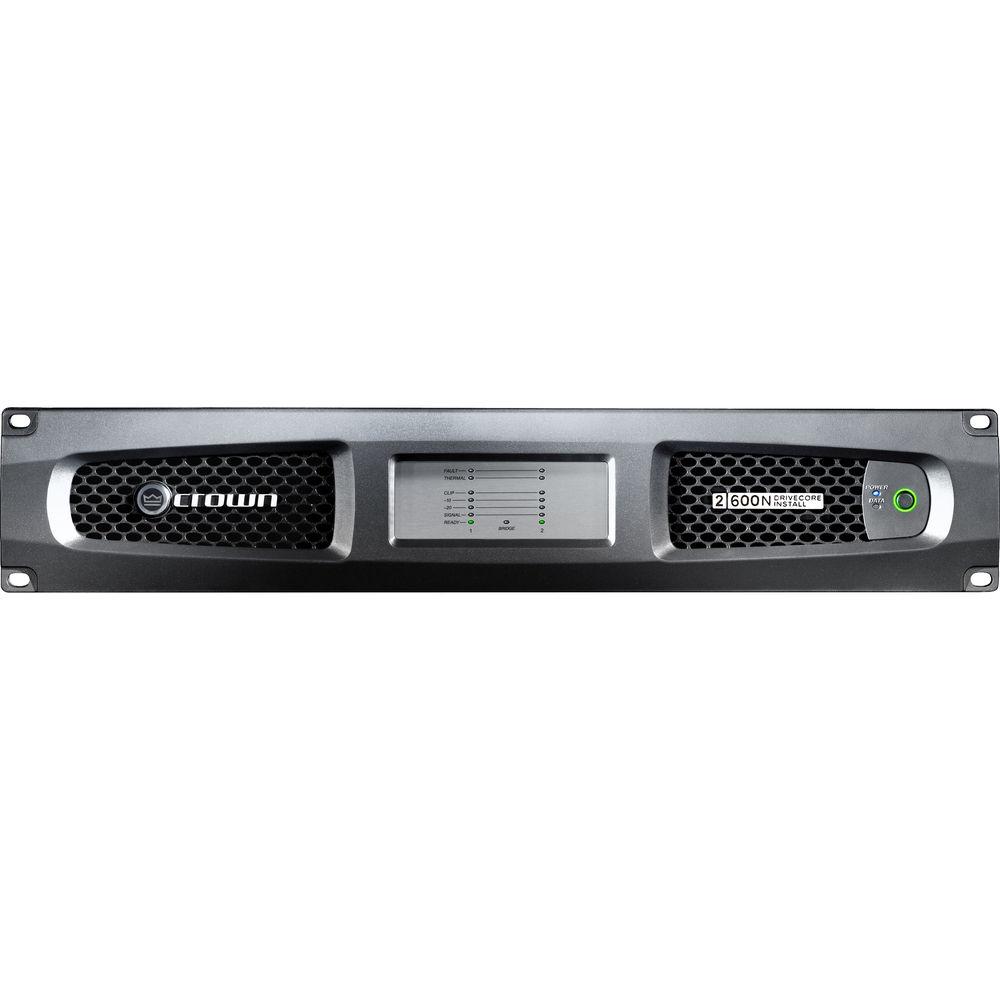

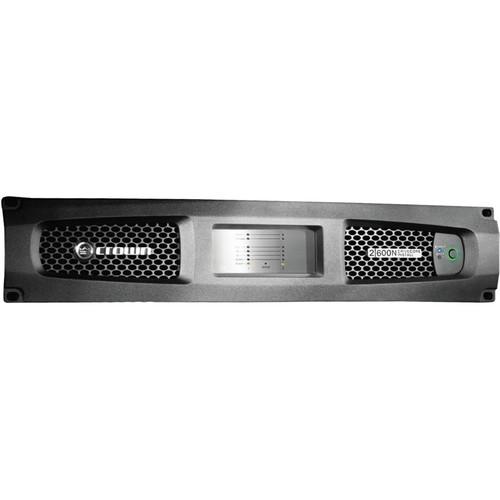

User Manual for Crown Audio DCI2600N DriveCore Install Series Network Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio DCI2600N DriveCore Install Series
- Product category: Standard Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Standard Amplifiers
 |
User manual for the Crown Audio DCI2600N DriveCore Install Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description The DCI2600N DriveCore Install Series Network Amplifier from Crown Audio is based on the Harman DriveCore technology, featuring PWM technology using Class D amplifier topologies.The DCI2600N amplifier is designed, engineered, and manufactured to the industry’s high quality standards, and provides system integrators with great features and flexibility. The DCI2600N is versatile, compact, and energy-efficient. - True Rack Density
- Power points of 300W or 600W in 2 channel configurations. All in a 2 RU form factor provides flexibility in design tools.
- Minimum Guaranteed Power Ratings
- The DCi Amplifier is guaranteed to deliver at least the rated power in the specifications over a longer period of time.
- Analog & Digital Inputs
- With digital audio transport via HARMAN's proprietary BLU-Link, plus balanced analog inputs, the DCI2600N gives you a tremendous audio advantage. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.
- Network Monitoring & Control
- Better monitoring, control and audio manipulation with the HiQnet protocol that's over standard TCP/IP. Remotely see how the networked DCi amplifier is performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with the DCi amplifier.
- Programmable General Purpose Input/Output Ports
- GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.
- Digital Signal Processing
- DSP capabilities include the following
LevelMAX Limiters for inputs and outputs with thermal limiting
Input/Output EQ
Matrix mixer
Speaker line monitoring
Input compressor
Input and output delay
Signal generator
Crossover - Constant voltage 70V or 100V output is available on a channel by channel basis. Bridging amplifier channels is not required.
- Global power supply designed to deliver maximum power no matter where the amplifier islocated.Universal AC input accepts 100 to 240VAC, 50/60 Hz(±15%).
- DriveCore includes 5 patents that are also included in Crown's flagship touring amplifier I-Tech HD4.
- Audio Architectsupported amplifier.
- BLU-Link digital audio transport
- Continuous Load Monitoring
- Comprehensive Error Reporting
In the Box Crown Audio DCI2600N DriveCore Install Series Network Amplifier Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio DCI2600N DriveCore Install Series Network Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio DCI 2600N Specs | Power | Dual Mode
2 Ω: 300 W
4 Ω: 600 W
8 Ω: 600 W
16 Ω: 300 W
70 Vrms: 600 W
100 Vrms: 600 W
Bridge Mono Mode
4 Ω: 600 W
8 Ω: 1200 W
16 Ω: 1200 W
140 Vrms: 1200 W
200 Vrms: 1200 W | | Voltage Gain | 4/8 Ω Operation: 34 dB
70 V Operation: 34 dB
100 V Operation: 34 dB | | Input Sensitivity | 8 Ω: 1.4 V
70 V: 1.4 V
100 V: 2 V | | Frequency Response | ±0.25 dB @ 8 Ω, 20 Hz to 20 kHz | | Signal to Noise Ratio | Reference-Rated Power, 8 Ω, 20 Hz to 20kHz:
BLU Link: >108 dB
Analog Input: >104 dB | | Total Harmonic Distortion | 0.35% @ full-rated power, 20 Hz to 20 kHz | | Intermodulation Distortion | ≤0.35% (60 Hz and 7 kHz at 4:1, from -30 dB to full-rated power) | | Damping Factor | >1000 @ 20 to 100 Hz | | Crosstalk | >80 dB @ 20 to 100 Hz (below-rated power) | | Common Mode Rejection | >70 dB @ 20 to 100 Hz | | DC Output Offset | With inputs Shorted: ±10 mV | | Input Impedance | Nominally Balanced: 10 kΩ
Nominally Unbalanced: 5 kΩ | | Maximum Input Level | Before Compression: +20 dBu (Low Gain Mode) | | Required AC Mains | 100 to 240 V, 50/60 Hz (±10%) | | Load Impedance | Stereo/Dual Mode: 2 to 16 Ω; 70 and 100 Vrms
Bridge Mono: 4 to 16 Ω; 140 and 200 Vrms | | Cooling | Continuously variable speed forced air, front-to-back airflow | | Fan Noise | Maximum: 45 re dB SPL @ 3.28' (1.00 m) | | Dimensions (W x H x D) | 19.00 x 3.50 x 14.25" (49.02 x 8.89 x 36.19 cm) | | Weight | 18.80 lb (8.53 kg) | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 22.0 x 20.3 x 8.0" |
