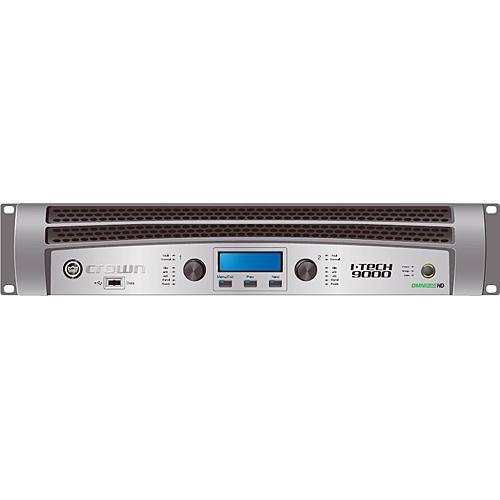

User Manual for Crown Audio I-T9000HD Rackmount Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio I-T9000HD Rackmount Stereo Power
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
|
User manual for the Crown Audio I-T9000HD Rackmount Stereo Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description The I-T9000HD from Crown Audio is a high-performance power amplifier designed for professional applications. The amplifier has a sleek rackmount enclosure packed with innovative technologies that provide world-class performance and ease-of-use. Patented Class-I circuitry provides efficient use of power to keep current draw low while still providing powerful audio output.
Onboard OmniDrive HD DSP processing is built-in and uses 24-bit/192kHz Cirrus Logic A/D and D/A converters, along with FIR and IIR filters for a high level of audio performance. A front-panel USB port allows you to easily transfer DSP settings from a computer to the amplifier. For connection to virtually any sound system, the amp sports analog and digital XLR inputs and outputs, as well as Speakon and Binding Post outputs. An Ethernet port supports TCP/IQ, HiQnet, and CobraNet, and is compatible with standard 100Mb Ethernet hardware.
The amplifier is kept cool by variable-speed fans with a front-to-back airflow to keep system components running reliably. Other useful features of the amplifier include Sweep Load Monitoring with system-level diagnostics, a bright LCD screen for easy navigation, and a true global power supply, allowing you to operate at full power no matter where you go. - Rackmount Design
- The sleek rackmount chassis fits into any standard equipment rack for easy installation
- Class-I Circuitry
- Patented 5th-generation Class-I circuitry provides terrific efficiency for strong performance with a low power draw
- OmniDrive HD DSP
- Built-in BSS OmniDrive HD DSP processing and 24-bit/192kHz Cirrus Logic SHARC converters, along with FIR and IIR filters provide ultra-smooth performance
- USB
- A front-panel USB connector lets you connect a USB drive to quickly transfer DSP settings that were created in a computer
- Analog and Digital I/O
- The amplifier has analog XLR inputs and outputs, as well as AES/EBU digital XLR inputs and outputs. Speakon and Binding Post outputs are also provided
- Ethernet
- An Ethernet port supports TCP/IQ, HiQnet, and CobraNet, and is compatible with standard 100Mb Ethernet hardware
- Cooling Fans
- Front-to-rear cooling fans have true tachometer feedback for precision control of thermal performance
- Diagnostics
- Sweep Load Monitoring (SLM) technology provides system-level diagnostics
- LCD Display
- The bright LCD display allows you to quickly set up and monitor the amplifier
- Global Power
- The global power supply insures your ability to have peak performance anywhere in the world
In the Box Crown Audio I-T9000HD Rackmount Stereo Power Amplifier (1500W/Channel @ 8 Ohms) Power Cord Rack Mounting Hardware Air Filter Operation Manual 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio I-T9000HD Rackmount Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio I-T9000 HD Specs | Power Rating | 1500W/Channel (8 Ohm Dual)
3500W/Channel (4 Ohm Dual)
2800W/Channel (2 Ohm Dual)
7000W (8 Ohm Bridge)
5600W (4 Ohm Bridge) | | Damping Factor | > 5000 | | Input Sensitivity | 1.4 - 7.75V (Adjustable) | | Frequency Response | 20Hz - 20kHz | | Signal-to-Noise Ratio | > 112dB | | Total Harmonic Distortion (THD) | < 0.1% | | Input Connectors | 2 x XLR Inputs
1 x AES/EBU Digital XLR Input
1 x USB Port
1 x Ethernet Port
1 x Power Input | | Output Connectors | 2 x XLR Outputs
1 x AES/EBU Digital XLR Output
2 x Speakon Outputs
2 x Binding Post Outputs (4 Posts Total) | | Controls | 1 x Power Switch
2 x Volume Knobs | | Indicators | LEDs for Bridge, Ready, Signal, Clip, Thermal, Fault, Network Data, Power, and AC Mains | | Cooling | Continuously Variable Speed Fans, Front-to-Back Airflow | | Power Requirements | 100-240VAC, 50/60Hz | | Dimensions (WxHxD) | 19 x 3.5 x 16.2" (483 x 89 x 411mm) | | Weight | 28 lbs (12.7kg) | | | | Package Weight | 37.65 lb | | Box Dimensions (LxWxH) | 23.0 x 23.0 x 7.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
