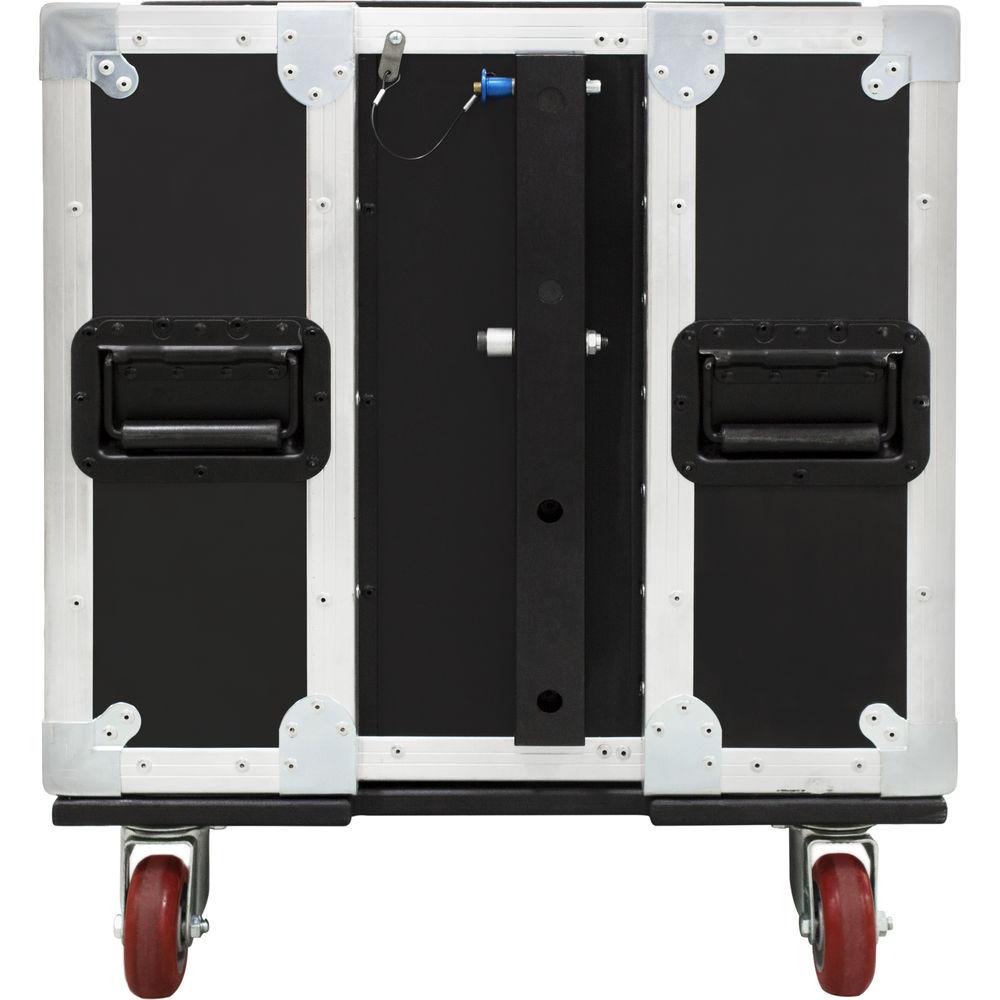

User Manual for Crown Audio VRack Amplification System Rack on Wheels with Three I-Tech 12000HD Amplifiers Click to enlarge the picture
Contents of the user manual for the Crown Audio VRack Amplification System Rack
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
 |
User manual for the Crown Audio VRack Amplification System Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|

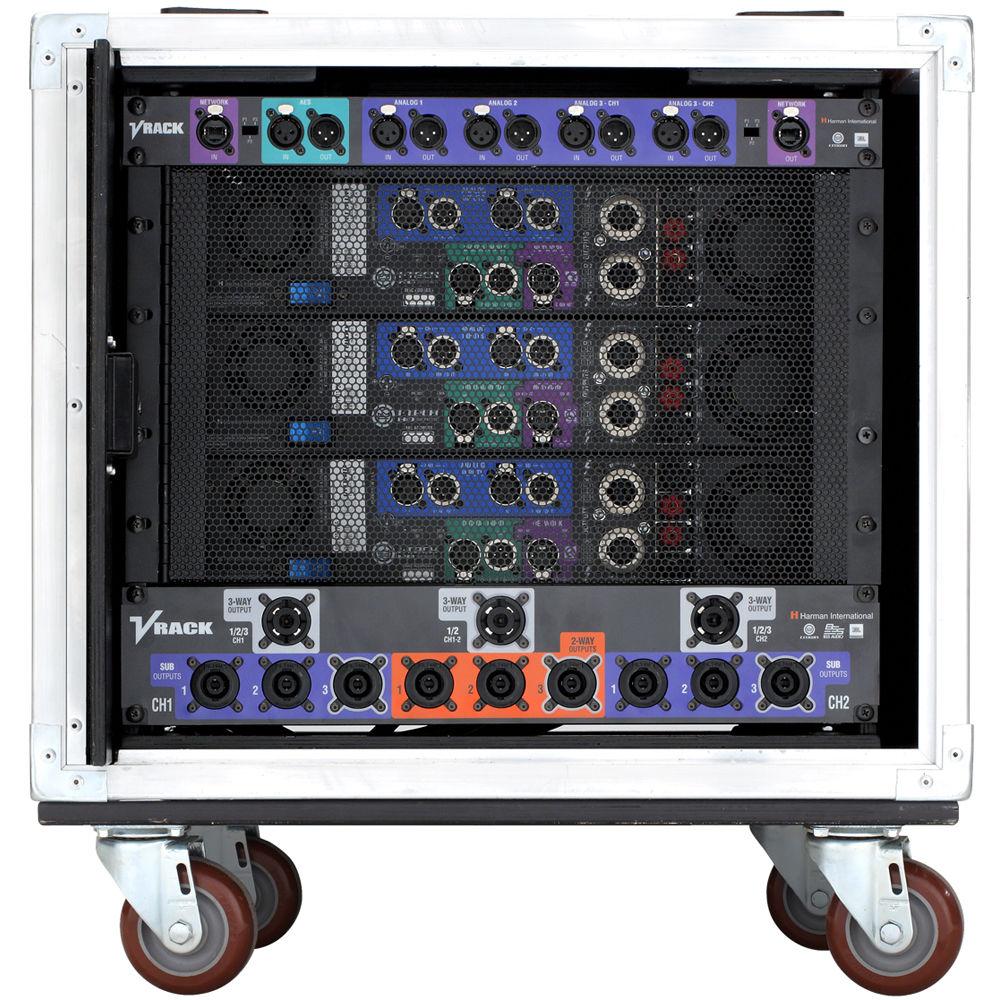

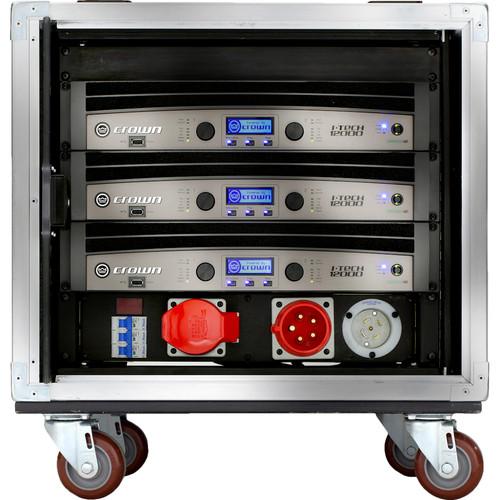

Product description The VRack Amplification System Rack from Crown Audio is comprised of a rugged touring rack fitted with three IT12000HD amplifiers, a power input panel, and custom engineered input and output panels. The input panel is mounted at the top rear and supplies CobraNet network connections as well as AES/EBU and analog XLR connections. The output panel on the bottom rear of the rack offers 12 speakON outputs: three 2-way NL4 outputs, six 1-way NL4 outputs, and three 3-way NL8 outputs. The front-mounted power panel includes a 5-pin Hubbell Twist-Lock connector and a 5-pin CEE-Form connector.
The VRack features Colson 3.5" polyurethane casters rated at 250 lb each, a Polycarbonate, UV stabilized front see-through door, Shock mounting using 8 neoprene rubber isolators, and a captive pocket door system with a single-slam latch. - Worldwide power distribution with both L21-30 and 32A CEE-Form connections
- Flexible input panel with Analog, AES, and VDrive
- Fail-over AES and network connection

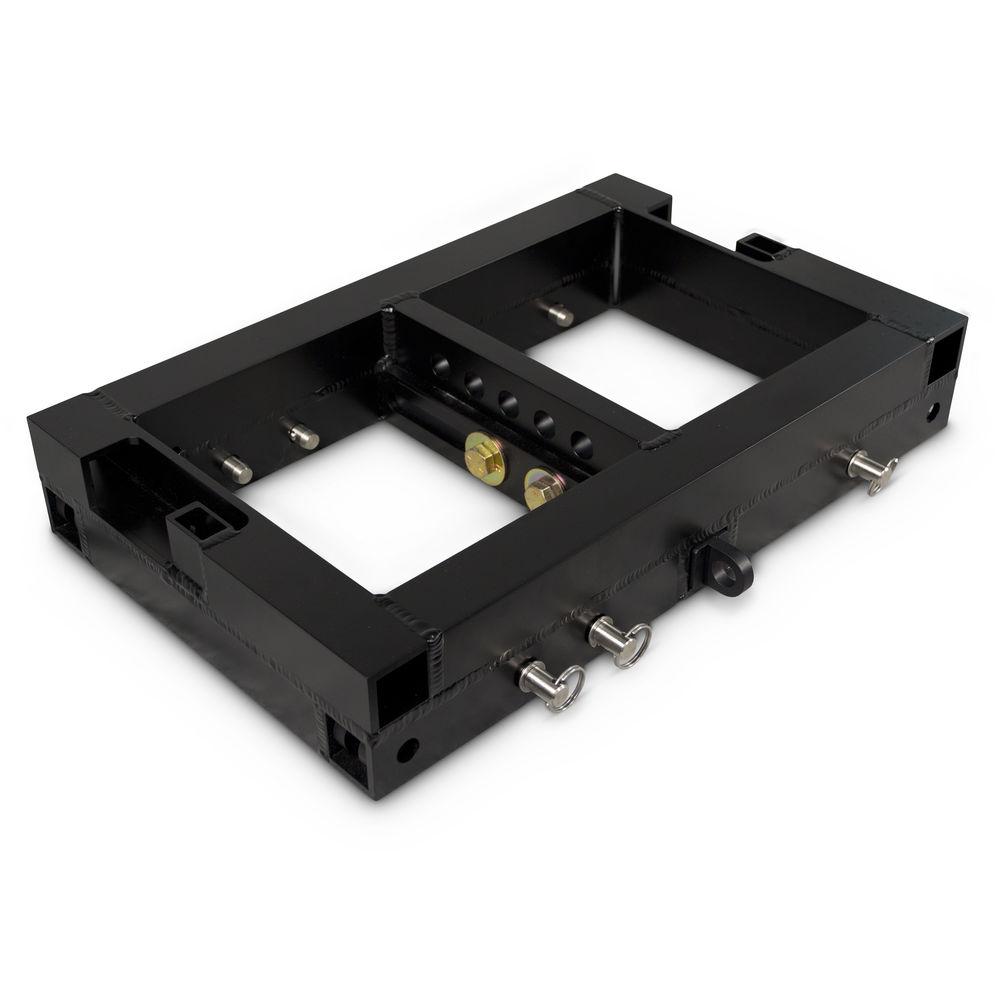

- Built-in captive suspension
In the Box Crown Audio VRack Amplification System Rack on Wheels with Three I-Tech 12000HD Amplifiers 3 x I-T12000HD Rackmount Stereo Power Amplifier (2100W/Channel @ 8 Ohms) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio VRack Amplification System Rack on Wheels with Three I-Tech 12000HD Amplifiers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio VRACK12KMX Specs | Power Connectors | 5-pin CEE form
5-pin Hubbell twist lock | | Connectors | Input Panel:
1 x RJ45 Neutrik, network link input
1 x RJ45 Neutrik, network link output
1 x XLR male, AES3 link output
1 x XLR female, AES3 link input
1 x XLR male, analog output 1
1 x XLR female, analog input 1
1 x XLR male, analog output 2
1 x XLR female, analog input 2
1 x XLR male, analog output 3 channel 1
1 x XLR female, analog input 3 channel 1
1 x XLR male, analog output 3 channel 2
1 x XLR female, analog input 3 channel 2
Output Panel:
1 x speakON, SUB output 1 channel 1
1 x speakON, SUB output 2 channel 1
1 x speakON, SUB output 3 channel 1
1 x speakON, SUB output 1 channel 2
1 x speakON, SUB output 2 channel 2
1 x speakON, SUB output 3 channel 2
1 x speakON, 2-way output 1
1 x speakON, 2-way output 2
1 x speakON, 2-way output 3
1 x speakON, 3-way output 1/2/3 channel 1
1 x speakON, 3-way output 1/2 channel 1/2
1 x speakON, 3-way output 1/2/3 channel 2 | | Controls | Input Panel:
1 x 3-pole switch, VDrive selection
1 x 3-pole switch, rear rack lighting selection | | Dimensions | With Casters: 22.5 x 23.5 x 31.3" / 57.2 x 59.7 x 79.4 cm
Without Casters: 22.5 x 23.5 x 25.9" / 57.2 x 59.7 x 65.7 cm | | Weight | 184 lb / 84.5 kg |
