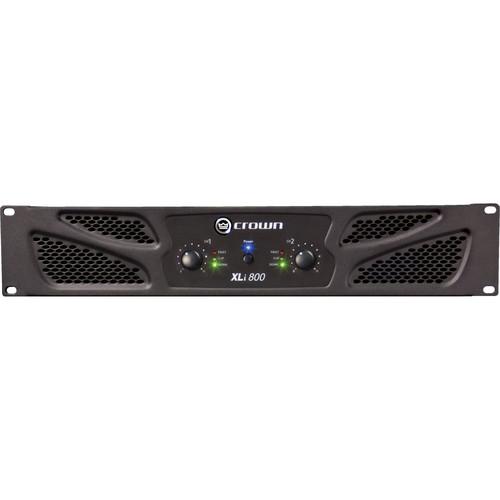

User Manual for Crown Audio XLi 800 Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio XLi 800 Stereo Power
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
|
User manual for the Crown Audio XLi 800 Stereo Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description Designed for musicians, DJs, entertainers, houses of worship, discos, and other venues, the Crown XLi 800 Stereo Power Amplifier feature both RCA and XLR inputs as well as speakON and binding post outputs. The amplifier includes a user selectable input sensitivity of 0.755V or 1.4V, stereo/parallel-bridge-mono modes, power/fault/signal presence/clip LED indicators, forced air cooling, and protection against shorts, no-load, on/off thumps, and interference from radio frequencies in the environment.
Drawing from over six decades of experience in building amplifiers, the unit is capable of delivering 300W per channel at 4 ohms, 200W per channel at 8 ohms, and 600W at 8 ohms in bridged-mono mode.. UPC: 871015006895 In the Box Crown Audio XLi 800 Stereo Power Amplifier Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio XLi 800 Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio XLi 800 Specs | Input | 2x electronically balanced XLR-3F
2x electronically balanced RCA | | Output | 2x binding post
2x speakON outputs | | THD | <0.5% from 20 to 20,000 Hz | | Intermodulation Distortion | ≤ 0.35% (60 Hz and 7,000 Hz at 4:1 from full rated output to -30 dB) | | Slew Rate | >10 V/us | | Voltage Gain | 29 dB | | Damping Factor | 8 Ohm, 10 to 400 Hz: > 200 | | Signal to Noise Ratio | > 100 dB | | Crosstalk | Below rated power: -75 dB
20 to 1,000 Hz:-59 dB | | Input Sensitivity | For full rated power at 8 ohms: 0.775 or 1.4 V | | Input Impedance | Nominal balanced: 20 kilOhm
Unbalanced: 10 kilOhm | | AC Line Power | (+10%) 120V~60 Hz
220V~50/60 Hz
230-240V~50/60 Hz | | IEC | 15 A | | Dimensions | 19 x 3.5 x 12.4" (48.3 x 8.9 x 31.5 cm) | | Weight | 25.1 lb (11.4 kg) | | | | Package Weight | 28.4 lb | | Box Dimensions (LxWxH) | 22.0 x 21.0 x 5.5" |
