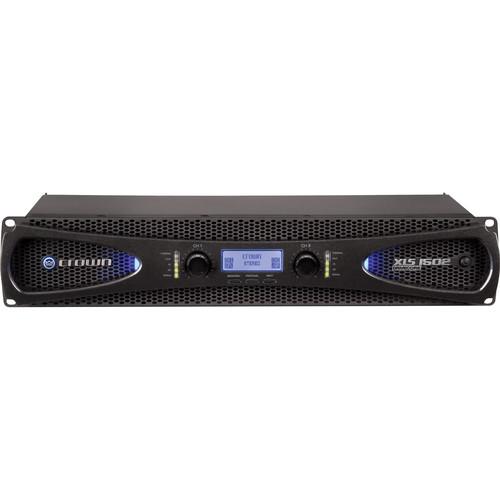

User Manual for Crown Audio XLS 1502 Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio XLS 1502 Stereo Power
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
|
User manual for the Crown Audio XLS 1502 Stereo Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description The Crown XLS 1502 Stereo Power Amplifier offers 525W at 4 Ohm in a lightweight chassis using the company's ultra-efficient DriveCore Class D amplification platform. The amplifier includes built-in DSP with a dedicated band pass filter per channel, an integrated PureBand Crossover System, and Peakx Limiters to provide maximum output while protecting your speakers.
For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or 0.775 Vrms. Outputs are provided on both speakON and binding post connectors.
You can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off. UPC: 691991001000 In the Box Crown Audio XLS 1502 Stereo Power Amplifier (525W at 4 Ohm) Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio XLS 1502 Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio XLS1502 Specs | Connectors | Input:
2x XLR
2x RCA
2x 1/4" / 6.35 mm (can be used as a loop-thru to other amplifiers)
Output:
Binding Post (Channel 1 & 2): 2 pair
4-Pole speakON: 2 (Channel 1 offers Channel 1 & 2 wiring or Bridge Mode wiring) | | Sensitivity | 1.4 Vrms | | Amplifier Power | 775 W at 2 ohm per channel
525 W at 4 ohm per channel
300 W at 8 ohm per channel
1550 W at 4 ohm bridged
1050 W at 8 ohm bridged | | Frequency Response | At 1 W, 20 to 20,000 Hz: +0 dB, -1 dB | | Signal to Noise Ratio | >103 dB (at 0.775 Vrms sensitivity, Signal to Noise is 6 dB lower) | | THD | <0.5% | | Intermodulation Distortion | <0.3% | | Damping Factor | >200 | | Crosstalk | At 1000 Hz: >85 dB
At 20,000 Hz: >55 dB | | Dimensions (W x H x D) | 19 x 3.5 x 7.7" (48.3 x 8.9 x 19.6 cm) | | Weight | 8.6 lb (3.9 kg) | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 21.0 x 12.0 x 6.0" |
