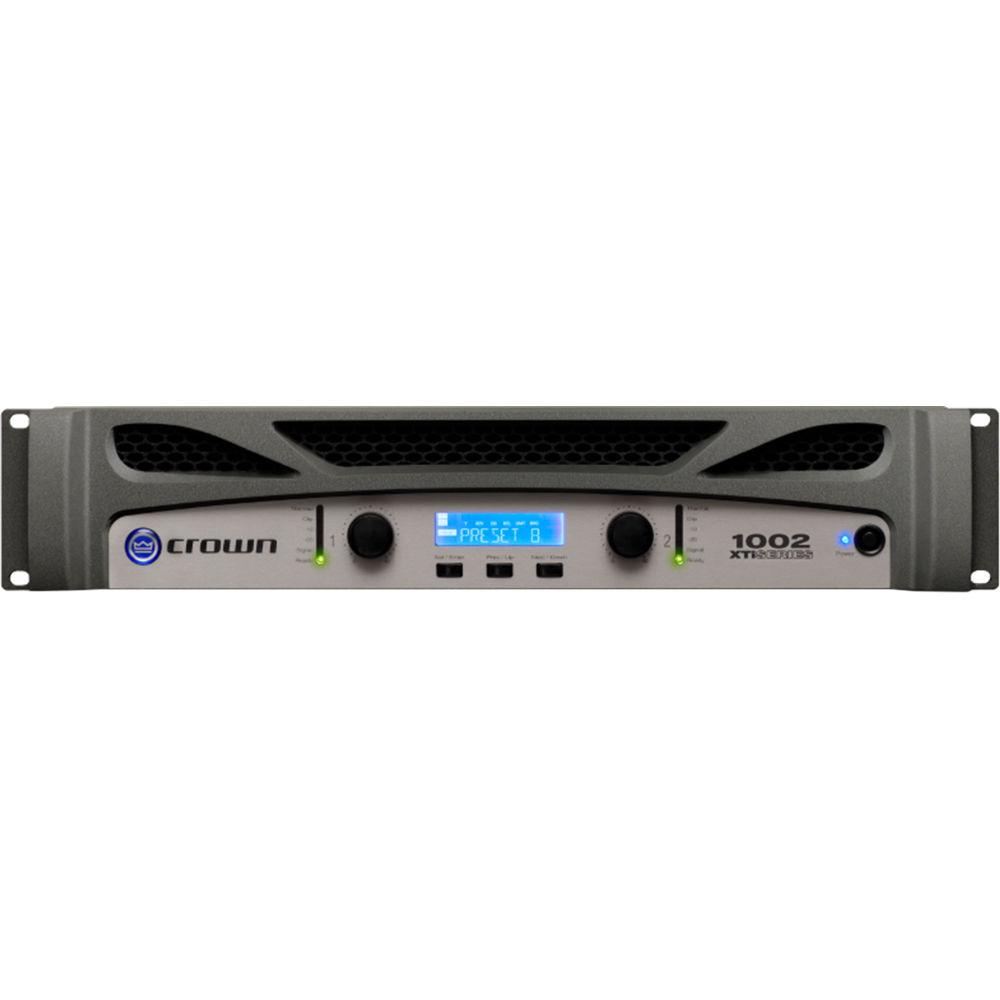

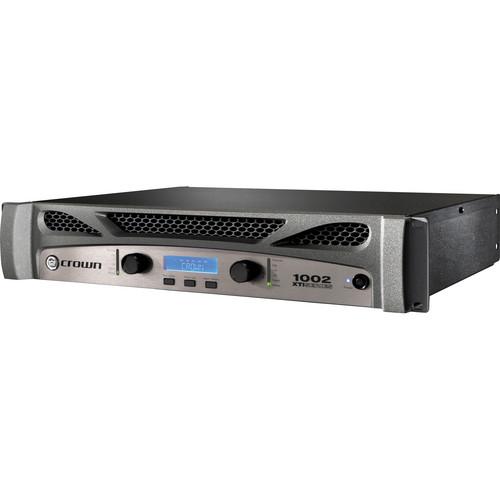

User Manual for Crown Audio XTi 1002 Power Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio XTi 1002 Power Amplifier
- Product category: Standard Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Standard Amplifiers
 |
User manual for the Crown Audio XTi 1002 Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description The Crown XTi 1002 Power Amplifier delivers up to 275W per channel at 8 ohms and is an ideal solution for sound reinforcement, nightclub installation, bands, theaters, DJ applications and much more. The XTi 1002 offers highly accurate sound reproduction with very low distortion, perfect for music or voice playback. It has a switch-mode universal power supply so it can be used anywhere. It handles a wide range of speaker impedances and outputs for a high degree of system compatibility.An array of serious control features are implemented and easily accessed via the included HiQnet Band Manager & System Architect software packages. Crown's Peak Plus Limiters provide the ultimate in system performance and protection. There are 3 user-defined fan modes, adjustable EQ, adjustable crossover filters and much more. - Peak Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
- Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
- 3 User-defined fan mode controls - normal, early and fullspeed - for matching fan performance to a specific application
- New system monitoring provides software visibility of AC line voltage and power supply temperature
- Integrated cast-aluminum handles for easy handling and enhanced durability
- Locking power cord clip provides a secure connection between the amplifier and power cord
- Updated HiQnet Band Manager and System Architect control software
- Increased number of presets to a total of 30; 29 of which are user definable
UPC: 871015005232 In the Box Crown Audio XTi 1002 Power Amplifier HiQnet Band Manager and System Architect Control Software 3 Year Warranty User Manual PDF 6.7mbzccsfeefer Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio XTi 1002 Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio 1002 Specs | Output Power | 700W @ 2 Ohms Stereo (per Channel)
500W @ 4 Ohms Stereo (per Channel)
275W @ 8 Ohms Stereo (per Channel)
1400W @ 4 Ohms Bridged-Mono
1000W @ 8 Ohms Bridged-Mono | | Damping Factor | 20Hz to 1kHz > 500 | | Input Sensitivity | 1.4Vrms | | Input Impedance | 20k Ohms (Balanced)
10 kOhms (Unbalanced) | | Gain | 32.9dB @ 1kHz, 8 Ohm Rated Output | | Frequency Response | (at 1 watt, 20Hz - 20kHz) +0dB, -1dB | | Signal-to-Noise Ratio | XTi1002/2002/4002: 100dB (A weighted)
XTi6002: 103dB (A weighted) | | Total Harmonic Distortion (THD) | < 0.5% | | Connections | Input Connectors: XLR, one per channel

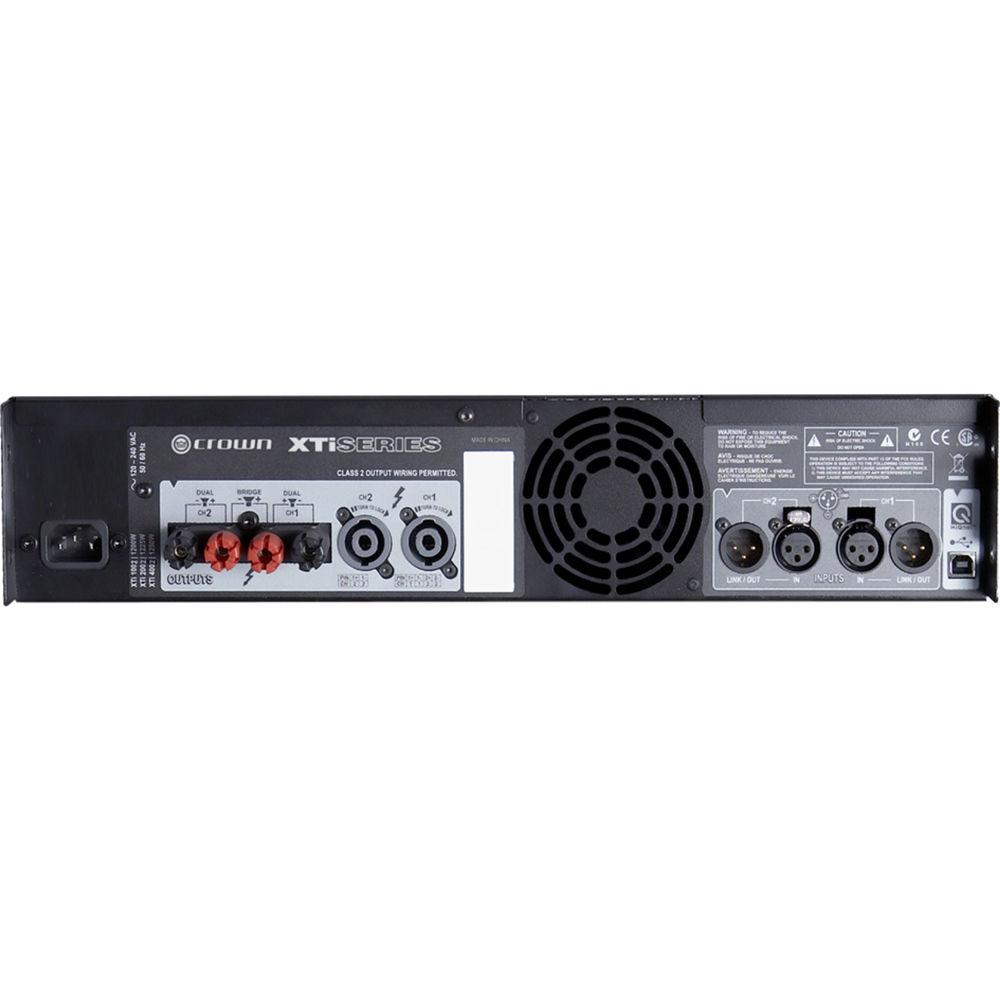

Link/Out Connector: Loop-thru signal from input connector for linking another amplifier, one per channel.Output Connectors: Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon connectors).
HiQnet USB Connector: Type B, connects to HiQnet network. | | Controls Front Panel | Level: Two front-panel rotary level controls, one for each channel
Power Switch: On/Off switch applies AC power to the amplifierSel/Prev/Next Buttons: Three buttons near the LCD screen that are used to access menu items and front panel lockout
LCD Screen: Backlit liquid crystal display that shows preset and processing status | | Indicators | Signal Indicator: Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).
-10 Indicator: Green LED flashes when output signal exceeds -10 dB below clip.-20 Indicator: Green LED flashes when output signal level exceeds -20 dB below clip
Ready Indicator: Green LED, one per channel, illuminates when the amplifier is ready to produce audio.Clip Indicator: Red LED, one per channel, turns on at the threshold of audible distortion
Temp Indicator: Red LED, one per channel, illuminates under excessive temperature conditionsPower Indicator: Blue LED illuminates when the amplifier has been turned on and has power | | Cooling | Proportional speed fan with front-to-rear airflow. | | Power Consumption | 6.8A; no more than 38W at idle | | Power Requirements | 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz | | Dimensions | 19 x 3.5 x 12.25" (48.26 x 8.89 x 31.11cm) | | Weight | 18.5 lbs (8.4kg) | | Specialties | DSP Includes EQ, Crossover Filters, Delay, and Subharmonic Synthesizer
Protection for Short Circuits, Overloads, and Overheating | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 22.5 x 19.0 x 7.0" |
