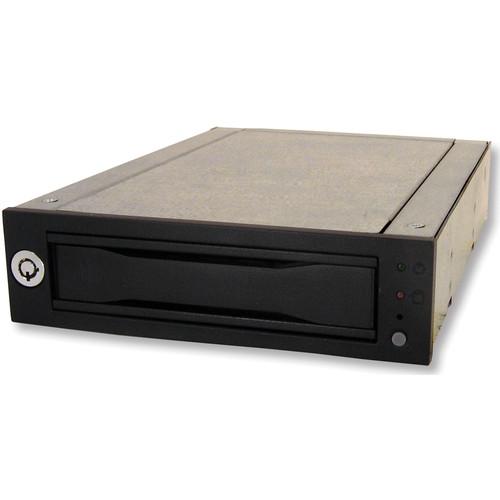

User Manual for CRU-DataPort Data Express DX115 SAS SATA 6 Gb s Removable Drive Enclosure Click to enlarge the picture
Contents of the user manual for the CRU-DataPort Data Express DX115 SAS SATA
- Product category: Internal Hard Drive Trays CRU-DataPort
- Brand: CRU-DataPort
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CRU-DataPort Internal Hard Drive Trays
|
User manual for the CRU-DataPort Data Express DX115 SAS SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CRU-DataPort product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CRU-DataPort user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CRU-DataPort product will considerably shorten its lifespan!
|
Product description The black Data Express DX115 SAS/SATA 6 Gb/s Removable Drive Enclosure from CRU-DataPort is a complete assembly with removable drive carrier and frame. It is suitable for government agencies, digital cinemas, and SMB organizations that need a removable drive enclosure to store, transport, and protect sensitive data. The removable frame mounts into 5.25" peripheral bays. Its receiving frame offers 6 Gb/s performance, when used with a 6 Gb/s drive and host configuration. The enclosure is backwards compatible with 3 Gb/s drives and hosts. The soft start circuitry of the enclosure increases data integrity by eliminating in-rush current during spin-up. Furthermore, the enclosure's connectors are tested and verified for over 25,000 insertions. Its stainless steel construction dissipates heat and ensures the safety of your drives. The DX115 carrier and frame will provide you with reliable performance, while protecting your data. - SAS frames compatible with SATA drive carriers
- Power, drive activity, and fan failure LEDs
- Cable-less drive connection
- Soft start circuitry increases data integrity
- Rugged stainless steel construction
UPC: 673825016688 In the Box CRU-DataPort Data Express DX115 SAS/SATA 6 Gb/s Removable Drive Enclosure (Black) Data Express Key M3 Mounting Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CRU-DataPort Data Express DX115 SAS SATA 6 Gb s Removable Drive Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCRU-DataPort DX115 Specs | Interface Types and Speeds | SATA/SAS: Up to 6 Gb/s* For 6 Gb/s operation, a SAS or SATA 6 Gb/s controller and SAS or SATA 6 Gb/s hard drive is required. | | Supported Drive Types | 2.5"/3.5" SATA drives
SATA SSDs (solid state drives)
2.5"/3.5" SAS drives | | Insertion Rating | Up to 30,000 carrier insertions | | Torque | 2.5" hard drives, M3 screws: 4" lb (maximum) | | Connectors | SAS/SATA
Power | | Number of Bays | 1 | | Carrier Handle | Yes | | Key Lock | Yes | | Cooling Fan | Yes | | Switch | Fan error LED disable switch | | LED Indicators | LED: Drive Ready/Error
Color: Blue/Red
Flashing Blue: Drive is inserted and powering up
Solid Blue: Drive is powered on and ready for access
Flashing Red and Blue: Fan failure
Solid Red: DC power failure
LED: Drive Activity
Color: Amber
Flashing: Indicates when the host computer is accessing data on the drive.* *Some SATA PC systems/host controllers provide support for the Drive Activity LED feature. | | Construction Material | Stainless steel | | OS Requirements | Windows 8, 7, Vista, or XP
Windows Server 2012, 2008, and 2003 product families
Mac OS X 10.4.x or higher
Linux distributions that support the connection type used | | Compliance | EMI Standard: FCC Part 15 Class B, CE
EMC Standard: EN55022, EN55024
C-Tick
RoHS | | Dimensions | 8.07 x 5.83 x 1.61" (205.00 x 148.00 x 41.00 mm) | | Weight | 2.50 lb (1.13 kg) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 9.8 x 6.2 x 2.0" |
