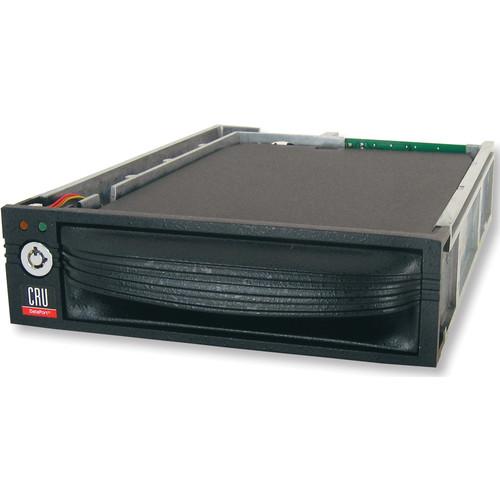

User Manual for CRU-DataPort DataPort 10 6 Gb s SAS SATA Removable Drive Enclosure Click to enlarge the picture
Contents of the user manual for the CRU-DataPort DataPort 10 6 Gb s
- Product category: Internal Hard Drive Trays CRU-DataPort
- Brand: CRU-DataPort
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CRU-DataPort Internal Hard Drive Trays
|
User manual for the CRU-DataPort DataPort 10 6 Gb s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CRU-DataPort product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CRU-DataPort user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CRU-DataPort product will considerably shorten its lifespan!
|
Product description The black DataPort 10 6 Gb/s SAS/SATA Removable Drive Enclosure from CRU-DataPort is a complete assembly with a removable drive carrier and frame, which accepts a 2.5"/3.5" SAS/SATA hard drive of any capacity in its carrier. Its compact design allows it to fit in a 5.25" drive bay. This enclosure also supports easy swapping of drives for additional storage. The DataPort 10 SAS/SATA frame can support either a DataPort 10 SATA carrier or the DataPort 10 SAS carrier when connected to a SAS host bus adapter. This feature allows data migration from SATA systems to SAS workstations or servers. The carrier is equipped with CRU's patented Temperature Controlled Cooling System (TCCS), and an audible alarm will notify you if the drives begin to overheat so that you can prevent data loss or drive malfunction/damage. This removable enclosure has a Vapo Bearing MagLev (Magnetic Levitation System) cooling fan, which provides optimal heat dissipation needed by 15,000 rpm 3.5" SAS/SATA hard disk drives. The rugged all aluminum construction ensures the safety of your data. Its carrier and frame is engineered and warranted for 30,000 insertion uses durable Hirose connectors. DataPort 10 supports 6 Gb/s full-duplex operation which delivers up to 1200 MB/s for certain applications. The enclosure is backwards compatible with 3 Gb/s hosts and hard drives. Its LEDs display power/drive activity for SATA/SAS drives. The frame is mounted with recessed connectors to protect the host connections. This enclosure is suitable for government agencies, digital cinemas, and SMB organizations that need a removable drive enclosure to store, transport, and protect sensitive data. It will provide you with reliable performance, while protecting your data. - Fits into 5.25" drive bay
- 3.5" SATA or SAS hard disk drive chassis
- Up to 30,000 insertion rating
- Power and drive activity LED
- Drive connection with internal cable-less design
- Legacy to SATA power adapter cable
- Quiet Vapo Bearing MagLev (Magnetic Levitation System) cooling fan
- Audible fan failure alarm
UPC: 673825016985 In the Box CRU-DataPort DataPort 10 6 Gb/s SAS/SATA Removable Drive Enclosure (Black) Frame Assembly Carrier Assembly Metal Cover 5 x #6-32 x 0.25" Flat Head Screws for Drive Mounting 4 x M3 x 5 Pan Head Screws for Frame Installation 2 x Keys for Lock Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CRU-DataPort DataPort 10 6 Gb s SAS SATA Removable Drive Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCRU-DataPort DP10 Specs | Host (I/O) Ports | 1 x SAS/SATA: Up to 6 Gb/s | | Supported Drive Types | SATA 2.5"/3.5" drives
SATA SSD (solid state drives)
SAS 2.5"/3.5" drives | | Insertion Rating | Up to 30,000 carrier insertions | | Number of LEDs | 1 x Power
1 x Drive activity | | Cooling Fan | Vapo Bearing MagLev (Magnetic Levitation System) | | Security | Key lock (silver) | | Construction Material | Aluminum construction | | Compliance | FCC, CE, RoHS, C-Tick | | Dimensions | 7.87 x 5.75 x 1.61" (19.99 x 14.61 x 4.09 cm) | | Weight | 28.9 oz (820.0 g) | | | | Package Weight | 2.035 lb | | Box Dimensions (LxWxH) | 9.95 x 6.35 x 1.95" |
