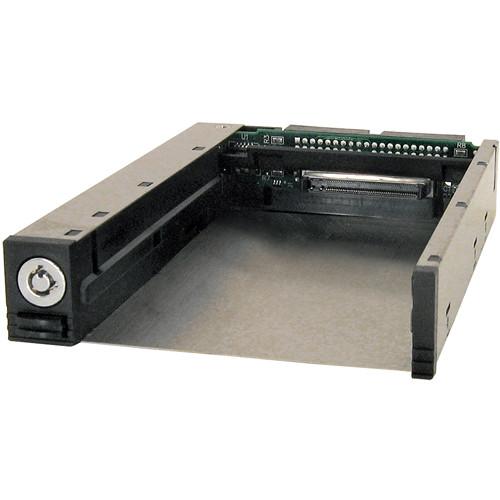

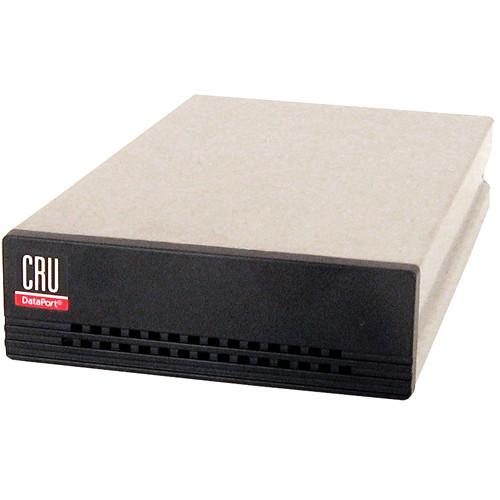

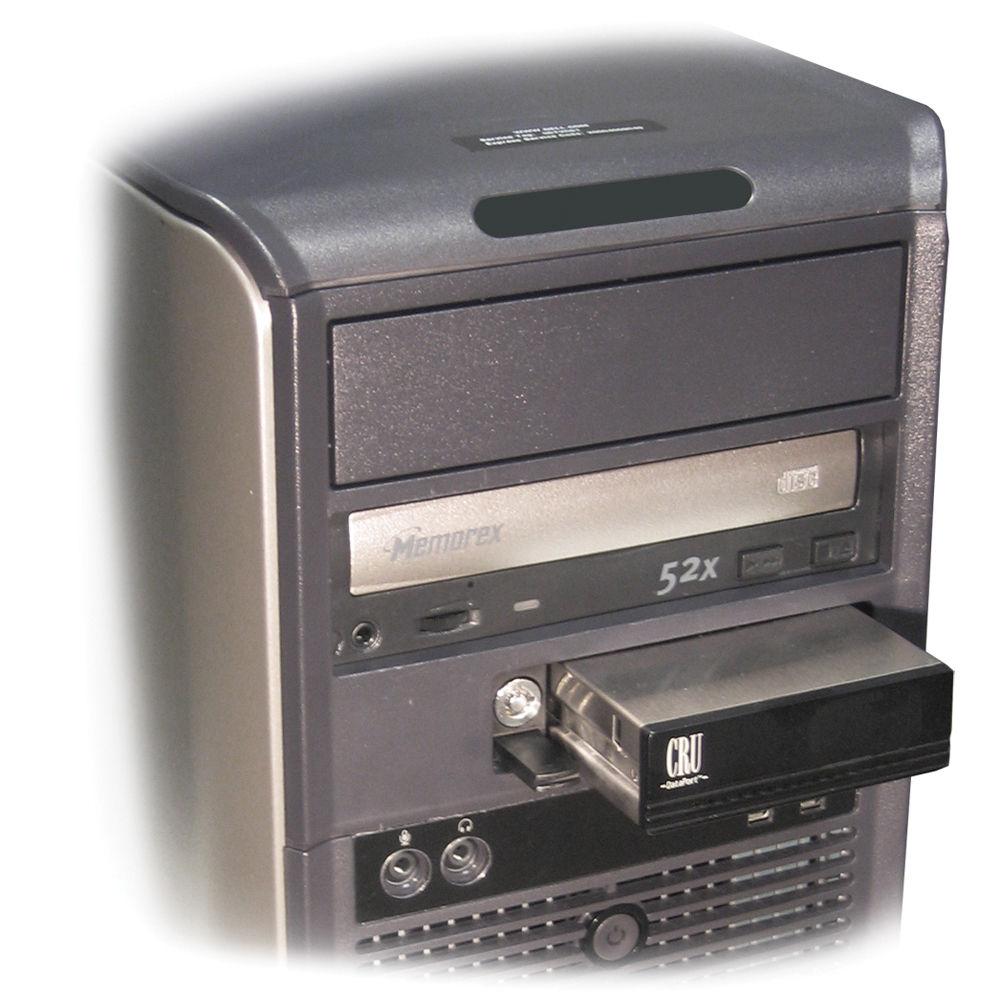

Product description The DataPort 25 Frame & Carrier for 1 x 2.5" SAS Drive in 3.5" Bay from CRU-DataPort is a removable storage device that fits within a standard 3.5" floppy bay and supports one 2.5" SAS hard drive. It is suitable for small form factor applications, maximizing the use of space in small PCs, mobile systems, surveillance, and unused floppy bays.. The DataPort 25 carrier's simple design lets you swap drives easily for additional storage providing reliable and continuous data backup. This carrier which supports one 2.5" SAS drive may be used interchangeably with any existing DataPort 25 frame that supports SAS or SATA hard drives. The DataPort 25 frame's stainless steel design allows for maximum airflow and heat dissipation, which provides protection to your hard drives. This enclosure supports 6 Gb/s and is backwards compatible with 3 Gb/s hosts and hard drives. It has LED displays for power and drive activity. - Fits within standard 3.5" floppy drive bays
- Supports up to 6 Gb/s transfer speeds
- Backwards compatible with 2.5" SATA drives that support SATA 3 Gb/s transfer speeds
- Universal frame supports both SAS and SATA removable drive carriers
- Retractable push-button eject mechanism
- 25,000+ insertion interconnect rating
- Standard floppy power connector
- Compact space storage solution
- Fast drive swapping for additional storage
- Rugged stainless steel construction
UPC: 673825017975 In the Box CRU-DataPort DataPort 25 Frame & Carrier for 1 x 2.5" SAS Drive in 3.5" Bay Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CRU-DataPort DataPort 25 Frame & Carrier for 1 x 2.5" SAS Drive in 3.5" Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCRU-DataPort DP25 Specs | Ports and Connectors | 2 x SAS/SATA data connectors
1 x 4-pin +5/+12v VDC floppy power connector | | Drive Types Supported | SATA 2.5" drives
SATA SSD (solid state drives)
SAS 2.5" drives | | Insertion Rating | Up to 30,000 carrier insertions | | Torque | 2.5" hard drives, M3 screws: 4" lb maximum | | RAID Support | Requires host RAID controller | | LEDs | Indicators: 2
Info: Power, drive activity | | Operating System Requirements | Windows 8, 7, Vista, or XP
Windows Server 2012, 2008, and 2003 product families
Mac OS X
Linux distributions that support SATA
(OS must support failover clustering for SAS operation) | | Construction Material | Rugged metal construction | | Compliance | RoHS, C-Tick
EMI Standard: FCC Part 15 Class B, CE
EMC Standard: EN55022, EN55024 | | Dimensions | Complete Assembly: 4.02 x 6.10 x 1.02" (102 x 155 x 25.9 mm)
Removable Carrier: 3.11 x 5.24 x 1.02" (79.0 x 133 x 25.9 mm) | | Weight | 14.5 oz (410 g) |
