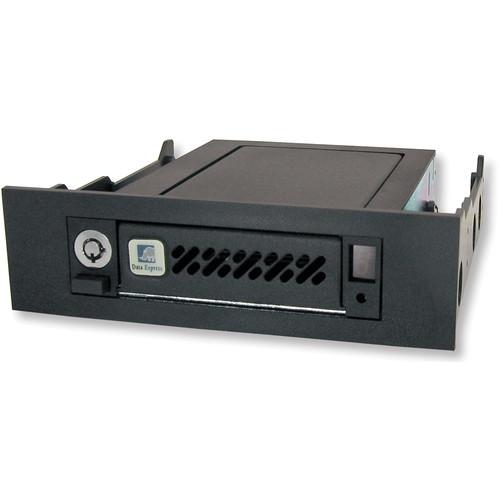

Product description The black DE50 2.5" SAS/SATA 6G Removable Drive Enclosure from CRU-DataPort is a complete assembly with a removable drive carrier and frame, which accepts a 2.5" SATA and SAS hard drive of any capacity in its carrier. Its compact design allows the DE50 enclosure to fit into any 3.5" floppy or 5.25" peripheral bay. The host (I/O) port of the enclosure operates at speeds of up to 6 Gb/s. It is also compatible with 3 Gb/s drives and hosts. The removable drive carrier is hot-swappable, so there is no need to power down the computer to switch drives. It is suitable for government agencies, digital cinemas, and SMB organizations that need a removable drive enclosure to store, transport, and protect sensitive data. The DE50 removable enclosure connectors are tested and verified for up to 25,000 insertions. Its soft start circuitry increases data integrity by eliminating in-rush current, during hard drive spin-up. The metal construction helps to dissipate heat and ensure the safety of your drives. This removable drive enclosure provides you with reliable performance, while protecting data. - Fits into any 3.5" floppy or 5.25" drive bays
- Accepts a 2.5" SATA and SAS hard drive of any capacity
- Transfer data rates up to 6 Gb/s using a SATA revision 3.0 drive and host configuration
- Up to 25,000 insertion rating
- Mechanical keylock on frame to prevent accidental ejection of the carrier
- Power and drive activity LEDs
UPC: 673825421154 In the Box CRU-DataPort DE50 2.5" SAS/SATA 6G Removable Drive Enclosure (Black) Data Express Key 4 x M3 Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CRU-DataPort DE50 2.5" SAS SATA 6G Removable Drive Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCRU-DataPort DE50 Specs | Data Connector | 1 x SATA revision 3.0/SAS connector | | Data Transfer Rate | Up to 6 Gb/s | | Drive Types Supported | 2.5" SATA hard drives (up to SATA revision 3.0)
SATA SSD (Solid State Drives)
2.5" SAS hard drives (up to SAS revision 2.0) | | Insertion Rating | Up to 25,000 | | Torque | 2.5" hard drives, M3 screws: 4.0 inch-pounds (maximum) | | Number of LEDs | 1 | | Description of LEDs | 7-segment display with drive activity indicator | | Security | Mechanical keylock | | Construction Material | Solid steel and plastic | | Operating System Requirements | Windows 8, 7, Vista, or XP
Windows Server 2012, 2008, and 2003 product families
Mac OS X 10.4.x or higher
Linux distributions that support SATA | | Compliance | EMI Standard: FCC Part 15 Class B, CE
EMC Standard: EN55022, EN55024 | | Dimensions | 5.7 x 4.0 x 1.0" (144.8 x 101.6 x 25.4 mm) | | Weight | 1.60 lb (0.73 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 6.5 x 6.1 x 1.9" |
