CRU-DataPort Ditto Forensic FieldStation

Search your instruction manual in PDF to download

User Manual for CRU-DataPort Ditto Forensic FieldStation

Click to enlarge the picture
CRU-DataPort Ditto Forensic FieldStation Contents of the user manual for the CRU-DataPort Ditto Forensic FieldStation
  • Product category: Internal Hard Drive Accessories CRU-DataPort
  • Brand: CRU-DataPort
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CRU-DataPort Internal Hard Drive Accessories

CRU-DataPort Ditto Forensic FieldStation CRU-DataPort Ditto Forensic FieldStation CRU-DataPort Ditto Forensic FieldStation CRU-DataPort Ditto Forensic FieldStation
User manual for the CRU-DataPort Ditto Forensic FieldStation contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CRU-DataPort product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CRU-DataPort user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CRU-DataPort product will considerably shorten its lifespan!



Product description

The Ditto Forensic FieldStation from CRU-DataPort is a professional forensic FieldStation for data capture and analysis. It replaces a laptop or other host machine during data acquisition. The FieldStation is portable and can be used for creating disk clones. You can configure, manage, and operate via a networked/VPN Web browser interface. It images from and writes to network locations, one or two SATA drives, or one or two eSATA mass storage devices. The FieldStation also creates standard DD or E01 disk images. It automatically logs activity that can be saved along with case information. In addition, the FieldStation is made up of rugged, all-metal, fan-free construction, and is easily upgradable.

Key Features

  • Source Inputs (Write-Blocked): eSATA (SATA), PATA, USB 2.0, one PCIe expansion port, Gigabit network (NFS, iSCSI, Samba)
  • Destination Outputs: Dual eSATA (SATA) ports to store acquired data on one or two drives in a single pass, SD card, Gigabit network (NFS, iSCSI, Samba)
  • Data Acquisition Modes: Image DD, image E01 with empty block compression, clone
    Hash Types: MD5, SHA-1, MD5+SHA-1
  • System configuration management via front panel LCD or web browser interface
  • Web browser allows file system exploration, file preview, and file download of attached drives
  • User profiles can be password protected and assigned specific permission levels
  • Data log captures a complete history of data acquisitions and can be managed and printed from Web browser or extracted to user-specific document
  • Ability to erase destination drives using preset erase modes or user configurable option
  • Stealth mode for use with night vision goggles (not included)
    Portable
  • The hand-held Ditto Forensic FieldStation can be used on the go or by a technician for use in creating disk clones and images. Configure and manage via a network or on the unit itself. The Ditto FieldStation also helps you log user activity and maintain your chain of custody while using forensic (write-blocked) methods.
    Flexibility and Speed via Browser-Based Interface
  • A user-friendly Web browser interface supports remote operation via network or VPN, providing access to Ditto configuration, user administration, and user rights, as well as direct operation of Ditto cloning and imaging operations. This time and money-saving capability speeds time to capture data, as well as allow organizations to optimize staffing and deployment.
    Create Images in the Field
  • The built-in menu system makes it easy to configure and perform forensic captures, without an attached computer.

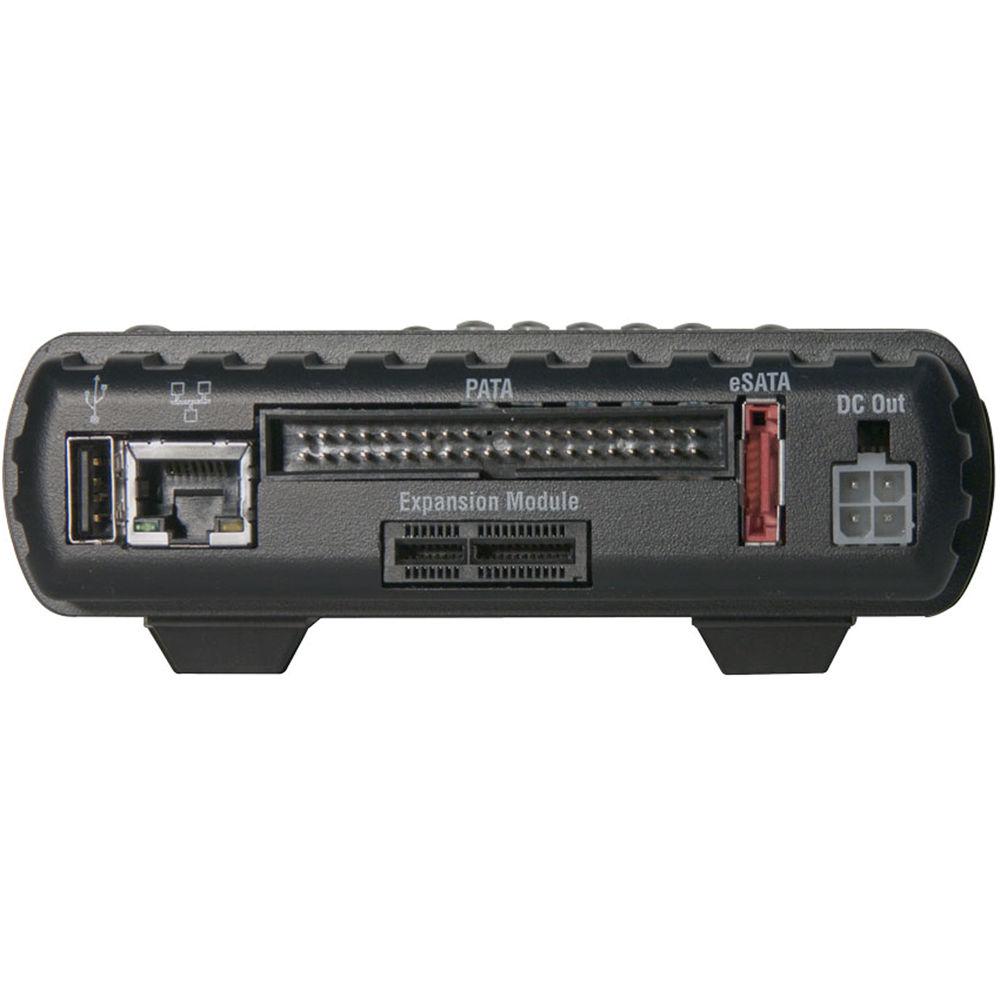

    Suspect Inputs (Write-Blocked)
  • Ditto supports write-blocked inputs such as SATA, eSATA, PATA, USB2.0. Additional acquisition interfaces are available via expansion modules, such as the Ditto USB 3.0 expansion module and Ditto SAS expansion module.

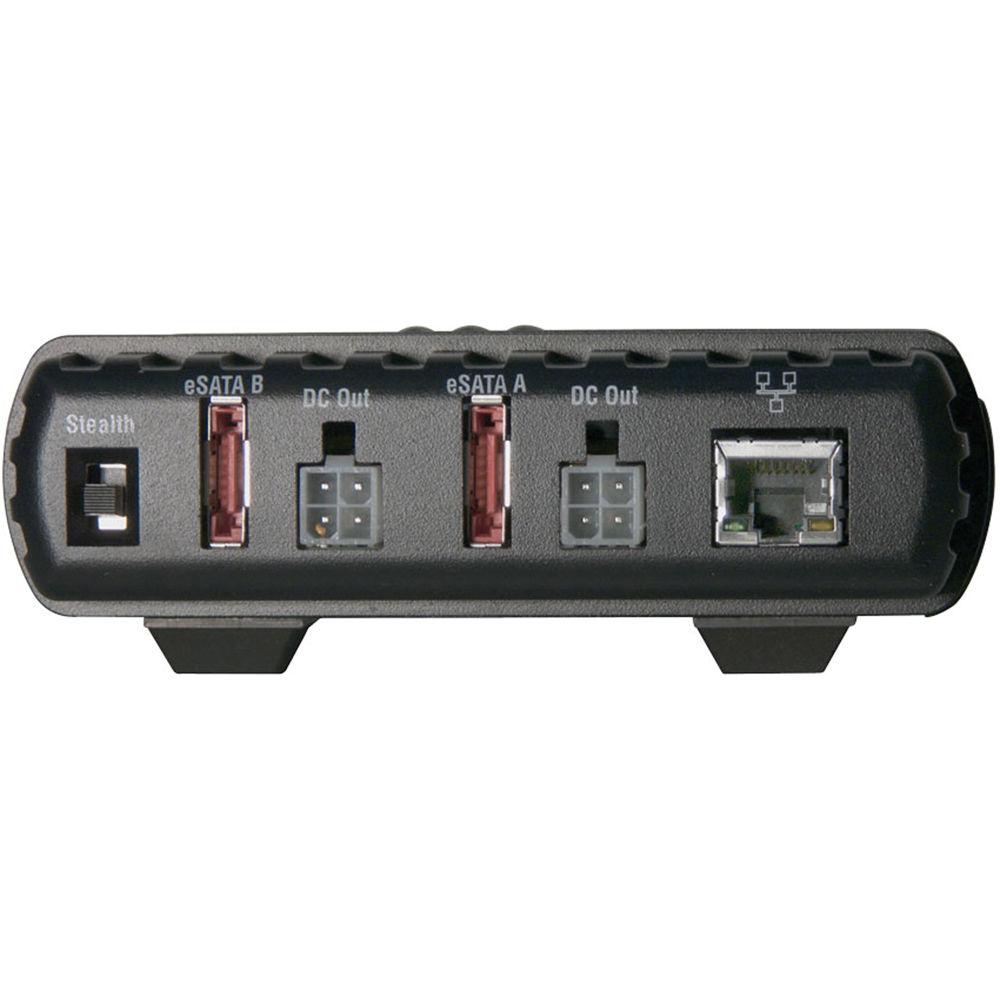

    Destination Outputs
  • Use dual SATA outputs simultaneously with same performance as one eSATA (single, dual, and mirrored). Images can also be output to large volumes, including NAS and other network destinations, as well as portable RAID enclosures.
    Data Acquisition Modes
  • It captures Clone, DD, E01 with MD5 or SHA-1 hashing. Ditto also offers a combined mode that captures a clone and DD (to different destination drives) in a single pass reading of the suspect drive.
    Complete and Secure Erasure
  • Ditto is capable of sanitizing drives with preset erase modes or a user configurable pattern.
UPC: 810873018503 In the Box CRU-DataPort Ditto Forensic FieldStation
  • 3 x Unitized SAS to eSATA + Mini-Fit Power Cables
  • IDE Cable
  • 12V Power Supply
  • Power Cord
  • Legacy Power to Mini-Fit Cable
  • Ethernet Cable (RJ-45)
  • 2.5" IDE to 3.5" IDE and Mini-Fit Cable
  • Power Adapter, Legacy to SATA
  • 6 x Hook and Loop Fastener Cable Wraps
  • 2 x eSATA Cables
  • SD Card (Pre-Installed)
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CRU-DataPort Ditto Forensic FieldStation in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    CRU-DataPort 31700-2809-0000 Specs

    Host (I/O) Ports 1 x USB 2.0 type A
    3 x eSATA: Up to 3 Gb/s
    1 x Gigabit (1000Base-T) Ethernet
    Drive Type Supported PATA/IDE 2.5" drives (with included cable)
    PATA/IDE 3.5"
    SATA 2.5" drives
    SATA 3.5" drives
    SATA SSD (Solid State Drive)
    SAS 2.5" drives (with SAS expansion module)
    SAS 3.5" drives (with SAS expansion module)
    Hitachi 1.8" drives (with PATA adapter)
    Toshiba 1.8" drives (with PATA adapter)
    Compact Flash (with PATA adapter or expansion module)
    SD card (with PATA adapter or expansion module)
    Memory ctick (with PATA adapter or expansion module)
    PCMCIA (with PATA adapter)
    MacBook Air 2010 (with SATA adapter)
    mSATA (with SATA adapter)
    MC (with adapter)
    DOM (with PATA adapter)
    PCIe PATA (with PATA adapter)
    PCIe SATA (with PATA adapter)
    Micro Drives (with PATA adapter)
    PCIe USB (with PATA adapter)
    USB thumb drives (native USB 2.0 or USB 3.0 via expansion module)
    USB drives via USB cable (native USB 2.0, or USB 3.0 via expansion module)
    FireWire drives via FireWire cable (with FireWire expansion module)
    SATA Speed 3G
    S.M.A.R.T. Support Yes
    LEDs Number: 10
    Description: Power in 5 V/12 V, USB, Source Network, IDE, eSATA, Expansion, HPA/DCO, Destination Network, eSATA A, eSATA B

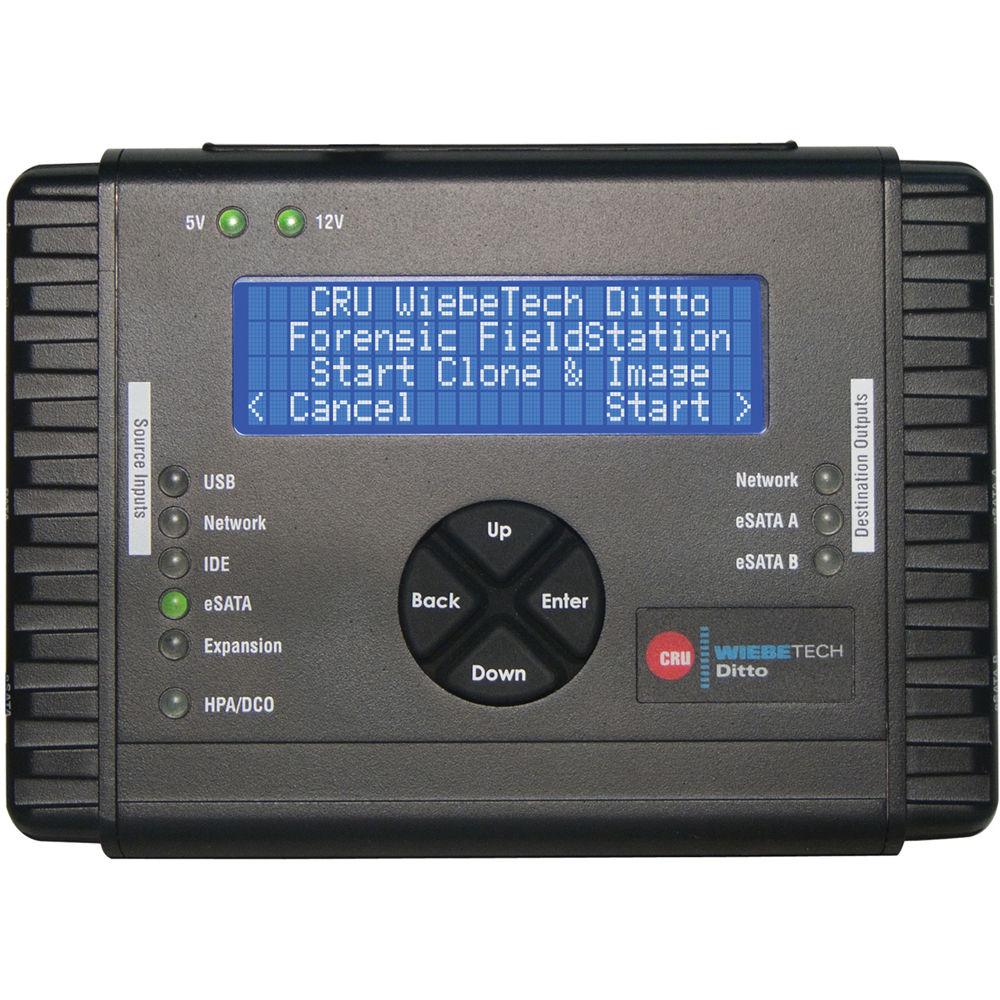

    LCD Screen 4-line backlit LCD controlled with 4 soft-touch menu navigation buttons
    Browser-based Ditto interface allows for direct operation, remote operation, and administration
    Stealth Mode Disable all light output (LEDs/LCD). LCD readable with night-vision goggles
    Menu Navigation LCD/button driven menu system
    Web Admin Interface Operable from a web browser
    Operating System Support Windows XP or later
    Mac OS X 10.4.x or higher
    iOS tablets/phones
    Andriod tablets/phones
    Most versions of Linux
    Browser Compatibility Internet Explorer Firefox
    Safari
    Chrome
    Opera
    Detects/Reports HPA/DCO Yes
    Allows HPA/DCO Override Temporarily or permanently remove HPA/DCO
    Encryption Available with optional Encryptor accessory
    Fan Fanless design
    Construction Material All aluminum construction
    Ambient Humidity 5 to 95% (non-condensing)
    Power Switch 2-Position: On/Off
    Power Input 40 W 12 VDC 3.33 A
    Power Input Connector Barrel connector (center pin positive)
    SATA and Molex inputs
    Write-Blocking Yes (source side)
    Write Blocked Ports: eSATA (SATA), PATA/IDE, USB 2.0rn other input types and drive types supported with Ditto expansion modules or drive adapters
    Hashing Info None, MD5, SHA-1, MD5 + SHA-1
    Hash types are hardware-accelerate, can hash during image or clone
    Erase Modes Clear Partition Table, Quick Erase, Custom Erase, Secure Erase Normal, Secure Erase Enhanced, DoD Clear, DoD Sanitize, NIST800-88 Clear, NIST800-88 Purge
    Image/Clone Output Modes Single Drive Image, Single Drive Clone, Image and Clone, Image to mirrored disks, Clone to mirrored disks
    Compliancy FCC, CE, RoHS, C-Tick, RCM
    Dimensions 4.92 x 6.77 x 1.72" (124.97 x 171.96 x 43.69 mm)
    Weight 5.00 lb (2.27 kg)
    Package Weight 3.95 lb
    Box Dimensions (LxWxH) 11.5 x 9.1 x 5.5"
