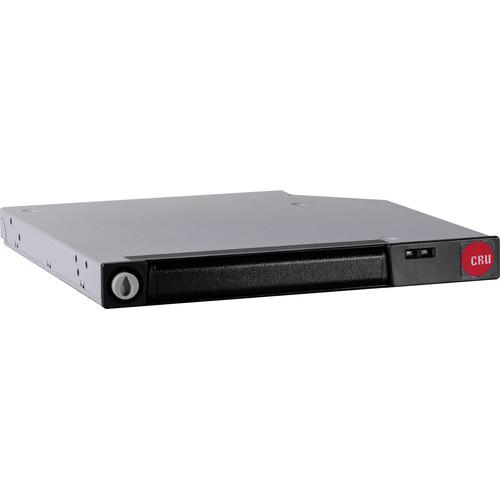

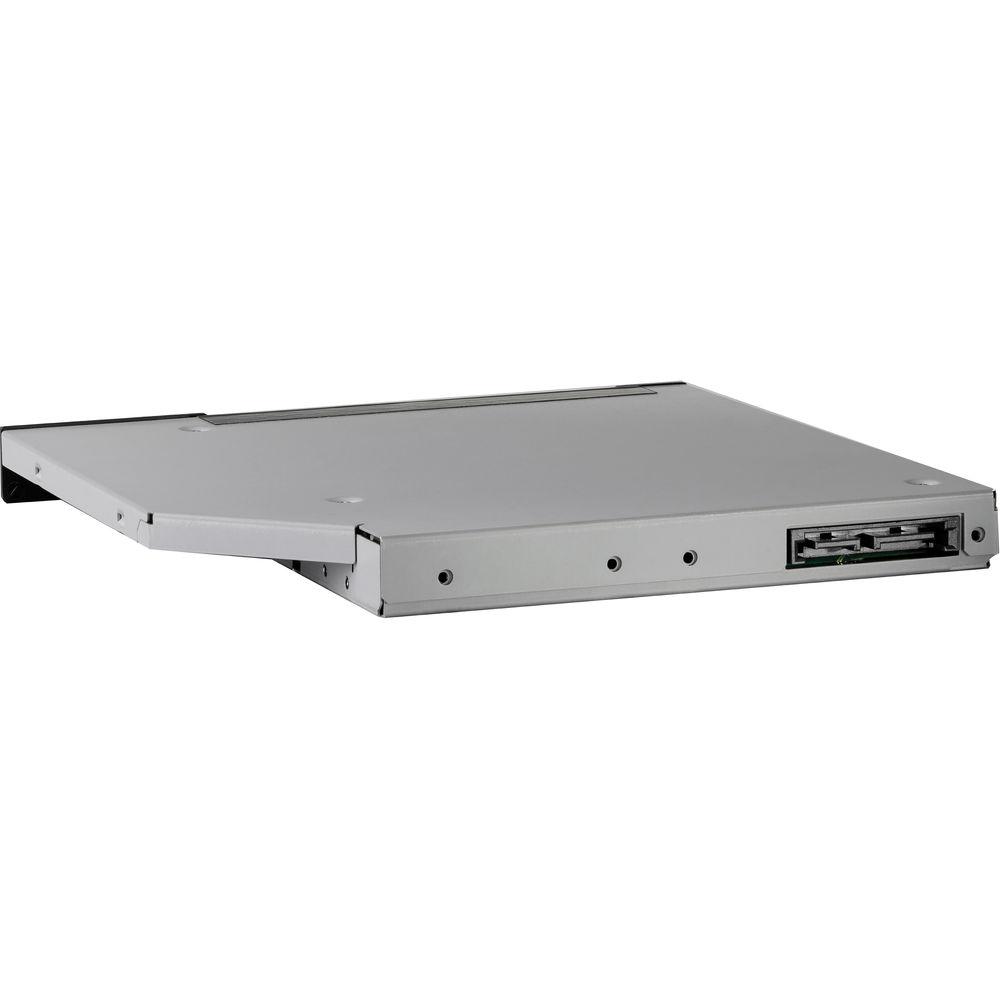

Product description The DP20 2.5" SATA Removable Drive Enclosure with Lock from CRU-DataPort is a complete assembly with removable hard drive carrier and frame that accepts 2.5" SATA hard drives and solid state drives up to 9.5mm thick. This frame and removable carrier combination allows you to add removable storage to the small bays in your computer. You can secure your data with the powered key lock to prevent unauthorized access to your drive or accidental removal during operation. The frame mount meets standard SFF-8552 (revision 1.4) specifications for 12.7mm slim-line optical bay drives found in most laptops, desktops, and workstations. The fully enclosed metal hard drive carrier provides rugged data protection for the enclosure. The enclosure is designed to support over 25,000 insertions using durable connectors. It is suitable in Government agencies, digital cinemas, and SMB organizations that need removable drive enclosures to store, transport, and protect sensitive data. - Designed to fit into 12.7mm slim-line optical drive bays
- Removable carrier allows quick and easy access to drives for hot-swapping or data mobility

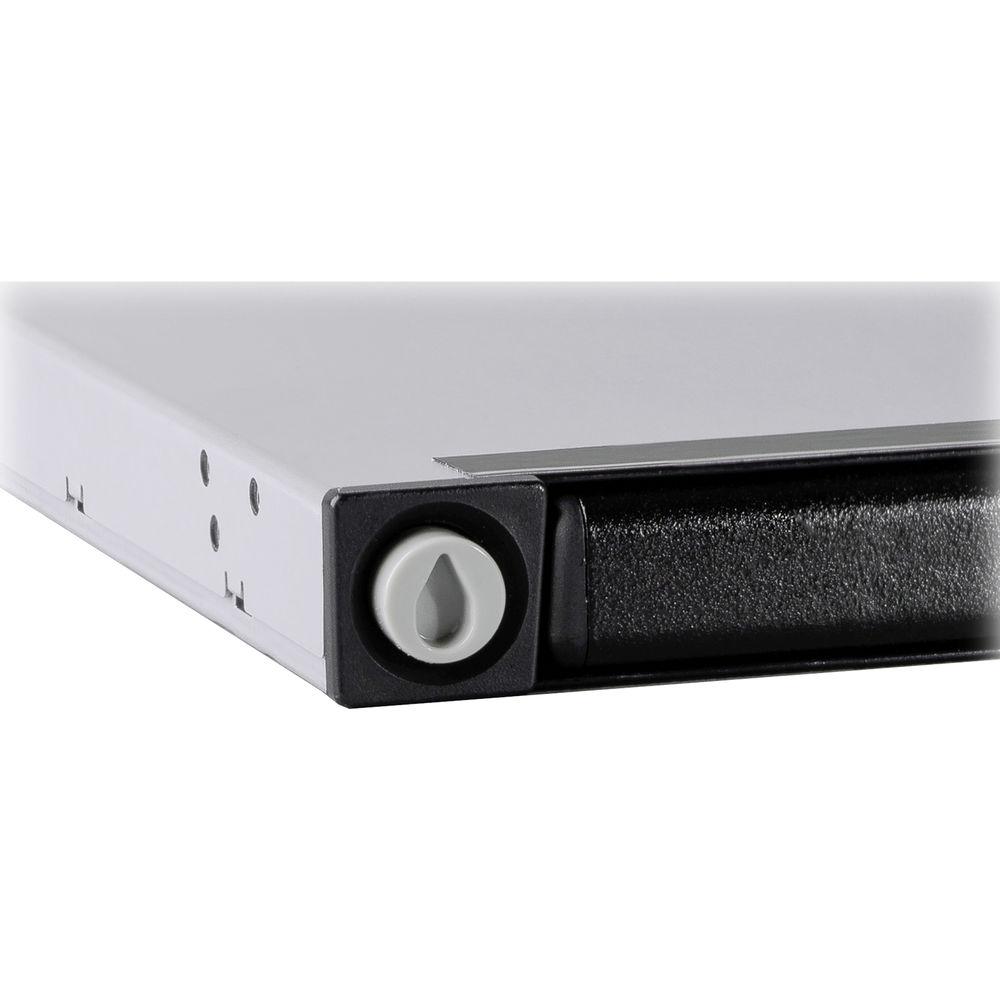

- Mechanical key lock on frame to prevent accidental ejection of the carrier
- Receiving frame interconnect rated for 25,000 insertions
- Transfer data up to 6 Gb/s using SATA revision III drives and host
- Power and drive activity LEDs
UPC: 673825420737 In the Box CRU-DataPort DP20 2.5" SATA Removable Drive Enclosure with Lock Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CRU-DataPort DP20 2.5" SATA Removable Drive Enclosure with Lock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCRU-DataPort DP20 Specs | Host Interface and Transfer Rate | 1 x SATA III: Up to 6 Gb/s | | Drive Types Supported | SATA 2.5" drives
SATA SSD (Solid State Drives) | | Connectors | 1 x SATA III data connector
1 x SATA 6-pin slim-line power connector | | Number of Bays | 1 | | LEDs | 2
Power and drive activity | | Insertion Rating | 25,000 | | Construction Material | Rugged metal construction (plastic bezel) | | Operating System Requirements | Windows 8, 7, Vista, or XP
Windows Server 2012, 2008, and 2003
Mac OS X 10.4.x or higher
Linux distributions that support the connection type used | | Torque | 2.5" hard drives, M3 Screws: 4" lb maximum | | Compliancy | RoHS, C-Tick
EMI Standard: FCC Part 15 Class B, CE
EMC Standard: EN55022, EN55024 | | Dimensions | 5.04 x 5.04 x 0.55" (128.02 x 128.02 x 13.97 mm) | | Weight | 9.5 oz (270.0 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.5 x 5.5 x 0.9" |
