User Manual for CRU-DataPort Drive eRazer Ultra Click to enlarge the picture
Contents of the user manual for the CRU-DataPort Drive eRazer Ultra
- Product category: Internal Hard Drive Accessories CRU-DataPort
- Brand: CRU-DataPort
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CRU-DataPort Internal Hard Drive Accessories
 |
User manual for the CRU-DataPort Drive eRazer Ultra contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CRU-DataPort product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CRU-DataPort user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CRU-DataPort product will considerably shorten its lifespan!
|

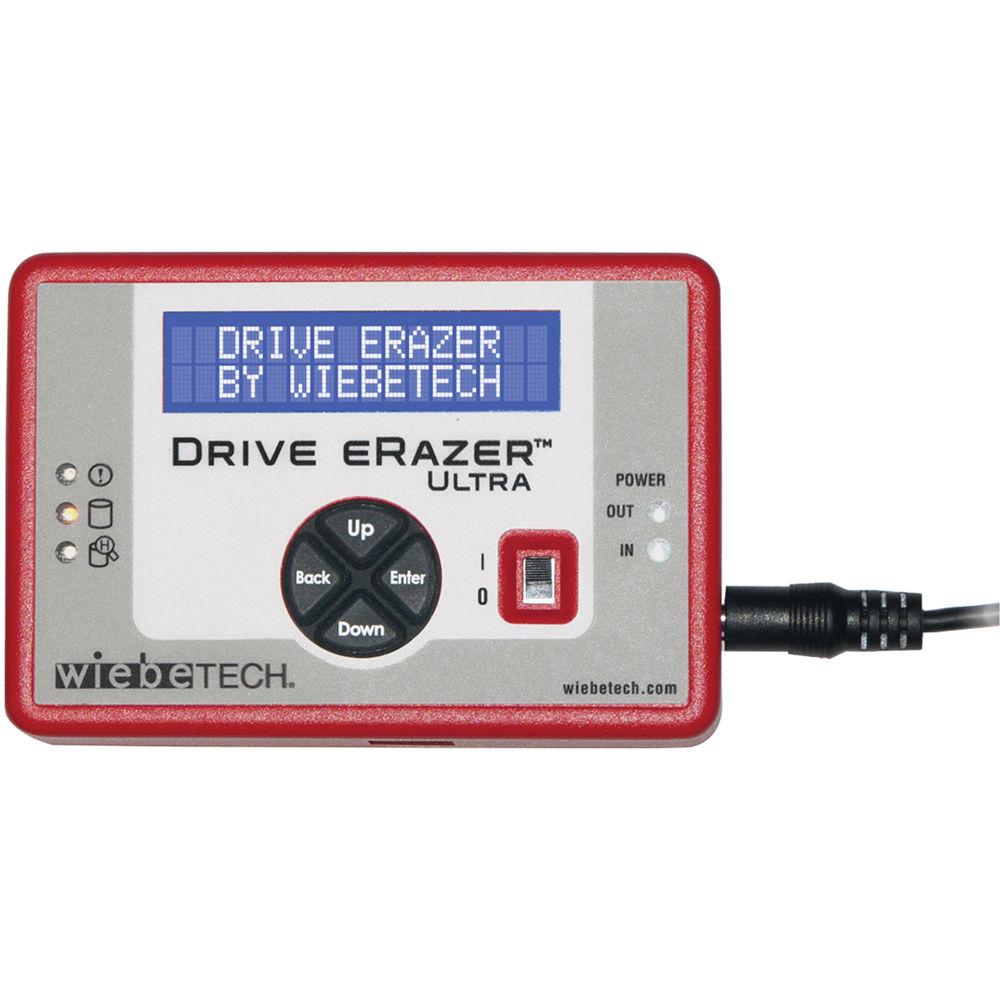

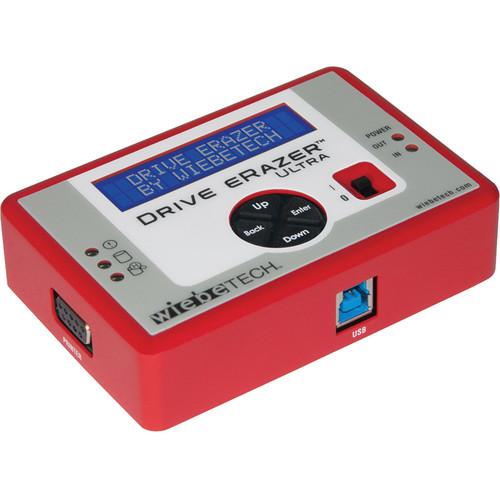

Product description The Drive eRazer Ultra from CRU-DataPort is a multi-functional, stand-alone device that will completely and quickly clean your drive. You just need to connect your computer to the Drive eRazer Ultra and it will sanitize the drive faster than software will. It leaves the drive ready for re-use, and comes with more than ten preset erase procedures, including the US Department of Defense-graded methods for data wiping. - Efficient hard drive sanitizing
- Clean hard drive ready for re-use
- Simple setup and operation with LCD and menu buttons
- USB port for drive previewing and deletion confirmation
- Serial label printer connector
- Rugged aluminum construction
UPC: 810873015830 In the Box CRU-DataPort Drive eRazer Ultra Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CRU-DataPort Drive eRazer Ultra in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCRU-DataPort 31550-0109-0000 Specs | Host Connectors | 1 x USB 2.0: Up to 480 Mb/s
1 x DB9 serial connector | | Power Supply | 100-240 VAC + 12 V/3 A (included) | | Power Input | +12 V 3 A from AC adapter via +12 VDC jack | | Power Output | +12 V/+5 V to drive | | Drive Types Supported | SATA 2.5"/3.5"
PATA/IDE 2.5" drives (with PATA adapter 25)
PATA/IDE 3.5"
Hitachi 1.8" drives (with PATA adapter 18-HIT-ZIF)
Toshiba 1.8" drives (with PATA adapter 18-TOSH)
MacBook Air 2010 (with SATA adapter MBA2010)
mSATA (with mSATA adapter)
PCIe PATA (with PATA adapter mPCIe)
PCIe SATA (with PATA adapter mPCIe)
PCIe USB (with PATA adapter mPCIe) | | S.M.A.R.T. Support | Yes | | LEDs | Number of LEDs: 5
Description: Drive access, HPA/DCO detected, error, power input status, power output status | | LCD | Screen: 2-line backlit LCD controlled with four soft-touch menu navigation buttons
Info: 2 lines x 16 characters width | | Menu Navigation | LCD/button driven menu system | | Printer Connection | Ports: 1
Info: 1 x DB9 serial connector | | Detects/Reports HPA/DCO | Yes | | Allows HPA/DCO Override | Yes, user-configurable options | | Erase Modes | Quick Erase, Custom Erase, Random Erase, Secure Erase Normal, Secure Erase Enhanced, DoD Clear, DoD Sanitize, NIST800-88 Clear, NIST800-88 Purge | | Construction Material | Rugged aluminum construction | | Power Switch | 2 Positions: On/Off | | Compliance | FCC, CE, RoHS, C-Tick, RCM | | Dimensions (L x W x H) | 2.95 x 4.33 x 1.06" (74.93 x 109.98 x 26.92 mm) | | Weight | 6.4 oz (181.4 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.2 x 6.1 x 3.6" |
