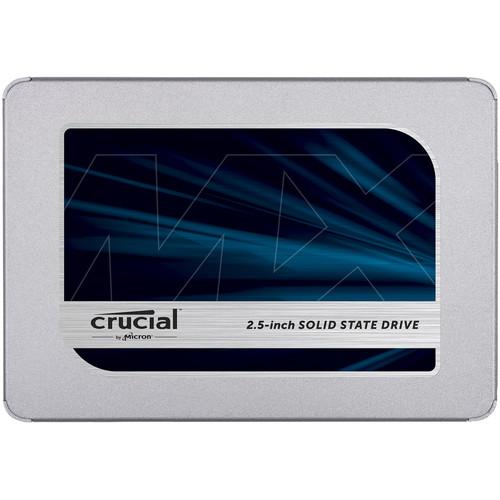

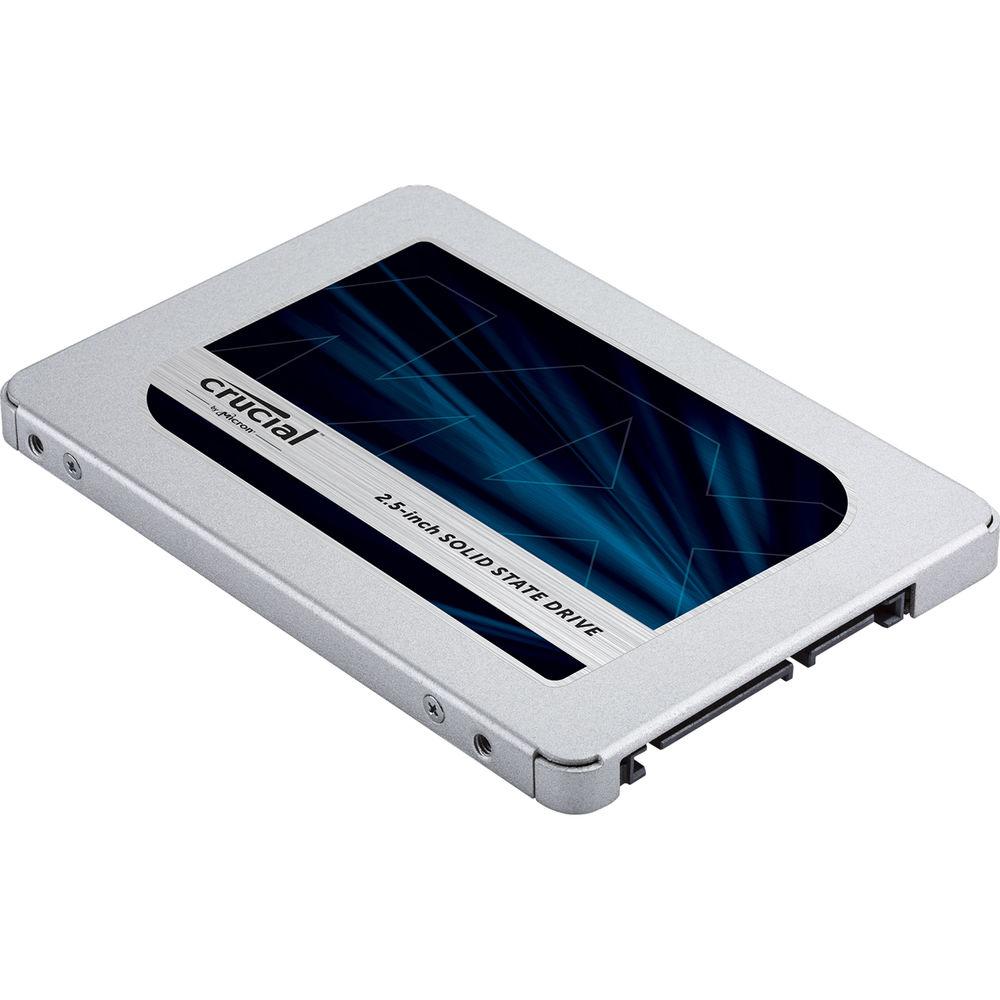

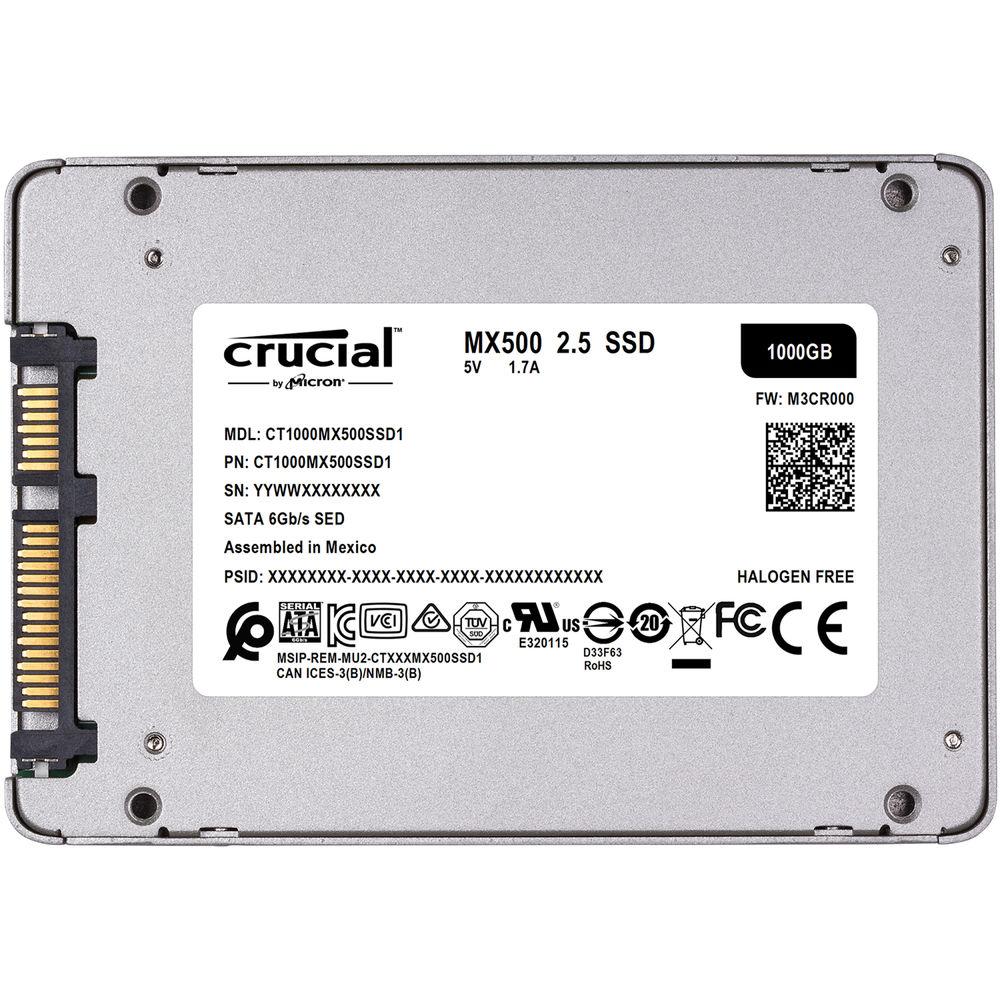

User Manual for Crucial 1TB MX500 2.5" Internal SSD Click to enlarge the picture
Contents of the user manual for the Crucial 1TB MX500 2.5" Internal SSD
- Product category: Internal Drives Crucial
- Brand: Crucial
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crucial Internal Drives
 |
User manual for the Crucial 1TB MX500 2.5" Internal SSD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crucial product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crucial user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crucial product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More Add up to 1TB of storage capacity to a notebook or desktop computer with the MX500 2.5" Internal SSD from Crucial. This solid-state drive fits in the system's 2.5" drive bay and comes with a 7 to 9.5mm spacer for compatibility with bigger bays. Crucial has equipped the MX500 SSD with a SATA Interface, Silicon Motion SM2258 controller, and Micron 3D TLC NAND Flash technology to deliver up to 560 MB/s sequential reads and 510 MB/s sequential writes. For securing sensitive data, AES-256 encryption and Opal 2.0 are available. Additionally, included along with the drive is Acronis True Image software, which provides an easy-to-use backup solution. - Supported Features
- Dynamic Write Acceleration, Redundant Array of Independent NAND (RAIN), Multistep Data Integrity Algorithm, Adaptive Thermal Protection, Integrated Power Loss Immunity, Active Garbage Collection, TRIM Support, Self-Monitoring and Reporting Technology (SMART), Error Correction Code (ECC), Device Sleep Support
UPC: 649528785060 In the Box Crucial 1TB MX500 2.5" Internal SSD Drive Spacer Limited 5-Year Warranty User Guide PDF 8.1mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Crucial 1TB MX500 2.5" Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrucial MX500 Specs | Capacity | 1 TB | | Form Factor | 2.5", 7 mm tall | | Controller | Silicon Motion SM2258 with Micron Custom Firmware | | Memory Type | Micron 3D TLC NAND | | Interface | SATA III (6 Gb/s) | | Sequential Reads | 560 MB/s | | Sequential Writes | 510 MB/s | | Random Reads | 95,000 IOPS | | Random Writes | 90,000 IOPS | | Endurance (Total Bytes Written) | 360 TB | | Operating Temperature | 32 to 158°F / 0 to 70°C | | MTTF | 1.8 million hours | | Security | AES-256 encryption engine, TCG Opal 2.0 compliant, IEEE-1667 complaint, Microsoft eDrive compatible | | Compliance | FCC, CE, KCC, RCM, VCC, UL, TUV, BSMI, WEEE, ROHS, Morocco, IC, Halogen Free, SATA-IO | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 5.1 x 5.1 x 0.8" |
