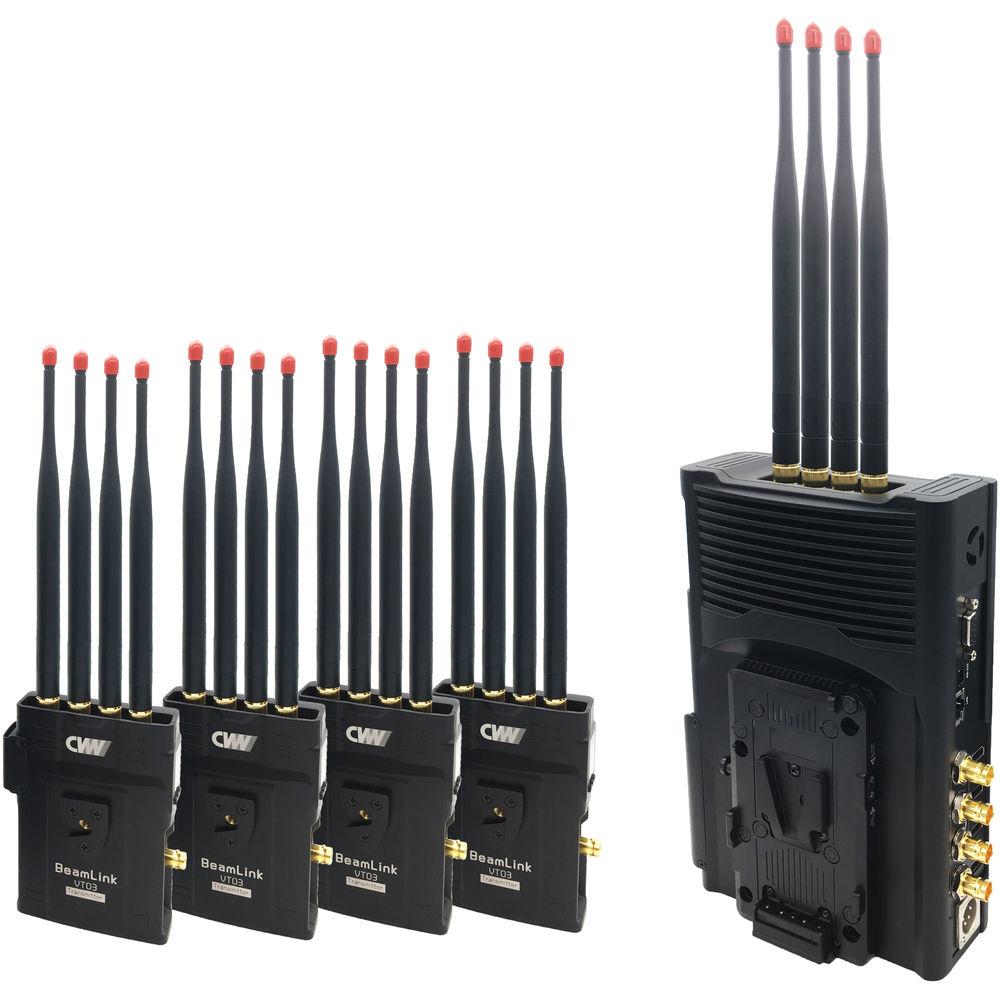

Product description The BeamLink-Quad 4-Channel Full HD Wireless Video Transmission System from Crystal Video Technology includes four transmitters and one receiver. This system allows you to send four 3G-SDI and HDMI signals to the receiver simultaneously over a range up to 1640'. The receiver features four SDI and four HDMI outputs. Signals up to 1080p60 can be transmitted with a latency of 70 ms over one RF channel on the 5.1 to 5.8 GHz frequency. The system also offers tally input and output, and all five units confirm transmission status via OLED displays.

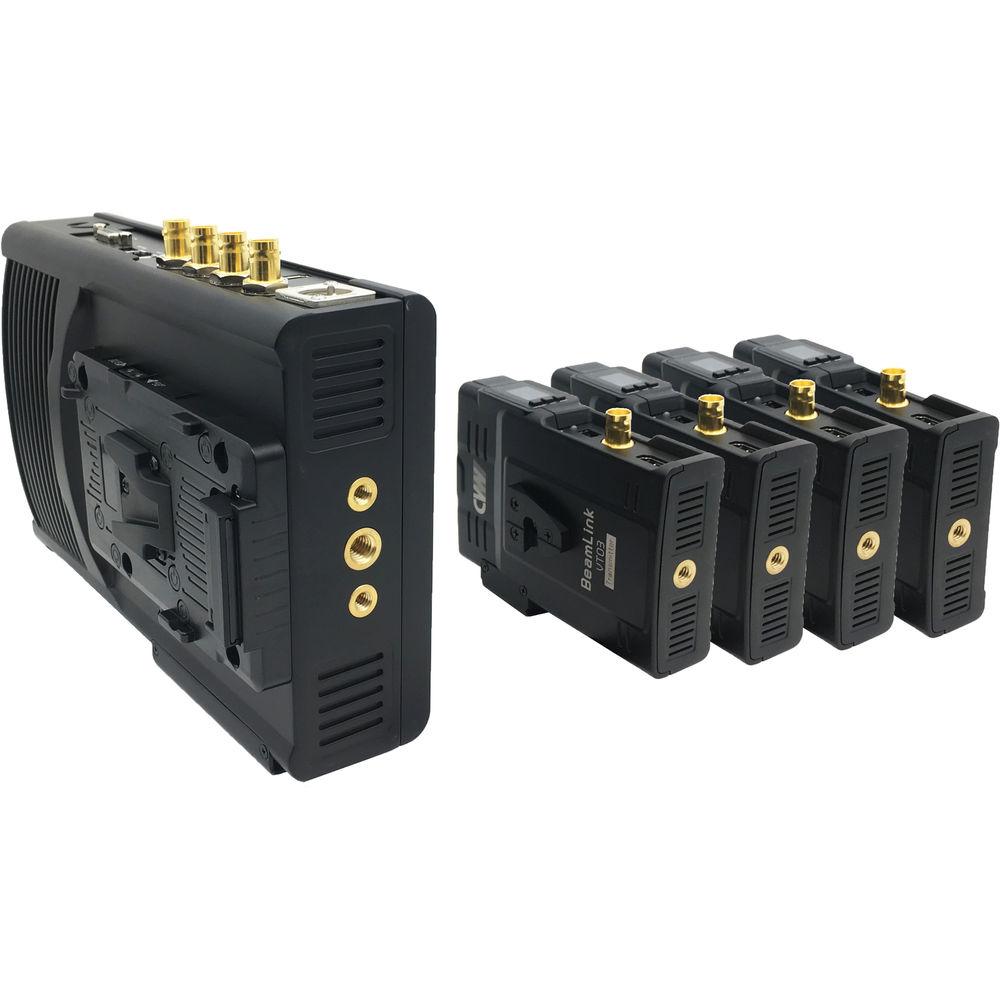

The transmitters are designed with a Sony-type battery dock on the rear and include a preinstalled V-mount on the front, while the receiver comes with an attached V-mount plate. The entire set can also be powered continuously. A power adapter is included for the receiver, and four cables are supplied for powering the transmitters off compatible batteries. - Key Features
-
- Four transmitters with 3G-SDI and HDMI inputs
- Receiver with four 3G-SDI and four HDMI outputs
- Up to 1080p60 resolution transmission
- 1640' line-of-sight transmission range
- 70 ms latency
- 5.1 to 5.8 GHz frequency
- Tally input/output
- Transmitters with L-series plate on the back, V-mount on the front
- Receiver with V-mount plate
- Includes receiver power adapter and transmitter power cables
- OLED status display
- Supports IP streaming (RSTP)
- RS-232 data transmission
- Easy setup

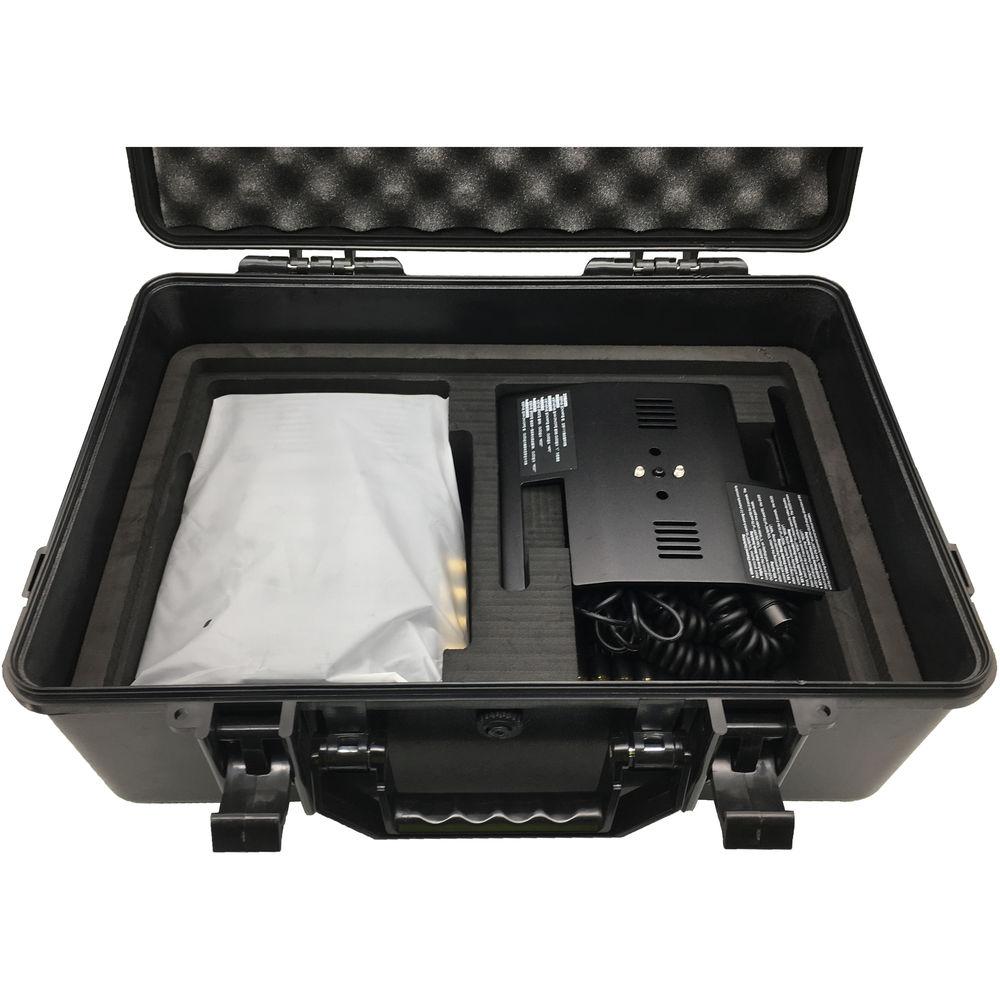

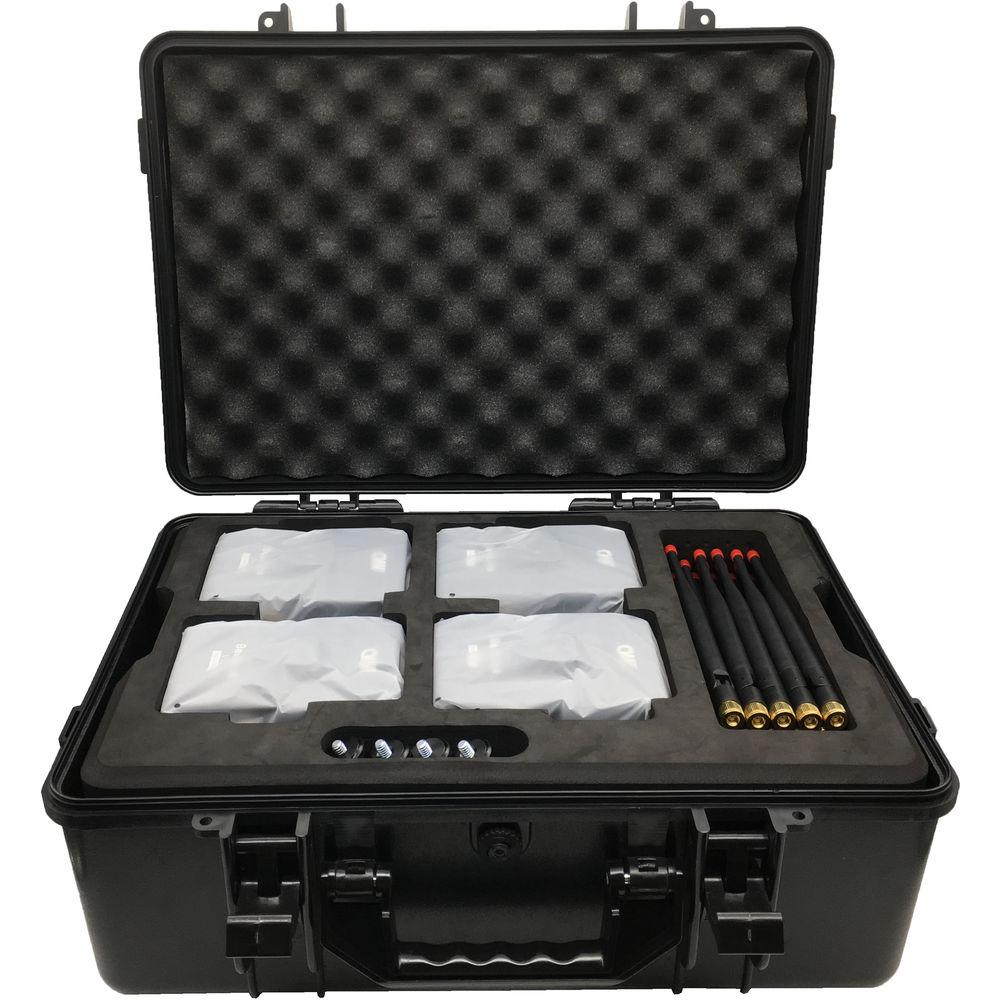

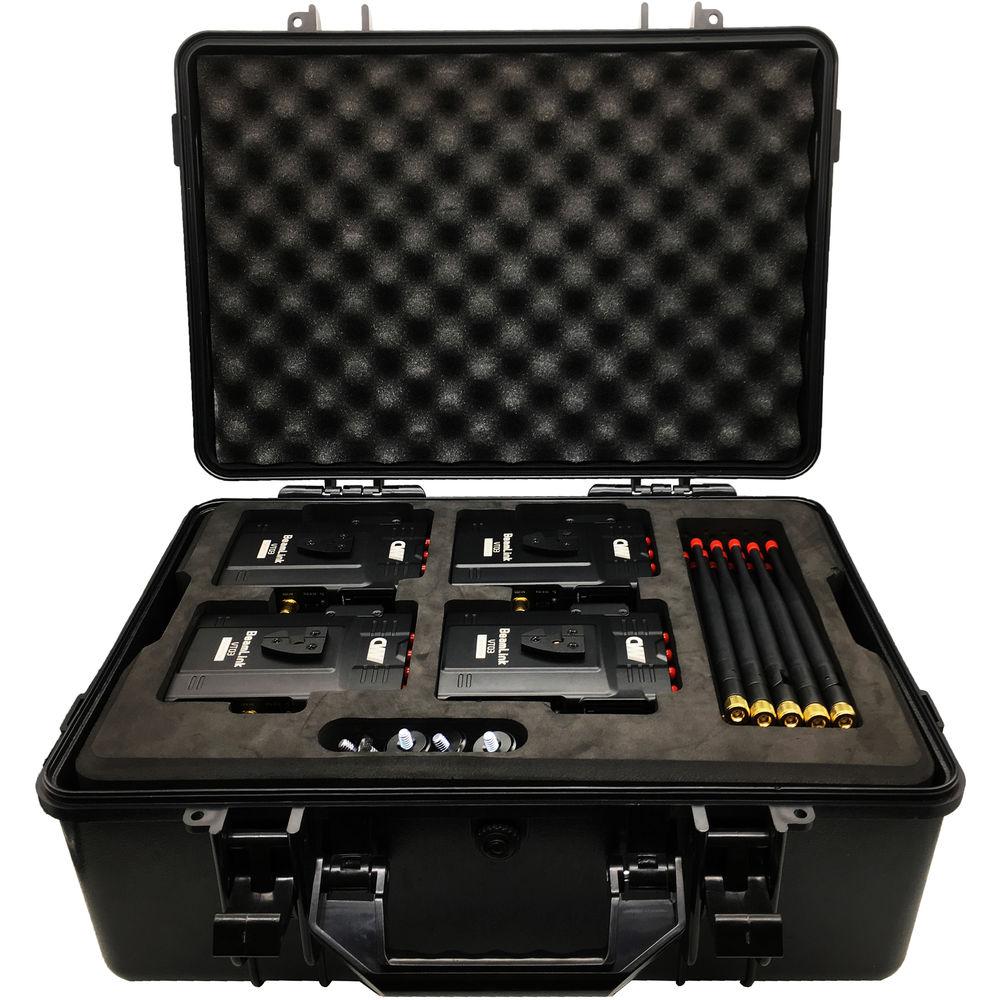

UPC: 696177978169 In the Box Crystal Video Technology BeamLink-Quad 4-Channel Full HD Wireless Video Transmission System 4 x Transmitter Receiver 16 x Transmitter Antenna 4 x Receiver Antenna 4 x 1/4"-20 Screw and Nut Connector 4 x Power Cable for Transmitter Power Adapter for Receiver Metal Stand for Receiver Limited 18-Month Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Crystal Video Technology BeamLink-Quad 4-Channel Full HD Wireless Video Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrystal Video Technology Beamlink-Quad Specs | | | Connections | 1 x 3G-SDI Input
1 x HDMI Input
1 x Tally Output
1 x RS-232 Output
1 x Power | | Resolution Supported | Up to 1080p60 | | Transmission Range | 1640' / 500 m Line of Sight
Video Code Rate: 8 Mb/s per Channel | | Antenna | 4x4 MIMO and Beamforming | | Transmission Power | 17 dBm | | Frequency | 5.1 to 5.8 GHz | | Latency | 70 ms | | Operating Voltage | 7 to 17 V | | Audio Formats | MPEG-2, PCM | | Power Consumption | 10 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Dimensions | 3.8 x 1.8 x 5.0" / 9.6 x 4.6 x 12.7 cm | | | | Connections | 4 x 3G-SDI Outputs
4 x HDMI Outputs
1 x Tally Input
1 x RJ45 Output
1 x RS-232 Input
1 x Power | | Resolution Supported | 1080p60 | | Antenna | 4x4 MIMO and Beamforming | | Receiving Sensitivity | -70 dBm | | Frequency | 5.1 to 5.8 GHz | | Bandwidth | 40 MHz | | Transmission Range | 1640' / 500 m Line of Sight
Video Code Rate: 8 Mb/s per Channel | | Audio Formats | MPEG-2, PCM | | Operating Voltage | 7 to 17 V | | Power Consumption | 20 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Dimensions | 6.9 x 3.2 x 9.3" / 17.6 x 8.1 x 23.5 cm | | | | Package Weight | 16.54 lb | | Box Dimensions (LxWxH) | 16.8 x 12.4 x 6.8" |
