User Manual for Crystal Video Technology Pro200 Wireless HD Multifunctional Video Transmission System Click to enlarge the picture
Contents of the user manual for the Crystal Video Technology Pro200 Wireless HD
- Product category: Wireless Transmission Systems Crystal Video Technology
- Brand: Crystal Video Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crystal Video Technology Wireless Transmission Systems
 |
User manual for the Crystal Video Technology Pro200 Wireless HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crystal Video Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crystal Video Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crystal Video Technology product will considerably shorten its lifespan!
|

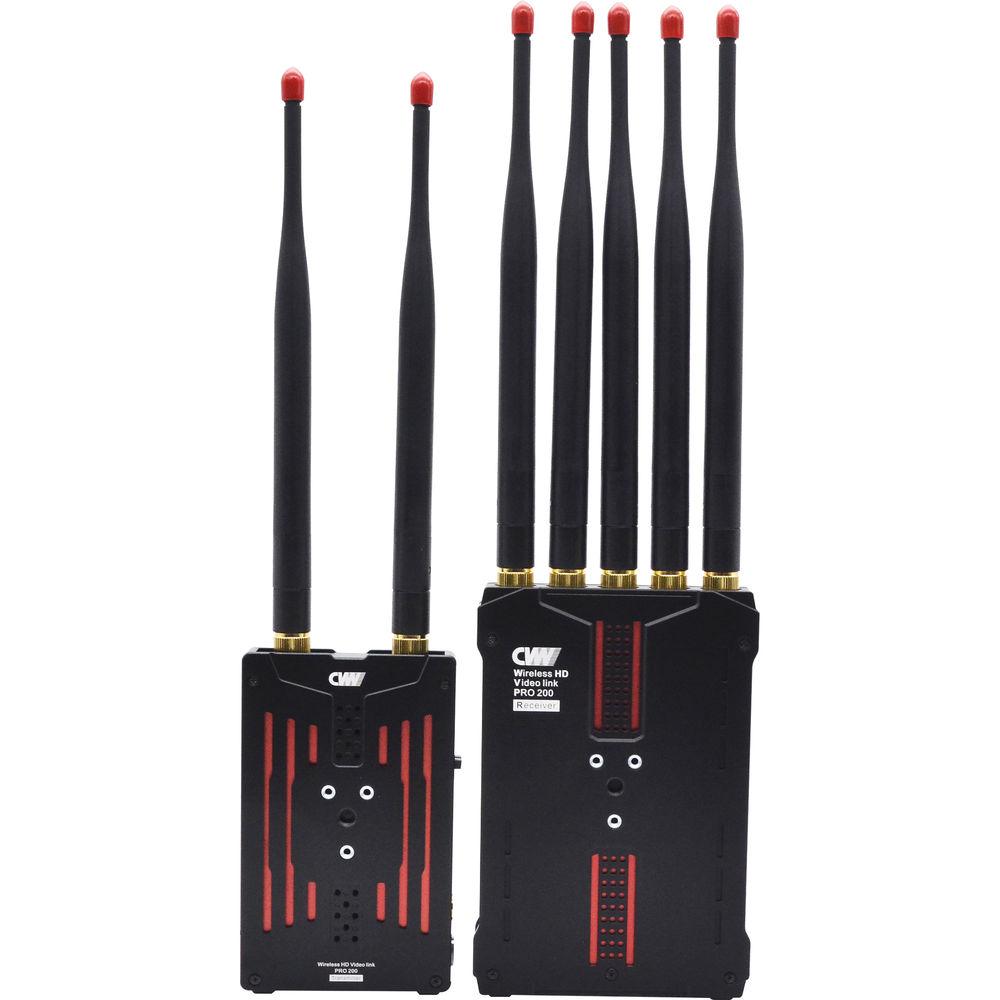

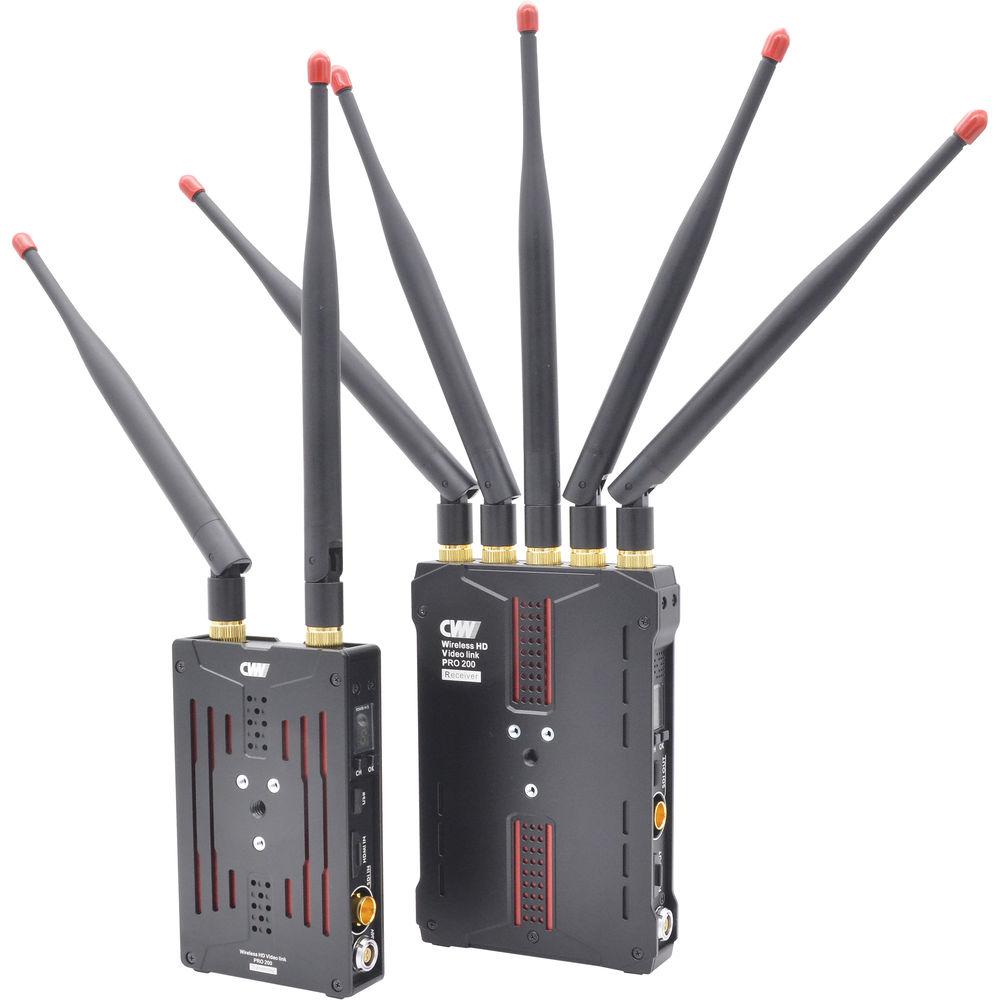

Product description The Pro200 Wireless HD Multifunctional Video Transmission System from Crystal Video Technology comprises one transmitter and one receiver. It features HDMI and SDI connections and transmits up to 1080p60, 4:4:4, 10-bit video with a latency of ≤1 ms, over a range up to 655' line-of-sight. The system uses the 5 GHz frequency (5150 to 5250 and 5725 to 5825 MHz in the US, which can be set manually; see Specs) and is designed with AES 128-bit encryption, providing a safe solution for live broadcasting.
Both the transmitter and receiver come with an L-series battery plate with support for optional V-mount adapters, and can also be powered by the included LEMO to D-Tap power adapters. - Key Features
-
- HDMI and SDI input/output
- Up to 1080p60, 4:4:4, 10-bit video transmission
- 655' line-of-sight transmission range
- ≤1 ms latency
- Manually assignable 5 GHz frequency (5150-5250 and 5725-5825 MHz in the US; see Specs)
- L-series battery plates
- Support for optional V-mount adapters
- Includes LEMO to D-Tap power adapters
- AES 128-bit encryption

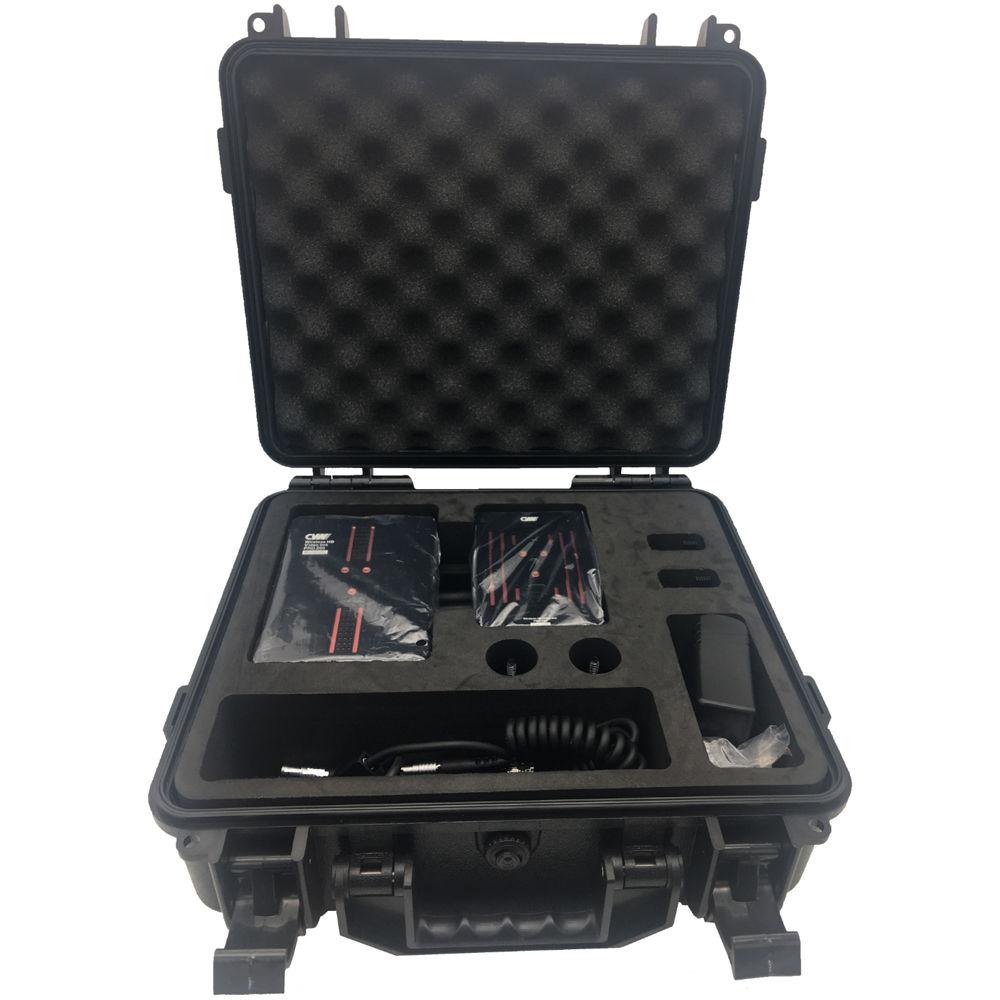

UPC: 696177978138 In the Box Crystal Video Technology Pro200 Wireless HD Multifunctional Video Transmission System Transmitter Receiver 2 x Transmitter Antenna 5 x Receiver Antenna 2 x 2-Pin LEMO to D-Tap Power Cable 2 x SDI Cable 2 x Hot Shoe Adapter Hard Carry Case Limited 1-Year Warranty User Manual PDF 5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Crystal Video Technology Pro200 Wireless HD Multifunctional Video Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

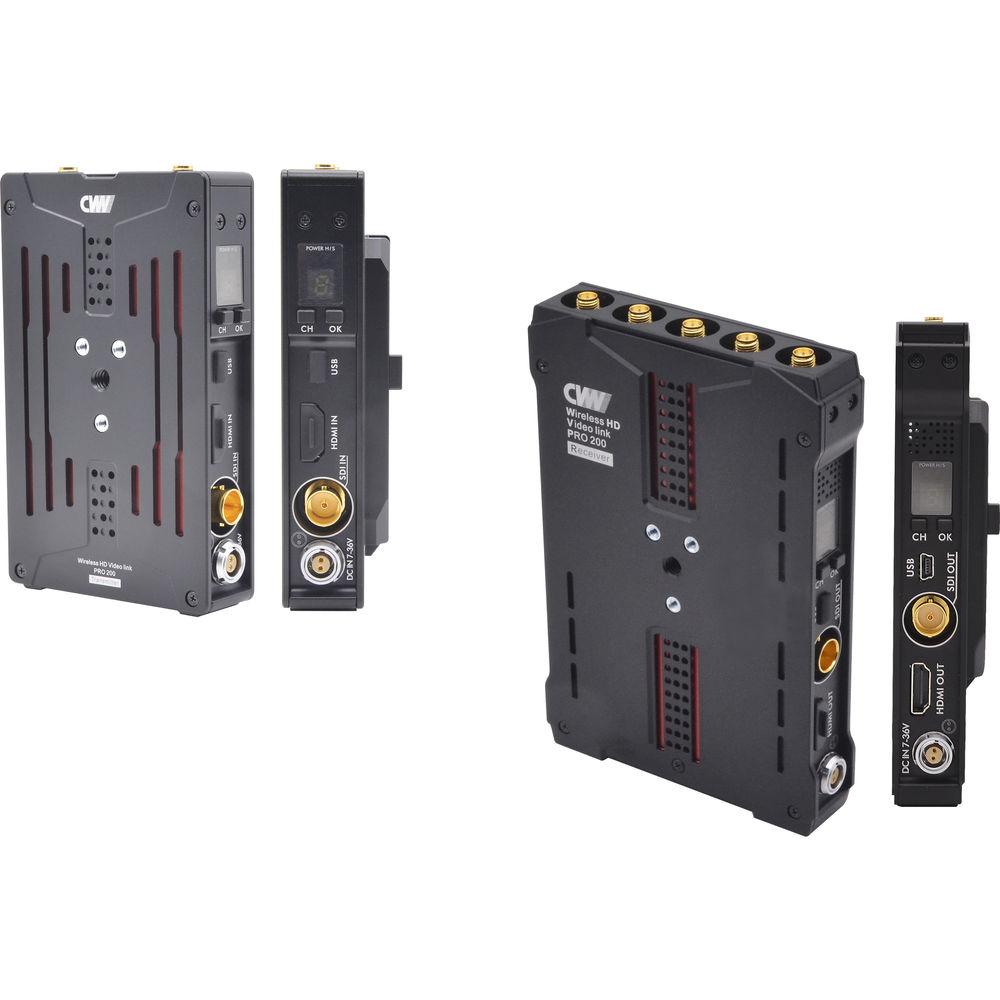

Technical parametersCrystal Video Technology Pro200 Specs | | | Connections | 1 x SDI BNC Input
1 x HDMI Input | | Supported Resolution | 1080p: 60/50/30/25/24/23.98
1080PsF: 25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i | | Color Sampling | 4:4:4 | | Bit Rate | 10-Bit | | Transmission Range | 655' / 200 m, Line-of-Sight | | Latency | ≤1 ms | | Antenna | External, TX5 dBi | | Frequency | 5150-5250 / 5725-5825 MHz (US/EU), 5150-5250 MHz (JPN) | | Transmission Power | 17 dBm | | Bandwidth | 40 MHz | | Audio Formats | PCM, DTS-HD, Dolby TrueHD | | Timecode | ATC_VITC, ATC_LTC | | Encryption | AES 128-Bit Encryption | | Waterproof/Dustproof Rating | IP54 | | Battery Support | Sony L-Series Battery Plate (Support for Attaching Optional V-Mount Adapter) | | Power Supply Input | 2-Pin LEMO Type, 7-36 VDC | | Mount Type | 1/4"-20 Threaded Hole on the Bottom | | Power Consumption | 7 W | | Overvoltage Protection | 12 VDC / 2 A (7-36 V) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Dimensions | 4.6 x 2.8 x 1.1" / 11.8 x 7.2 x 2.8 cm | | | | Connections | 1 x SDI BNC Output
1 x HDMI Output | | Resolution Supported | 1080p: 60/50/30/25/24/23.98
1080PsF: 25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i | | Antenna | External, RX2 dBi | | Receiving Sensitivity | -70 dBm | | Frequency | 5150-5250 / 5725-5825 MHz (US/EU), 5150-5250 MHz (JPN) | | Bandwidth | 40 MHz | | Transmission Range | 656' / 200 m, Line-of-Sight | | Audio Formats | PCM, DTS-HD, Dolby TrueHD | | Timecode | ATC_VITC, ATC_LTC | | Encryption | AES 128-Bit Encryption | | Waterproof/Dustproof Rating | IP54 | | Battery Support | Sony L-Series Battery Plate (Support for Attaching Optional V-Mount Adapter) | | Power Supply Input | 2-Pin LEMO Type, 7-36 VDC | | Mount Type | 1/4"-20 Threaded Hole | | Power Consumption | 5-6 W | | Overvoltage Protection | 12 VDC / 2 A (7-36 V) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Dimensions | 5.7 x 3.7 x 1.1" / 14.4 x 9.5 x 2.8 cm | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 13.8 x 13.1 x 5.6" |
