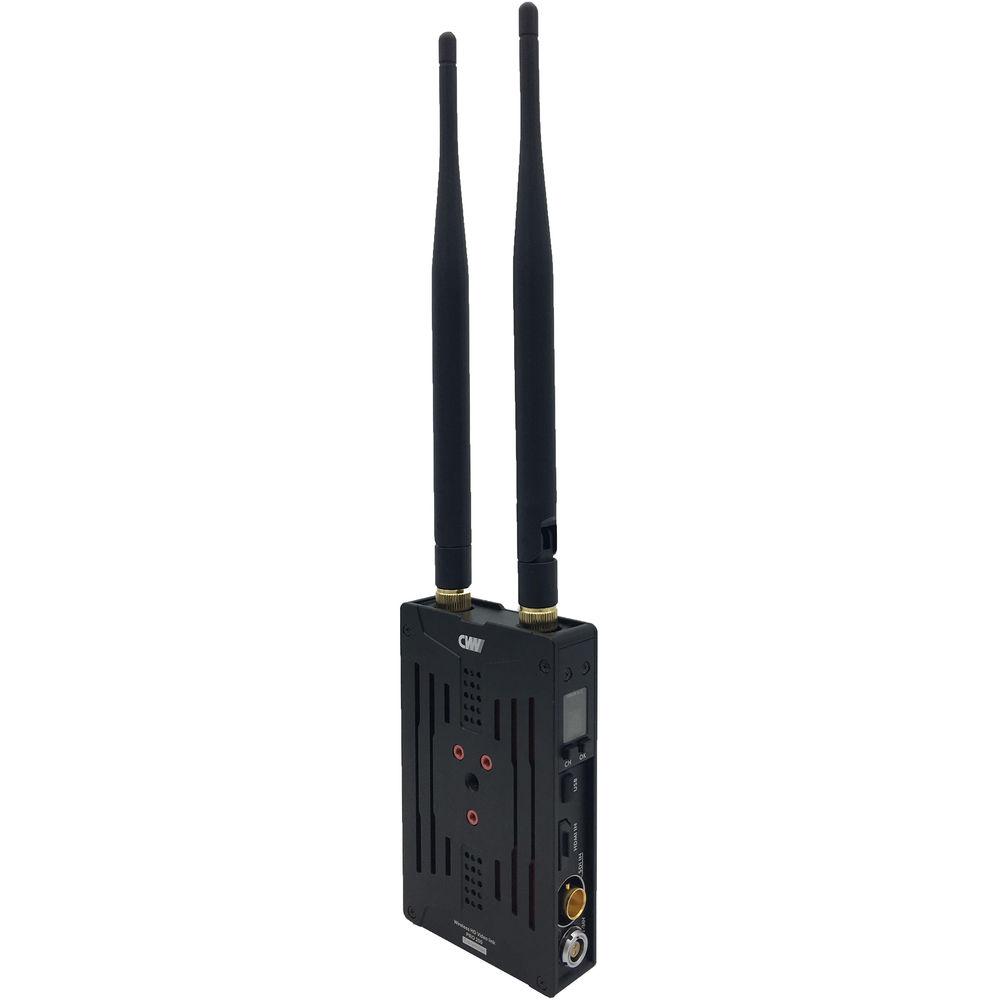

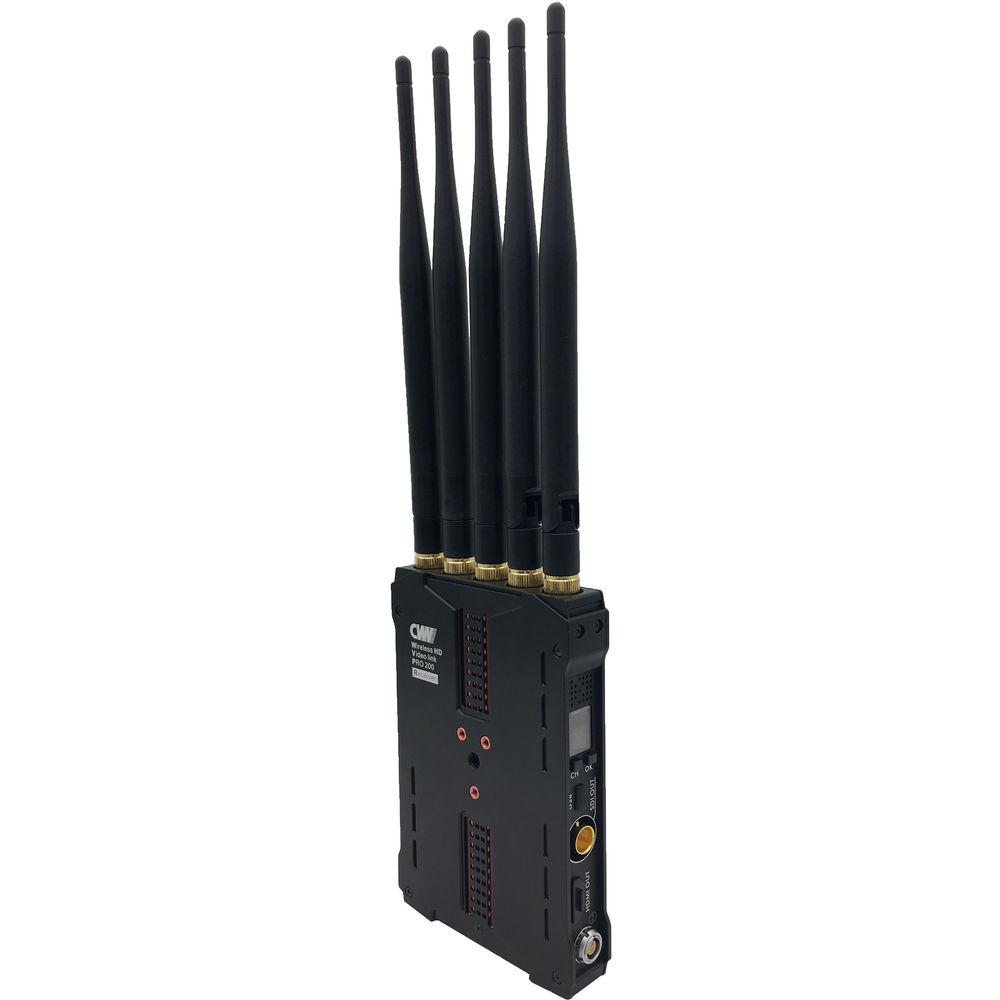

Product description The Pro200R Wireless HD Multifunctional Video Transmission System from Crystal Video Technology comprises one transmitter and two receivers. It features HDMI and SDI connections and transmits up to 1080p60, 4:4:4, 10-bit video with a latency of ≤1 ms, over a range up to 655' line-of-sight. The system uses the 5 GHz frequency (5150 to 5250 and 5725 to 5825 MHz in the US, which can be set manually; see Specs) and is designed with AES 128-bit encryption, providing a safe solution for live broadcasting.
Both the transmitter and receivers come with an L-series battery plate with support for optional V-mount adapters, and can also be powered by the included LEMO to D-Tap power adapters. - Key Features
-
- HDMI and SDI input/output
- Up to 1080p60, 4:4:4, 10-bit video transmission
- 655' line-of-sight transmission range
- ≤1 ms latency
- Manually assignable 5 GHz frequency (5150-5250 and 5725-5825 MHz in the US; see Specs)
- L-series battery plates
- Support for optional V-mount adapters
- Includes LEMO to D-Tap power adapters
- AES 128-bit encryption

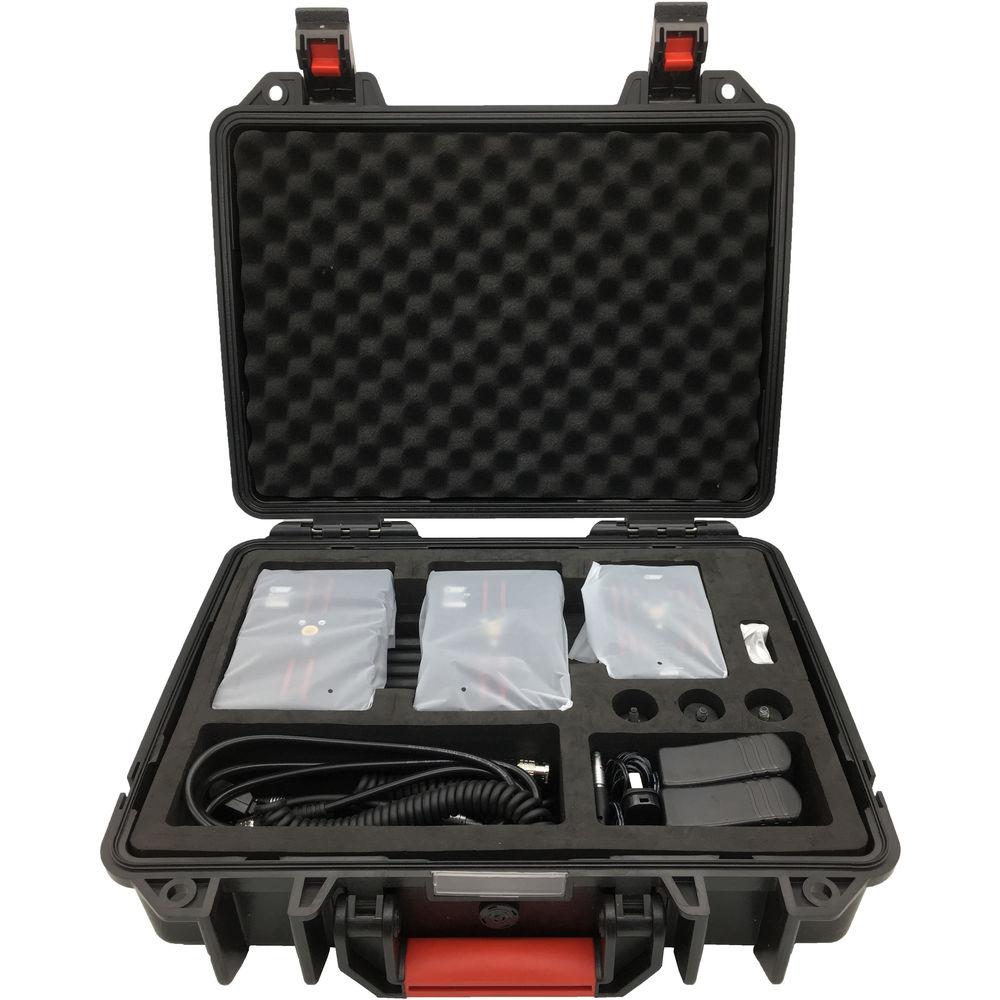

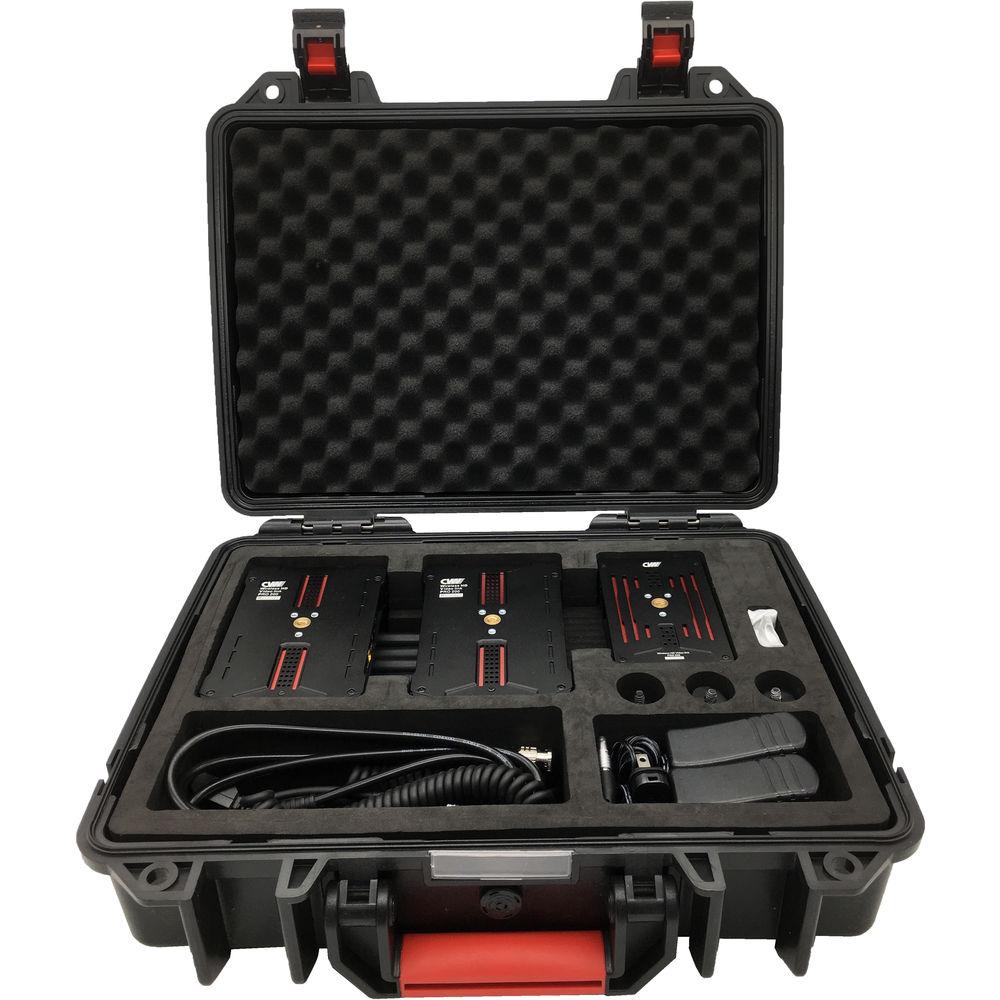

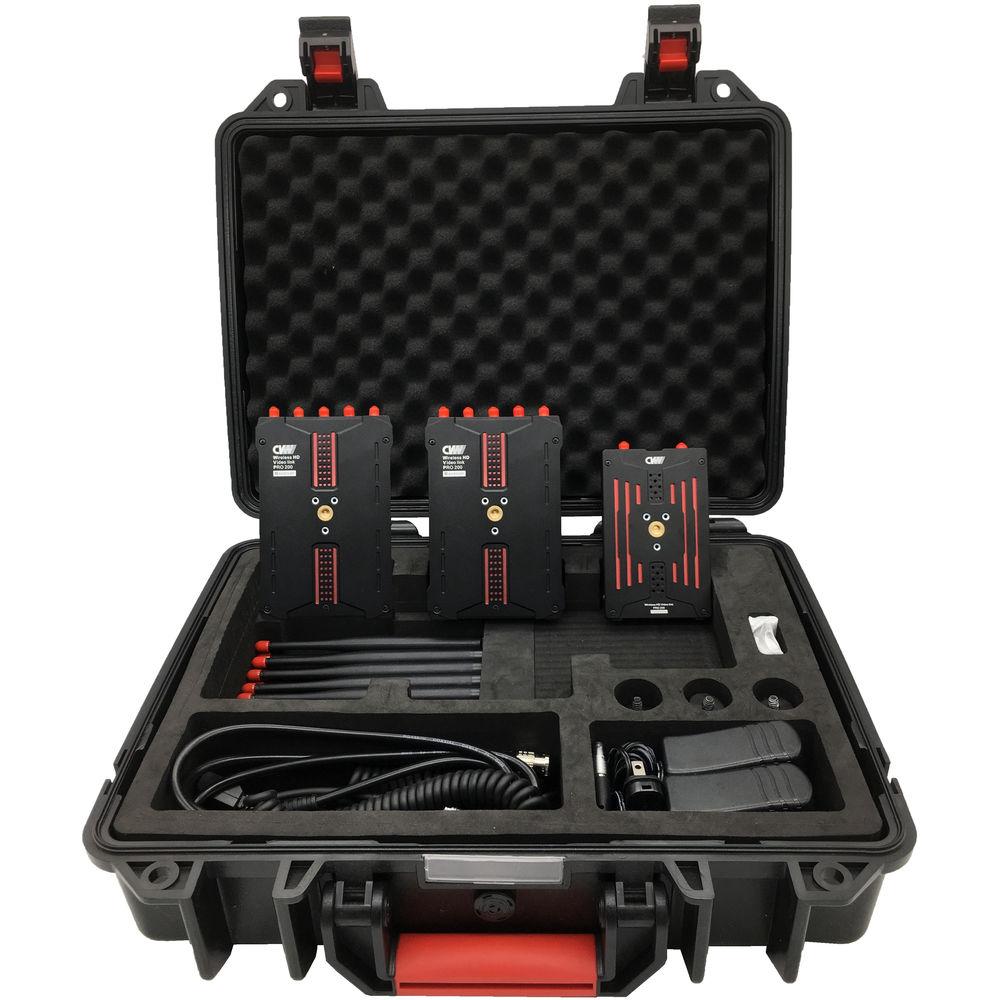

UPC: 696177978183 In the Box Crystal Video Technology Pro200R Wireless HD Multifunctional Video Transmission System Transmitter 2 x Receiver 2 x Transmitter Antenna 10 x Receiver Antenna 3 x 2-Pin LEMO to D-Tap Power Cable 3 x SDI Cable 3 x Hot Shoe Adapter Hard Carry Case Limited 1-Year Warranty User Manual PDF 5mbebetbas Table of Contents
|
Upload User Manual
Have you got an user manual for the Crystal Video Technology Pro200R Wireless HD Multifunctional Video Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrystal Video Technology Pro200R Specs | | | Connections | 1 x SDI BNC Input
1 x HDMI Input | | Supported Resolution | 1080p: 60/50/30/25/24/23.98
1080PsF: 25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i | | Color Sampling | 4:4:4 | | Bit Rate | 10-Bit | | Transmission Range | 655' / 200 m, Line-of-Sight | | Latency | ≤1 ms | | Antenna | External, TX5 dBi | | Frequency | 5150-5250 / 5725-5825 MHz (US/EU), 5150-5250 MHz (JPN) | | Transmission Power | 17 dBm | | Bandwidth | 40 MHz | | Audio Formats | PCM, DTS-HD, Dolby TrueHD | | Timecode | ATC_VITC, ATC_LTC | | Encryption | AES 128-Bit Encryption | | Waterproof/Dustproof Rating | IP54 | | Battery Support | Sony L-Series Battery Plate (Support for Attaching Optional V-Mount Adapter) | | Power Supply Input | 2-Pin LEMO Type, 7-36 VDC | | Mount Type | 1/4"-20 Threaded Hole on the Bottom | | Power Consumption | 7 W | | Overvoltage Protection | 12 VDC / 2 A (7-36 V) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Dimensions | 4.6 x 2.8 x 1.1" / 11.8 x 7.2 x 2.8 cm | | | | Connections | 1 x SDI BNC Output
1 x HDMI Output | | Resolution Supported | 1080p: 60/50/30/25/24/23.98
1080PsF: 25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i | | Antenna | External, RX2 dBi | | Receiving Sensitivity | -70 dBm | | Frequency | 5150-5250 / 5725-5825 MHz (US/EU), 5150-5250 MHz (JPN) | | Bandwidth | 40 MHz | | Transmission Range | 656' / 200 m, Line-of-Sight | | Audio Formats | PCM, DTS-HD, Dolby TrueHD | | Timecode | ATC_VITC, ATC_LTC | | Encryption | AES 128-Bit Encryption | | Waterproof/Dustproof Rating | IP54 | | Battery Support | Sony L-Series Battery Plate (Support for Attaching Optional V-Mount Adapter) | | Power Supply Input | 2-Pin LEMO Type, 7-36 VDC | | Mount Type | 1/4"-20 Threaded Hole | | Power Consumption | 5-6 W | | Overvoltage Protection | 12 VDC / 2 A (7-36 V) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Dimensions | 5.7 x 3.7 x 1.1" / 14.4 x 9.5 x 2.8 cm |
