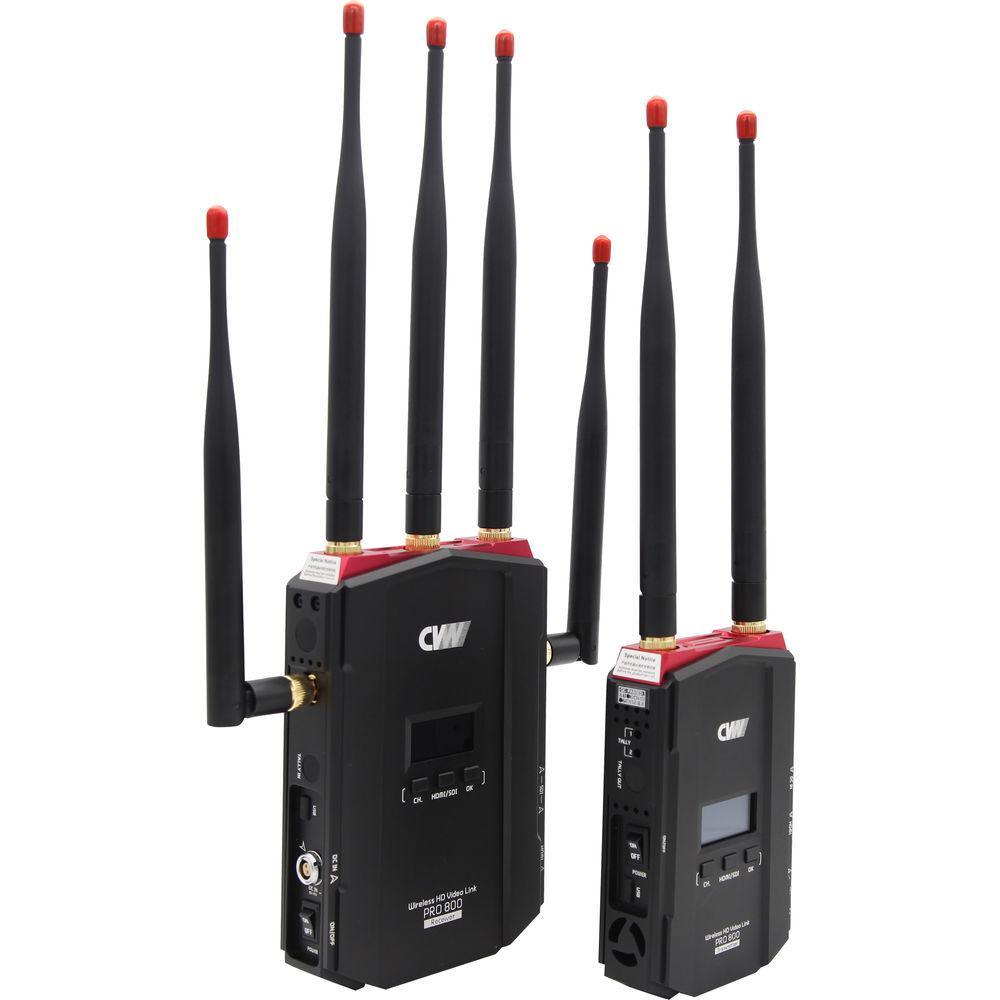

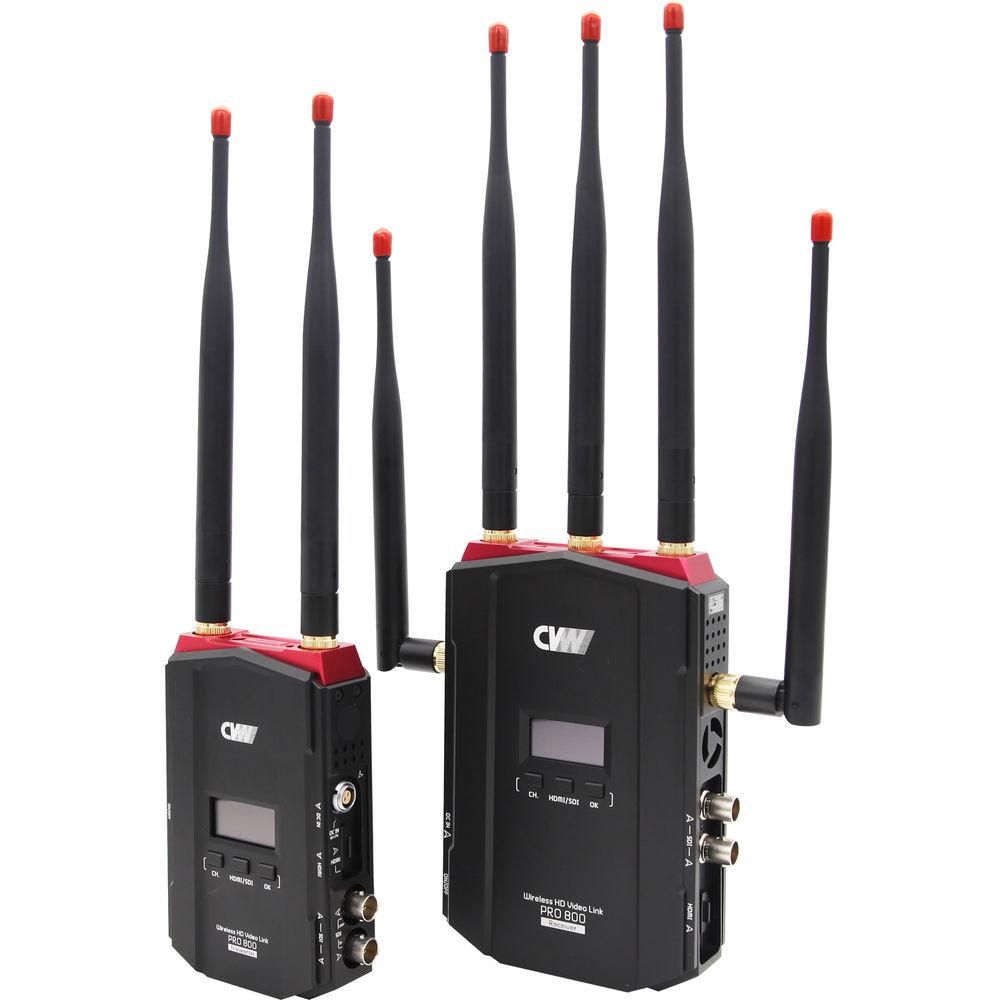

Product description The Pro800 Wireless HD Multifunctional Video Transmission System from Crystal Video Technology is a long-range transmitter/receiver set allowing you to send up to a 1080p60, 4:4:4, 10-bit HDMI or SDI signal to dual SDI outputs or a single HDMI output. The Pro800 offers a transmission range of up to 2625' with a latency of <1 ms over the 5.1-5.9 ghz frequency band. transmitter also has an sdi loop out for local monitoring.

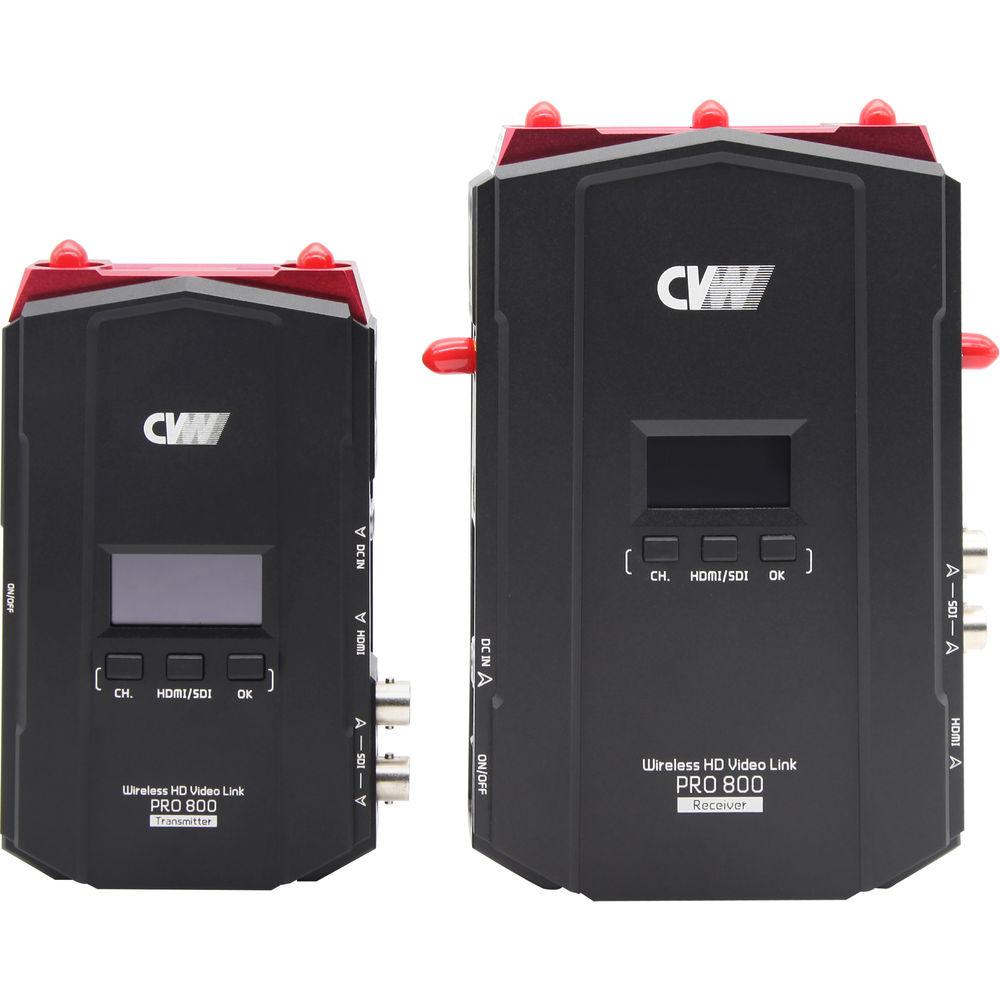

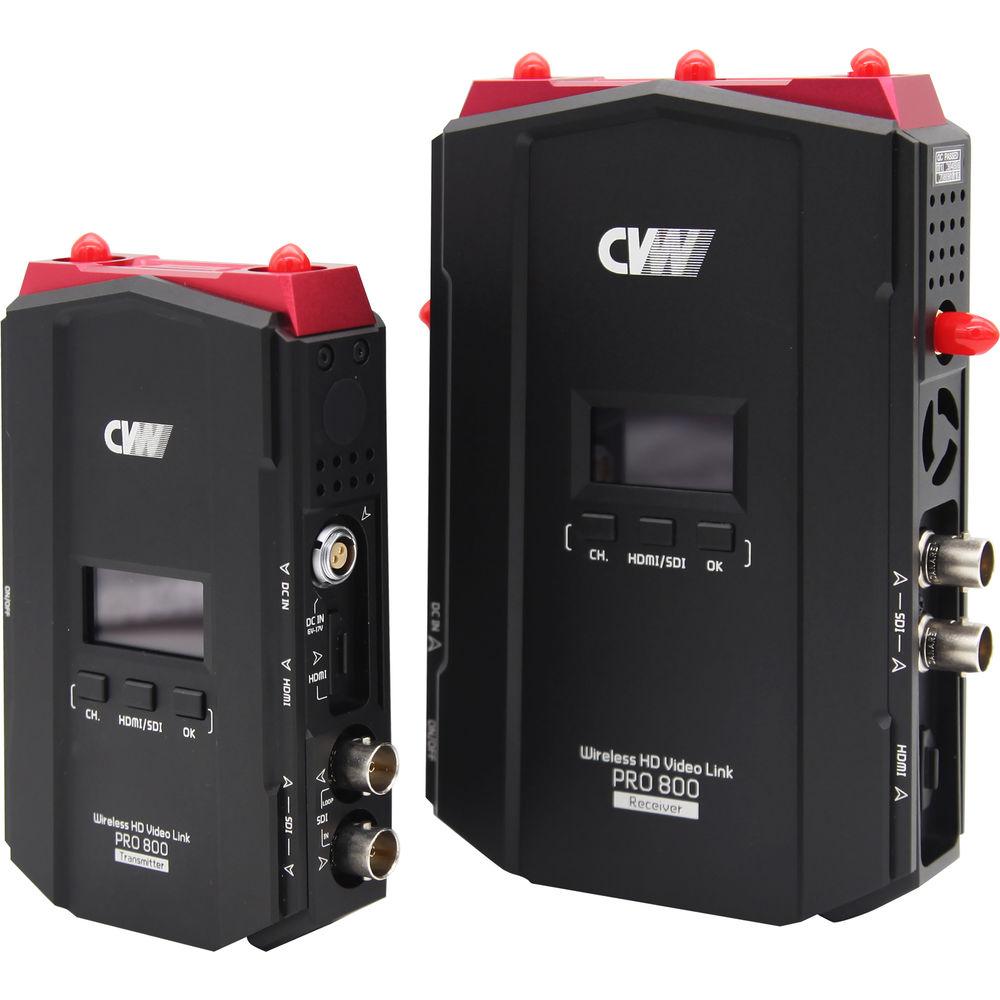

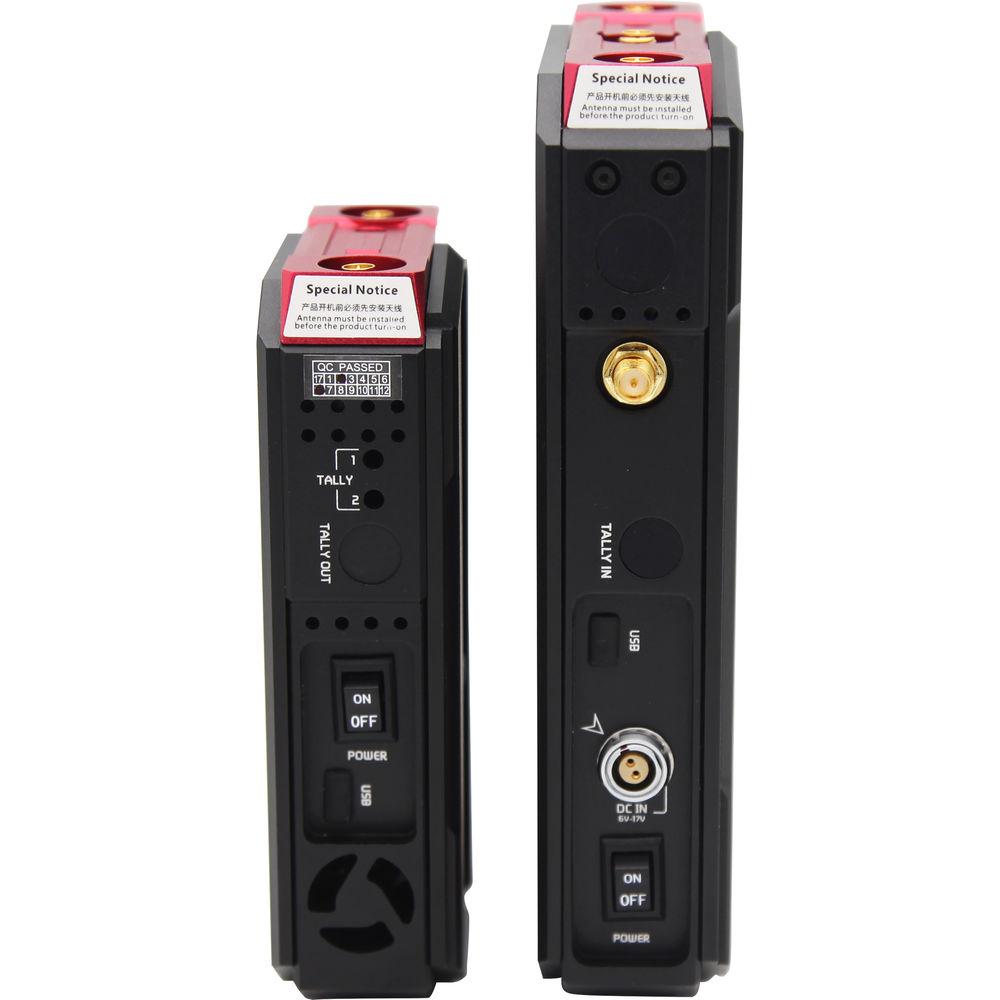

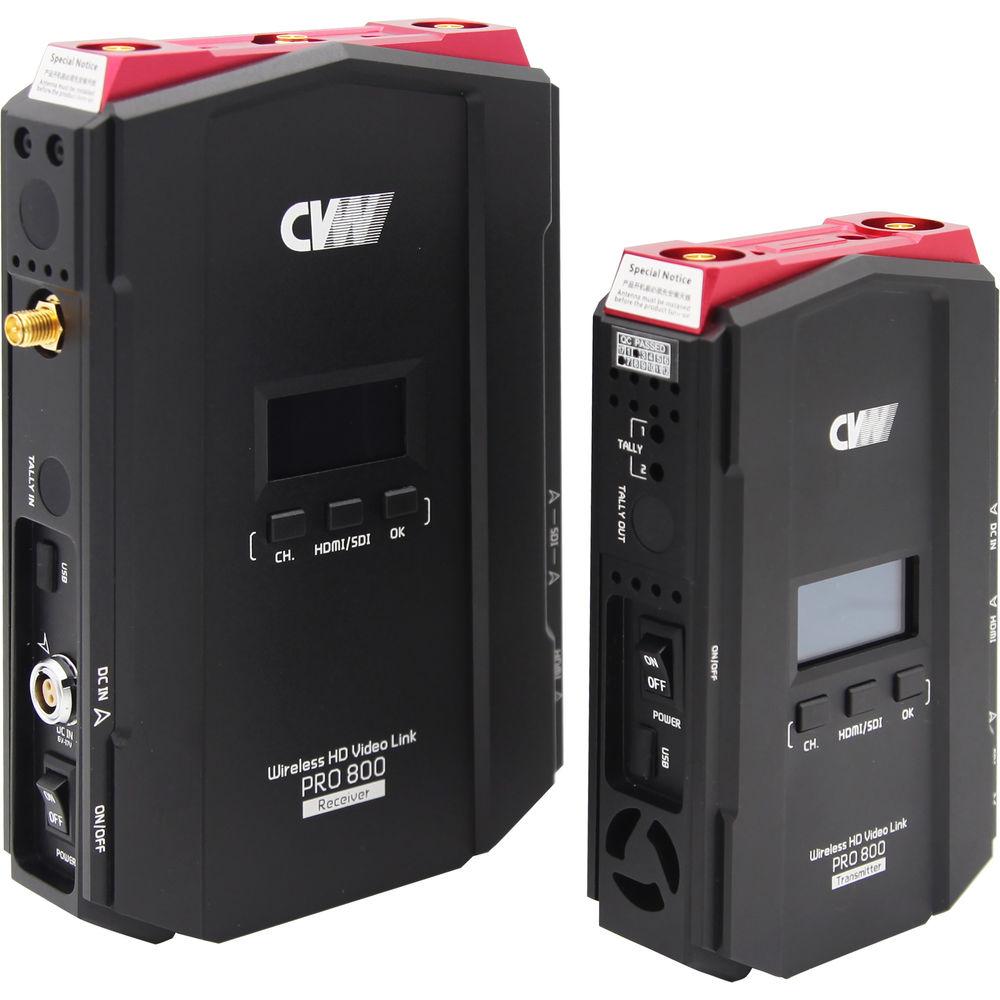

Signal switch buttons on the front panel let you conveniently make your signal selections while an OLED display on both units provides signal and other status information. The system also supports timecode and features AES-128/-256 data encryption. For power, two 2-pin LEMO to D-Tap cables are included for connecting to compatible batteries, a 2-pin LEMO power supply is supplied for use on the receiver end, and an optional V-mount adapter can be installed into a 1/4"-20 mounting thread on the rear of both units. There's another mounting thread on the bottom of both units, and either can be used to mount the devices. Shoe-mount to 1/4"-20 adapters are included with the set to let you mount to your camera or elsewhere. - Key Features
-
- Up to 1080p60, 4:4:4, 10-bit video transmission
- 2625' line-of-sight transmission range
- ≤1 ms latency
- SDI/HDMI input, SDI loop out
- HDMI and dual SDI outputs
- 5.1 -5.9 GHz frequency band
- Signal switch buttons
- OLED displays
- AES-128/-256 encryption
- Optional V-mount adapters supported
- 1/4"-20 mounting threads on the rear and bottom
- Shoe-mount to 1/4"-20 adapters included

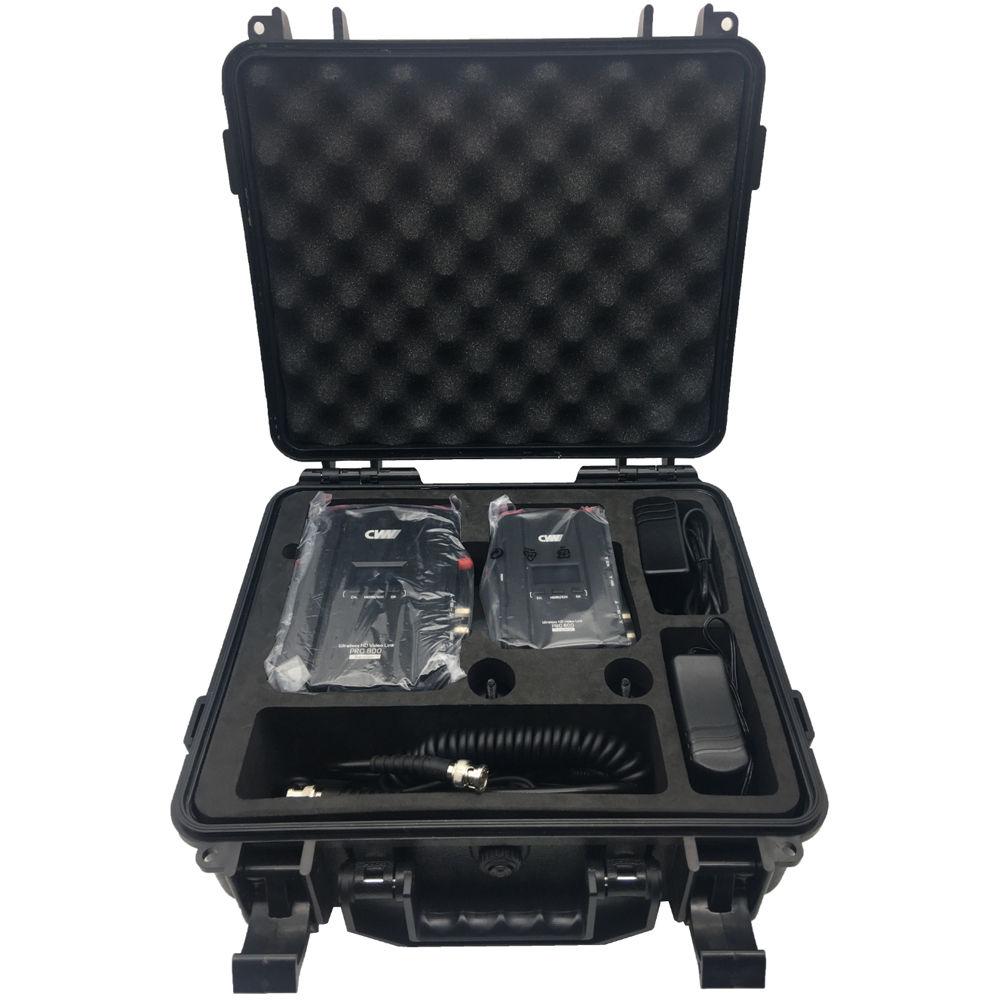

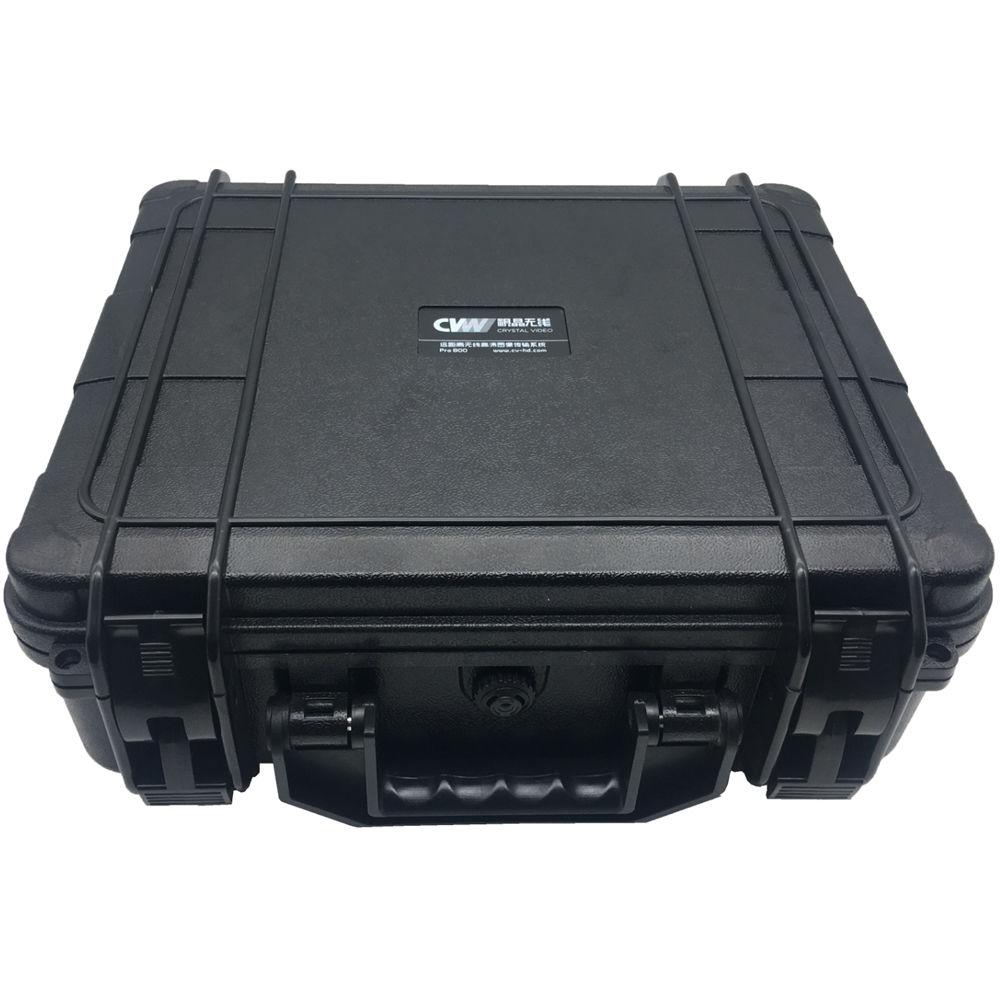

UPC: 696177978046 In the Box Crystal Video Technology Pro800 Wireless HD Multifunctional Video Transmission System Transmitter Receiver 2 x Transmitter Antenna 5 x Receiver Antenna 2 x 2-Pin LEMO to D-Tap Cable 12V, 2A 2-Pin LEMO Power Supply SDI Cable 2 x Shoe Mount to 1/4"-20 Adapter Hard Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crystal Video Technology Pro800 Wireless HD Multifunctional Video Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrystal Video Technology Pro800 Specs | | | Connections | 1 x SDI input on BNC
1 x HDMI input
1 x SDI loop out on BNC | | Supported Resolution | 1080p: 60/50/30/25/24/23.98
1080PsF: 25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p

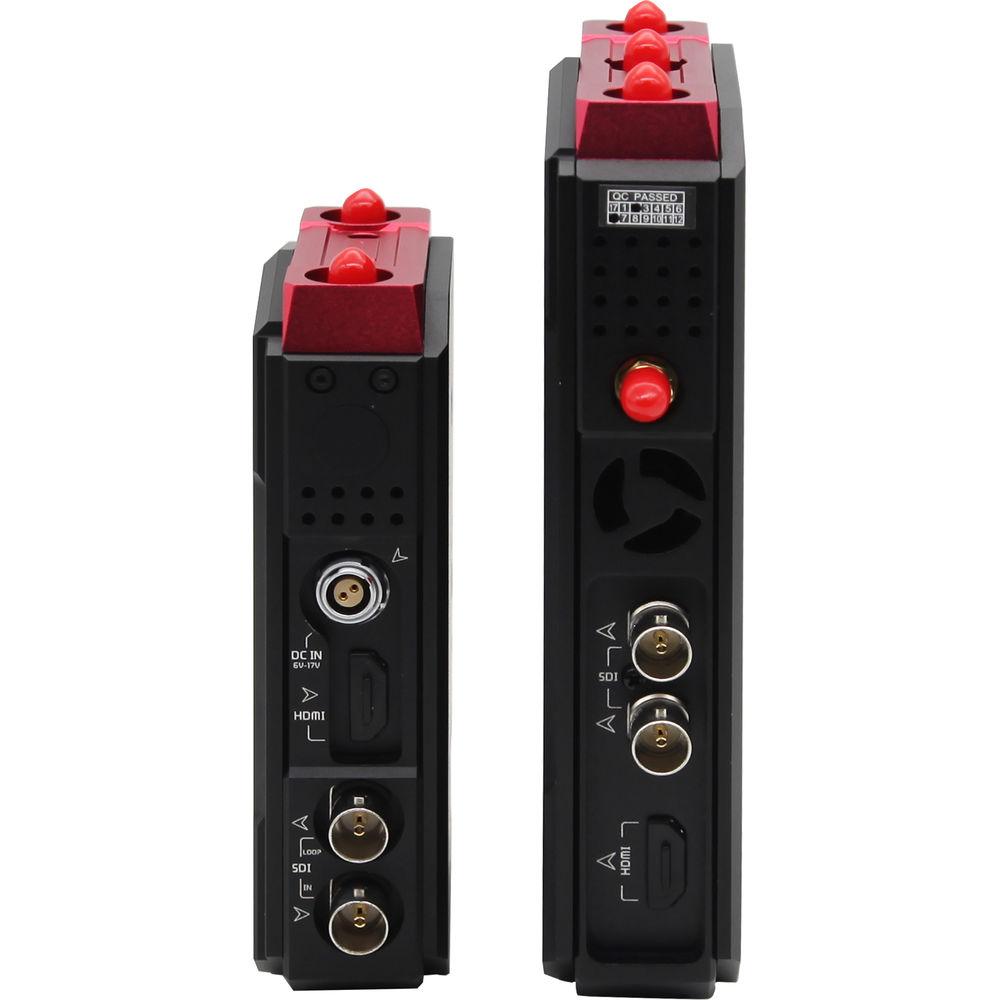

480i | | Color Sampling | 4:4:4 | | Bit Rate | 10-bit | | Transmission Range | 2625' / 800 m line of sight | | Latency | ≤1 ms | | Antenna Ports | 2 x RP-SMA (2 antennas included) | | Frequency | 5.1 - 5.9 GHz | | Transmission Power | 20 dBm | | Bandwidth | 40 MHz | | Audio Formats | PCM | | Timecode | SMPTE-12M | | Encryption | AES 128-/256-bit encryption | | Mount Type | 1/4"-20 mounting thread on the rear and on the bottom | | Battery Support | Optional V-mount adapter can be attached into 1/4"-20 mounting thread on the rear | | Display | OLED | | Firmware Upgradable | 1 x mini USB | | Power Supply Input | 2-pin LEMO type | | Working Voltage | 6-17 VDC | | Power Consumption | 12 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -40 to 176°F / -40 to 80°C | | Dimensions | 4.7 x 3 x 1.2" / 12 x 8 x 3 cm | | | | Connections | 2 x SDI output on BNC
1 x HDMI output | | Resolution Supported | 1080p: 60/50/30/25/24/23.98
1080PsF: 25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i | | Antenna Ports | 5 x RP-SMA (5 antennas included) | | Receiving Sensitivity | -70 dBm | | Frequency | 5.1 - 5.9 GHz | | Bandwidth | 40 MHz | | Transmission Range | 2625' / 800 m line of sight | | Audio Formats | PCM | | Timecode | SMPTE-12M | | Encryption | AES 128-/256-bit encryption | | Mount Type | 1/4"-20 mounting thread on the rear and on the bottom | | Battery Support | Optional V-mount adapter can be attached into 1/4"-20 mounting thread on the rear | | Display | OLED | | Firmware Upgradable | 1 x mini USB | | Power Supply Input | 2-pin LEMO type | | Working Voltage | 6-17 VDC | | Power Consumption | 7-8 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -40 to 176°F / -40 to 80°C | | Dimensions | 4.5 x 4.3 x 1.3" / 11.5 x 11 x 3.2 cm | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 13.7 x 13.1 x 5.6" |
