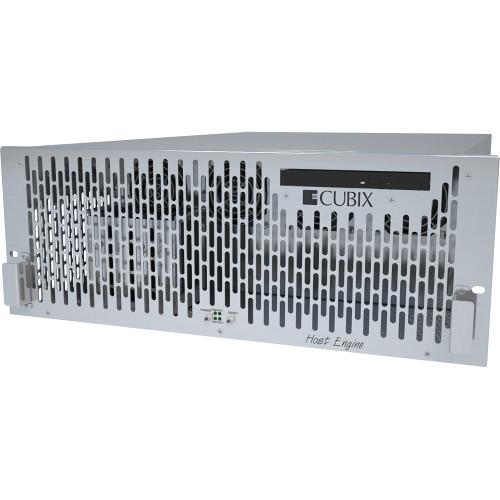

User Manual for Cubix HostEngine 4U RP Rackmount Computer with Redundant Power Click to enlarge the picture
Contents of the user manual for the Cubix HostEngine 4U RP Rackmount Computer
- Product category: PC Workstations Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix PC Workstations
|
User manual for the Cubix HostEngine 4U RP Rackmount Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|
Product description The Cubix HostEngine 4U RP Rackmount Computer features dual Intel Xeon E5-2660v3 series processors with the Intel C612 chipset and a power supply with redundant modules. It offers four PCIe gen 3.0 x16 expansion slots. Each slot can accommodate a full-height, full-length, double-wide accelerator with active cooling. Each slot also supports the Cubix HIC (Host Interface Controller) that connects to Cubix Xpander products. Each HIC can connect to multiple slots within an Xpander Rackmount 8 or other Xpander products. By connecting the HostEngine 4U RP to Xpander Rackmount 8, you can add eight double-wide GPUs such as NVIDIA Quadro K5200 or M6000 for running Blackmagic Design DaVinci Resolve, Autodesk 3ds Max or Bunkspeed Shot with Mental Images iray on Linux or Microsoft Windows. Connecting to Xpander Rackmount 8 also enables you to connect to GPU Compute Engines such as NVIDIA Tesla K40 / K80. You can also connect to AMD Firepro S9100 / 9150 / 9170 for HPC applications, as well as Grid K2 for virtual desktop projects or multiple Intel Xeon Phi coprocessors for parallel processing. HostEngine 4U RP also is a stand-alone system that supports up to 4 NVIDIA Quadro K5200 or M6000 GPUs. In the Box Cubix HostEngine 4U RP Rackmount Computer with Redundant Power Cables and Power Cords Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix HostEngine 4U RP Rackmount Computer with Redundant Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCubix HE4URP Specs | Operating System | CentOS Linux | | | | CPU Socket | LGA 2011 v3 | | CPU | 2 x 2.2 GHz Intel Xeon E5-2660 v3 8-Core | | Maximum Boost Speed | 3.0 GHz | | L3 Cache | 20 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 4 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 1024 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 16 | | Buffered Memory | Yes | | ECC Memory | Yes | | Graphics Type | None | | | | Total Drive Bays | 2 x 2.5" (Internal) | | Solid State Storage | 1 x 500 GB 2.5" SATA | | PCI Expansion | 4 x PCIe Gen 3 x16
2 x PCIe Gen 3 x8
1 x PCIe Gen 3 x4 | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0)
1 x DE-9 (Serial) | | Display | 1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x TOSLINK S/PDIF Output | | | | Ethernet | 3 x RJ45 (Gigabit) | | | | Power Supply | 3000 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 7.5 to 15 A | | Dimensions | 19 x 7 x 26" / 48.3 x 17.8 x 66 cm | | Weight | 49 lb / 22.2 kg |
