User Manual for Cubix Linux2U Rackmount 8 4U Click to enlarge the picture
Contents of the user manual for the Cubix Linux2U Rackmount 8 4U
- Product category: PC Workstations Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix PC Workstations
 |
User manual for the Cubix Linux2U Rackmount 8 4U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|

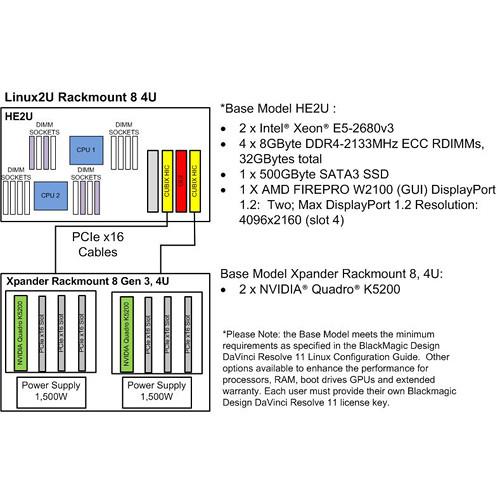

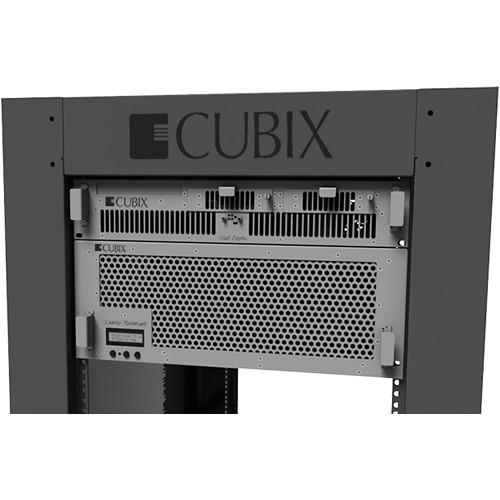

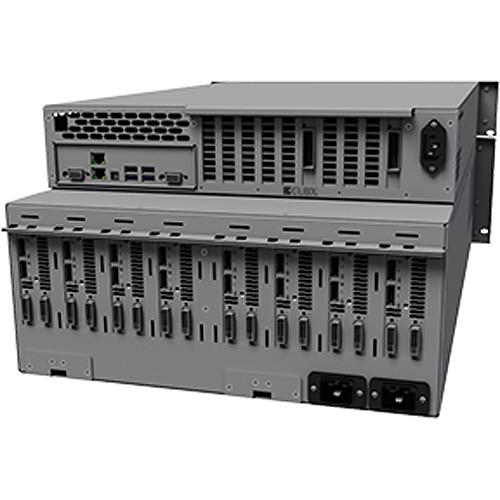

Product description The Cubix Linux2U Rackmount 8 4U consists of a HostEngine 2U Computer that connects to an Xpander Rackmount 8 4U PCIe Enclosure. Both chassis are rack mountable, rugged, and low-profile. The Xpander Rack Mount 8 PCIe Enclosure enables connection of 8 double-wide graphics or other controllers with rear-connected auxiliary power cables to the host computer. It also supports graphical processing units (GPUs) with passive cooling. The enclosure has two Main Interface Boards (MIBs) each with four PCIe x16 slots for a total of eight double-wide GPUs like NVIDIA Quadro, Tesla or Grid Series, AMD FirePro W9100 / S9100, or accelerators like Intel Xeon Phi coprocessors. It comes configured with two Quadro K5200 and one AMD FirePro W2100 graphics cards. Each MIB connects via a PCIe x16 cable to an HIC in the host computer. The HostEngine 2U comes with 16GB of RAM and one 500GB SATA3 SSD, but supports up to 1TB of RAM and a 2TB SATA3 SSD. It has four PCIe x16 (gen 3) expansion slots for low-profile cards such as the Cubix HIC that connects to Xpander. The system is loaded with CentOS Linux 6.4 and Cubix GPU Manager to monitor the health and performance of both the GPUs and Xpander. Note: Customers / end users must add their own Blackmagic Design DaVinci Resolve 11 license key. - Xpander Rack Mount 8 4U Gen 3
- HostEngine Rackmount Computer for GPU Xpander Systems (2 RU)
In the Box Bundle Items Xpander Rack Mount 8 4U Gen 3 cfeuwwxattsu HostEngine Rackmount Computer for GPU Xpander Systems (2 RU) Table of Contents
|
