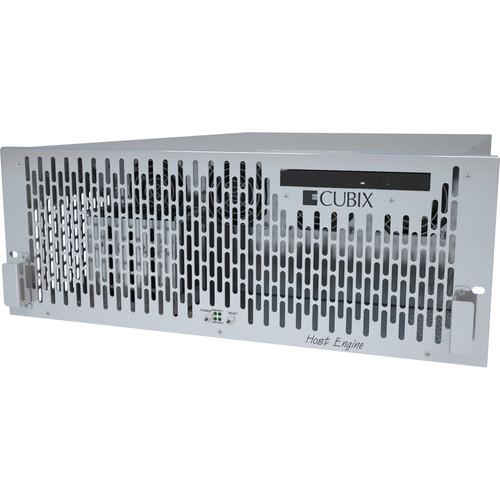

User Manual for Cubix Resolve 12 Lin4U Engine Click to enlarge the picture
Contents of the user manual for the Cubix Resolve 12 Lin4U Engine
- Product category: PC Workstations Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix PC Workstations
|
User manual for the Cubix Resolve 12 Lin4U Engine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|
Product description The Resolve 12 Lin4U from Cubix consists of a Cubix HostEngine 4U computer designed to support up to four NVIDIA GeForce GTX 980Ti GPUs, which allows you to have a complete system in one chassis. If your workload requires expansion for up to four double-wide GPUs, and your space is limited, the Resolve 12 Lin4U is suitable for you. The Resolve 12 Lin4U can be placed on a desktop or it can be rack-mounted. For a quiet solution and space optimization, you can add FiberNode (available separately). The Resolve 12 Lin4U System can then be stored in an IT operations room up to 492' away. The system is loaded with CentOS Linux 7.0 as the operating system and is tested. Note: Each end user must add their own Blackmagic Design DaVinci Resolve 12 license key. - Cubix HostEngine 4U's Features
-
- Allows you to install GPUs for fast hardware acceleration
- Intel Xeon E5-2600v3 series (Haswell) dual processors
- Intel C612 series chipset
- Supports any PCIe-compliant controller or adapter
- Supports two Intel PCIe flash cards for a total of up to 4.8TB fast-read/write cache
- Supports any GPU with active cooling, including NVIDIA GeForce GTX 980 / GTX 980Ti, TITAN X, or NVIDIA Quadro Series K5200 / M6000
- Supports popular multiple-GPU applications such as Adobe After Effects or Premiere Pro; Autodesk Maya or 3ds Max with NVIDIA iray or Chaos Group V-ray; Bunkspeed Shot; Cinnafilm Tachyon; Otoy Octane Render, and others
- Supports two digital displays with resolution of 4096 x 2160
- 128 Gb/sec theoretical transfer rate for each PCIe Gen3 x16 slot
- Supports up to 1TB memory
- Four PCIe Gen 3.0 x16 slots for double-wide NVIDIA or AMD GPUs or display controllers
- Four variable speed, temperature-controlled exhaust fans
- Two Intel Gb/s Ethernet ports and one Gb/s management only port with IPMI 2.0 support
- SATA 3.0 SSD boot drives
- Graphics controller provides four DisplayPort 1.2 outlets
In the Box Cubix Resolve 12 Lin4U Engine Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix Resolve 12 Lin4U Engine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCubix SYRL7040005D25 Specs | Operating System | CentOS Linux (64-Bit) | | | | CPU Socket | LGA 2011 v3 | | CPU | 2.6 GHz Intel Xeon E5-2697 v3 14-Core | | Maximum Boost Speed | 3.6 GHz | | L3 Cache | 35 MB | | Buffered Memory | Yes | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro M4000 | | | | Total Drive Bays | 1 x 2.5" (Internal) | | Solid State Storage | 1 x 480 GB 2.5" SATA | | PCI Expansion | 4 x PCIe Gen 3 x16
2 x PCIe Gen 3 x8
1 x PCIe Gen 3 x4 | | | | Ethernet | 2 x RJ45 (Gigabit) | | | | Power Supply | 1500 W | | Dimensions | 7 x 19 x 25.5" / 17.8 x 48.3 x 64.8 cm | | Weight | 54 lb / 24.5 kg |
