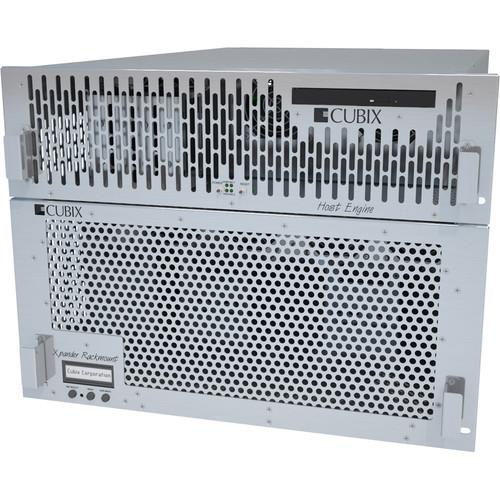

User Manual for Cubix RPS Linux3U Rackmount 8 5U Click to enlarge the picture
Contents of the user manual for the Cubix RPS Linux3U Rackmount 8 5U
- Product category: PC Workstations Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix PC Workstations
|
User manual for the Cubix RPS Linux3U Rackmount 8 5U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|
Product description The RPS Linux3U Rackmount 8 5U from Cubix consists of a HostEngine 3U computer which is connected to the Xpander Rackmount 8 5U. Xpander Rackmount 8, 5U RPS includes 2 main interface boards (MIBs) with a redundant power supply for each MIB. The Xpander Rackmount 8, 5U RPS uses 5U vertical rack space and supports a total of eight NVIDIA Grid K2s. Up to four Grid K2s can be loaded on each MIB. It also comes equipped with one AMD FirePro W2100 and two NVIDIA Quadro K5200 graphics cards. The HostEngine 3U RP is a solidly-built server chassis that features 1000W redundant power. The HostEngine 3U RP can support up to 1TB of memory and up to four SATA 3.0 connectors. The system is loaded with CentOS Linux 6.4, all updates and drivers, as well as Cubix GPU Manager, for monitoring the health and performance of both the GPUs and Xpander. Note: Customer/End User must add your own Blackmagic Design DaVinci Resolve 11 license key. - HostEngine 3U RP Rackmount Computer with Redundant Power The Cubix HostEngine 3U RP Rackmount Computer features dual Intel Xeon E5-2660v3 processors with the Intel C612 chipset and a power supply with redundant modules. It offers four PCIe gen 3.0 x16 expansion slots. Each slot can accommodate a half-height, half-length controller such as the Cubix HIC (Host Interface Controller) that connects to Cubix Xpander products. Each HIC can connect to multiple slots within an Xpander Rackmount 8 or other Xpander products. By connecting the HostEngine 3U RP to Xpander Rackmount 8, you can add eight double-wide GPUs such as NVIDIA Quadro K5200 or M6000 for running Blackmagic Design DaVinci Resolve, Autodesk 3ds Max or Bunkspeed Shot with Mental Images iray on Linux or Microsoft Windows. Connecting to Xpander Rackmount 8 also enables you to connect to GPU Compute Engines such as NVIDIA Tesla K40 / K80. You can also connect to AMD Firepro S9100 / 9150 / 9170 for HPC applications, as well as Grid K2 for virtual desktop projects or multiple Intel Xeon Phi coprocessors for parallel processing.
- Xpander Rackmount 8 - 5 RU External PCIe Expansion Chassis with Redundant Power Supply
In the Box Bundle Items Xpander Rackmount 8 - 5 RU External PCIe Expansion Chassis with Redundant Power Supply sbdysxewyudczzayztvxcyvtstuyywef HostEngine 3U RP Rackmount Computer with Redundant Power Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix RPS Linux3U Rackmount 8 5U in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HostEngine 3U RP Rackmount Computer with Redundant Power
| Operating System | CentOS Linux | | | | CPU Socket | LGA 2011 v3 | | CPU | 2 x 2.2 GHz Intel Xeon E5-2660 v3 8-Core | | Maximum Boost Speed | 3.0 GHz | | L3 Cache | 20 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 4 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 1024 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 12 | | Buffered Memory | Yes | | ECC Memory | Yes | | Graphics Type | None | | | | Total Drive Bays | 4 x 2.5" (Internal) | | Solid State Storage | 1 x 500 GB 2.5" SATA | | PCI Expansion | 4 x PCIe Gen 3 x16
2 x PCIe Gen 3 x8
1 x PCIe Gen 3 x4 | | | | Ports | 4 x USB Type-A (USB 2.0)
1 x DE-9 (Serial) | | Display | 1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x TOSLINK S/PDIF Output | | | | Ethernet | 3 x RJ45 (Gigabit) | | | | Power Supply | 1000 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 7.5 to 15 A | | Dimensions | 16.7 x 5.2 x 26" / 42.4 x 13.2 x 66 cm | | Weight | 36 lb / 16.3 kg | - Xpander Rackmount 8 - 5 RU External PCIe Expansion Chassis with Redundant Power Supply
