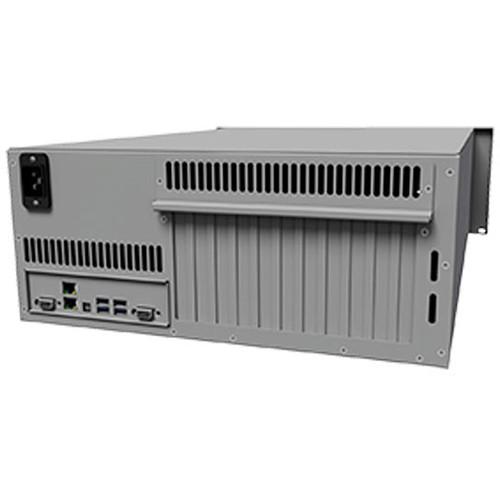

User Manual for Cubix RPS Resolve 12 Linux4U Base Computer System Click to enlarge the picture
Contents of the user manual for the Cubix RPS Resolve 12 Linux4U Base
- Product category: PC Workstations Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix PC Workstations
|
User manual for the Cubix RPS Resolve 12 Linux4U Base contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|
Product description The Cubix RPS Resolve 12 Linux4U Base Model consists of a HostEngine 4U computer designed to run up to four GPUs, either GTX or Quadro Series GPUs, which are housed inside its chassis. It can accept up to four double-wide GPUs and can be placed on a desktop or rackmounted.
The Linux4U comes pre-installed with the CentOS Linux 6.4 operating system. The system is powered by two Intel Xeon E5-2680v3 2.5 GHz processors and is equipped with two AMD FirePro W2100 (GUI) graphic controllers. For storing large amount of data, the system comes with 500GB SSD. In addition, it is also equipped with 32GB (4 x 8GB) of DDR4 RAM. Note: Note: Each Customer/End User must add your own Blackmagic Design DaVinci Resolve 11 license key. HE4U - Two Intel Xeon E5-2680v3 2.5 GHz (Haswell) dual processors
- Intel C612 series chipset
- Four PCIe Gen 3.0 x16 slots for double-wide NVIDIA or AMD GPUs or display controllers
- Four variable speed, temperature-controlled exhaust fans
- Two Intel Gigabit Ethernet ports and one Gigabit management only port with IPMI 2.0 support
- One or two SATA 3.0 SSD boot drives
- Graphics controller provides two DisplayPort 1.2 outlets
Benefits - Supports any PCIe-compliant controller or adapter
- Supports two Intel PCIe flash cards for a total of up to 4.8TB fast-read/write cache
- Supports any GPU with active cooling, including Quadro Series K5200 / M6000
- Supports multiple-GPU applications such as Adobe After Effects or Premiere Pro
- Supports Autodesk Maya, or 3ds Max with NVIDIA iray or Chaos Group, and V-ray
- Supports Bunkspeed Shot, Cinnafilm Tachyon, Otoy Octane Render, and others
- Supports two digital displays with resolution of 4096 x 2160
Performance - One single-phase, auto-ranging 90 to 240 VAC
- Dual Intel i350 network controllers
- RJ-45 port for management
- Aspeed 2400 (dedicated IPMI_LAN 2.0) controller
- Up to 9.6 GT/s across two QPI (QuickPath Interconnect) links
- 32 to 86°F operating temperature and 5 to 80% non-condensing humidity
In the Box Cubix RPS Resolve 12 Linux4U Base Computer System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix RPS Resolve 12 Linux4U Base Computer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCubix SYNL6440007B-21 Specs | Operating System | CentOS Linux | | | | Chipset | Intel C612 | | CPU | 2 x 2.5 GHz Intel Xeon E5-2680 v3 12-Core | | Maximum Boost Speed | 3.3 GHz | | L3 Cache | 30 MB | | Graphics Type | Dedicated | | GPU | 2 x AMD FirePro W2100 | | | | Total Drive Bays | 1 x 3.5" (Internal) | | Solid State Storage | 1 x 500 GB 2.5" SATA | | PCI Expansion | 4 x PCIe Gen 3 x16
2 x PCIe Gen 3 x8
1 x PCIe Gen 2 x4 | | | | Display | 2 x DisplayPort 1.2 | | | | Ethernet | 2 x RJ45 (Gigabit) | | | | Power Supply | 1500 W | | Dimensions | 19 x 7 x 25.5" / 48.3 x 17.8 x 64.8 cm | | Weight | 54 lb / 24.5 kg |
