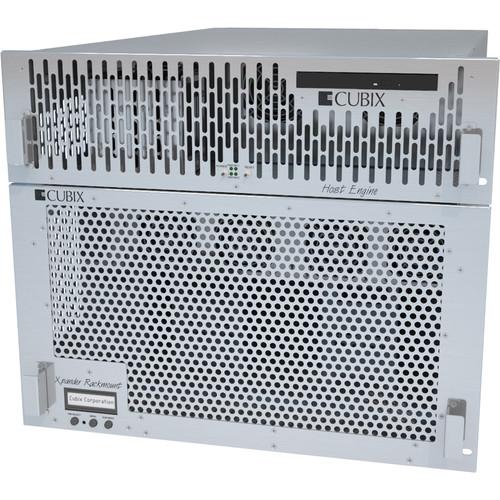

User Manual for Cubix RPS Win3U Rackmount 8 6U Click to enlarge the picture
Contents of the user manual for the Cubix RPS Win3U Rackmount 8 6U
- Product category: PC Workstations Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix PC Workstations
|
User manual for the Cubix RPS Win3U Rackmount 8 6U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|
Product description The RPS Win3U Rackmount 8 6U from Cubix consists of a HostEngine 3U RP Rackmount Computer which is connected to the Xpander Rackmount 8 6U PCIe Enclosure. Both chassis are rack-mountable and rugged. The Xpander Rack Mount 8 PCIe Enclosure enables the connection of 8 dual-slot or single-slot graphics cards with rear-connected auxiliary power cables to the host computer. The enclosure has two Main Interface Boards (MIBs), each with four PCIe x16 slots for a total of eight GPUs like NVIDIA GeForce GTX 980 or TITAN X. The Xpander Rack Mount 8 comes fitted with one AMD FirePro W2100 and two NVIDIA GTX 980 graphics cards. The HostEngine 3U RP Rackmount Computer features dual Intel Xeon E5-2660v3 series processors with the Intel C612 chipset and a 1,000W redundant power supply. It offers four PCIe gen 3.0 x16 expansion slots. Each slot can accommodate a half-height, half-length controller such as the Cubix HIC (Host Interface Controller) that connects to the Xpander Rack Mount 8 Enclosure. The system is loaded with Windows 8.1 Pro, all updates and drivers, as well as Cubix GPU Manager, for monitoring the health and performance of both the GPUs and Xpander. Xpander Rack Mount 8 PCIe Enclosure - Helps enhance server I/O infrastructure capabilities without adding servers
- Front panel LCD status indicators indicate health of the system (power supply status, temperature, fan speed, and PCIe slot link speed)
- GPU management software for asset management of GPUs, health monitoring, and technical support
- Supports up to eight PCIe Gen 3 x16 expansion slots (all supporting both dual-slot and single-slot cards)
- Add up to eight powerful GPUs (such as NVIDIA Quadro K5200 or M6000) within minutes for fast hardware acceleration
- Multiple accelerators can access flash cards and other accelerators without accessing the root complex (central processing unit)
- 128 Gbps theoretical transfer rate
- Two 4-slot MIBs in a 19" rack mount system (6U height)
- Multiple cooling fans to meet almost any expansion requirement (per MIB)
- Each x16 cable and connector provides a 250 mating duty cycle
- Redundant power supply eliminates the possibility of down time if one power supply goes down; simple access and replacement
HostEngine 3U RP Rackmount Computer - Two Intel Xeon E5-2600v3 Series (Haswell) processors
- Supports up to 1TB memory
- 4 x PCIe Gen 3.0 x 16 slots for half-height host interface controllers (HICs)
- Supports any PCIe-compliant controller or adapter
- 2 x Intel Gb/s Ethernet ports and 1 x Gb/s management only port with IPMI 2.0 support
- Supports 1 or 2 x SATA 3.0 SSD boot drives
- Supports 2 x Intel PCIe flash cards for a total of up to 4.8TB fast-read/write cache
- Graphics controller provides 2 x DisplayPort 1.2 outlets (up to 4096 x 2160 resolution)
- Supports popular multi-GPU applications such as Adobe After Effects or Premiere Pro, Autodesk Maya / 3ds Max with NVIDIA iray or Chaos Group V-ray, Bunkspeed Shot, Cinnafilm Tachyon, Otoy Octane Render, and others
In the Box Cubix RPS Win3U Rackmount 8 6U Xpander Rackmount 8 6U PCIe Enclosure HostEngine 3U RP Rackmount Computer with Redundant Power sbdysxewyudczzayztvxcyvtstuyywef Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix RPS Win3U Rackmount 8 6U in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCubix SYRW813R867B-21 Specs | Operating System | CentOS Linux, Windows 8.1 Pro | | | | CPU Socket | LGA 2011 v3 | | CPU | 2 x 2.2 GHz Intel Xeon E5-2660 v3 8-Core | | Maximum Boost Speed | 3.0 GHz | | L3 Cache | 20 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 4 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 1024 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 12 | | Buffered Memory | Yes | | ECC Memory | Yes | | Graphics Type | Dedicated | | | | Total Drive Bays | 4 x 2.5" (Internal) | | Solid State Storage | 1 x 500 GB 2.5" SATA | | PCI Expansion | 4 x PCIe Gen 3 x16
2 x PCIe Gen 3 x8
1 x PCIe Gen 3 x4 | | | | Ports | 4 x USB Type-A (USB 2.0)
1 x DE-9 (Serial) | | Display | 1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x TOSLINK S/PDIF Output | | | | Ethernet | 3 x RJ45 (Gigabit) | | | | Power Supply | 1000 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 7.5 to 15 A | | Dimensions | 16.7 x 5.2 x 26" / 42.4 x 13.2 x 66 cm | | Weight | 36 lb / 16.3 kg |
