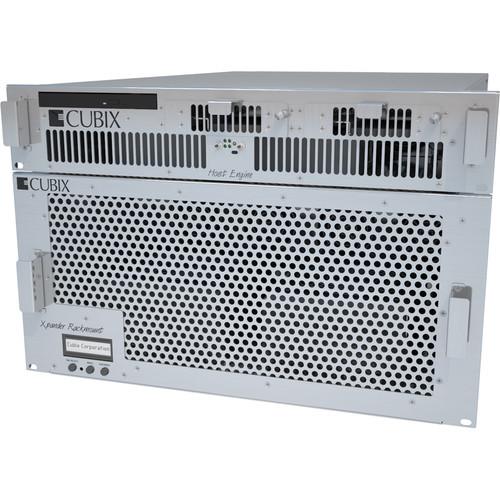

User Manual for Cubix Win2U Rackmount 8 5U Click to enlarge the picture
Contents of the user manual for the Cubix Win2U Rackmount 8 5U
- Product category: PC Workstations Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix PC Workstations
|
User manual for the Cubix Win2U Rackmount 8 5U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|
Product description The Cubix Win2U Rackmount 8 5U consists of a HostEngine 2U Computer that connects to an Xpander Rackmount 8 5U PCIe Enclosure. Both chassis are rack mountable, rugged, and low-profile. The Xpander Rack Mount 8 PCIe Enclosure supports one/two server connections with up to eight discrete, dual-slot PCIe x16 (gen 3) graphics cards per system. This enables parallel calculations separate from the server, enhanced system reliability, performance, and flexibility. The enclosure has two Main Interface Boards (MIBs) with four PCIe x16 slots each for a total of eight double-wide GPUs like NVIDIA Quadro, Tesla or Grid Series, AMD FirePro W9100 / S9100, or accelerators like Intel Xeon Phi coprocessors. It comes configured with two NVIDIA GTX 980 and one AMD FirePro W2100 graphics cards. The HostEngine 2U comes with 16GB of RAM and one 500GB SATA3 SSD, but supports up to 1TB of RAM and a 2TB SATA3 SSD. It has four PCIe x16 (gen 3) expansion slots for low-profile cards such as the Cubix HIC that connects to Xpander. The system is loaded with Windows 8.1 Pro and Cubix GPU Manager to monitor the health and performance of both the GPUs and Xpander. Note: Customers / end users must add their own Blackmagic Design DaVinci Resolve 11 license key. - XPRM-G3-82A 19" 5U Gen3 GPU-Xpander Rackmount 8 (External) The external XPRM-G3-82A 19" 5U Gen3 GPU-Xpander Rackmount 8 is a PCIe expansion chassis that can support one/two server connections with up to eight discrete, dual slot graphics or GPU cards per system. This enables parallel calculations separate from the server, enhanced system reliability, performance, and flexibility. This rackmount features two main boards with four slots each for a total of eight PCIe Gen 3 x16 slots, spaced double-wide. Each main board with four slots connects to a host interface controller (HIC) installed in a host computer, so the number of slots per HIC is four, but each Xpander connects to two HICs, so each Xpander provides a total of eight slots.
- Install GPUs for fast hardware acceleration purposes, as well as other types of third party I/O controllers
- Eight PCIe Gen 3 x16 expansion slots (all supporting both dual slot and single slot cards) per system
- Two 4-slot Main Interface Boards per 5U, 19" rackmount system
- Two independent power supplies and multiple cooling fans to meet expansion requirements (per Main Interface Board)
- Simple, quick installation with minimal impact per rackmount computer; install a HIC (Host Interface Controller) and drivers for installation devices in the GPU-Xpander
- Each x16 cable and connector provides a 250 mating duty cycle
- Enhances server I/O infrastructure capabilities without adding servers
- Hardware-acceleration using NVIDIA graphics and GPU cards for faster VDI and thin-client multimedia performance
- Uses 5U vertical rack space, supports up to 8 dual-slot NVIDIA Quadro graphics cards, Tesla GPUs, Blackmagic Design Decklink HD Extreme 3D, or other complimentary PCIe-based I/O adapters
- Save space, weight, and cost while increasing I/O card density
Benefits - Adds eight dual slot GPUs for supporting one/two rackmount computers which have very limited slot expansion capabilities and limited power supply capacities
- Supports up to two separate host PCs or Apple Mac Pro workstations with one Xpander Rackmount 8
- Add GPUs like NVIDIA Quadro K4000 / K5000 / K6000, Tesla C2070 / K10 / K20 or GeForce GTX 780 / TITAN graphics cards
Applications - DaVinci Resolve Linux, Autodesk 3ds Max, Assimilate Windows 7 64-bit, Fusion-io SSD GPU-based rendering, GPU-based transcoding, MATLAB, ANSYS, 4K workflows
- HostEngine Rackmount Computer for GPU Xpander Systems (2 RU)
In the Box Bundle Items XPRM-G3-82A 19" 5U Gen3 GPU-Xpander Rackmount 8 (External) sbdysxewyudczzayztvxcyvtstuyywef HostEngine Rackmount Computer for GPU Xpander Systems (2 RU) Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix Win2U Rackmount 8 5U in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - XPRM-G3-82A 19" 5U Gen3 GPU-Xpander Rackmount 8 (External)
| | | Expansion Slots | 8 x PCIe 3.0 x16 | | | | Power Source Type | 2 x 1500 W Internal PSU | | | | Form Factor | Rackmount (5 RU) | | Weight | 65 lb / 29.4 kg | | | | Box Dimensions (LxWxH) | 24.0 x 12.0 x 3.0" | - HostEngine Rackmount Computer for GPU Xpander Systems (2 RU)
