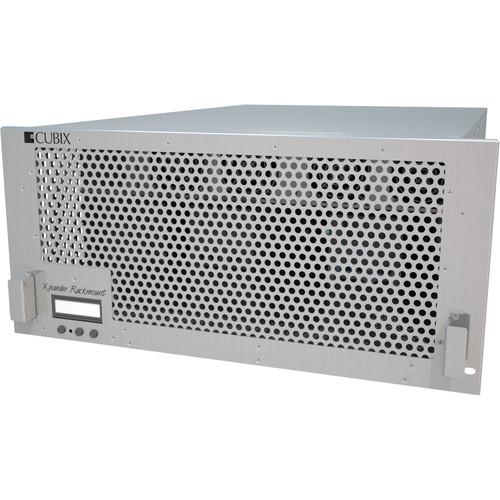

User Manual for Cubix Xpander Rack Mount 8 6U Gen 3 with Redundant Power Click to enlarge the picture
Contents of the user manual for the Cubix Xpander Rack Mount 8 6U
- Product category: Expansion Chassis Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix Expansion Chassis
|
User manual for the Cubix Xpander Rack Mount 8 6U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|
Product description The Cubix Xpander Rack Mount 8 6U Gen 3 is a rack-mount PCIe (PCI Express) expansion enclosure that enables connection of up to 8 double-wide graphics or other controllers with rear- or top-connected auxiliary power cables to one or two host computers. The Rack Mount 8 6U RP provides two MIBs (Main Interface Boards). Each MIB connects via a PCIe x16 cable to a HIC (Host Interface Controller) in a host computer. You can connect both MIBs to HICs in one computer or each MIB to a HIC in separate host computers. The host computer must have one or two PCIe x16 slots (preferably PCIe Gen 3.0) available for the HICs. Each MIB features four PCIe x16 slots to support a total of eight double-wide GPUs for use with high-performance computing (HPC) and other CUDA (Compute Unified Device Architecture) or OpenCL / OpenGL-enabled tasks. The Rack Mount 8 6U RP supports double-wide GPUs with active cooling like NVIDIA Quadro or GeForce GTX Series (GTX TITAN X or GTX 980Ti), as well as AMD Firepro W9100. With eight Intel Xeon Phi coprocessors equipped with active cooling, the Rack Mount 8 6U RP supports parallel processing applications. It also supports other PCIe adapters with multiple input / output ports such as FireWire, USB 3.0, or high-definition (HD) audio. In the Box Cubix Xpander Rack Mount 8 6U Gen 3 with Redundant Power 4 x Power Cord 2 x External PCIe x16 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix Xpander Rack Mount 8 6U Gen 3 with Redundant Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCubix XPRMG3-826URP Specs | Expansion Slots | 8 PCIe x16 gen 3.0 slots (4 slots in each of 2 x MIBs)
Support for full-height, full-length, double-wide controllers or adapters | | Interface Transfer Rate | PCIe x16 (slot 1 to 8): Gen 3.0: 128 Gb/s
Gen 2: 80 Gb/s
Gen 1: 40 Gb/s | | Form Factors Supported | 8 x Full-height, full-length, double-wide controllers or adapters | | Cables | Type: 2 x External PCIe x16 (136-pin) cables (included)
Length: 6.6' total length and 3.8' usable length
Duty Cycle: Up to 250 mating cycles per connector | | Front Panel LCD | Left Button: Main menu
Right Button: Sub-menu | | Backlight | LCD Panel: Toggle on / off using right button | | Status Display | Power Supply: Redundant Power
Temperature: 3 sensor readouts in degrees centigrade per MIB
Fan: Voltage percent speed
PCIe Link: x16 cable connected (8.0 Gb/s, 5.0 Gb/s, or 2.5 Gb/s link speed) | | Rear Panel | 1 x AC receptacle for each power supply module | | Cooling Fans | 4 x Fans @ 112 CFM maximum | | Fan Speed | Power Up: Full on for 10 sec
Speed: Minimum @ 77°F (25°C); maximum @ 122°F (50°C); increment in gradual, linear progression | | Power Supply | 1,000 W: 90 to 264 VAC with 1 + 1 hot-plug modules (each module provides 1,000 W 90 to 132 VAC @ 15 A)
1,500 W: 90 to 264 VAC with 1 + 1 hot-plug modules (each module provides 1,500 W 180 to 264 VAC @ 15 A) | | PCIe Connector | 8 x Sets of 6-pin + 8-pin (6P + 8P) | | Operating Temperature | 32 to 86°F (0 to 30°C) | | Operating Humidity | 5 to 80% non-condensing | | Altitude | Operating: 10,000' (3.05 km)
Storage: 50,000' (15.24 km) | | Dimensions (HxWxD) | 10.5 x 19.0 x 26.0" (26.7 x 48.3 x 66.0 cm) | | Weight | 56 lb (24.5 kg) |
