User Manual for Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion Enclosure Click to enlarge the picture
Contents of the user manual for the Cubix Xpander Rackmount 16 5U Gen
- Product category: Expansion Chassis Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix Expansion Chassis
|
User manual for the Cubix Xpander Rackmount 16 5U Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|

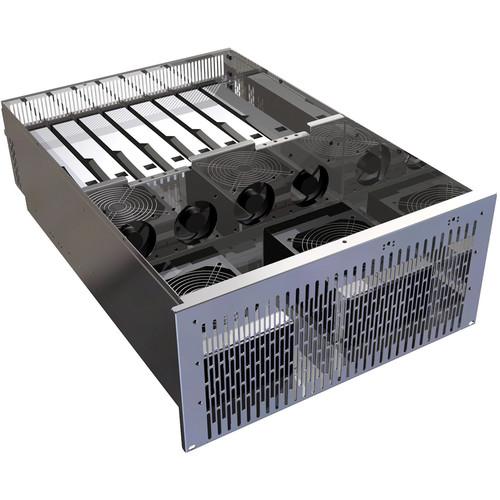

Product description The Xpander Rackmount 16 5U Gen 2 PCIe Expansion Enclosure from Cubix provides four Main Interface Boards (MIBs), each connected to a host with a PCIe x16 cable and four PCIe x16 slots for a total of 16 single-slot GPUs or 8 double-slot GPUs with top-connected auxiliary power cables. The host must have at least one PCIe x16 expansion slot available for the Host Interface Controller (HIC). Connect each MIB to one of four HICs in one host or each MIB to a HIC in each of four host computers. Each MIB inside the Rackmount 16 enclosure connects to one HIC in one host computer.One host computer can support all MIBs inside the Rackmount 16 enclosure if the host has fourPCIe x16 slots available. Rackmount 16 provides a set of four PCIe Generation 2 (Gen 2) x16 slots for Graphical Processing Units (GPUs), which you can use for graphical-rendering, for high performance computing (HPC) and other Compute Unified Device Architecture (CUDA) enabled tasks. Xpander Rackmount 16 can also support PCIe connected solid-state drives (SSDs) or other PCIe adapters with multiple Input/Output (I/O) ports, including FireWire, USB 2.0, and high-definition (HD) audio. - Four PCIe Gen 2 x16 expansion slots that support dual-slot and single-slot cards per Main Interface Board
- Four Main Interface Boards per 5RU rackmount Xpander provide 16 total slots
- An independent power supply per Main Interface Board with temperature-controlled cooling fans
- It has a straightforward installation, as you can install a HIC in the host and drivers for devices in Xpander
- Front-panel management LCD monitors power, temperature, fans, and link and slot status
Benefits - Install GPUs for fast hardware acceleration or install multi-function PCIe cards
- Adds 16 single-slot GPUs connected to one to four rackmount computers
- Adds 16 single-wide GPUs per Xpander Rackmount 16
- Monitor status of power supplies, temperature, and fans, as well as links and slots
In the Box Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion Enclosure 4 x Cooling Fans 4 x 750W Power Supplies 4 x Power Cords 4 x Main Interface Boards (MIBs) 4 x PCIe x16 HICs 4 x External PCIe x16 Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix Xpander Rackmount 16 5U Gen 2 PCIe Expansion Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCubix XPRM-X16-844A Specs | | | Expansion Slots | 16 x PCIe 2.0 x16 | | Supported PCI Card Sizes | Full-Height, Full-Length, Double-Width | | Host Connection | PCIe x16 Slot | | | | PCIe Connectors | 2 x 6-Pin
2 x 8-Pin | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3.5 to 6 A | | | | Fans | 4 | | Maximum Airflow | 112 CFM | | | | Operating Temperature | 32 to 86°F / 0 to 30°C | | Operating Humidity | 5 to 80% | | | | Status Monitoring | LCD Screen, LED Indicator | | Host Cable Length | 6.6' / 2 m | | Dimensions | 19.0 x 8.8 x 24.5" / 48.3 x 22.2 x 62.2 cm | | Weight | 55 lb / 24.9 kg |
