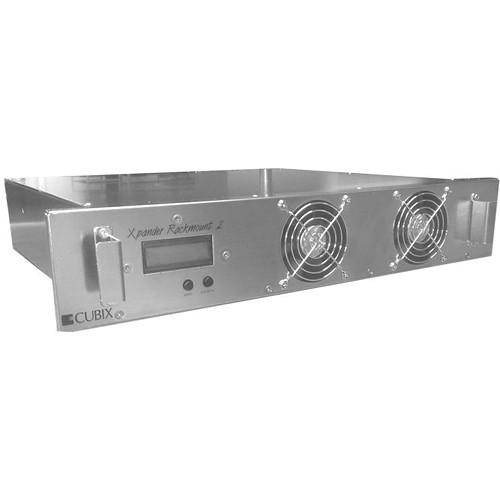

User Manual for Cubix Xpander Rackmount 2 Gen 3 PCIe Expansion Enclosure Click to enlarge the picture
Contents of the user manual for the Cubix Xpander Rackmount 2 Gen 3
- Product category: Expansion Chassis Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix Expansion Chassis
|
User manual for the Cubix Xpander Rackmount 2 Gen 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|
Product description The Xpander Rackmount 2 Gen 3 PCIe Expansion Enclosure from Cubix enables connection of graphics or other controllers to a host computer. The host must have a PCIe Gen 3.0 x16 expansion slot available for the Host Interface Controller (HIC). This Rackmount 2 provides two PCIe Gen 3.0 x16 slots and connects to an HIC in one host computer, providing the full, theoretical connection transfer rate of 128.0 Gb/s.With an HIC installed, a single host computer can support two double-wide GPUs inside the Xpander. This rackmount provides two PCIe Gen 3 x16 slots for GPUs, PCIe flash memory, or other PCIe adapters with multiple Input/Output (I/O) ports such as FireWire, USB 2.0, or High-Definition (HD) audio. You can use NVIDIA CUDA-enabled GPUs for 3D rendering, visualization walls, or high-performance computing. - Two PCIe Gen 3.0 x16 slots for double-wide GPUs such as NVIDIA Quadro K5000/K6000
- One end-bracket space for NVIDIA Quadro Sync (Q-Sync) card
- One 700W power supply and two cooling fans
- One PCIe Gen 3.0 x16 HIC and one 6.6' PCIe x16 data cable
- One 2RU rackmount enclosure with LCD status display on front panel
- Monitor the status of power supply, temperature, cooling fan, PCIe cable, and slots from the LCD panel
- Expand one host computer slot to two GPUs or other cards
Uses - Post-production applications requiring high-performance GPUs or HD-SDI audio/video capture cards from Blackmagic Design, AJA or NVIDIA
- Adobe After Effects CS6 (with 3D ray-tracing, Mercury Engine)
- Autodesk 3DS Max with GPU-accelerated, 3D rendering products such as Chaos Group V-Ray RT 2.0+ or Mental Images iray
- Bunkspeed SHOT/MOVE, Otoy Octane Render, Random Control Arion, and others
- High-Performance Compute (HPC) mathematical/scientific/engineering applications
- Video walls with multi-port display cards and video synch for HPC visualization
In the Box Cubix Xpander Rackmount 2 Gen 3 PCIe Expansion Enclosure 2 x Cooling Fans 700W Power Supply Power Cord 2-Slot Mainboard PCIe Gen 3.0 x16 HIC 6.6' PCIe x16 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix Xpander Rackmount 2 Gen 3 PCIe Expansion Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCubix XPRMG3-212UV Specs | | | Expansion Slots | 2 x PCIe 3.0 x16 | | Supported PCI Card Sizes | Full-Height, Full-Length, Double-Width | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 to 10 A | | | | Fans | 2 | | Maximum Airflow | 112 CFM | | | | Operating Temperature | 32 to 86°F / 0 to 30°C | | Operating Humidity | 5 to 80% | | | | Status Monitoring | LCD Screen, LED Indicator | | Host Cable Length | 6.6' / 2 m | | Dimensions | 19.0 x 3.5 x 16.0" / 48.3 x 8.9 x 40.6 cm | | Weight | 18.5 lb / 8.4 kg |
