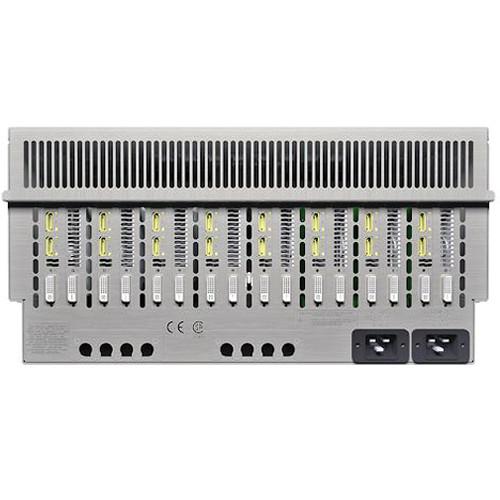

User Manual for Cubix XPRM-G3-82A 19" 5U Gen3 GPU-Xpander Rackmount 8 Click to enlarge the picture
Contents of the user manual for the Cubix XPRM-G3-82A 19" 5U Gen3 GPU-Xpander
- Product category: Expansion Chassis Cubix
- Brand: Cubix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cubix Expansion Chassis
|
User manual for the Cubix XPRM-G3-82A 19" 5U Gen3 GPU-Xpander contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cubix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cubix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cubix product will considerably shorten its lifespan!
|
Product description The external XPRM-G3-82A 19" 5U Gen3 GPU-Xpander Rackmount 8 is a PCIe expansion chassis that can support one/two server connections with up to eight discrete, dual slot graphics or GPU cards per system. This enables parallel calculations separate from the server, enhanced system reliability, performance, and flexibility. This rackmount features two main boards with four slots each for a total of eight PCIe Gen 3 x16 slots, spaced double-wide. Each main board with four slots connects to a host interface controller (HIC) installed in a host computer, so the number of slots per HIC is four, but each Xpander connects to two HICs, so each Xpander provides a total of eight slots. - Install GPUs for fast hardware acceleration purposes, as well as other types of third party I/O controllers
- Eight PCIe Gen 3 x16 expansion slots (all supporting both dual slot and single slot cards) per system
- Two 4-slot Main Interface Boards per 5U, 19" rackmount system
- Two independent power supplies and multiple cooling fans to meet expansion requirements (per Main Interface Board)
- Simple, quick installation with minimal impact per rackmount computer; install a HIC (Host Interface Controller) and drivers for installation devices in the GPU-Xpander
- Each x16 cable and connector provides a 250 mating duty cycle
- Enhances server I/O infrastructure capabilities without adding servers
- Hardware-acceleration using NVIDIA graphics and GPU cards for faster VDI and thin-client multimedia performance
- Uses 5U vertical rack space, supports up to 8 dual-slot NVIDIA Quadro graphics cards, Tesla GPUs, Blackmagic Design Decklink HD Extreme 3D, or other complimentary PCIe-based I/O adapters
- Save space, weight, and cost while increasing I/O card density
Benefits - Adds eight dual slot GPUs for supporting one/two rackmount computers which have very limited slot expansion capabilities and limited power supply capacities
- Supports up to two separate host PCs or Apple Mac Pro workstations with one Xpander Rackmount 8
- Add GPUs like NVIDIA Quadro K4000 / K5000 / K6000, Tesla C2070 / K10 / K20 or GeForce GTX 780 / TITAN graphics cards
Applications - DaVinci Resolve Linux, Autodesk 3ds Max, Assimilate Windows 7 64-bit, Fusion-io SSD GPU-based rendering, GPU-based transcoding, MATLAB, ANSYS, 4K workflows
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cubix XPRM-G3-82A 19" 5U Gen3 GPU-Xpander Rackmount 8 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCubix XPRMG3-825U Specs | | | Expansion Slots | 8 x PCIe 3.0 x16 | | | | Power Source Type | 2 x 1500 W Internal PSU | | | | Form Factor | Rackmount (5 RU) | | Weight | 65 lb / 29.4 kg | | | | Box Dimensions (LxWxH) | 24.0 x 12.0 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
