User Manual for Custom Brackets Tilt Head AS Click to enlarge the picture
Contents of the user manual for the Custom Brackets Tilt Head AS
- Product category: Monopod Heads & Accessories Custom Brackets
- Brand: Custom Brackets
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Custom Brackets Monopod Heads & Accessories
 |
User manual for the Custom Brackets Tilt Head AS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Custom Brackets product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Custom Brackets user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Custom Brackets product will considerably shorten its lifespan!
|

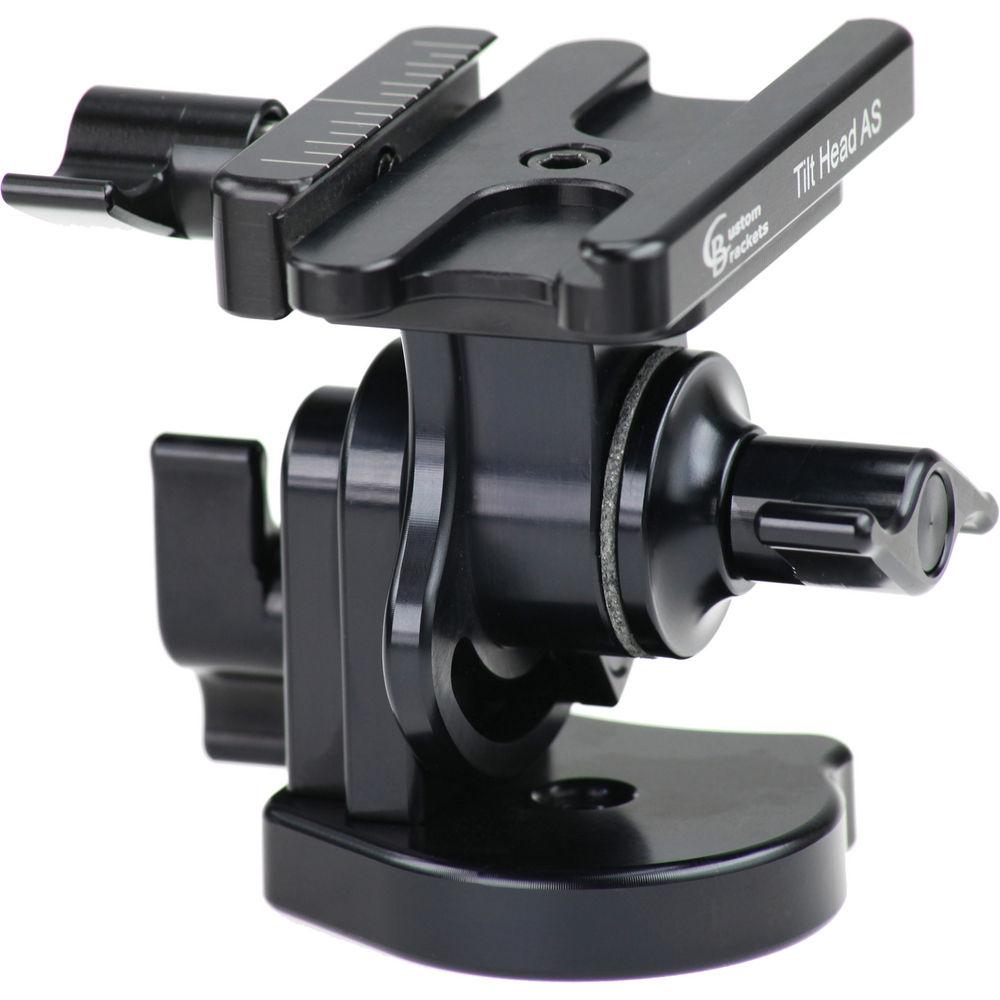

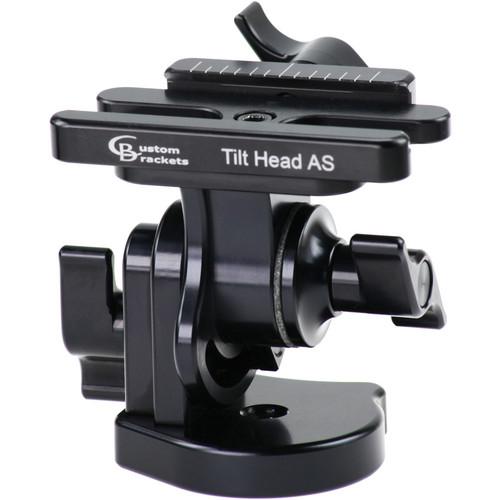

Product description The Custom Brackets Tilt Head AS is a precision-machined aluminum head that was designed for use with a monopod. The head features an Arca Swiss-style quick-release system that can be oriented in two positions to accommodate either a camera plate or a plate for a long lens (not included). The clamp is loosened and tightened by first pushing in the quick-release lever, and then turning it. You can easily reorient the quick-release clamp 90° by using the supplied Allen key. The head attaches to a monopod via the Tilt Head AS's 3/8"-16 thread. If your monopod has a 1/4"-20 stud, use a reducer bushing to make the conversion. The head features separate controls for tension (drag) and tilt-lock, which allows for extremely precise adjustments to the tilt. Tilt is possible a full 90° downward and nearly the same range upward. The Tilt Head AS was designed for the Manfrotto 685B NeoTec monopod, but it will of course work with any other monopod – or a tripod, in case you do not need a panning capability. For the 685B, Custom Brackets offers Anti-Twist Pins for Manfrotto 685B (not included), which install on the bottom of the head to prevent the head from twisting at all once it's installed on the monopod. - Precision-machined for smooth tilt forward and backward
- Anodized for a scratch-resistant finish
- Separate drag and lock knobs for better control of tilt
- Arca Swiss-style quick release for fast setup and storage (bracket or camera/lens plate not included)
- For safety, the clamp-locking lever needs to be pushed in order to loosen the Arca-style clamp
UPC: 814469001467 In the Box Custom Brackets Tilt Head AS Allen Key (3/16") Limited 5-Year Warranty Table of Contents
|
