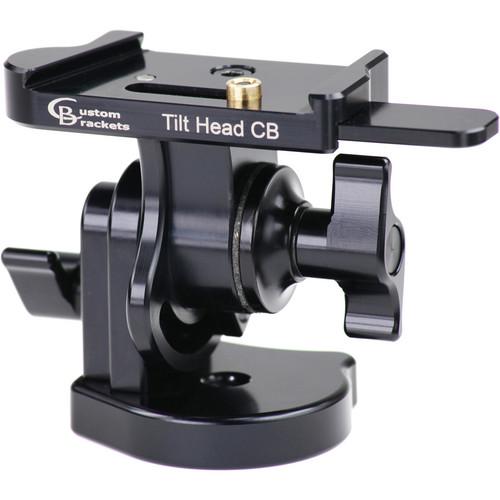

User Manual for Custom Brackets Tilt Head CB Click to enlarge the picture
Contents of the user manual for the Custom Brackets Tilt Head CB
- Product category: Monopod Heads & Accessories Custom Brackets
- Brand: Custom Brackets
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Custom Brackets Monopod Heads & Accessories
|
User manual for the Custom Brackets Tilt Head CB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Custom Brackets product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Custom Brackets user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Custom Brackets product will considerably shorten its lifespan!
|
Product description The Custom Brackets Tilt Head CB is a precision-machined aluminum head that was designed for use with a monopod. The head features a Custom Brackets quick-release system, which employs a push-bar to effect the release of a camera plate (not included) from the quick-release mechanism, for fast changes to your setup. The CB quick-release offers a noticeable positive feel when you install the head, confirming for you a successful rock-solid connection. The head attaches to a monopod via the Tilt Head CB's 3/8"-16 thread. If your monopod has a 1/4"-20 stud, use a reducer bushing to make the conversion. The head features separate controls for tension (drag) and tilt-lock, which allows for extremely precise adjustments to the tilt. Tilt is possible a full 90° downward and nearly the same range upward. The Tilt Head CB was designed for the Manfrotto 685B NeoTec monopod, but it will of course work with any other monopod – or a tripod, in case you do not need a panning capability. For the 685B, Custom Brackets offers Anti-Twist Pins for Manfrotto 685B (not included), which install on the bottom of the head to prevent the head from twisting at all once it's installed on the monopod. - Precision-machined for smooth tilt forward and backward
- Anodized for a scratch-resistant finish
- Separate drag and lock knobs for better control of tilt
- Custom Brackets quick release for fast setup and storage (plate not included)
UPC: 814469001450 In the Box Custom Brackets Tilt Head CB Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Custom Brackets Tilt Head CB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCustom Brackets TILT HEAD CB Specs | Load Capacity | Not specified by manufacturer | | Quick Release | Custom Brackets push-bar style | | Spirit Level | No | | Tension Control | Yes | | Separate Panning Lock | No panning possible | | Tripod Mount Thread Size | 3/8"-16 | | Dimensions (HxWxD) | 3.5 x 4.9 x 2.5" (8.9 x 12.4 x 6.4 cm) | | Weight | 14 oz (393 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 4.7 x 4.3 x 3.3" |
