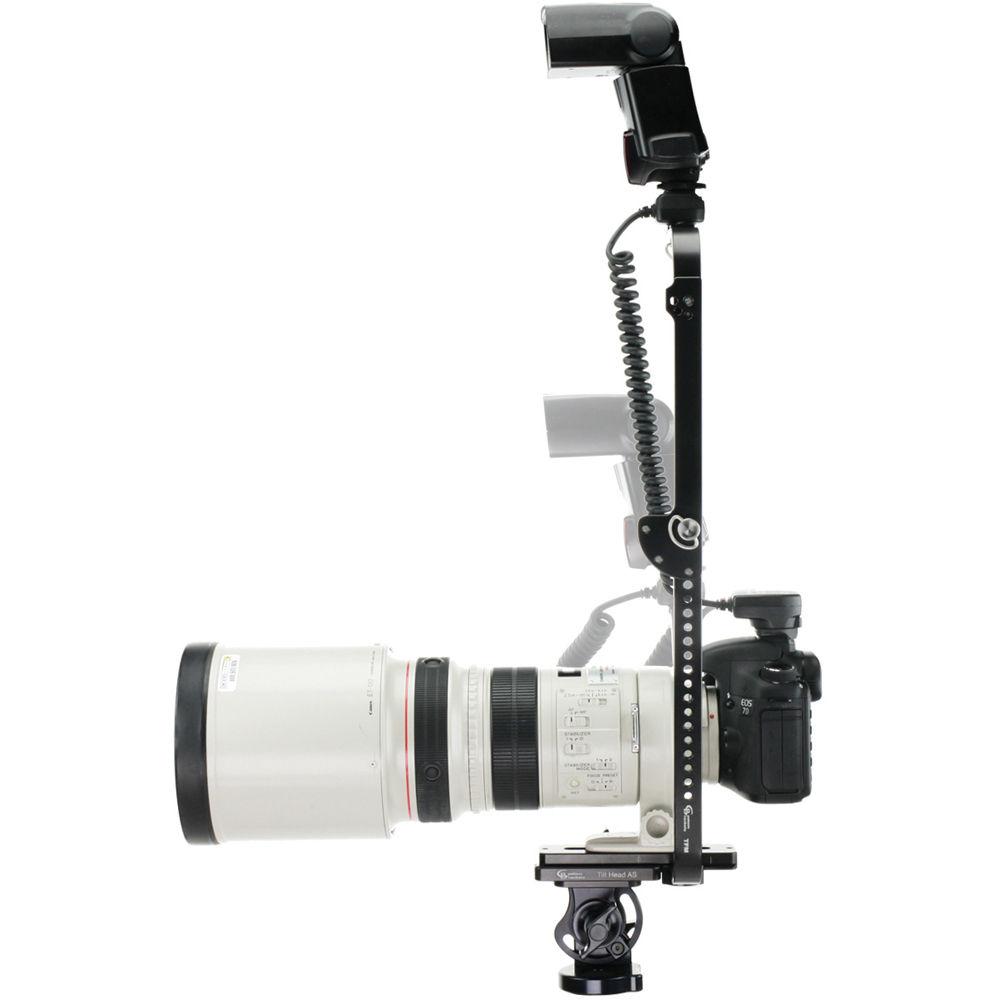

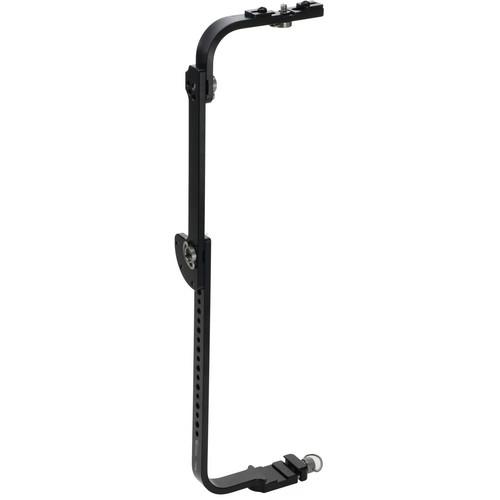

Product description The Custom Brackets Tilt Head Flash Mount (TFM) is an ideal way to add modeling to your subject while dropping the shadows behind him or her and avoiding red eye. Made for use with longer lenses, the TFM clamps on the lens' tripod shoe and since it's Arca compatible, to a quick release such as the one built into the Pan-Tilt Head AS or Tilt Head AS. It can also be mounted to the upright of the CB Gimbal or CB Gimbal-LS. The TFM's height is adjustable up to 18" from the lens center. Using the combination of its central joint and adjustable flash extension, you can locate the flash directly above the lens or at 45 or 90 degree angles. -
- Extender to raise flash up to 18" above lens

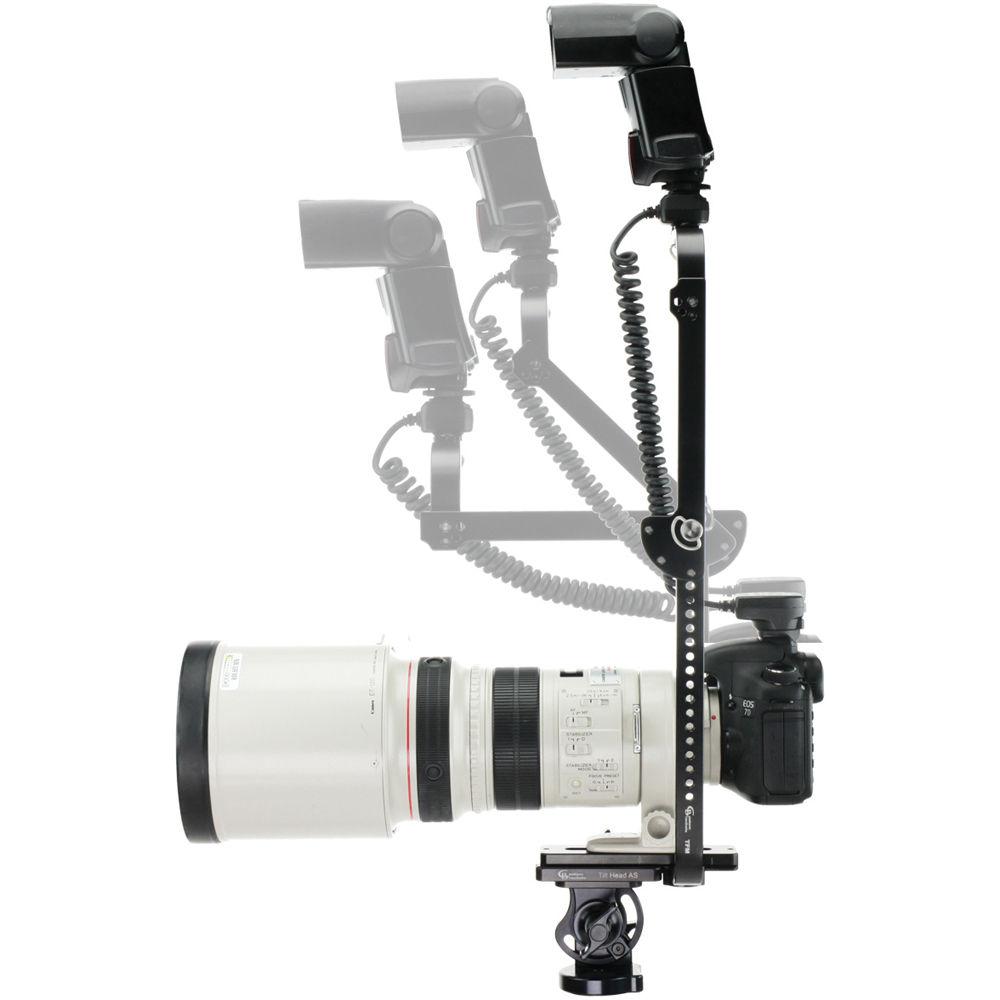

- Mounts your flash three different ways: straight above lens, 45 degree angle, or 90 degree angle
- Flash can be mounted off center if desired
- Comes apart easily for storage and transportation
- Sets up in seconds using captive stainless steel D-Clip screws
- The flash arm can be mounted on either side of the upright
- Easily change the lens without removing the flash mount when using the CB Gimbal
- D-Clip screw for flash or flash cord with flash anti-twist plates
UPC: 814469001764 In the Box Custom Brackets Tilt Head Flash Mount Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Custom Brackets Tilt Head Flash Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCustom Brackets TFM Specs | Construction | Aluminum alloy | | Lens-to-Flash Distance | Up to 18" (45.7 cm) | | Mounting | Arca-Swiss style quick release camera clamp
1/4"-20 flash screw
1/4"-20 tripod socket | | Dimensions | 19.25 x 5.25 x 1.75" (48.9 x 13.3 x 4.4 cm) | | Weight | 10 oz (292 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 11.5 x 5.9 x 1.1" |
