User Manual for CyberPower 650VA 8-Outlet UPS System Click to enlarge the picture
Contents of the user manual for the CyberPower 650VA 8-Outlet UPS System
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower 650VA 8-Outlet UPS System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

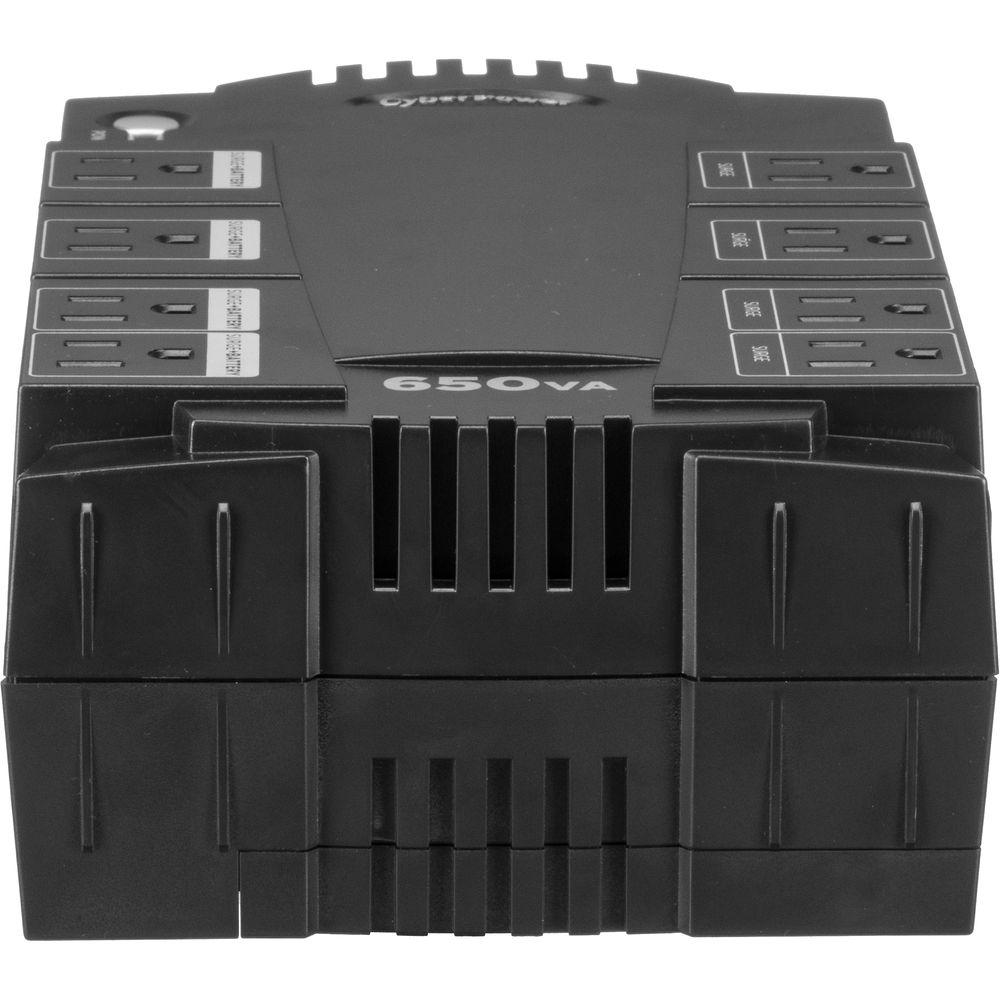

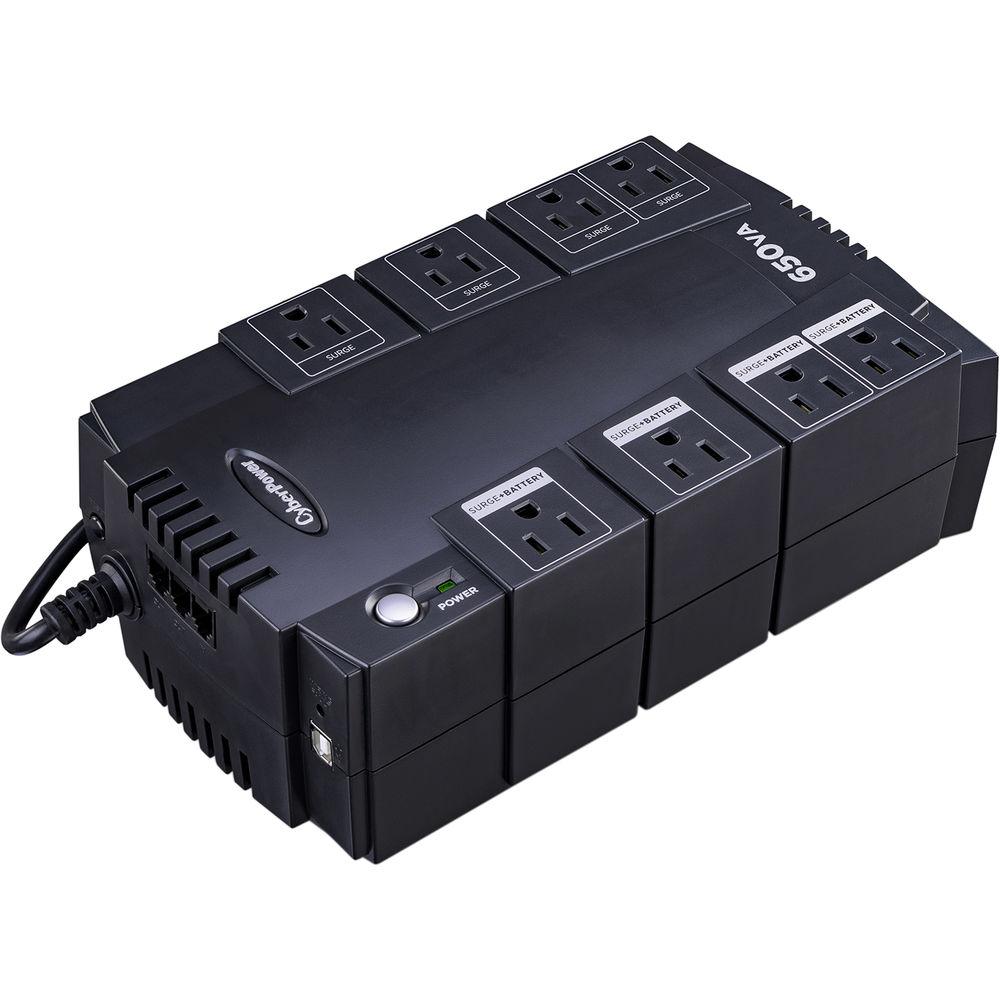

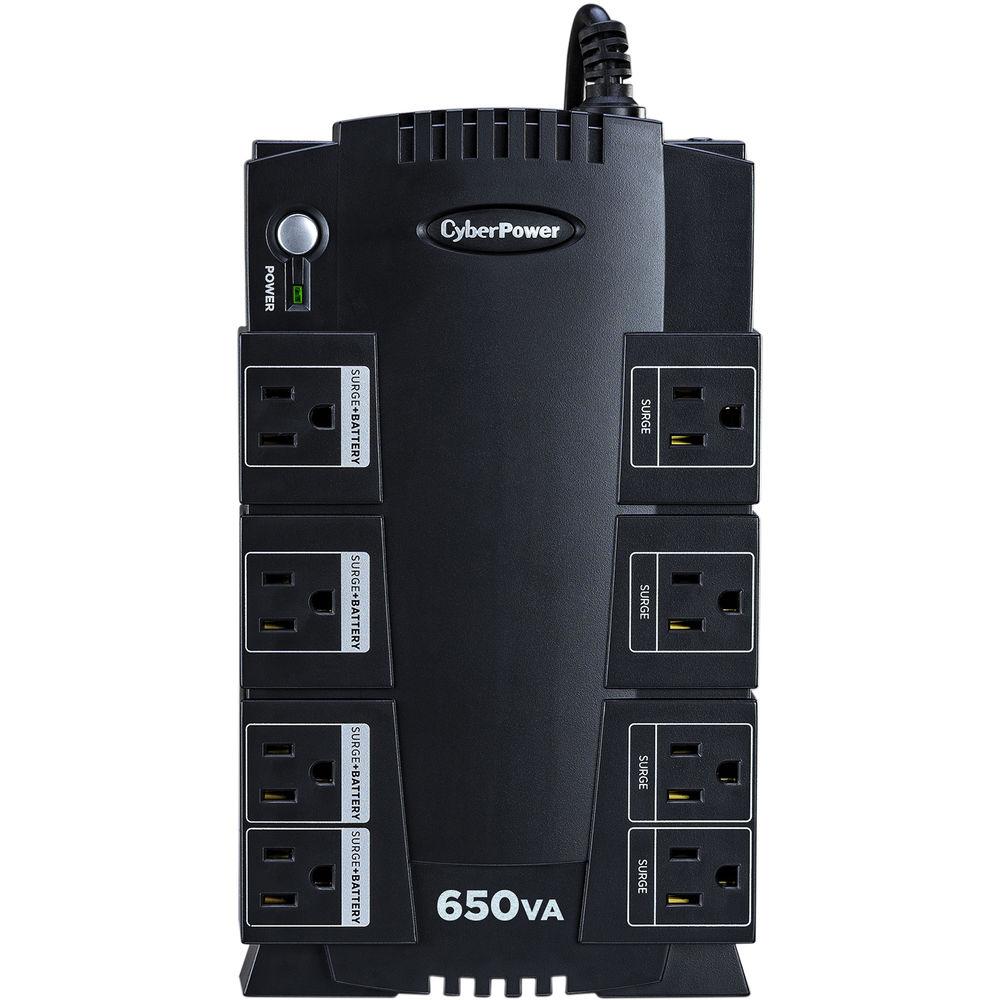

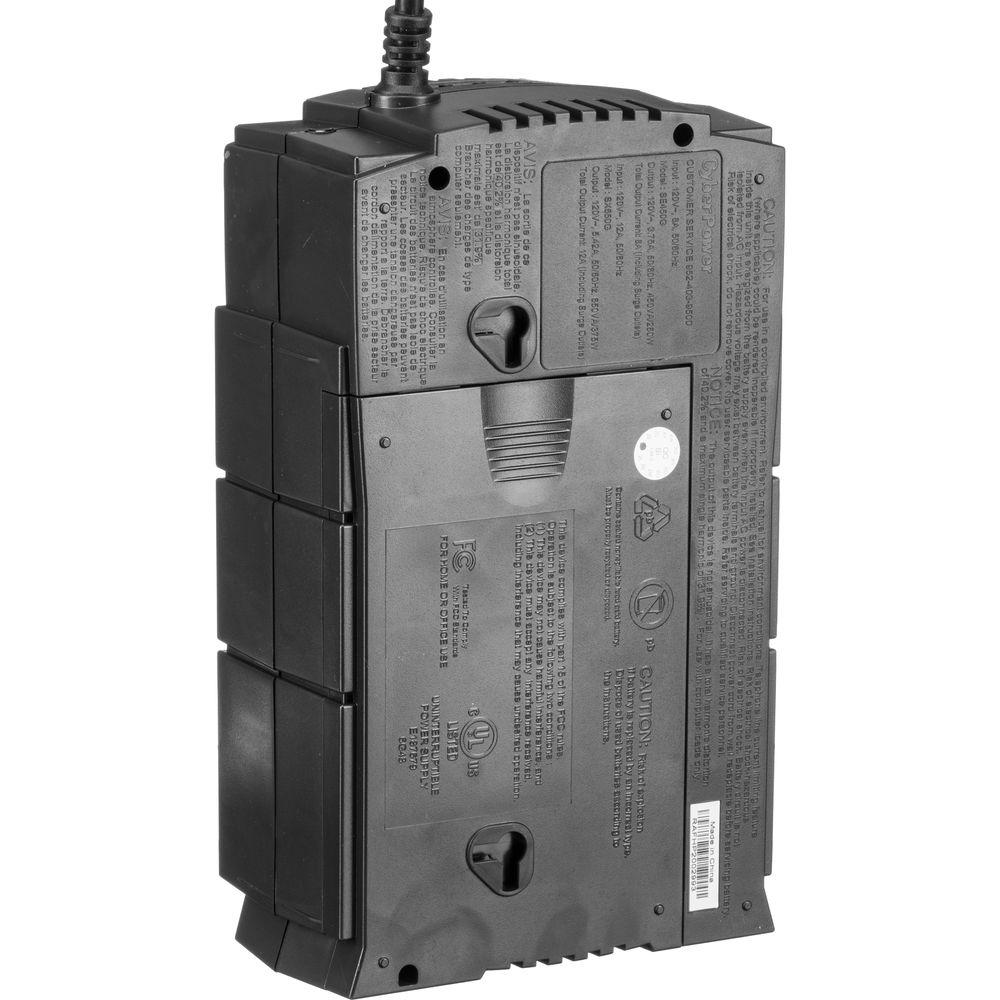

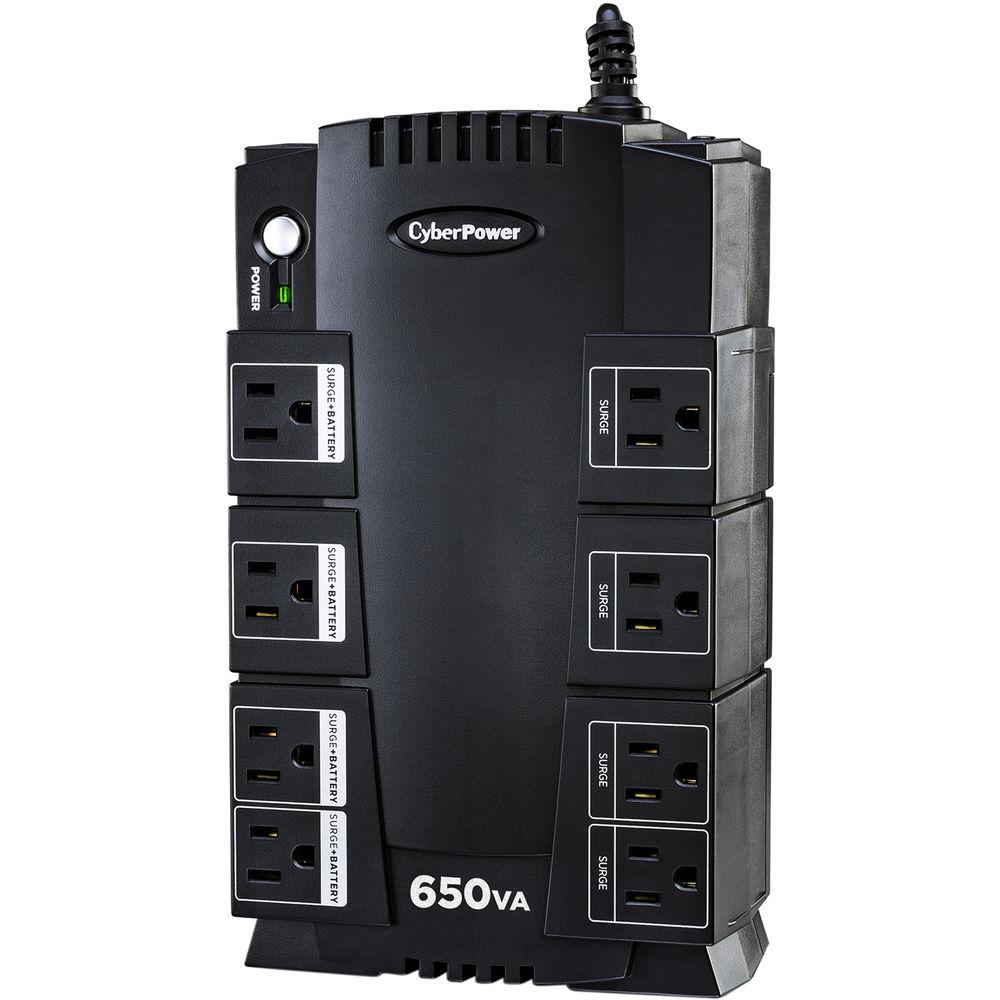

Product description Protect and safely power-down up to 375W of equipment with the 650VA 8-Outlet UPS System from CyberPower. The UPS sports eight NEMA 5-15R outlets as well as a right-angled NEMA 5-15P plug, which provides a better fit in tight spaces than a straight plug design. The eight outlets deliver a surge rating of 890 joules, and four of these outlets are powered by an internal battery that grants connected-equipment a full-load runtime of up to 2 minutes in the event of a power failure. Other notable features include onboard LED indicators and audible alarms to alert you when a situation does occur. In addition, the UPS comes with EMI/RFI filtration and phone protection. - Battery Backup
- Supplies power long enough for equipment to properly shut down when utility power fails; thereby, preventing loss of data and minimizing component stress caused by a hard shutdown
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage
- Data Line Protection
- RJ-11 ports (1 in / 2 out) provide surge protection for telecommunications devices, such as phones and DSL modems
- Standby Topology
- Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment
- Simulated Sine Wave Output
- Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output
- GreenPower UPS High-Efficiency Design
- Reduces power consumption, utilizing a compact charger and power inverter to create an efficient backup power system for home and office use
- Quiet Design
- Minimizes noise during operation for a quieter work environment
- PowerPanel Personal Edition Software
- Provides a free, downloadable software program that features a user-friendly dashboard interface for controlling and monitoring the UPS
- Connected Equipment Guarantee
- CyberPower will repair or replace properly-connected equipment (up to $100,000) if it is damaged by a power surge
UPC: 649532619986 In the Box CyberPower 650VA 8-Outlet UPS System Lifetime $100,000 Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower 650VA 8-Outlet UPS System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower SX650G Specs | | | Total Outlets | 8 x NEMA 5-15R | | Protected Outlets | 4 (Battery and Surge)
4 (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Data Line Protection | RJ11 | | Topology | Standby | | | | Surge Energy Rating | 890 Joules | | Maximum Wattage | 375 W | | Input Voltage Range | 96 to 140 VAC | | Load Capacity | 650 VA | | Circuit Breaker Rating | 15 A | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Capacity | 55 Wh (5.5 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 8 Minutes | | Charging Time | 8 Hours | | | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 9.8 x 6.0 x 3.0" / 24.9 x 15.2 x 7.6 cm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 14.7 x 8.4 x 5.4" |
