User Manual for CyberPower AVRG900LCD Intelligent LCD UPS Click to enlarge the picture
Contents of the user manual for the CyberPower AVRG900LCD Intelligent LCD UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower AVRG900LCD Intelligent LCD UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

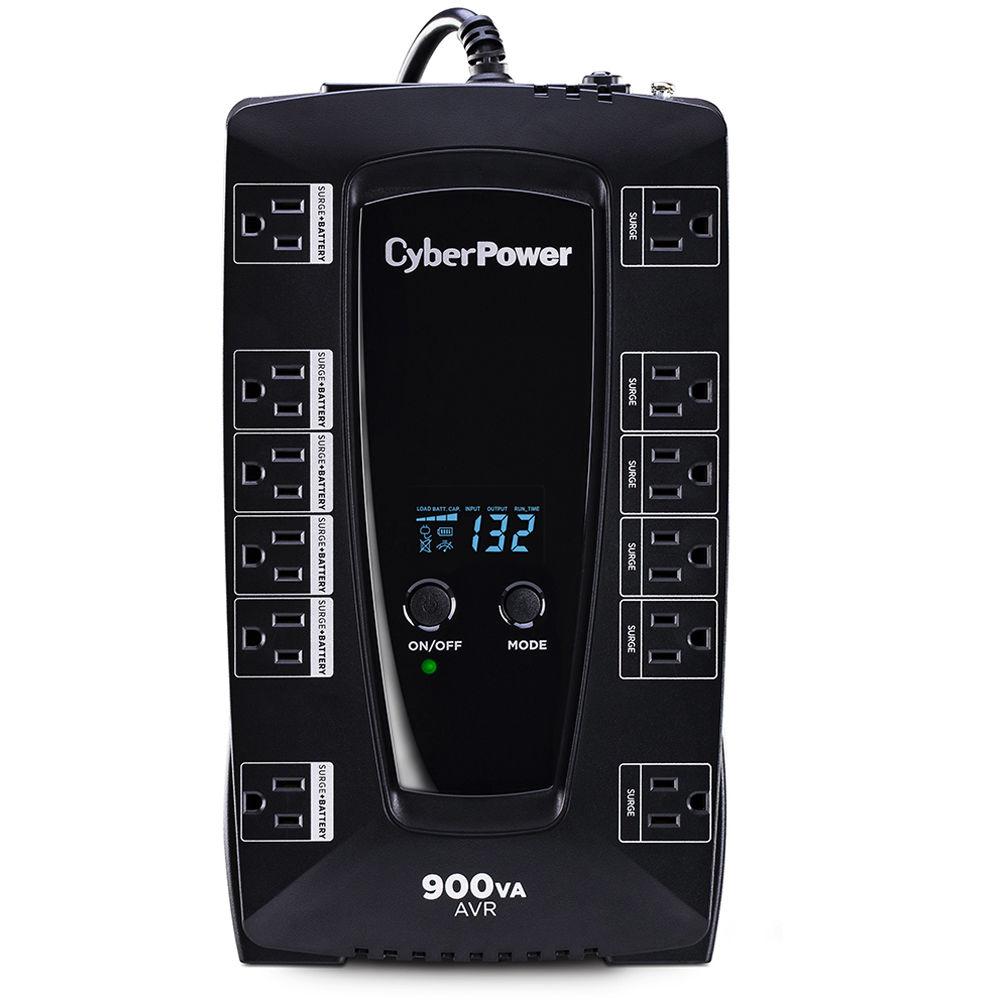

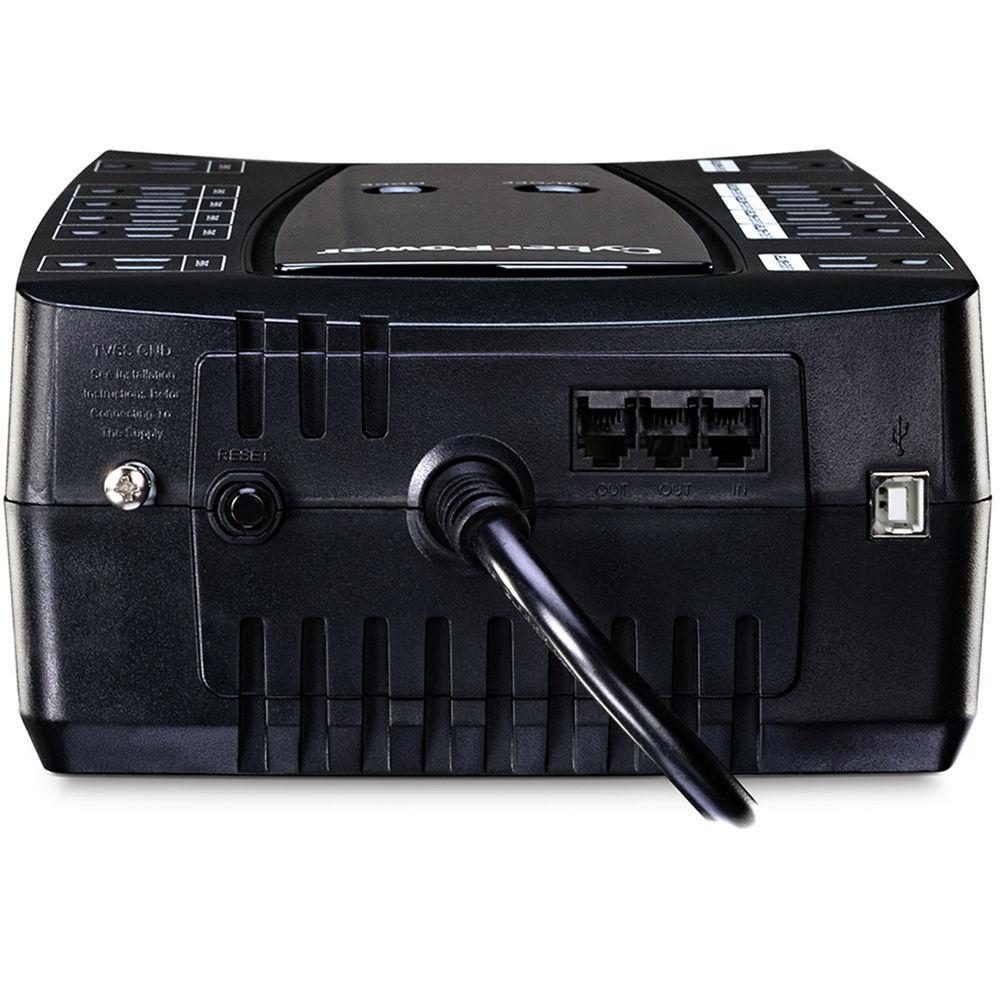

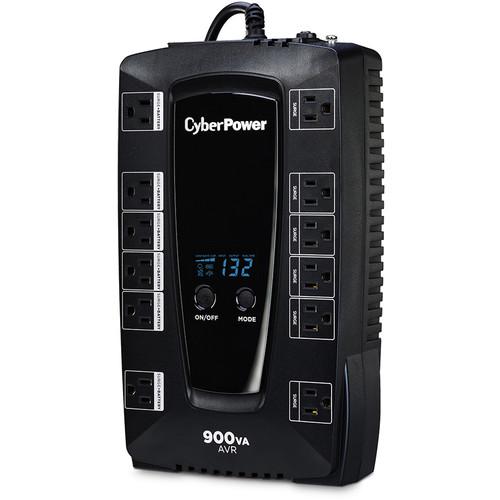

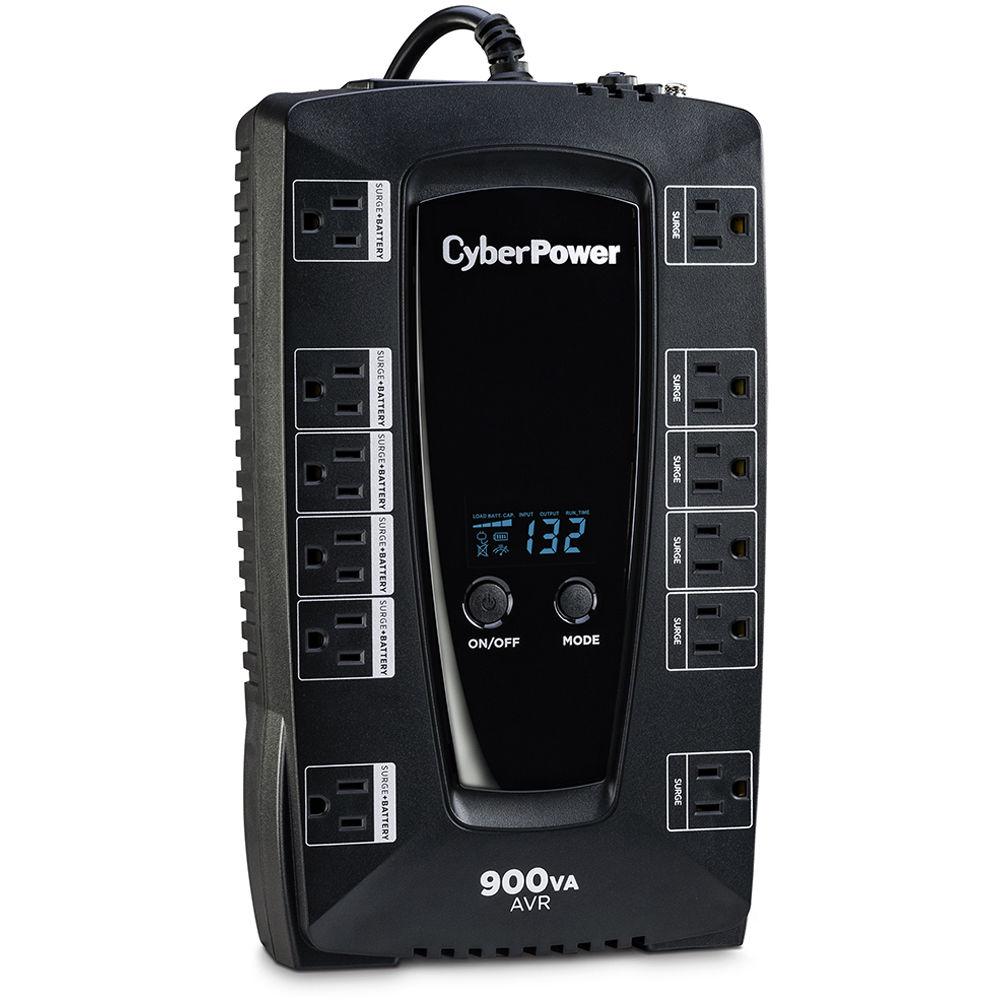

Product description The AVRG900LCD Intelligent LCD UPS (900VA/480W) from CyberPower safeguards PCs and other electronics (monitors, cable/DSL modems, VoIP routers, and home theater devices) from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its AVR (Automatic Voltage Regulation) boost/buck technology delivers consistent and clean AC power, for protecting connected equipment and preventing business interruptions. The composite integrated circuitry offers advanced lightning protection.
The UPS system is ENERGY STAR qualified with GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat build-up. - Suitable for desktop computers, home networking/VoIP, personal electronics, and home theater devices
- Line Interactive Topology
- AVR (Automatic Voltage Regulation)
- Multi-function LCD Screen
- Full-time surge protection and battery backup
- 12 outlets, USB port, and RJ11 protection
- PowerPanel Personal edition software
UPC: 649532619665 In the Box CyberPower AVRG900LCD Intelligent LCD UPS (900VA/480W) Limited 3-Year Warranty Manual PDF 0.2kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower AVRG900LCD Intelligent LCD UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower AVRG900LCD Specs | | | Total Outlets | 12 | | Protected Outlets | 6 (Battery and Surge)
6 (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Data Line Protection | RJ11 | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 480 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 90 to 148 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 900 VA | | Power Factor Correction | 0.53 | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Capacity | 108 Wh (9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 10 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 6561' / 2000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 12.2 x 7.0 x 3.5" / 309.9 x 177.8 x 88.9 mm | | Weight | 14.3 lb / 6.5 kg | | | | Package Weight | 15.85 lb | | Box Dimensions (LxWxH) | 14.646 x 9.685 x 4.803" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
