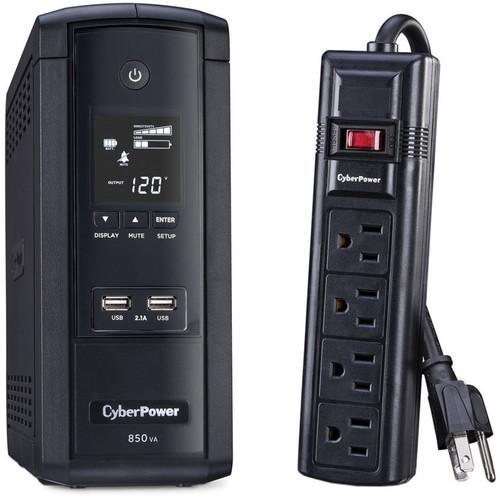

User Manual for CyberPower BRG850AVRLCD Intelligent Uninterruptible Power Supply and CSB404 4-Outlet Surge Protector Kit Click to enlarge the picture
Contents of the user manual for the CyberPower BRG850AVRLCD Intelligent Uninterruptible Power Supply
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
|
User manual for the CyberPower BRG850AVRLCD Intelligent Uninterruptible Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description This Kit combines the CyberPower BRG850AVRLCD Intelligent LCD Series Uninterruptible Power Supply with a black CyberPower CSB404 4-Outlet Essential Series Surge Protector. - CyberPower BRG850AVRLCD Intelligent LCD Series Uninterruptible Power Supply The BRG850AVRLCD Intelligent LCD Series Uninterruptible Power Supply from CyberPower comes equipped with a capacity of 850VA/510W that delivers power for up to ten electronic devices. This power supply features Automatic Voltage Regulation boost/buck technology, which provides consistent and clean AC power to all your connected equipment such as PCs, monitors, cable DSL/modems, VoIP routers, home theater devices, and more. Furthermore, it has composite integrated circuitry for lighting protection and EMI/RFI filters. The Intelligent LCD UPS provides an integrated panel for displaying real-time UPS vitals. The panel also allows you to change the settings for sensitivity, illumination, and audible alarms.
This mini-tower power supply offers ten outlets that are capable of absorbing up to 1,080 Joules for keeping your devices safe against surges and spikes. To keep your devices powered during blackouts, brownouts, and sags, five of the outlets deliver power via a 12V lead acid sealed battery. In addition to the outlets, two 2.1A / 5 VDC USB type A ports are integrated into the front of the power supply for charging devices such as tablets, smart phones, MP3 players, and cameras. Other connections offered are serial, USB type B, RJ-11, and coax ports.
This power supply is Energy Star qualified with GreenPower UPS Bypass circuitry for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Personal edition UPS management software for Windows systems. This software requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. - Automatic Voltage Regulation
- AVR boost/buck technology stabilizes the AC voltage by increasing low voltages and decreasing high voltages to maintain a safe voltage level without switching to battery mode. This conserves battery life and delivers cleaner AC power to connected equipment.
- Multifunction LCD Panel
- The front LCD panel displays UPS vitals: input voltage level, output voltage level, automatic voltage regulator, battery capacity, energy-saving bypass mode, runtime estimate, load level, output frequency, on battery, overload, fault condition, event logging, and silent mode.
- Reduce Energy Costs & Heat Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
- Quiet UPS
- This uninterruptible power supply comes with an efficient design that reduces sound emissions.
- USB Charger
- Two 5 VDC USB 2.0 charging ports with 2.1A support are located on the front panel for convenient access to charge portable electronic device such as tablets, mobile phones, MP3 players, and cameras.
- USB Connectivity
- The HID-compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux, and Mac OS X.
- Transformer-Spaced Outlets
- Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets.
- EMI/RFI Filters
- Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems.
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low.
- Resettable Circuit Breaker
- Convenient unit reset switch in case of an overload.
- PowerPanel Personal Edition for Windows
- In event of a power outage, PowerPanel PE saves open files and "hibernates" the PC to increase the runtime on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. The diagnostic screen displays the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.
UPC: 649532618279 - CyberPower CSB404 4-Outlet Essential Series Surge Protector (Black) Protect and power up to four devices with the black 4-Outlet Essential Series Surge Protector from CyberPower. This surge protector provides 600 joules of protection to prevent damage from power surges and spikes to keep connected devices in your home or office safe. The 4' length of the power cord allows for a clean setup.
- Surge Protection
- Diverts excess voltage away from electronic equipment during an AC power surge or spike to prevent damage
- Automatic Shutdown
- Circuit breaker automatically switches off in the event of an overload
- EMI/RFI Noise Filter
- Filters out electromagnetic and radio frequency interference to improve picture and sound quality
- Metal Oxide Varistor (MOV) Technology
- Allows normal current to pass through the device, while diverting any surges and/or spikes through the ground circuit, to protect connected electronics and the surge suppressor
- Impact-Resistant Casing
- Ensures durability and prolongs the life of the surge protector
UPC: 649532603473 In the Box - BRG850AVRLCD Intelligent LCD Series Uninterruptible Power Supply uqtfudeufvafcuzfddxbabtbecctfcz
- Limited 5-Year Warranty
- CSB404 4-Outlet Essential Series Surge Protector (Black)
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower BRG850AVRLCD Intelligent Uninterruptible Power Supply and CSB404 4-Outlet Surge Protector Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CyberPower BRG850AVRLCD Intelligent LCD Series Uninterruptible Power Supply
| | | Total Outlets | 10 | | Protected Outlets | 5 (Battery and Surge)
5 (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | USB Charging Ports | 2 x USB Type-A (2.1 A) | | Coax Protection | 1-In
1-Out | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1080 Joules | | Maximum Wattage | 510 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 90 to 148 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 850 VA | | Power Factor Correction | 0.6 | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Capacity | 108 Wh (9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 11 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1280A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 3.9 x 9.7 x 10.2" / 9.9 x 24.6 x 25.9 cm | | Weight | 14.8 lb / 6.7 kg | | | | Box Dimensions (LxWxH) | 14.4 x 12.7 x 6.8" | - CyberPower CSB404 4-Outlet Essential Series Surge Protector (Black)
| | | Wall Plug Type | NEMA 5-15P | | Outlets | 4 | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 125 VAC, 60 Hz | | Rated Current | 15 A | | Surge Energy Rating | 600 Joules | | Maximum Spike Current | 30,000 A | | Clamping Response Time | < 1 ns | | EMI/RFI Noise Filtration | 32 dB (150 kHz to 100 MHz) | | | | Box Dimensions (LxWxH) | 9.8 x 4.3 x 1.7" |
