Product description - CP1000AVRLCD UPS System by CyberPower

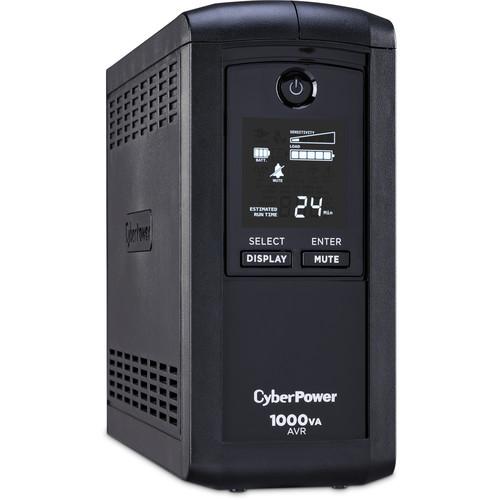

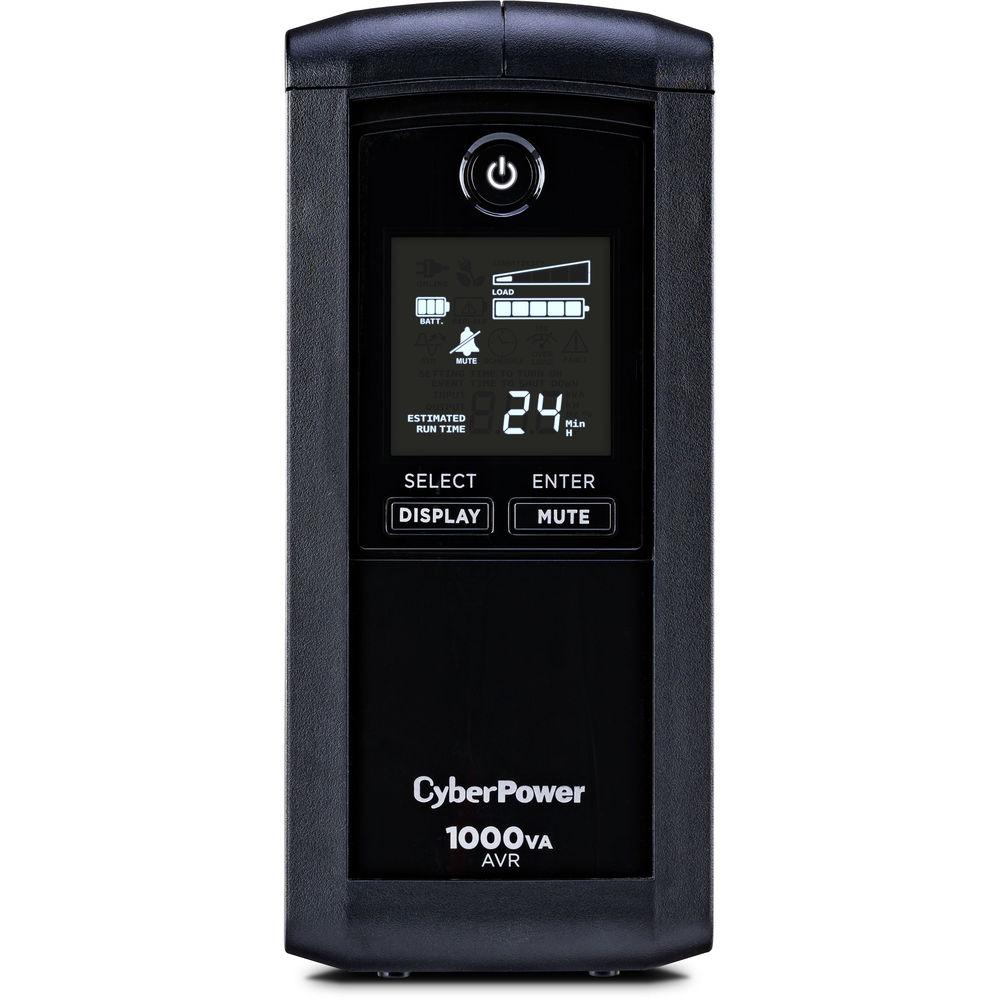

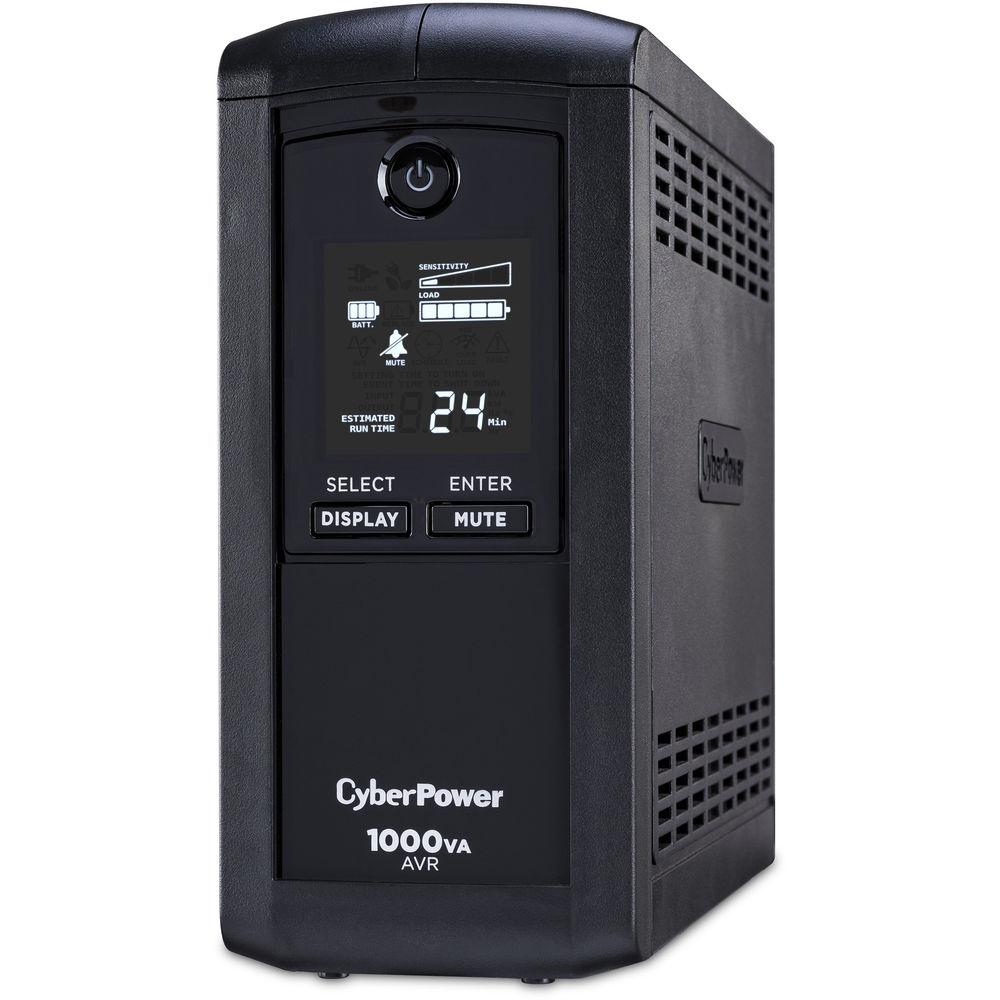

The CP1000AVRLCD Intelligent LCD UPS from CyberPower comes equipped with an output capacity of 1000 VA / 600W that delivers power for up to nine electronic devices. This power supply features Automatic Voltage Regulation which provides consistent and clean AC power to all your connected equipment such as desktop computers, workstations, networking devices, home entertainment systems, and more. Furthermore, it has integrated circuitry for EMI/RFI filters. The Intelligent LCD UPS provides an integrated panel for displaying real-time UPS vitals, such as load capacity %, battery charge %, input/output voltage and frequency, estimated runtime, and more.

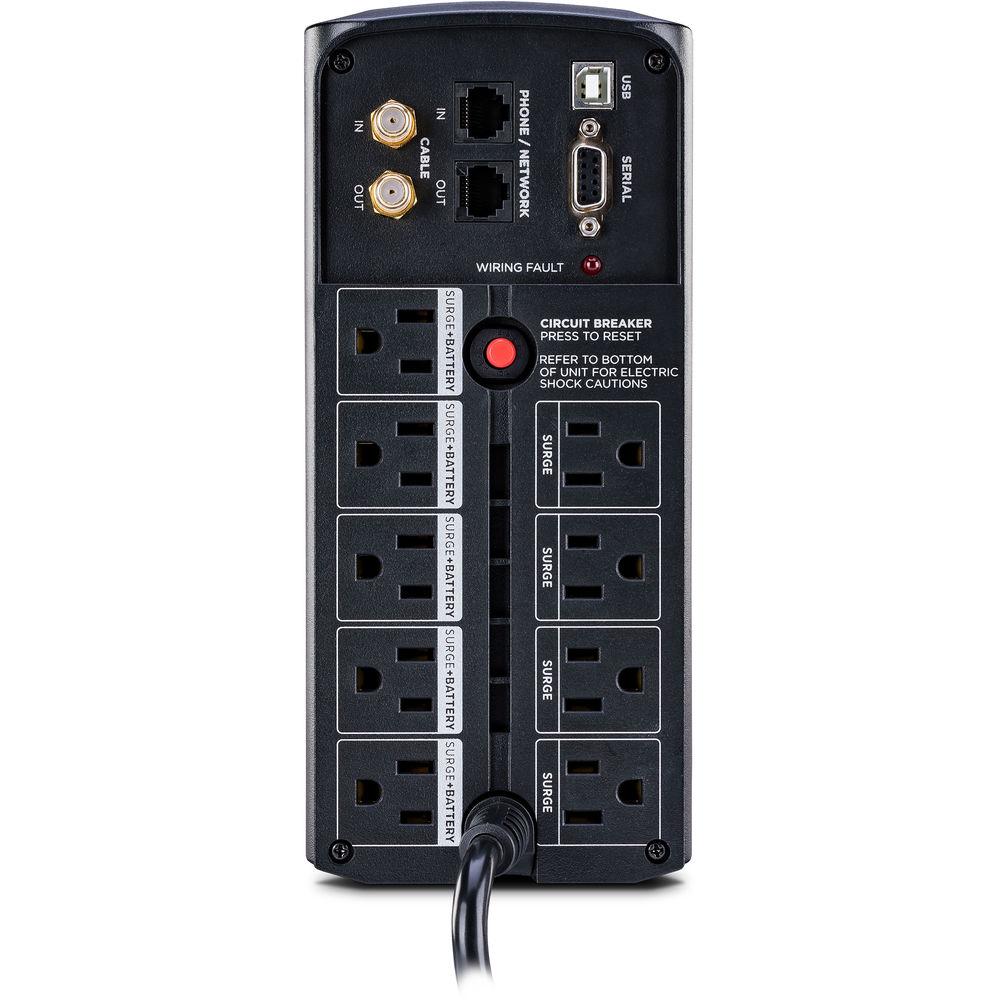

This mini-tower power supply offers nine total outlets that are capable of absorbing up to 1,080 joules for keeping your devices safe against surges and spikes. To keep your devices powered during blackouts and brownouts, five of the NEMA 5-15R outlets are battery and surge protected using internal circuitry limiting and a circuit breaker, while the other four just provide surge protection. Other connections offered are serial, USB Type-B, Ethernet RJ45, Phone RJ11, and Coax RG6 ports.
This power supply is Energy Star qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Personal Edition UPS management software for Windows systems. This software requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $350,000. Typical Applications Features - Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Runtime (half/full): 9 minutes / 2 minutes
- Plug type & cord: NEMA 5-15P, 6' cord
- Outlets: 9 (4 surge, 5 surge + battery backup)
- Communication: USB, Serial
- Data line protection: Telephone, Ethernet, Coaxial
- Management software: PowerPanel Personal Edition
- ENERGY STAR qualified: Yes
- Lifetime $350,000 Connected Equipment Guarantee
UPC: 649532010004 In the Box CyberPower CP1000AVRLCD Intelligent LCD UPS $350,000 Lifetime Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP1000AVRLCD Intelligent LCD UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP1000AVRLCD Specs | | | Total Outlets | 9 | | Protected Outlets | 5 (Battery and Surge) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Coax Protection | 1-In
1-Out | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1080 Joules | | Maximum Wattage | 600 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 90 to 142 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 1000 VA | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Capacity | 108 Wh (9 Ah / 12 V) | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 9 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 3.9 x 9.0 x 10.2" / 9.9 x 22.9 x 25.9 cm | | Weight | 15.0 lb / 6.8 kg | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 15.0 x 12.5 x 7.1" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 00 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to CyberPower CP1000AVRLCD Intelligent LCD UPS
| Subject: I have a CyberPower 1000VA unit that won't stop humming | | Date: 21.03.2023 18:15:28 | Name: Daryle W Hier | | We had a power surge during a storm and it set off our two UPS units. The one we just hit the on off button a couple times and it came back on without the humming. However the other one, which is only a couple years old, keeps humming. We've turn it off and back on again and it still hums. We even unplug it and plus it back in and it still hums (a screeching hum). Can you help? | | Post reply |
