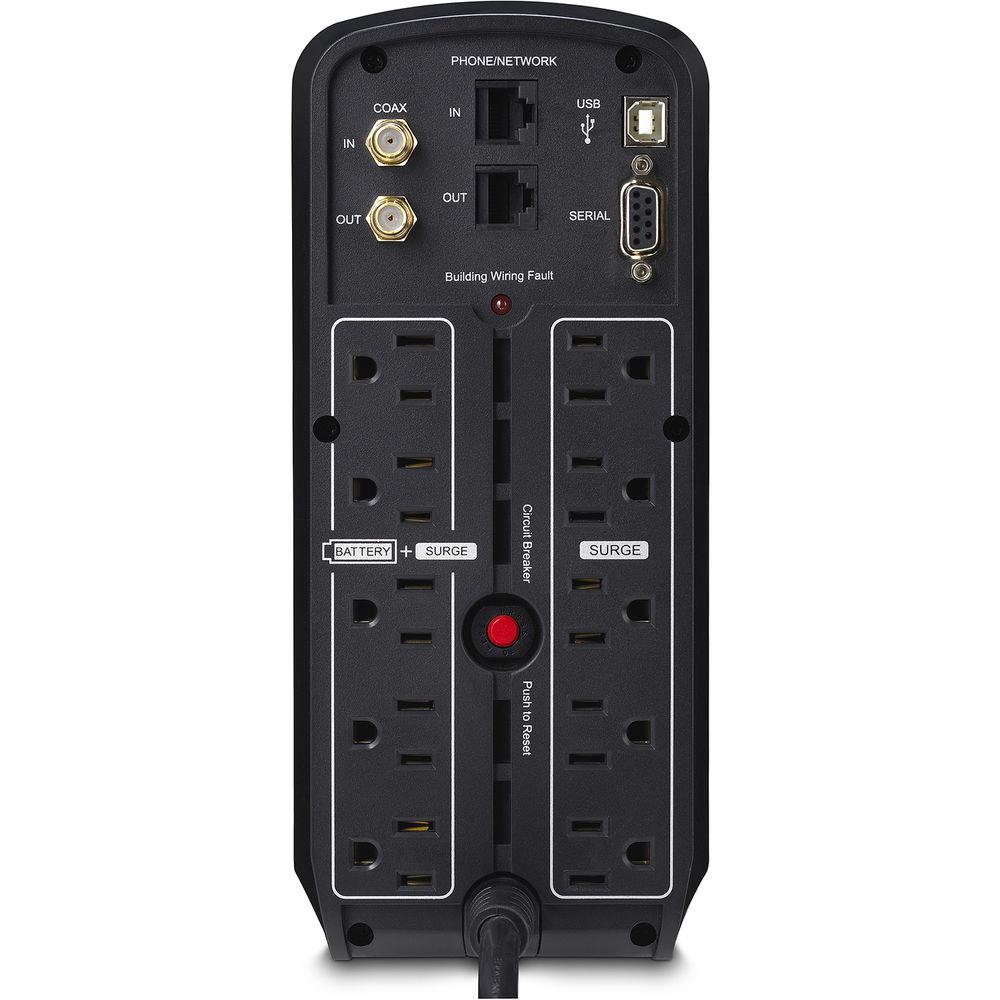

Product description The CP1000PFCLCD PFC Sinewave UPS System from CyberPower has a capacity of 1000VA/600W, ten (10) NEMA 5-15R receptacles and on (1) maintenance-free, user-replaceable 12V/9AH battery. Its automatic voltage regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. This CP1000PFCLCD offers connectivity via one (1) HID USB and one (1) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. Also, the multifunction LCD panel displays real-time UPS vitals for ease of control. Lastly, this UPS is ENERGY STAR qualified to save on energy costs by reducing energy consumption and heat buildup. - PFC Sinewave UPS System
- A battery backup that adapts to multiple applications and requirements-from home/office use to enterprise environments. The UPS provides pure sine wave protection for computer systems, networking hardware, servers, home theater equipment, telecom systems and other sensitive electronics with Active PFC or conventional power supplies. With pure sine wave output, the UPS solves the incompatibility issues experienced when a non-sine wave UPS is attached to equipment using Active PFC power supplies by providing continuous power output-preventing unexpected shutdowns or damaging stress when switching from AC to UPS battery power
- Automatic Voltage Regulation (AVR)
- AVR technology stabilizes the AC voltage and maintains a safe voltage level without switching to battery-mode. This conserves battery life, and delivers cleaner AC power to connected equipment
- EMI/RFI Filters
- Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment

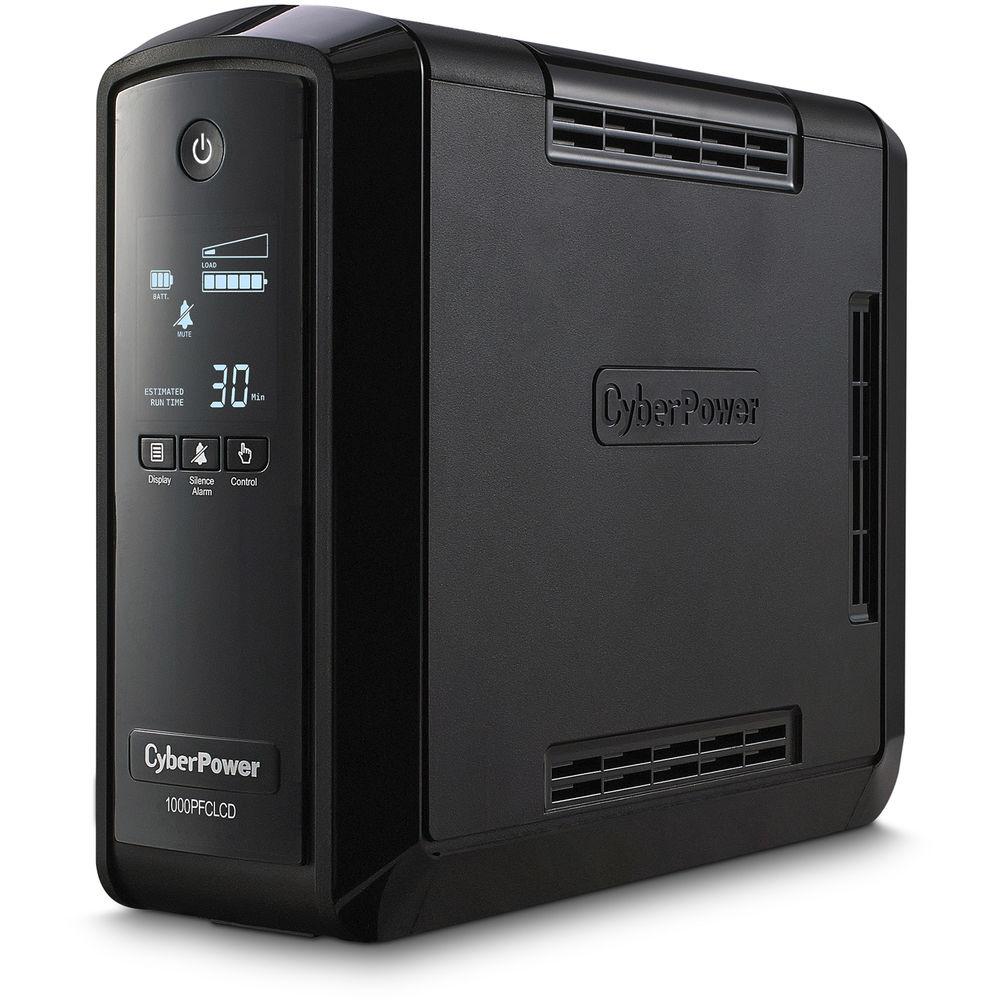

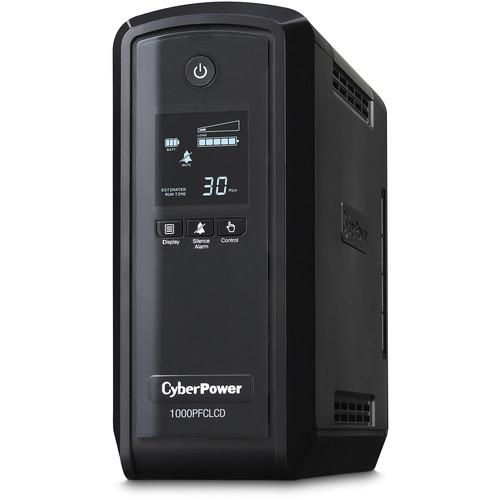

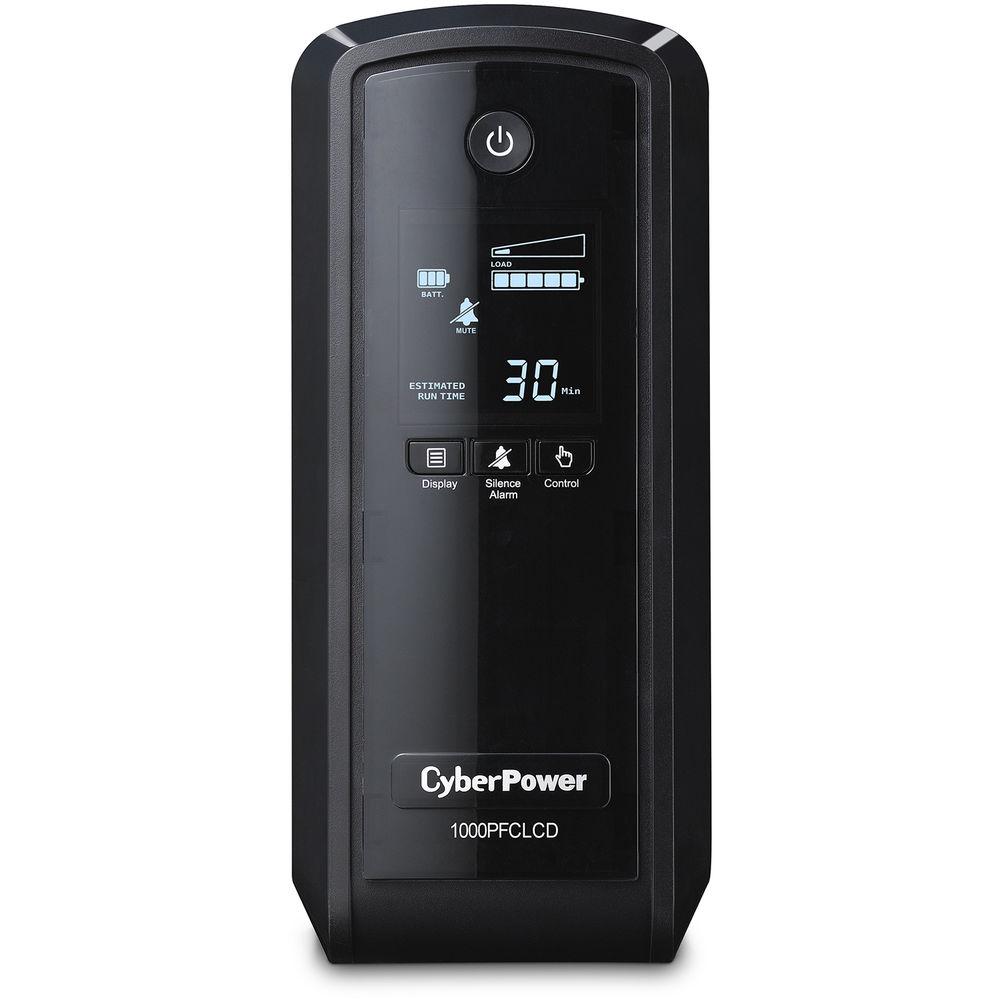

- LCD Diagnostic Display
- The front white LCD panel displays UPS vitals: input voltage level, output voltage level, automatic voltage regulator, battery capacity, energy-saving bypass mode, runtime estimate, load level, output frequency, on battery, overload, fault condition, event logging, and silent mode
- Quiet UPS
- Advanced efficiency design (reduced fan operation), high-end system components, and GreenPower UPS technology help minimize sound emissions
- Tamper-Proof Power Button
- The power button has been specifically designed to minimize the chance the UPS can be turned off or interfered with by accident
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low
- USB Connectivity
- HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X
- Resettable Circuit Breaker
- Convenient unit reset switch in case of an overload
- Function Controls
- Shutdown options, selectable battery backup voltage sensitivity, display and alarm options, self test and more
- Reduce Energy Costs & Heat Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- PowerPanel Personal Edition
- In the event of a power outage, PowerPanel PE saves open files and hibernates the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns
- Windows Compatibility
- The PowerPanel power management software has been fully tested and is compatible with Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, 2003, Server 2008, and Server 2012
- ISO & Safety Certifications
- The UPS is certified by the FCC, cUL, and UL
UPC: 649532609628 In the Box CyberPower CP1000PFCLCD PFC Sinewave UPS System Telephone Cable Coaxial Cable USB Type-A to Type-B Cable $350,000 Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP1000PFCLCD PFC Sinewave UPS System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP1000PFCLCD Specs | | | Total Outlets | 10 | | Protected Outlets | 5 (Battery and Surge)
5 (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 600 W | | Input Voltage Adjustable Range | 78 to 142 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 1000 VA | | Waveform | Sine Wave | | | | Cells | 1 | | Capacity | 108 Wh (9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 3 Minutes | | Half-Load Runtime | 9 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | HR9-12 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 3.9 x 9.1 x 10.4" / 99.1 x 231.4 x 264.2 mm | | Weight | 15.9 lb / 7.2 kg | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 13.9 x 13.2 x 7.8" |
