User Manual for CyberPower CP1350AVRLCD Intelligent LCD UPS Click to enlarge the picture
Contents of the user manual for the CyberPower CP1350AVRLCD Intelligent LCD UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower CP1350AVRLCD Intelligent LCD UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

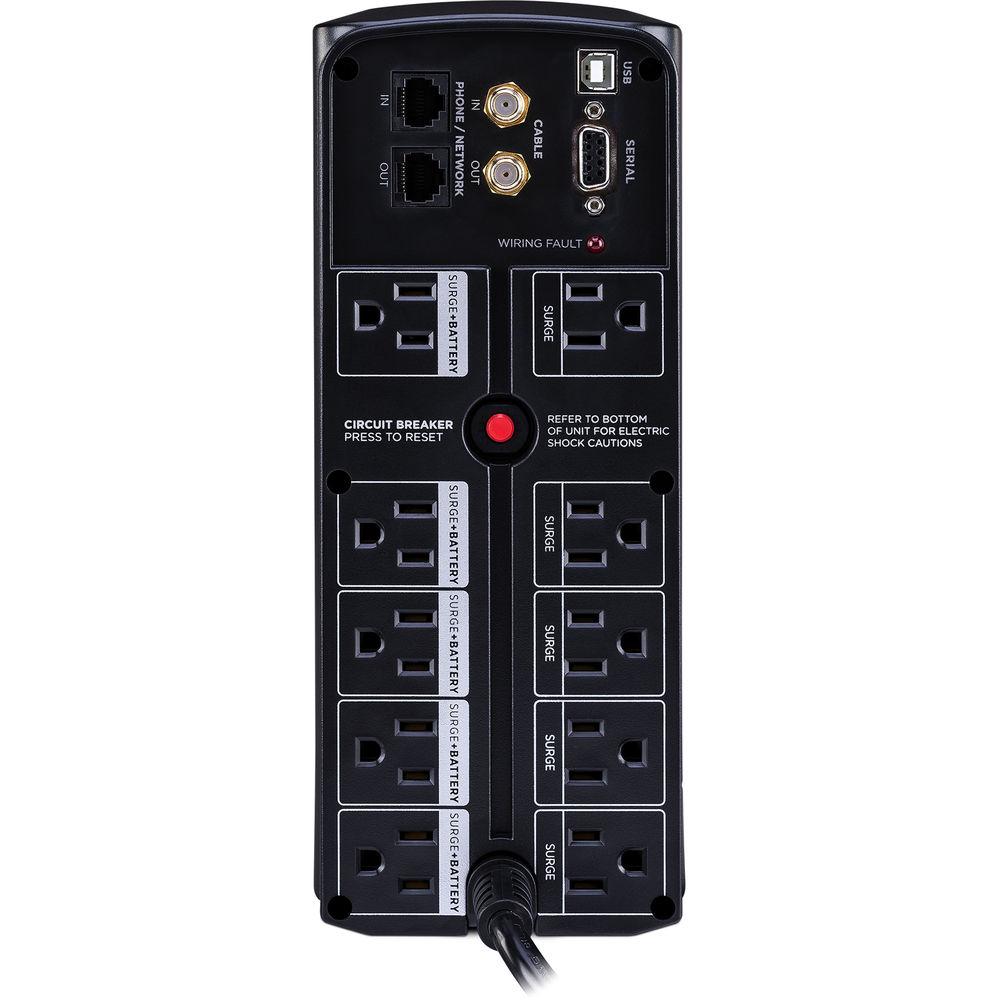

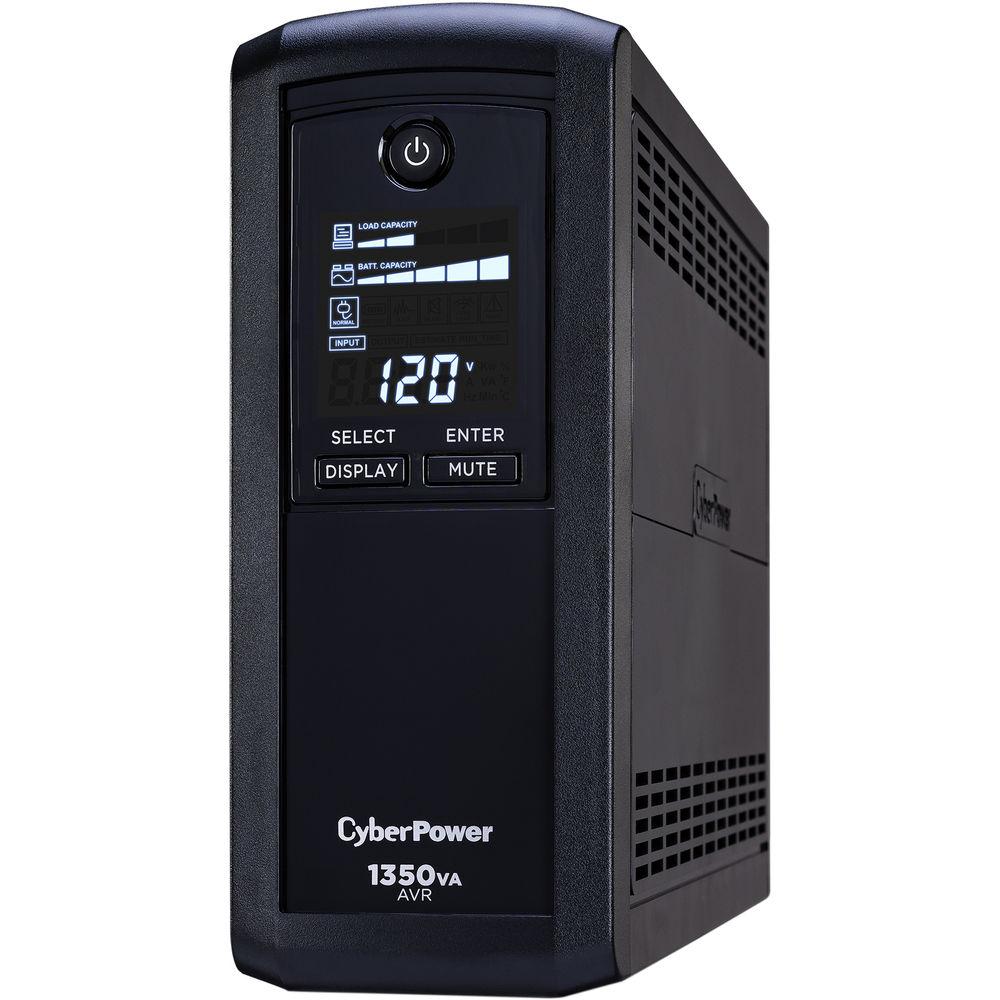

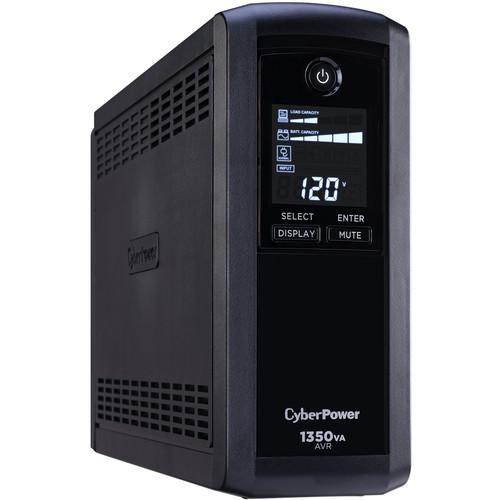

Product description The CP1350AVRLCD Intelligent LCD UPS from CyberPower has a capacity of 1350VA/810 Watts, ten (10) NEMA 5-15R receptacles, including four (4) fail-safe outlets for critical loads. The CP1350AVRLCD offers connectivity via one (1) HID USB and one (1) serial port, as well as protection for phone/network (RJ-11/RJ-45) and cable/coax (RG-6). The UPS system is ENERGY STAR qualified with patented GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. It has two (2) maintenance-free, user-replaceable 12V/8AH batteries and includes EMI/RFI filters to increase the immunity of the load to disturbances and surges. - Transformer-Spaced Outlets
- Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets
- Automatic Voltage Regulation (AVR)
- AVR technology stabilizes the AC voltage and maintains a safe voltage level without switching to battery-mode. This conserves battery life, and delivers cleaner AC power to connected equipment

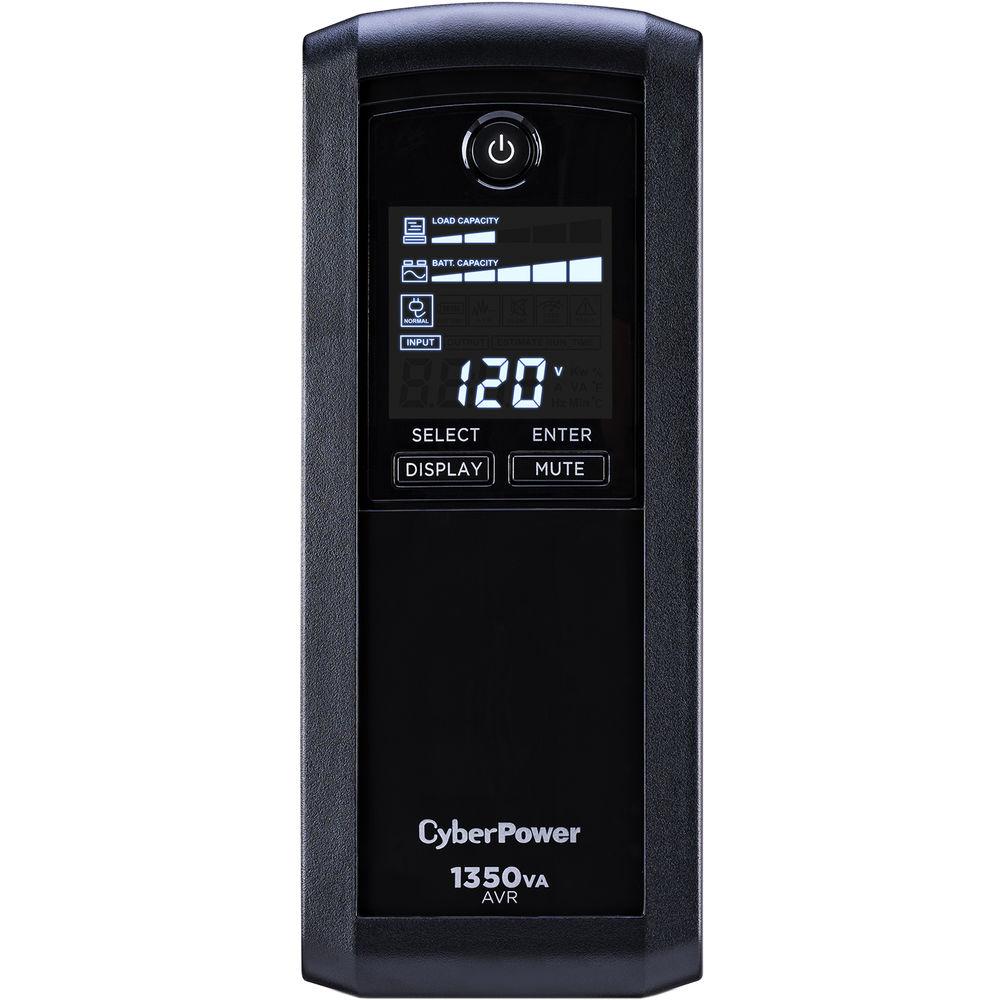

- LCD Diagnostic Display
- The front panel displays 11 different UPS vitals: input voltage level, output voltage level, automatic voltage regulator, battery capacity, runtime estimate, load level, output frequency, on battery, overload, fault condition, and silent mode
- EMI/RFI Filters
- Shielding against electromagnetic interference and radio frequency signals prevents line noise humming over telephone lines or audio systems
- Quiet UPS
- Advanced cooling design, high-end system components, and GreenPower UPS technology give the UPS low sound emissions
- USB Connectivity
- HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low
- Resettable Circuit Breaker
- The user may use this convenient unit reset switch in case of an overload
- Reduce Energy Cost & Energy Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- PowerPanel Personal Edition
- In the event of a power outage, PowerPanel PE saves open files and hibernates the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns
- Windows Compatibility
- The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
- ISO & Safety Certifications
- The UPS is certified by the FCC, cUL, and UL
UPC: 649532013500 In the Box CyberPower CP1350AVRLCD Intelligent LCD UPS $500,000 Lifetime Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer abdcxcutdyufuzdfwefrcbbsubawxeqxb Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP1350AVRLCD Intelligent LCD UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP1350AVRLCD Specs | | | Total Outlets | 10 x NEMA 5-15R (2 Transformer-Sized) | | Protected Outlets | 5 x NEMA 5-15R (Battery and Surge)
5 x NEMA 5-15R (Surge Only) | | Plug Type | NEMA 5-15P Right-Angle | | Coax Protection | 1-In
1-Out | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1500 Joules | | Maximum Wattage | 810 W | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 1350 VA | | Waveform | Simulated Sine Wave | | | | Cells | 2 | | Capacity | 96 Wh (8 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 9 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | BP8-12 | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 4.0 x 9.8 x 13.3" / 101.6 x 248.9 x 337.8 mm | | Weight | 25.0 lb / 11.3 kg | | | | Package Weight | 26.5 lb | | Box Dimensions (LxWxH) | 16.9 x 13.9 x 7.5" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
