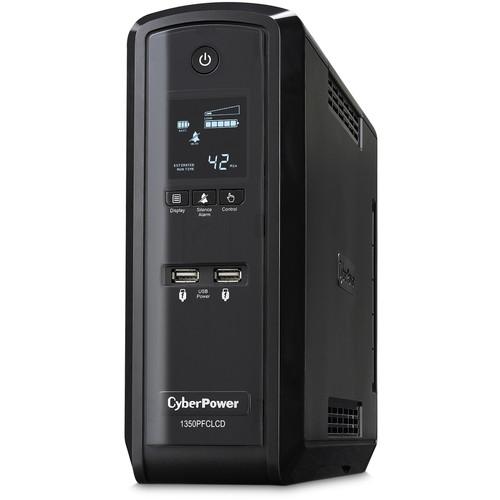

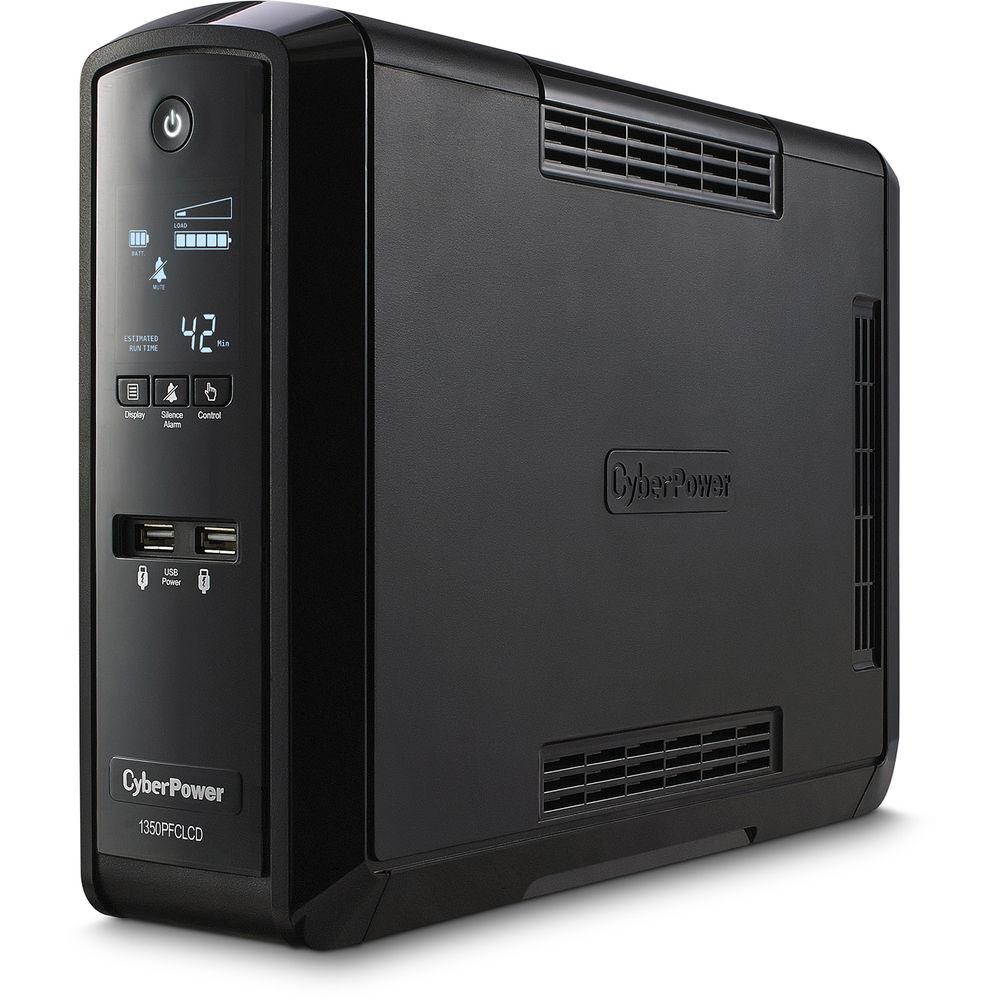

Product description The CP1350PFCLCD PFC Sinewave Series UPS from CyberPower solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). The UPS safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. The CP1350PFCLCD has a capacity of 1350VA/810W, ten (10) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/7AH batteries. The intelligent multifunction LCD panel displays real-time UPS vitals for ease of control, and the UPS includes two (2) 5VDC USB 2.0 charging ports for portable devices such as mobile phones, MP3 players, and cameras. Lastly, the UPS' EMI/RFI filters increase the immunity of the load to noise disturbances. - PFC Sinewave UPS Systems
- A battery backup that adapts to multiple applications and requirements-from home/office use to enterprise environments. It provides pure sine wave protection for computer systems, networking hardware, servers, home theater equipment, telecom systems and other sensitive electronics with Active PFC or conventional power supplies. With pure sine wave output, it solves the incompatibility issues experienced when a non-sine wave UPS is attached to equipment using active PFC power supplies by providing continuous power output-preventing unexpected shutdowns or damaging stress when switching from AC to UPS battery power

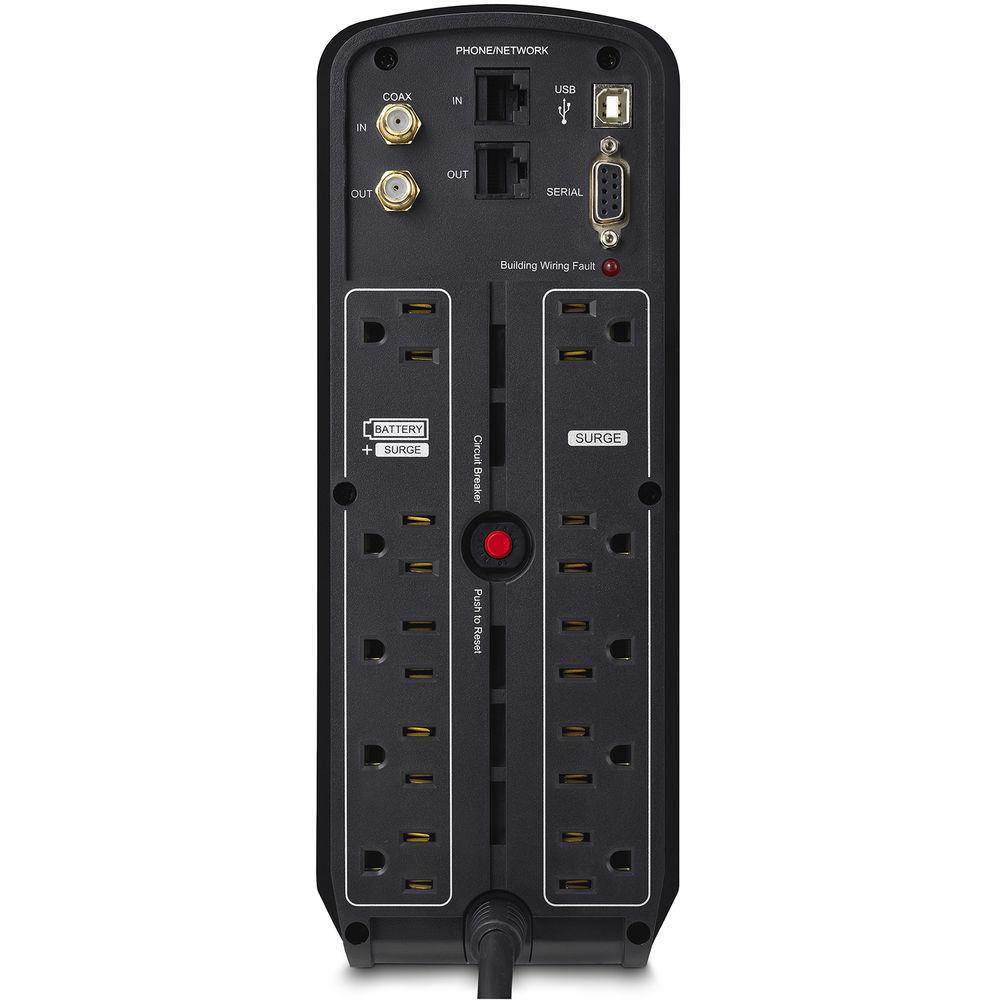

- Transformer-Spaced Outlets
- Ten widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets
- Automatic Voltage Regulation (AVR)
- AVR technology stabilizes the AC voltage and maintains a safe voltage level without switching to battery-mode. This conserves battery life, and delivers cleaner AC power to connected equipment
- EMI/RFI Filters
- Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment

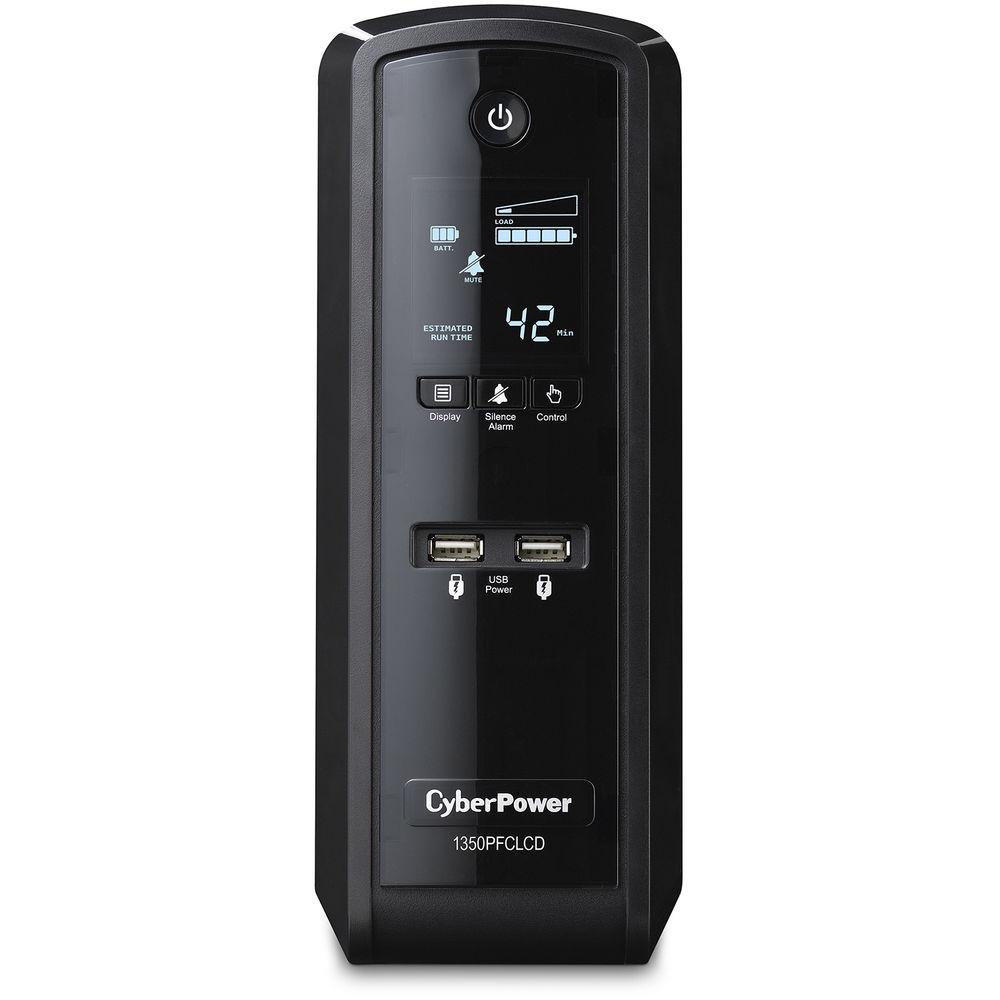

- LCD Diagnostic Display
- The front white LCD panel displays UPS vitals: input voltage level, output voltage level, automatic voltage regulator, battery capacity, energy-saving bypass mode, runtime estimate, load level, output frequency, on battery, overload, fault condition, event logging, and silent mode
- Tamper-Proof Power Button
- The power button has been specifically designed to minimize the chance the UPS can be turned off or interfered with by accident
- Quiet UPS
- Advanced efficiency design (reduced fan operation), high-end system components, and GreenPower UPS technology help minimize sound emissions
- USB Charger
- Two (2) 5VDC USB 2.0 charging ports located on the front panel for convenient access to charge portable electronic device such as mobile phones, MP3 players, and camera
- USB Connectivity -
- HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X
- Function Controls
- Shutdown options, selectable battery backup voltage sensitivity, display and alarm options, self test and more
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low
- Resettable Circuit Breaker
- Convenient unit reset switch in case of an overload
- Reduce Energy Costs & Heat Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- PowerPanel Personal Edition
- In event of a power outage, PowerPanel PE saves open files and hibernates the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns
- Windows Compatibility
- The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
- ISO & Safety Certifications
- The UPS is certified by the FCC, cUL, and UL
UPC: 649532609635 In the Box CyberPower CP1350PFCLCD PFC Sinewave Series UPS $425,000 Lifetime Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP1350PFCLCD PFC Sinewave Series UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP1350PFCLCD Specs | | | Total Outlets | 10 | | Protected Outlets | 5 (Battery and Surge)
5 (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | USB Charging Ports | 2 x USB Type-A (1 A) | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 810 W | | Input Voltage Adjustable Range | 78 to 142 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 1350 VA | | Waveform | Sine Wave | | | | Cells | 2 | | Capacity | 84 Wh (7 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 3 Minutes | | Half-Load Runtime | 9 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | SHR7-12 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 3.9 x 10.4 x 14.2" / 99.1 x 264.2 x 360.7 mm | | Weight | 20.3 lb / 9.2 kg | | | | Package Weight | 24.4 lb | | Box Dimensions (LxWxH) | 17.5 x 14.8 x 7.5" |
