Product description - CyberPower PFC Sinewave Series UPS

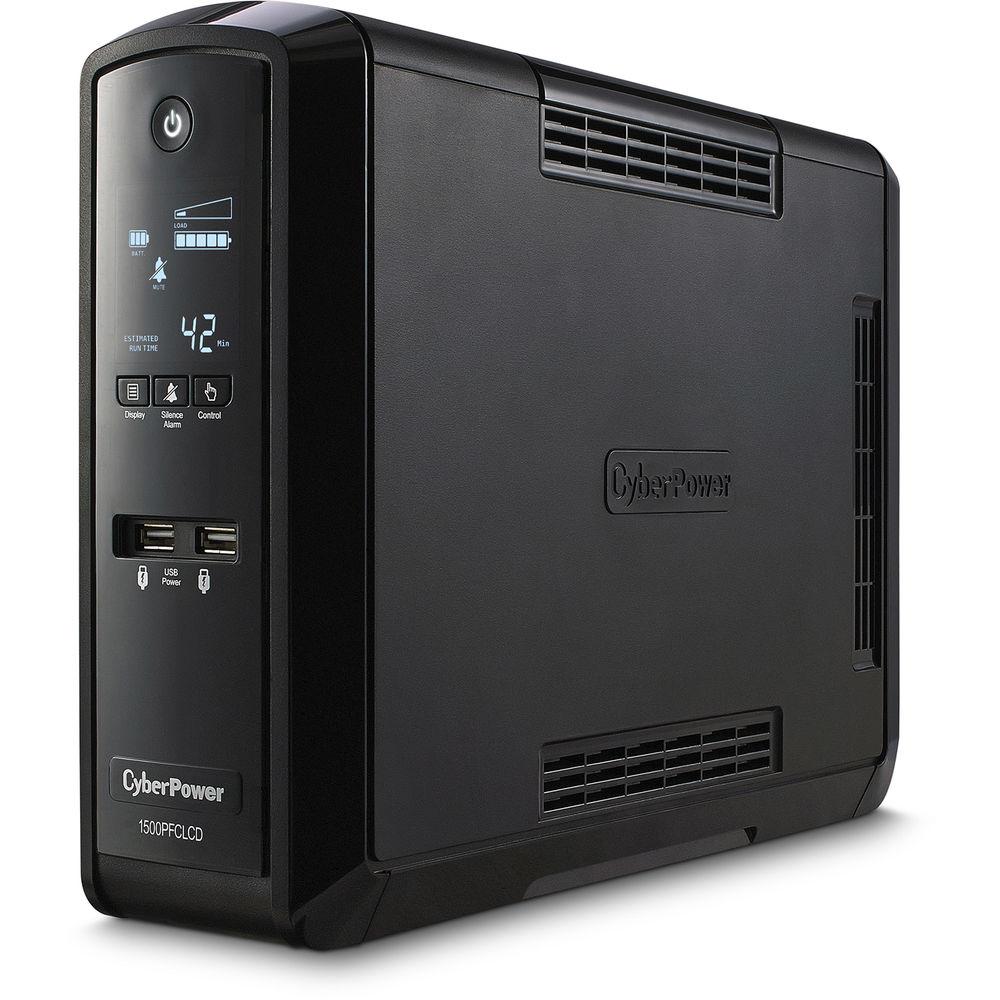

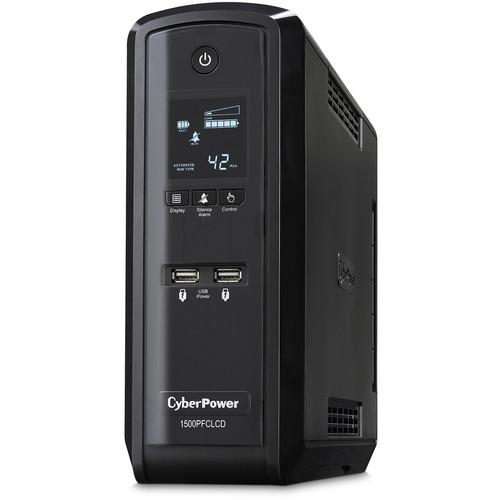

CyberPower's CP1500PFCLCD PFC Sinewave UPS System has a capacity of 1500VA/900W, ten (10) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/8.5AH batteries. It offers connectivity via one (1) HID USB and one (1) DB9 serial ports. Protection for phone/network (RJ-11/RJ-45) and cable/coax (RG-6) is also included. CyberPower's PFC Sinewave UPS system with pure sine wave output solves the issue of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). This UPS ensures equipment utilizing Active PFC power supplies that do not unexpectedly shutdown or experience harmful stress when switching from AC power to UPS battery power. Lastly, the multi-function LCD panel displays real-time UPS vitals for ease of control. - PFC Sinewave UPS System
- A battery backup that adapts to multiple applications and requirements -- from home/office use to enterprise environments. The UPS system provides pure sine wave protection for computer systems, networking hardware, servers, home theater equipment, telecom systems and other sensitive electronics with Active PFC or conventional power supplies. With pure sine wave output, the UPS system solves the incompatibility issues experienced when a non-sine wave UPS is attached to equipment using Active PFC power supplies by providing continuous power output-preventing unexpected shutdowns or damaging stress when switching from AC to UPS battery power
- Transformer-Spaced Outlets
- Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets
- EMI/RFI Filters
- Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment
- Resettable Circuit Breaker
- Reset switch in case of an overload
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low
- Automatic Voltage Regulation (AVR)
- AVR technology stabilizes the AC voltage and maintains a safe voltage level without switching to battery-mode. This conserves battery life, and delivers cleaner AC power to connected equipment

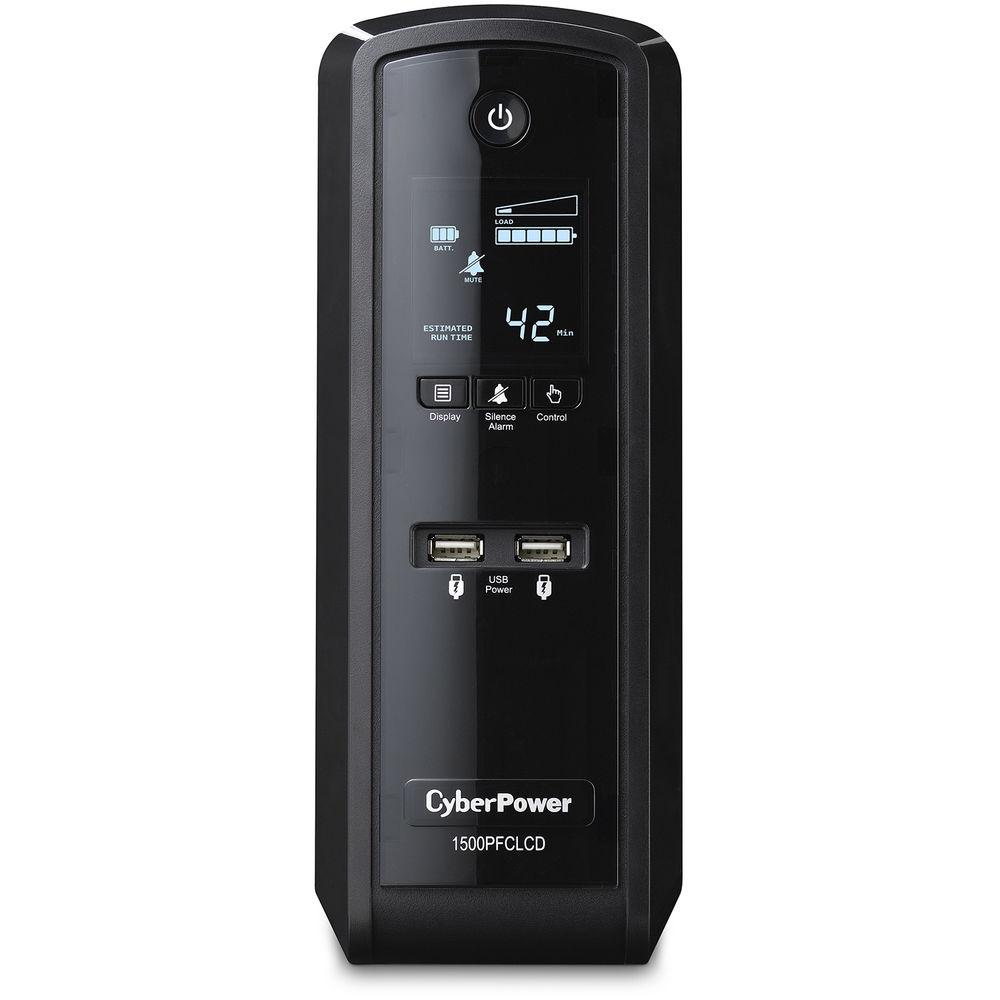

- LCD Diagnostic Display
- The front white LCD panel displays UPS vitals: input voltage level, output voltage level, automatic voltage regulator, battery capacity, energy-saving bypass mode, runtime estimate, load level, output frequency, on battery, overload, fault condition, event logging, and silent mode
- Function Controls
- Shutdown options, selectable battery backup voltage sensitivity, display and alarm options, self test and more
- Quiet UPS
- Advanced efficiency design (reduced fan operation), high-end system components, and GreenPower UPS technology help minimize sound emissions
- USB Charger
- Two (2) 5 VDC USB 2.0 charging ports located on the front panel for convenient access to charge portable electronic device such as mobile phones, MP3 players, and cameras
- USB Connectivity
- HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X
- Tamper-Proof Power Button
- The power button has been specifically designed to minimize the chance the UPS can be turned off or interfered with by accident
- Reduce Energy Costs & Heat Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- PowerPanel Personal Edition
- In the event of a power outage, PowerPanel PE saves open files and hibernates the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns
- ISO & Safety Certifications
- The UPS system is certified by the FCC, cUL, and UL
- Windows Compatibility
- The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
UPC: 649532609642 In the Box CyberPower CP1500PFCLCD PFC Sinewave UPS System $500,000 Lifetime Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer abdcxcutdyufuzdfwefrcbbsubawxeqxb Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP1500PFCLCD PFC Sinewave UPS System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

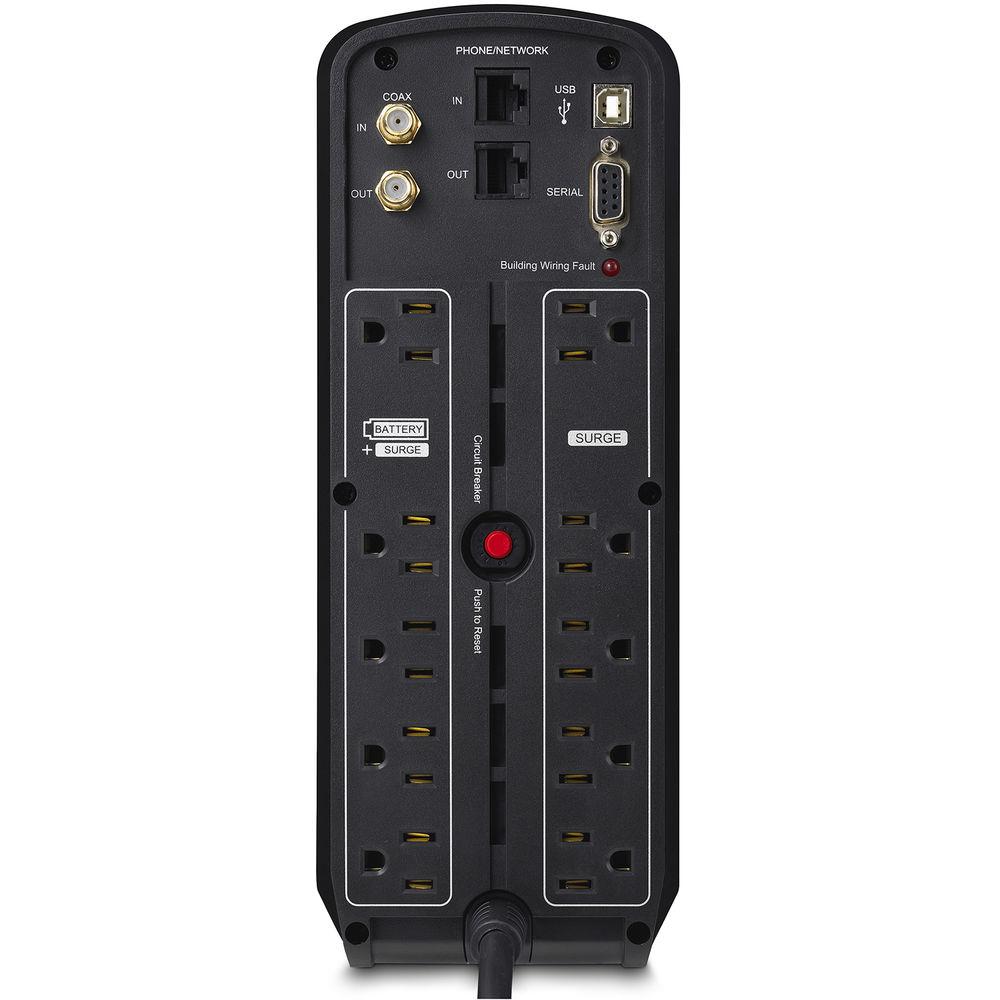

Technical parametersCyberPower CP1500PFCLCD Specs | | | Total Outlets | 10 | | Protected Outlets | 5 (Battery and Surge)
5 (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | USB Charging Ports | 2 x USB Type-A (1 A) | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 900 W | | Input Voltage Adjustable Range | 78 to 142 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 1500 VA | | Waveform | Sine Wave | | | | Cells | 2 | | Capacity | 102 Wh (8.5 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 11 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | HR1234W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 3.9 x 10.4 x 14.2" / 99.1 x 264.2 x 360.7 mm | | Weight | 24.7 lb / 11.2 kg | | | | Package Weight | 28.2 lb | | Box Dimensions (LxWxH) | 17.8 x 15.0 x 8.0" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
