User Manual for CyberPower CP350SLG Standby UPS Click to enlarge the picture
Contents of the user manual for the CyberPower CP350SLG Standby UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower CP350SLG Standby UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

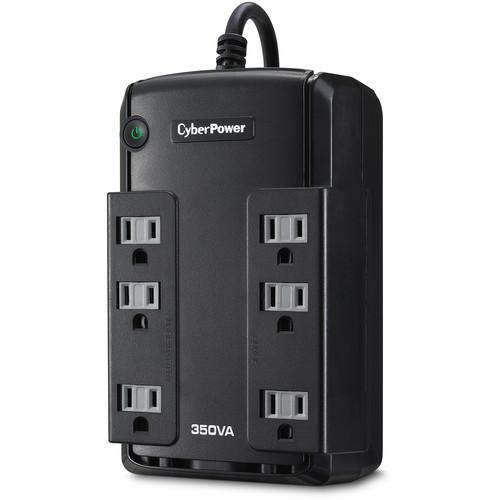

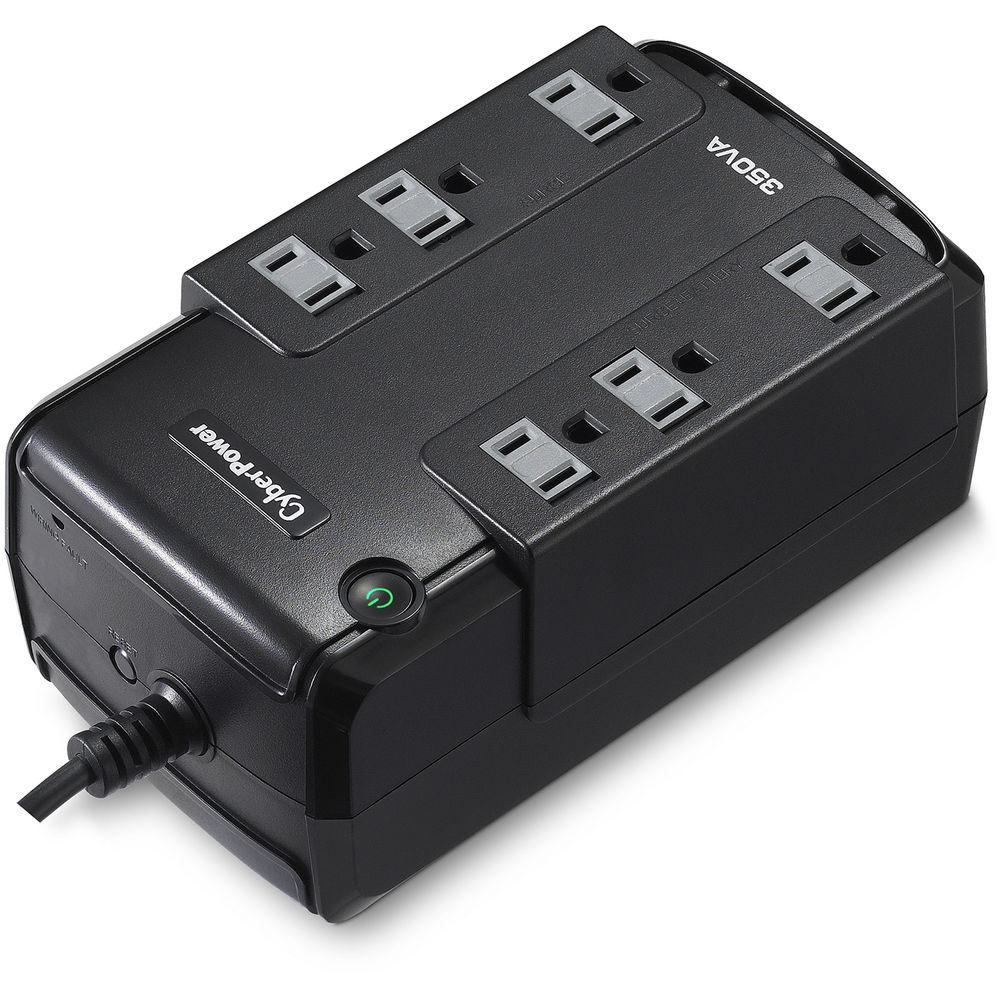

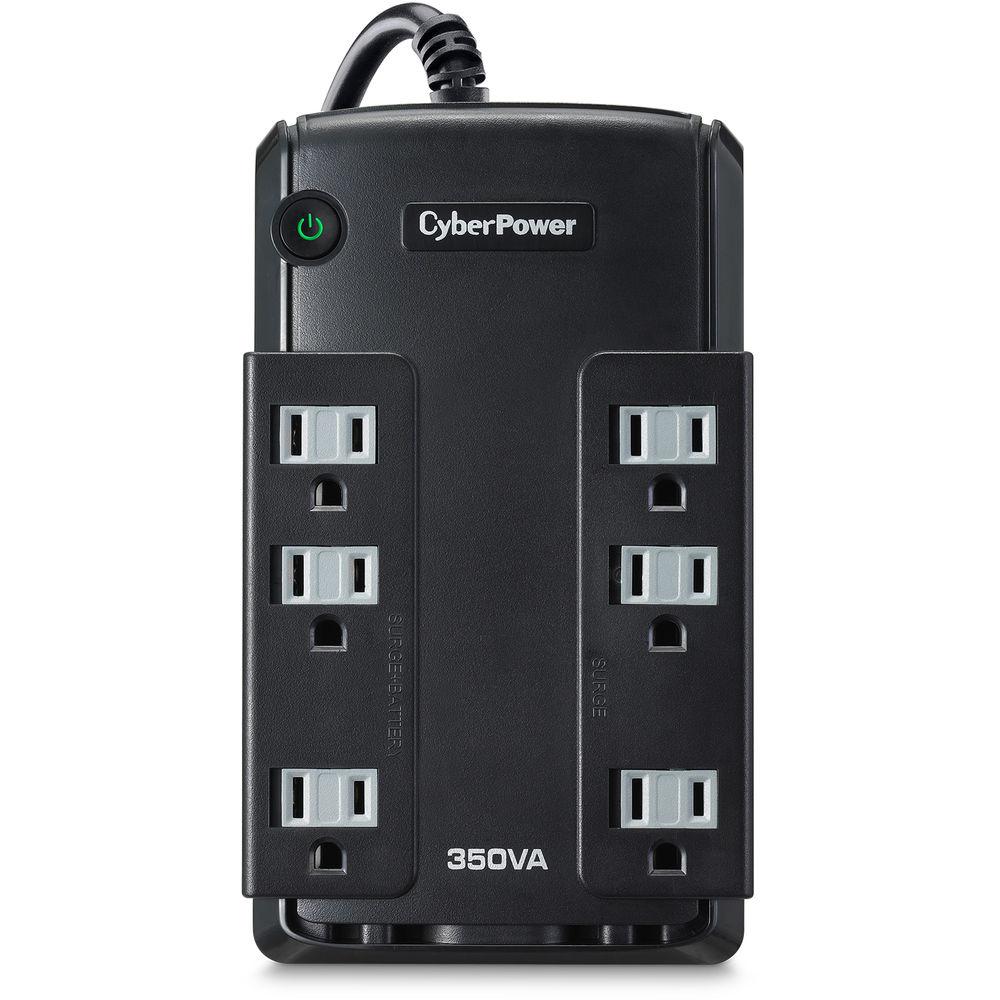

Product description The CP350SLG Standby UPS from CyberPower has a capacity of 350VA/255W, six (6) NEMA 5-15R receptacles, including two (2) widely-spaced outlets to accommodate transformer-based plugs. It safeguards electronics from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its compact design allows for horizontal or vertical placement. This UPS has a maintenance-free 12V/3.6AH battery. Protection for phone/network (RJ-11) is also included. EMI/RFI filters increase the immunity of the load to disturbances and surges. - Transformer-Spaced Outlets
- Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets
- EMI/RFI Filters
- Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low
- Resettable Circuit Breaker
- The user may use this unit reset switch in case of an overload
- Quiet Operation
- One of the lowest sound emissions of any UPS in its class

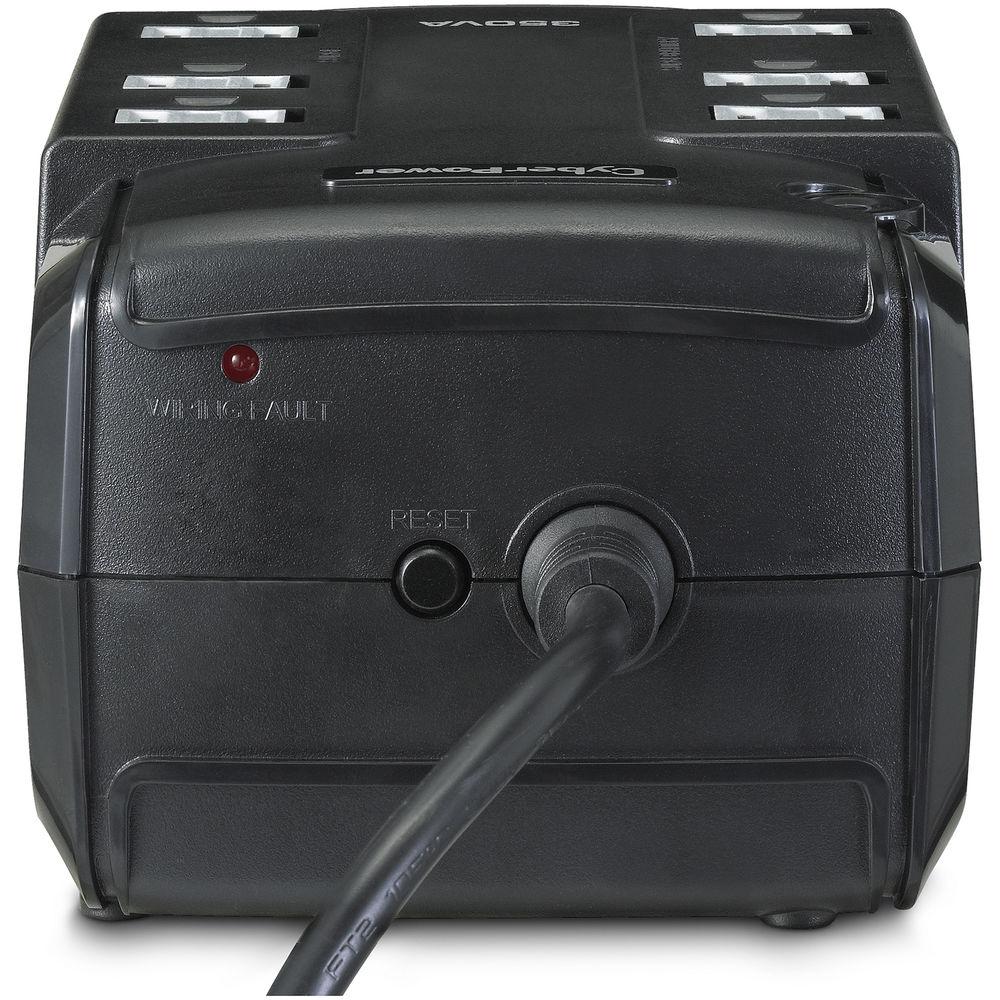

- LED Indicators
- LED status lights indicate power-on and wiring faults
- Horizontal or Vertical Mounting
- Compact size for mounting horizontal or vertical
- Energy-Saving Technology
- Patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models
- ISO and Safety Certifications
- The unit is certified by the FCC, cUL, and UL
UPC: 649532005604 In the Box CyberPower CP350SLG Standby UPS Limited 3-Year Warranty $75,00 Connected Equipment Guarantee More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP350SLG Standby UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP350SLG Specs | | | Total Outlets | 6 (2 Transformer-Sized) | | Protected Outlets | 3 (Battery and Surge)
3 (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Data Line Protection | RJ11 | | Topology | Standby | | Transfer Time | 4 ms | | | | Surge Energy Rating | 810 Joules | | Maximum Current | 10 A | | Maximum Wattage | 255 W | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1% | | Load Capacity | 350 VA | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Capacity | 43.2 Wh (3.6 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 8 Minutes | | Charging Time | 8 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 80% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 7.1 x 4.3 x 3.2" / 180.3 x 109.2 x 81.3 mm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 10.1 x 6.4 x 5.7" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
