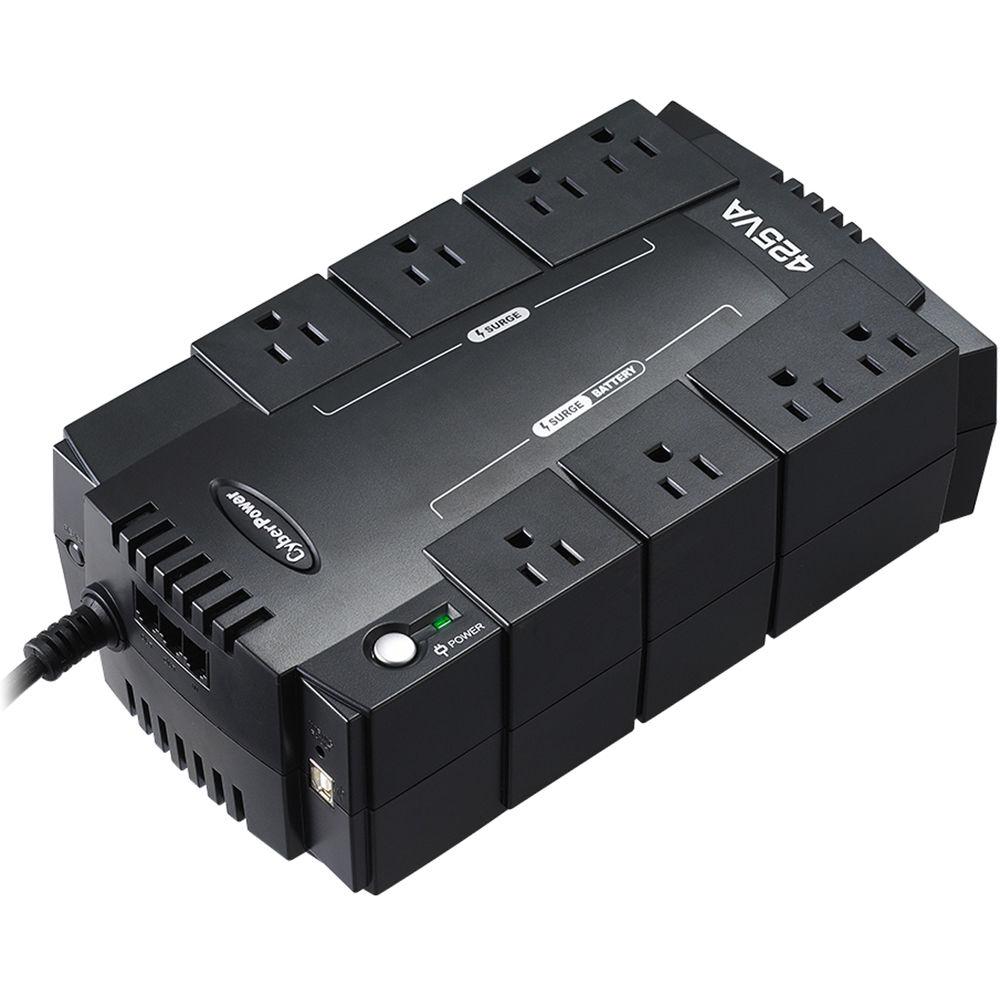

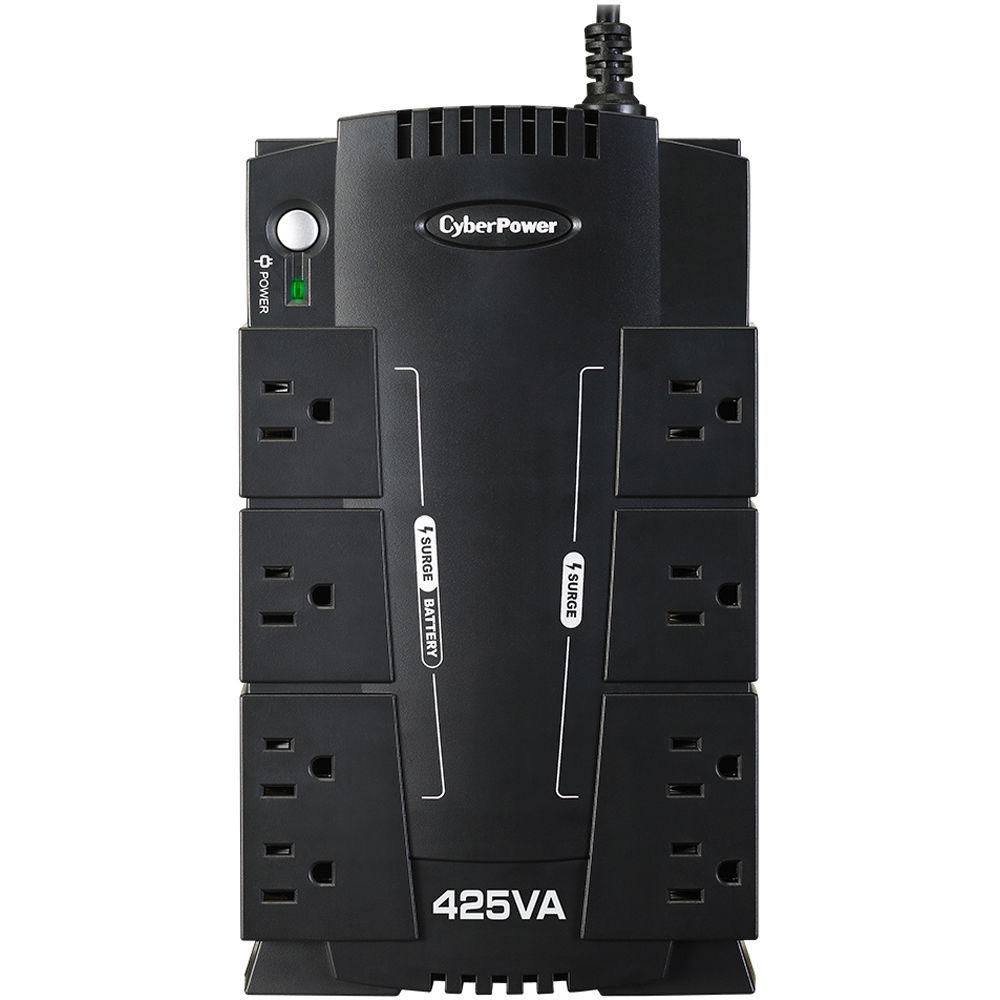

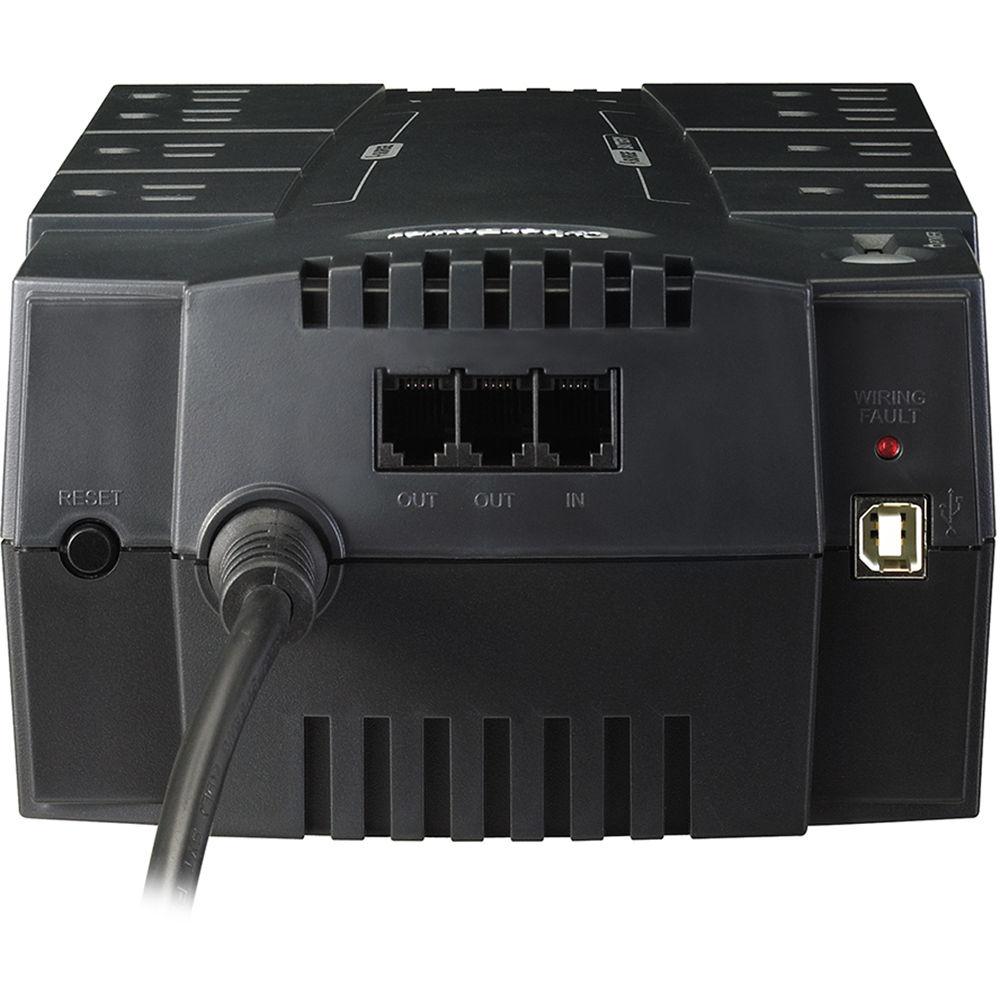

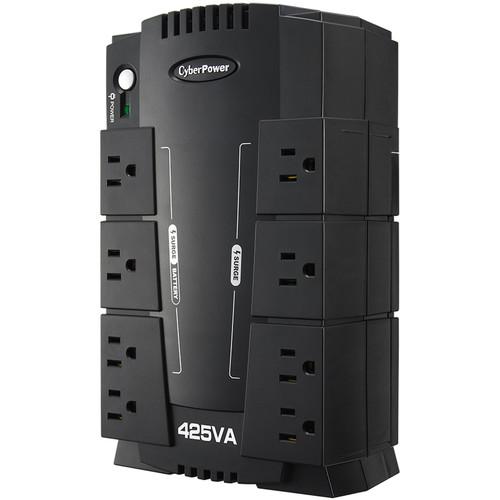

User Manual for CyberPower CP425SLG Standby UPS Backup Click to enlarge the picture
Contents of the user manual for the CyberPower CP425SLG Standby UPS Backup
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower CP425SLG Standby UPS Backup contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The CP425SLG Standby UPS Backup from CyberPower safeguards electrical devices from surges by offering eight surge-protected outlets, and four of these outlets are powered with an internal battery for when the power goes out. The backup unit is designed for systems using up to 255W of power and comes with a 5' power cord sporting a right-angled plug. To properly shut down your computer when power fails, the unit provides up to 7 minutes of runtime under a half load or 2 minutes of runtime under a full load. Aside from battery power, two battery/surge and two surge outlets feature a widely-spaced design, so you can plug in transformer-sized power adapters without blocking other outlets. Other notable connections include one telephone input and two telephone outputs as well as a USB port for monitoring the UPS, using a computer installed with a free downloadable PowerPanel Personal Edition software program. - Battery Backup
- Supplies power long enough for equipment to properly shut down when utility power fails and helps prevent loss of data and minimizes the component stress caused by a hard shutdown
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage
- Data Line Protection
- Prevents power surges that travel through telephone lines from causing damage to electronics
- Standby Topology
- Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment
- Simulated Sine Wave Output
- Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output
- GreenPower UPS High-Efficiency Design
- Reduces power consumption by utilizing a compact charger and power inverter to create an efficient backup power system for home and office use
- Quiet Design
- Minimizes noise during operation for a quieter work environment
- Transformer-Spaced Outlets
- Accommodate large transformer-based plugs without compromising the access of other outlets
- PowerPanel Personal Edition Software
- Provides a user-friendly dashboard interface for controlling and monitoring the UPS via a free software download
- Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge under the Lifetime $75,000 Connected Equipment Guarantee
UPC: 649532609475 In the Box CyberPower CP425SLG Standby UPS Backup USB Type-A to USB Type-B Cable RJ11 Cable Lifetime $75,000 Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer zvftfsstzzvrqzuazufsf Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP425SLG Standby UPS Backup in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP425SLG Specs | | | Total Outlets | 8 (4 Transformer-Sized) | | Protected Outlets | 4 x NEMA 5-15R (Battery and Surge)
4 x NEMA 5-15R (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Data Line Protection | RJ11 | | Communications | USB | | Transfer Time | 4 ms | | | | Surge Energy Rating | 890 Joules | | Maximum Wattage | 255 W | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1% | | Load Capacity | 425 VA | | Circuit Breaker Rating | 10 A | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Capacity | 43.2 Wh (3.6 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 7 Minutes | | Charging Time | 8 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 9.8 x 5.8 x 3.3" / 24.9 x 14.7 x 8.4 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 14.2 x 7.9 x 4.7" |
