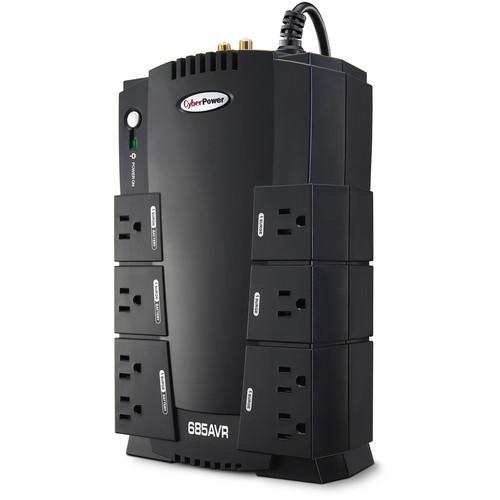

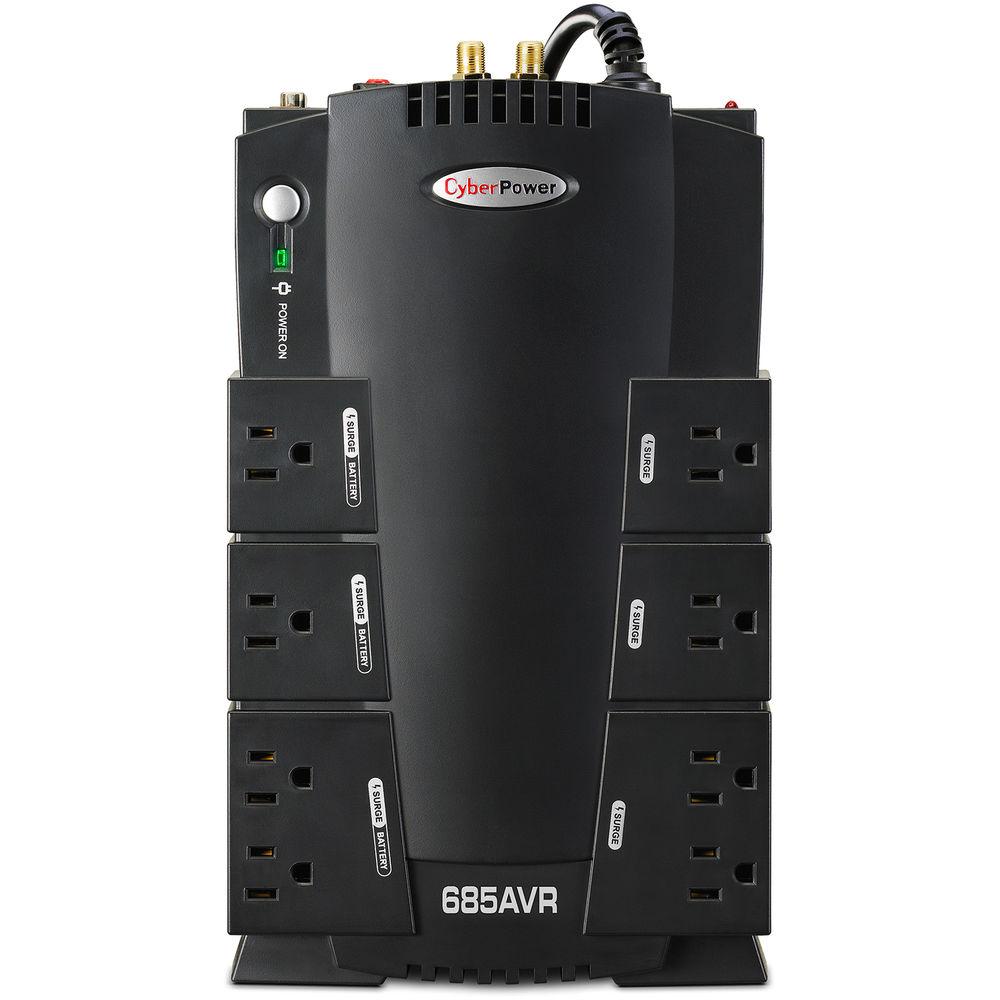

Product description The CP685AVR AVR UPS from CyberPower has a capacity of 685VA/390W, eight (8) NEMA 5-15R receptacles, widely-spaced to accommodate transformer-based plugs. It was designed to safeguard commercial and home systems against surges, spikes, sags, and brownouts, protecting equipment and valuable data during a power outage. Its small footprint allows for horizontal or vertical placement, or it can be conveniently mounted on a wall. This UPS has a maintenance-free, user-replaceable 12V/8AH battery and offers connectivity via one (1) HID USB and one (1) DB9 serial port. EMI/RFI filters increase the immunity of the load to noise disturbances. PowerPanel Personal Edition Smart Management software is included to monitor the vitals of the UPS and safely shut down the system in case of a power outage. - Transformer-Spaced Outlets
- Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets
- EMI/RFI Filters
- Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems
- Quiet Operation
- Lowest sound emissions of any UPS in its class
- Automatic Voltage Regulation
- AVR boosts the AC power and maintains a safe voltage level without switching to battery-mode, conserving battery life and delivering a cleaner signal to connected equipment

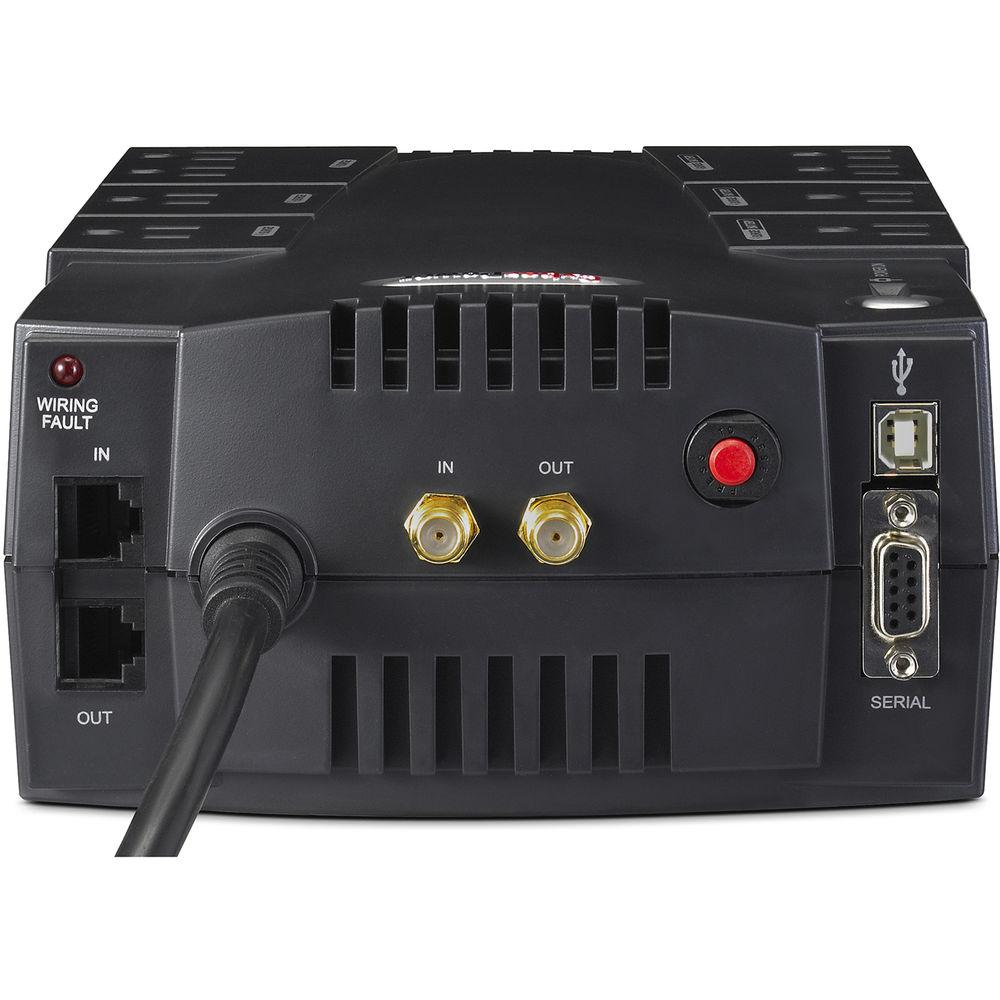

- USB Connectivity
- HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X
- LED Indicators
- LED status lights indicate power-on and wiring faults
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low
- Resettable Circuit Breaker
- The user may use this convenient unit reset switch in case of an overload

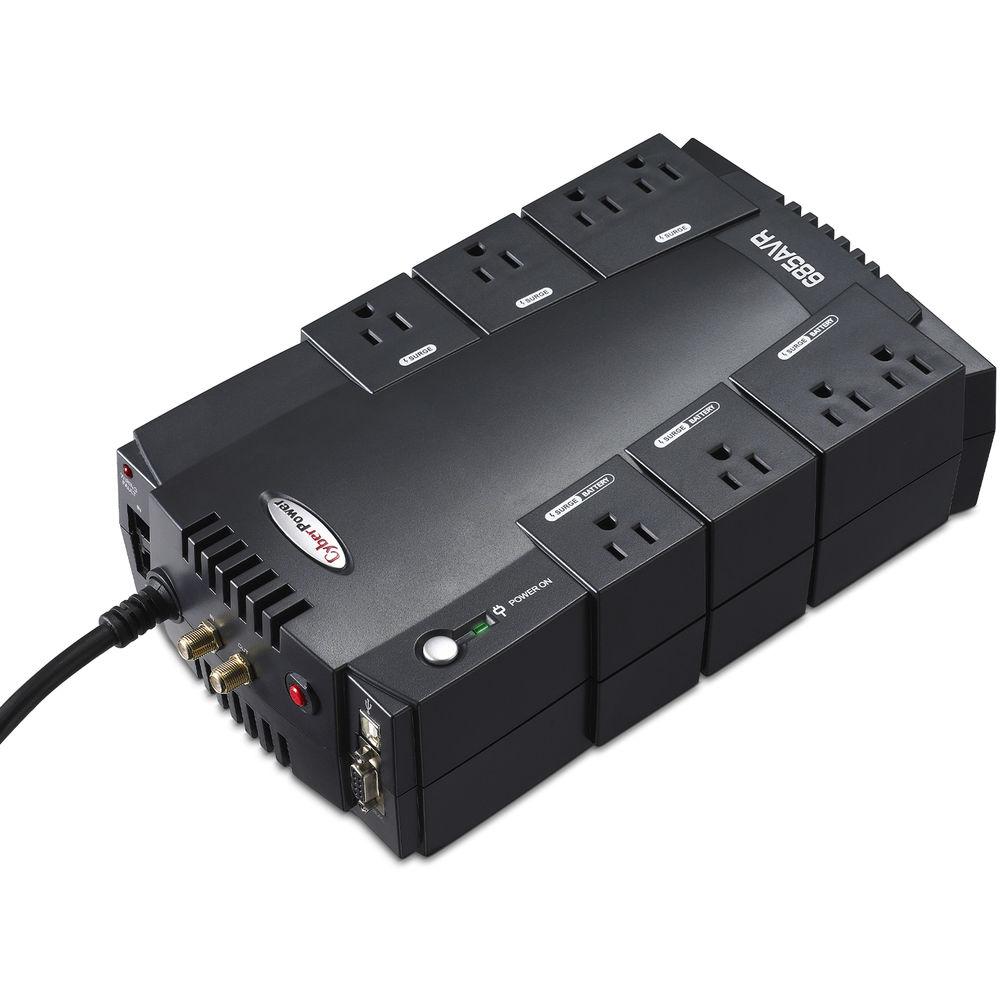

- Mounting Options
- Multiple mounting options: horizontal, vertical, cabinet, and wall
- Reduce Energy Cost & Energy Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- PowerPanel Personal Edition
- In event of a power outage, PowerPanel PE saves open files and hibernates the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns
- ISO & Safety Certifications
- The device is certified by the FCC, cUL, and UL
- Windows Compatibility
- The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
UPC: 649532004256 In the Box CyberPower CP685AVR AVR UPS $125,00 Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer uedsfqrswf Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP685AVR AVR UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP685AVR Specs | | | Total Outlets | 8 (4 Transformer-Sized) | | Protected Outlets | 4 (Battery and Surge)
4 (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Data Line Protection | RJ11, RJ45 | | Communications | USB | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 890 Joules | | Maximum Wattage | 390 W | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 685 VA | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Capacity | 96 Wh (8 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 10 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1280 | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 11.0 x 6.6 x 3.5" / 279.4 x 167.6 x 88.9 mm | | Weight | 15.0 lb / 6.8 kg | | | | Package Weight | 12.655 lb | | Box Dimensions (LxWxH) | 15.2 x 8.8 x 7.0" |
