User Manual for CyberPower CP825AVRLCD Intelligent LCD UPS Click to enlarge the picture
Contents of the user manual for the CyberPower CP825AVRLCD Intelligent LCD UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower CP825AVRLCD Intelligent LCD UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

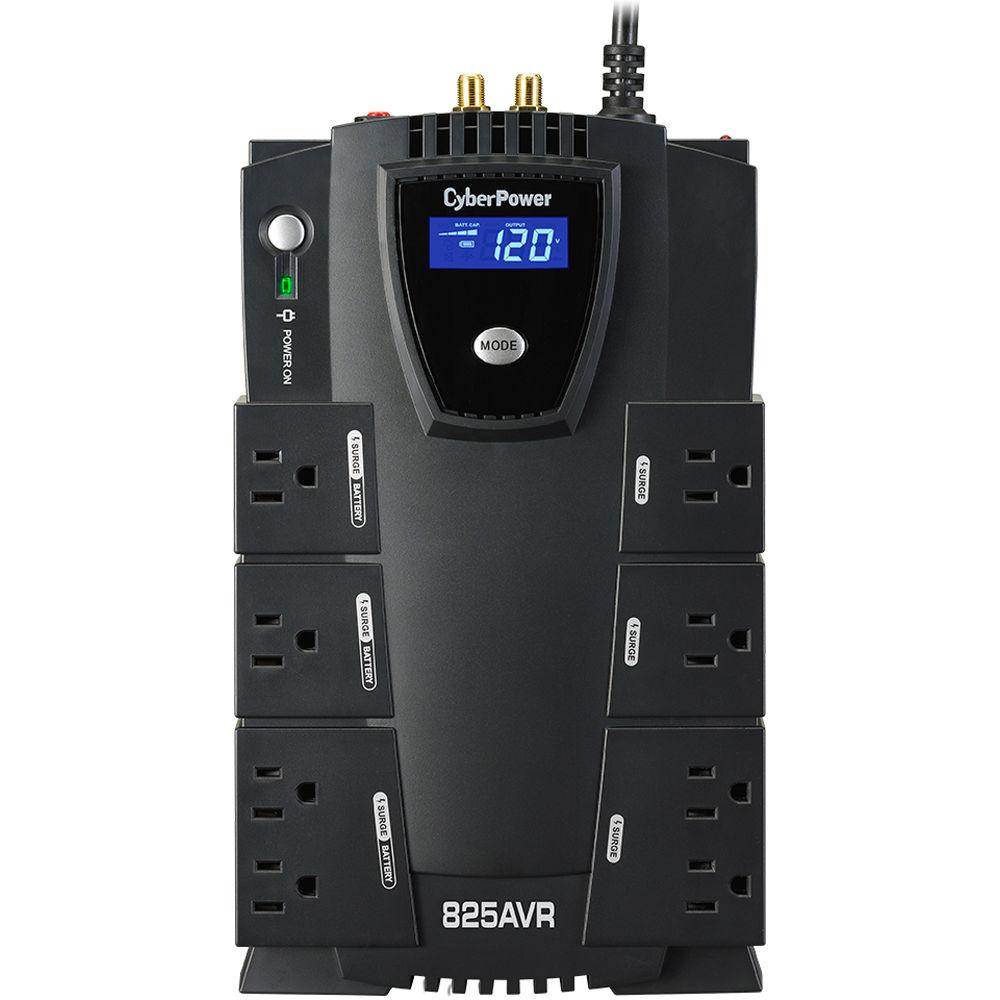

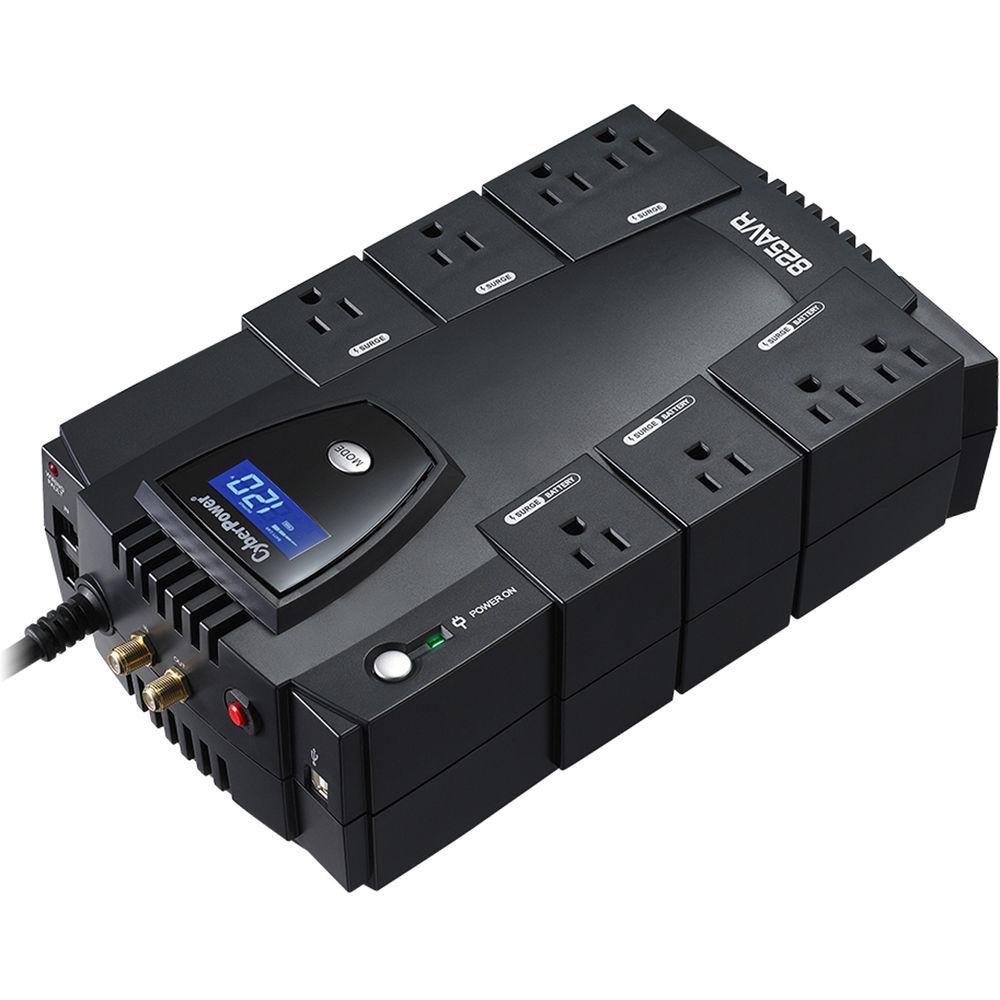

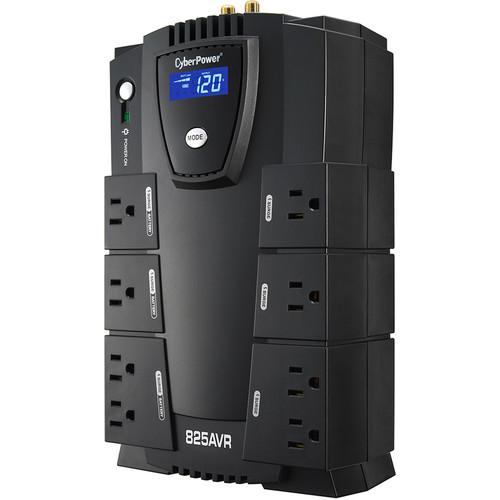

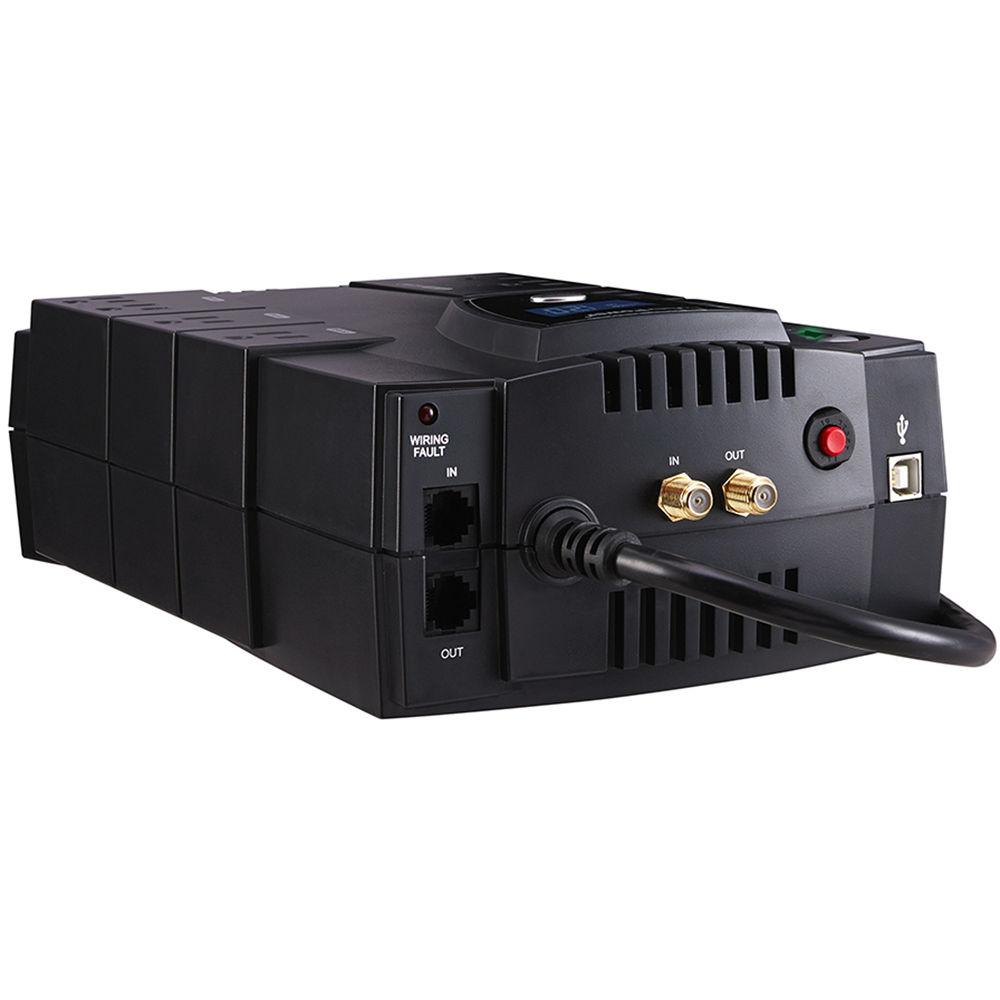

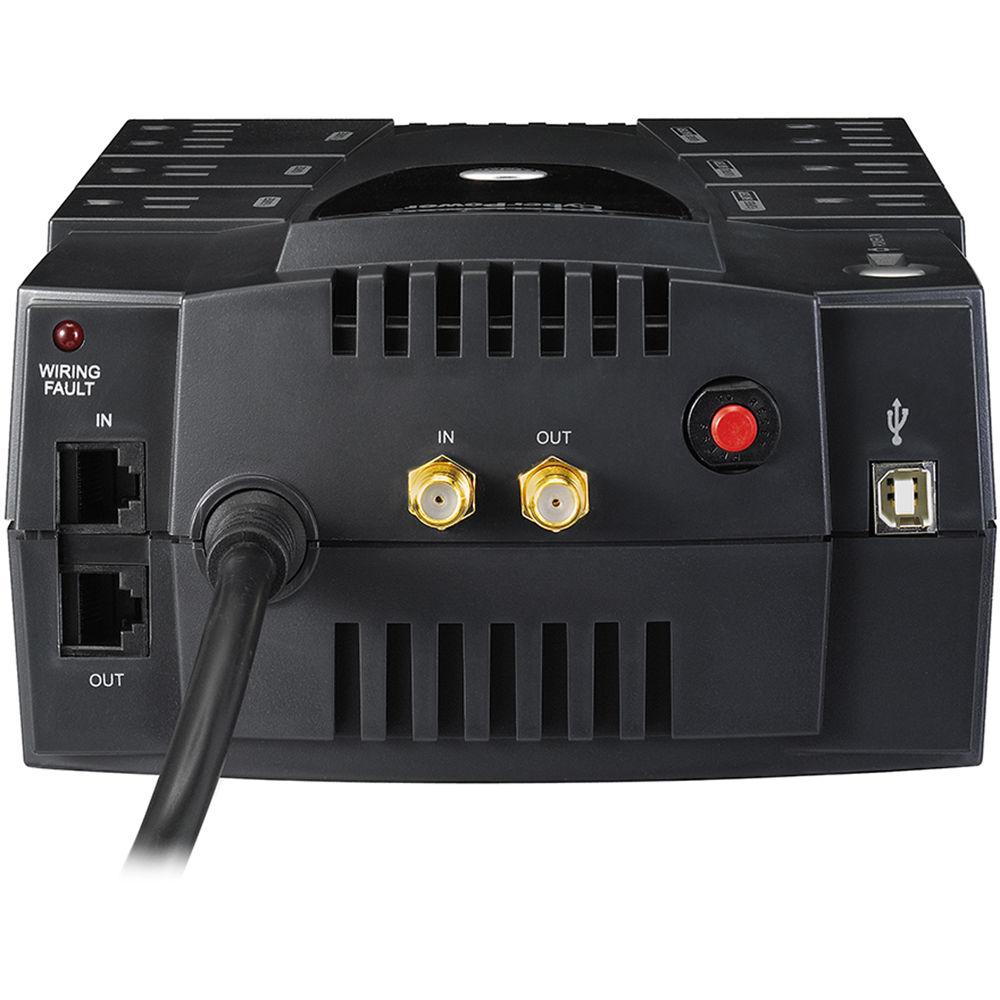

Product description Keep your computers, routers, network switches, home theater equipment, and other electronics running during a power outage with the CP825AVRLCD Intelligent LCD UPS from CyberPower. Capable of up to 825VA of power output, the CP825AVRLCD features a hot-swappable, user-replaceable 12V/9Ah battery, along with eight total outlets, four of which offer surge and battery protection, while the other four provide surge protection only. Audible alarms warn of changing power conditions, while the LCD display shows details about the UPS's status. EMI and RFI filtration help to protect your devices against electromagnetic and radio-frequency interference. The 6' power cord comes with a right-angle plug that's offset at 45°. The UPS comes with a lifetime $200,000 connected equipment guarantee. - Provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems
- Automatic Voltage Regulation (AVR) is designed to correct minor power fluctuations without switching to battery power, which helps to extend battery life. AVR is essential in areas where power fluctuations occur frequently
- A multifunction LCD panel to provide visibility into power conditions and UPS vitals
- Additional Features
- PowerPanel Personal software
HID-compliant USB port
Serial port
ENERGY-STAR certified
Overload protection: internal circuitry limiting and circuit breaker UPC: 649532108251 In the Box CyberPower CP825AVRLCD Intelligent LCD UPS (825VA) $200,000 Lifetime Connected Equipment Guarantee Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP825AVRLCD Intelligent LCD UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP825AVRLCD Specs | | | Total Outlets | 8 x NEMA 5-15R | | Protected Outlets | 4 x NEMA 5-15R (Battery and Surge)
4 x NEMA 5-15R (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 450 W | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 825 VA | | Waveform | Simulated Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 1.2 Minutes | | Half-Load Runtime | 13.5 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3048 m | | Storage Altitude | 50,000' / 15,240 m | | Certifications | FCC, RoHS, UL, as per Manufacturer | | | | Cable Length | 6' / 1.83 m | | Dimensions (W x H x D) | 11.0 x 6.8 x 3.5" / 279.4 x 172.7 x 88.9 mm | | Weight | 12.7 lb / 5.8 kg | | | | Package Weight | 14.15 lb | | Box Dimensions (LxWxH) | 15.5 x 9.1 x 8.1" |
