User Manual for CyberPower CP825LCD Intelligent LCD UPS Click to enlarge the picture
Contents of the user manual for the CyberPower CP825LCD Intelligent LCD UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower CP825LCD Intelligent LCD UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

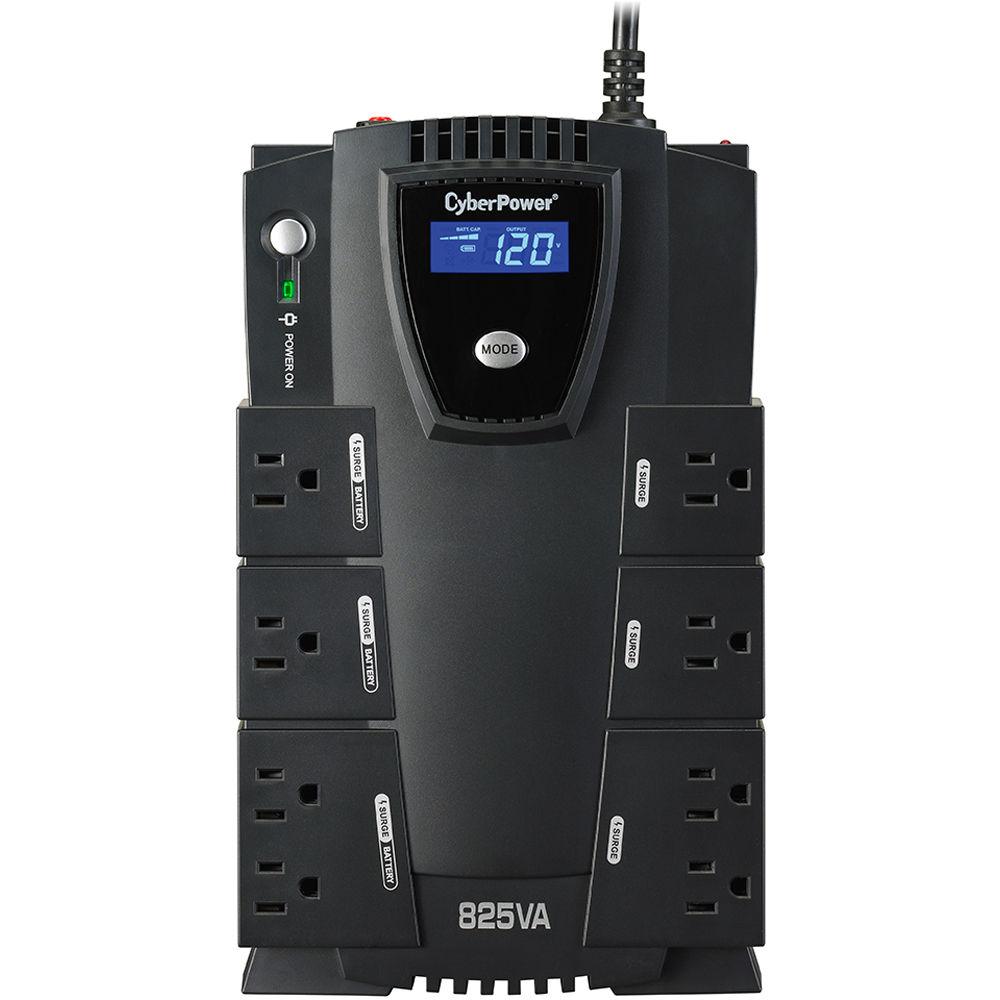

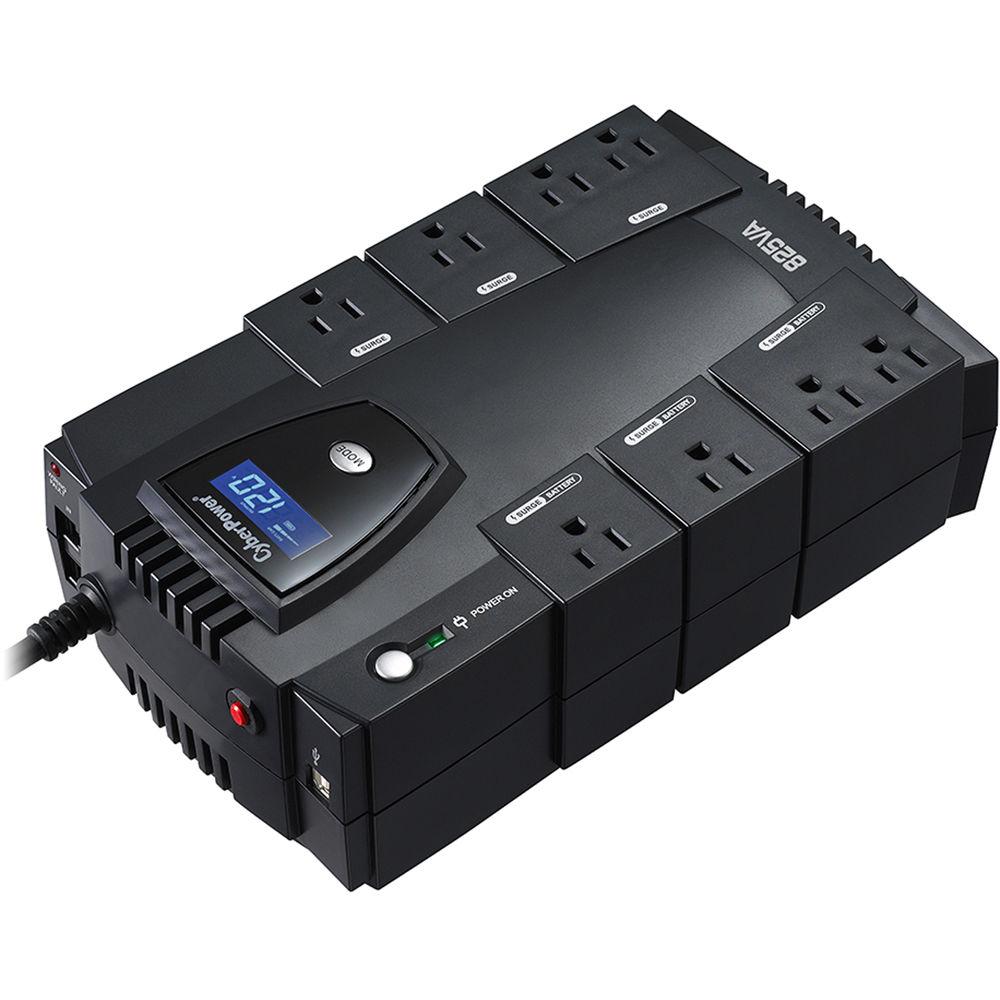

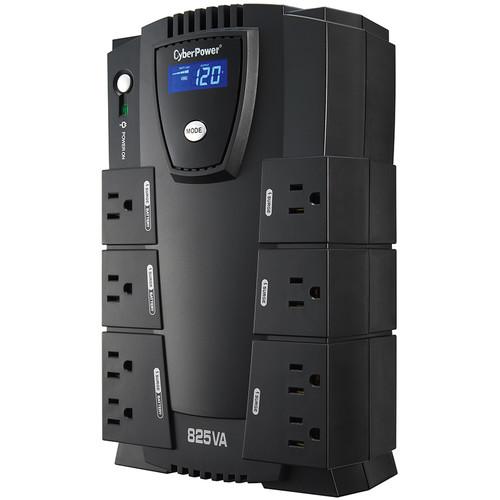

Product description Designed to protect SOHO networks, desktop computers, workstations, and other peripherals such as home theater equipment, personal electronics, routers & modems, VoIP phone systems, and more, the CP825LCD Intelligent LCD UPS from CyberPower comes equipped with an output capacity of 450W / 825 VA that delivers power for up to eight electronic devices. This Intelligent LCD UPS provides a multifunction LCD panel for displaying real-time UPS vitals, such as current/load level, runtime, battery level, input voltage, output voltage, battery in use, overload, silent mode, and normal mode. When running at full load, power is provided for up to 2 minutes and when running at half load, power is provided for up to 8 minutes. When fully depleted, its sealed lead-acid battery recharges in around 8 hours.

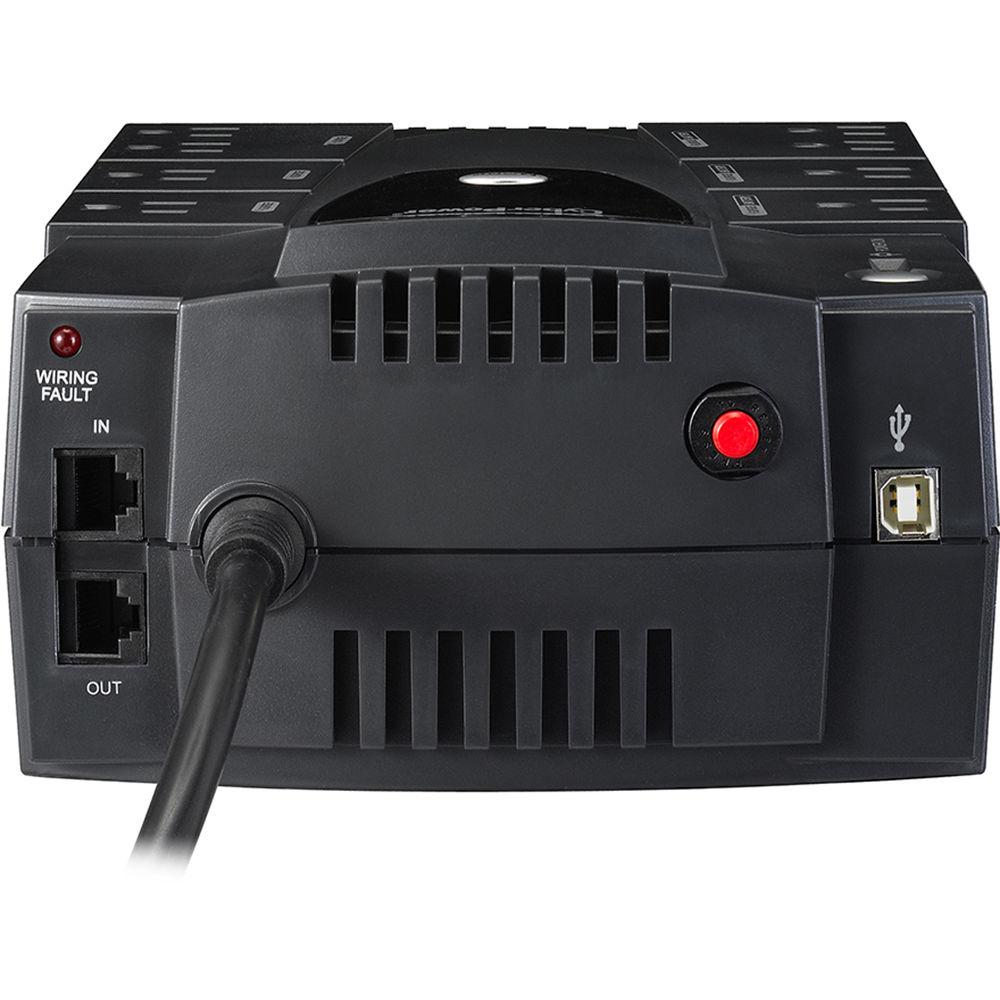

This compact power supply offers eight total NEMA 5-15R outlets that can absorb up to 1,080 joules to keep your devices safe against surges and spikes. To keep your devices powered during blackouts and brownouts, four of the NEMA 5-15R outlets are battery and surge protected using internal circuitry limiting and a circuit breaker, while the other four just provide surge protection. Other connections offered are USB Type-B, Ethernet RJ45, and Phone RJ11. Power input to this UPS is handled via a NEMA 5-15P 90° plug and 6' power cord, and the supported input voltage is 100-140 VAC at 57-63 Hz.
This power supply is ENERGY STAR qualified and includes PowerPanel Personal Edition software. This software provides a user-friendly dashboard interface for controlling and monitoring the UPS. Also included is a USB Type-A to Type-B cable and a telephone cable. This CyberPower UPS is protected by a limited 3-year warranty and provides a lifetime connected equipment guarantee of up to $225,000. General Features - Battery Backup
- Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to help prevent damage.
- Data Line Protection
- Helps prevent power surges that travel through telephone and Ethernet lines from causing damage to electronics.
- Standby Topology
- Helps ensure that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power, which it converts to AC power to run connected equipment.
- Simulated Sine Wave Output
- Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power.
- Multifunction LCD Panel
- Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Quiet Design
- Helps minimize noise during operation for a quieter work environment.
- PowerPanel Personal Edition Software
- Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
- ENERGY STAR
- This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
- Three-Year Warranty
- CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.
- Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
UPC: 649532018253 In the Box CyberPower CP825LCD Intelligent LCD UPS USB Type-A to Type-B Cable Telephone Cable $225,000 Connected Equipment Guarantee Limited Lifetime Connected Equipment Guarantee Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CP825LCD Intelligent LCD UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP825LCD Specs | | | Total Outlets | 8 (4 Transformer-Sized) | | Protected Outlets | 4 (Battery and Surge)
4 (Surge Only) | | Plug Type | NEMA 5-15P Right-Angle | | Data Line Protection | RJ11, RJ45 | | Topology | Standby | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 450 W | | Input Voltage Range | 100 to 140 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 825 VA | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Capacity | 102 Wh (8.5 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 8 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1280A | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 11.0 x 6.5 x 3.5" / 27.9 x 16.5 x 8.9 cm | | Weight | 15.0 lb / 6.8 kg | | | | Package Weight | 13.8 lb | | Box Dimensions (LxWxH) | 15.4 x 9.0 x 8.0" |
